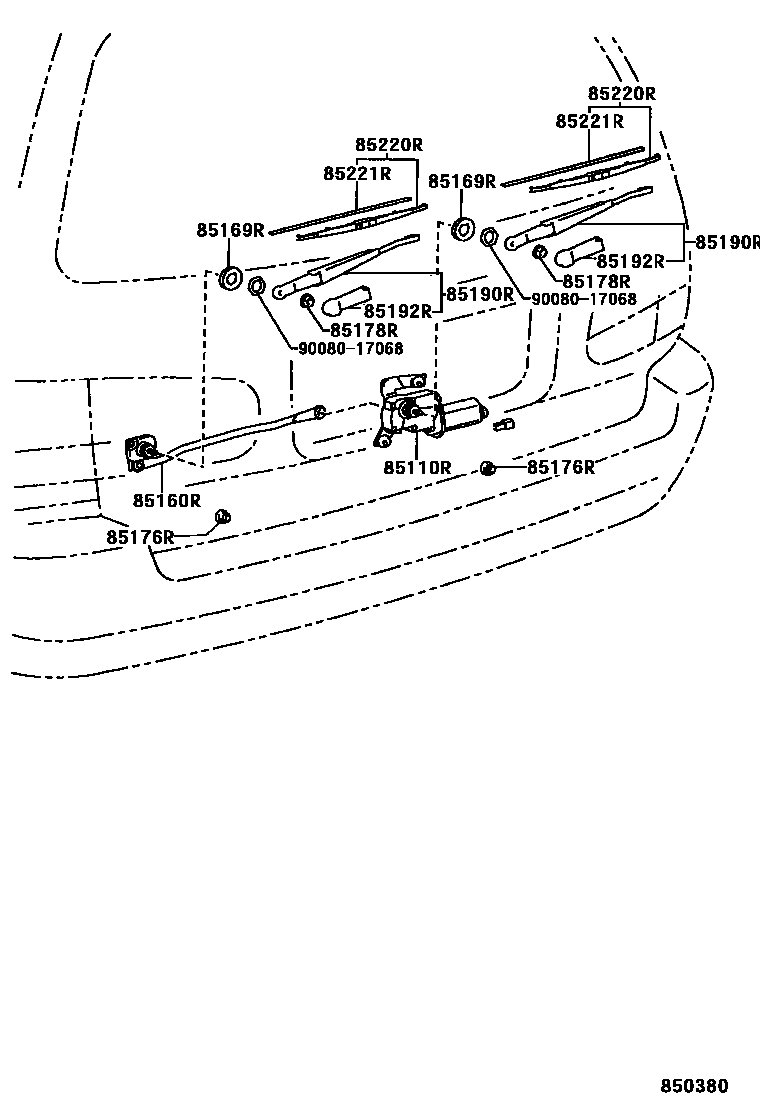

Toyota CAMRY 后刮水器 — Figure 8502
Toyota CAMRY EPC diagram 8502, 后刮水器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-06010 · 85130-06011 |
| 85160R | Rear wiper connecting rod assembly | 85170-06010 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-06010 |
| 85176R | Rear wiper connecting rod cover | 85176-06010 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85241-06010 |
| 85192R | Rear wiper arm cover | 85245-06010 |
| 85220R | Rear wiper blade assembly | 85242-06010 |
| 85221R | Rear wiper blade | 85243-06010 |
