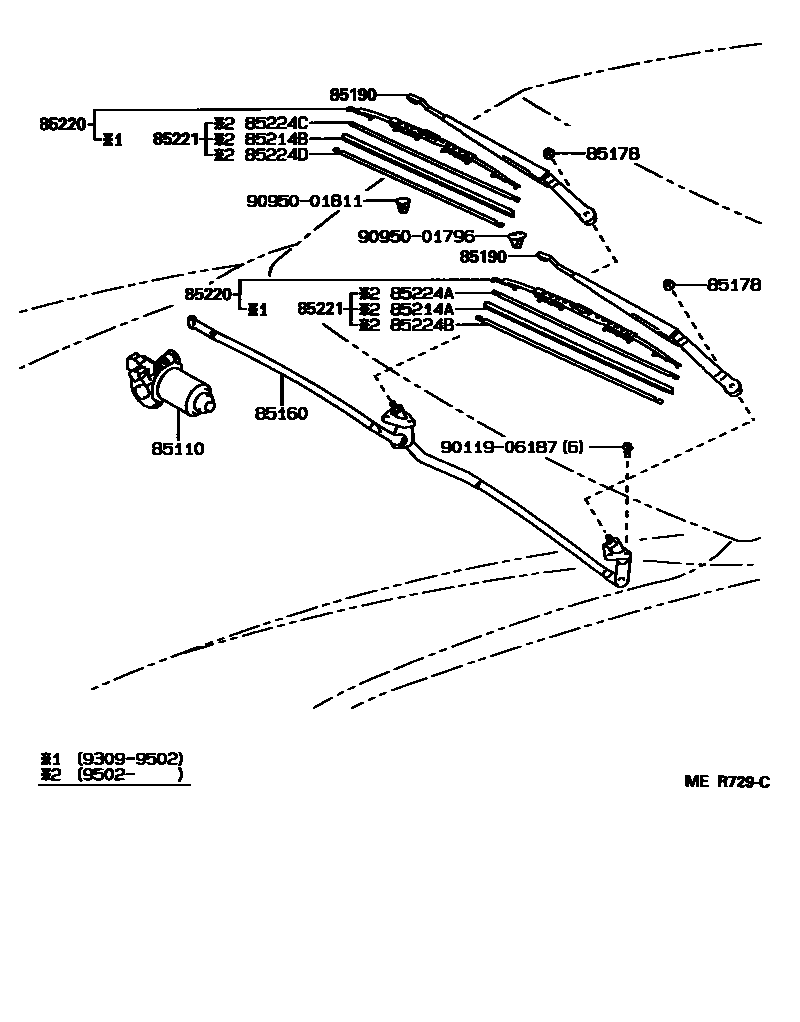

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-06010 · 85110-06020 · 85110-33020 · 85110-33110 |
| 85160 | Windshield wiper connecting rod assembly | 85150-06010 · 85150-33021 |
| 85178 | Nut (for securing front wiper arm) | 90176-08040 · 90176-08051 |
| 85190 | Windshield wiper arm assembly | 85211-06010 · 85211-33010 · 85221-06010 · 85221-33010 |
| 85214A | Right wiper rubber strip | 85214-33020 |
| 85214B | Left wiper rubber strip | 85214-33050 |
| 85220 | Windshield wiper blade assembly | 85212-06010 · 85212-33011 · 85222-06010 · 85222-33111 |
| 85221 | Windshield wiper blade | 85213-06011 · 85223-06011 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-20300 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-20300 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-33050 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-33050 |
