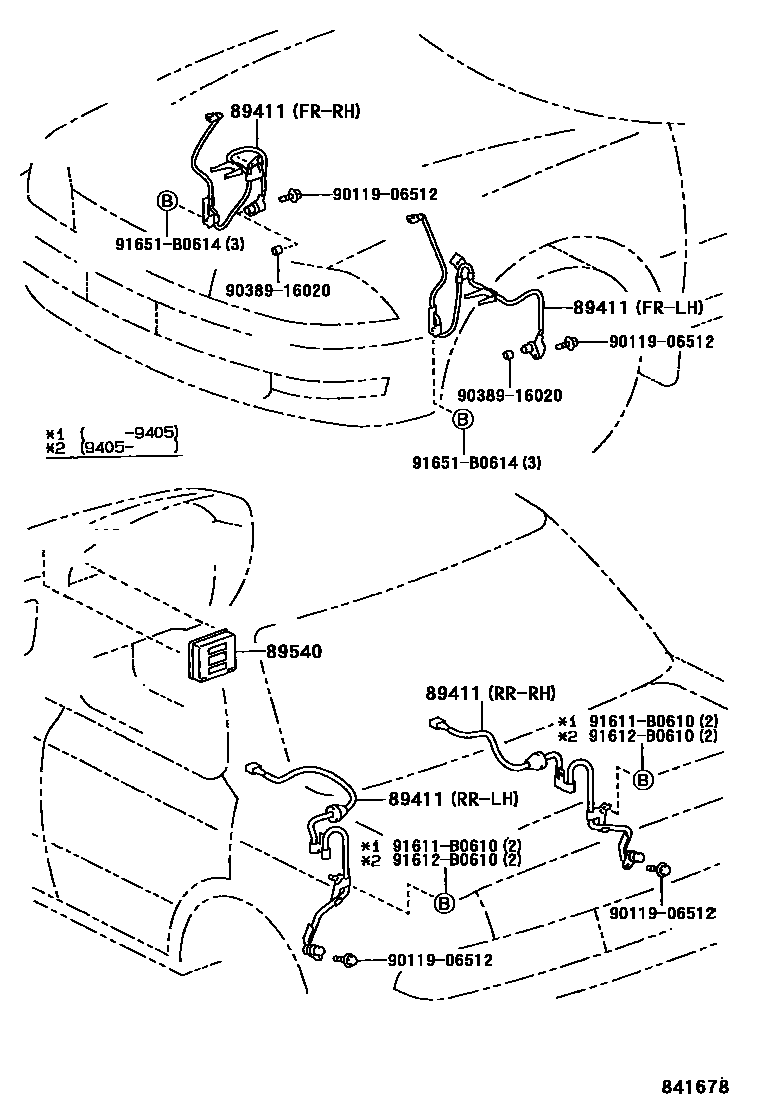

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89411 | Speed sensor | 89542-33010 · 89543-33010 · 89545-33010 · 89546-33010 |
| 89540 | Anti-skid control ECU assembly | 89541-06010 · 89541-06021 |
