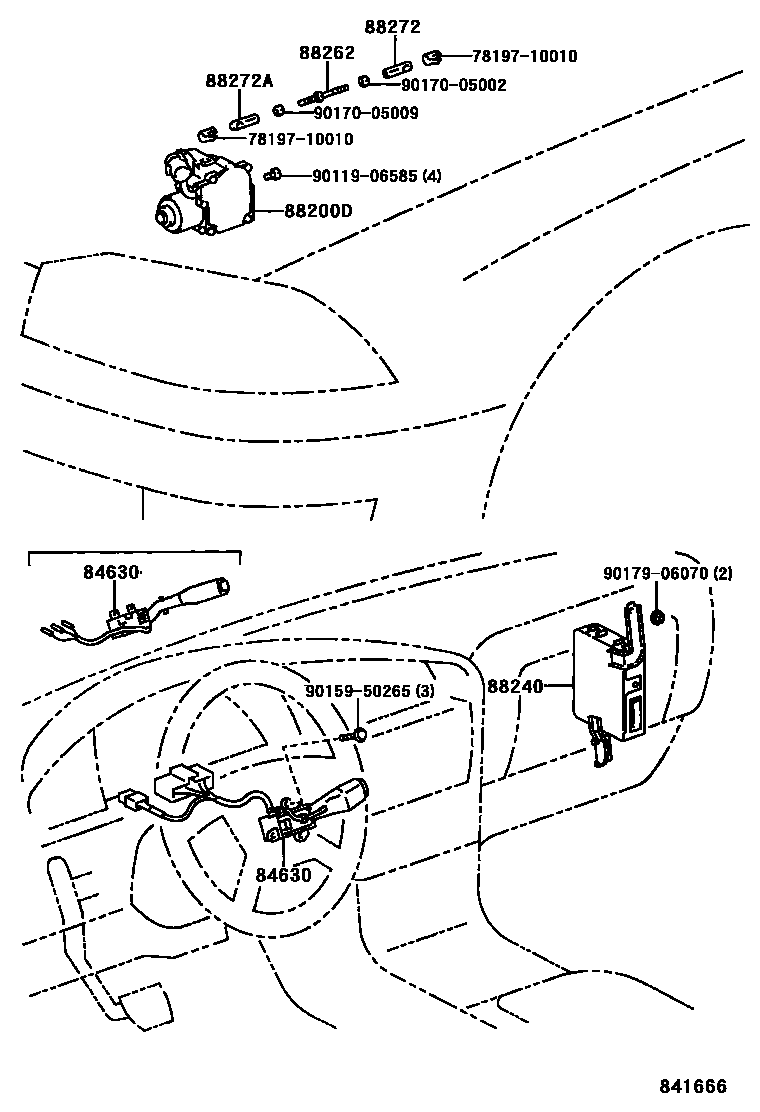

Toyota CAMRY 巡航控制(自动行驶) — Figure 8408
Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84630 | Cruise control main switch assembly | 84630-06020 |
| 88200D | Cruise control actuator assembly | 88200-33010 · 88200-33020 |
| 88240 | Cruise control ECU assembly | 88240-33060 · 88240-33070 |
| 88262 | speed control lever | 88206-33010 |
| 88272 | Speed control lever end | 88272-33010 |
| 88272A | Speed control lever end | 88272-33020 |
