Toyota CAMRY 电子燃油喷射系统 — Figure 8404

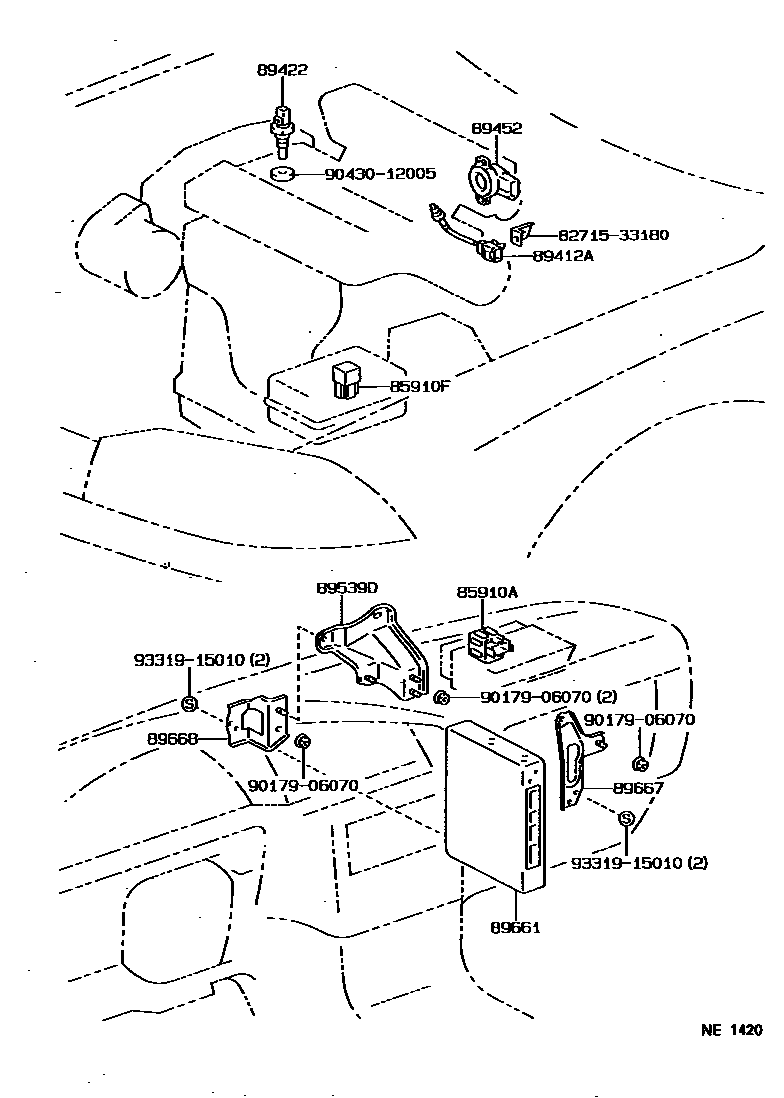

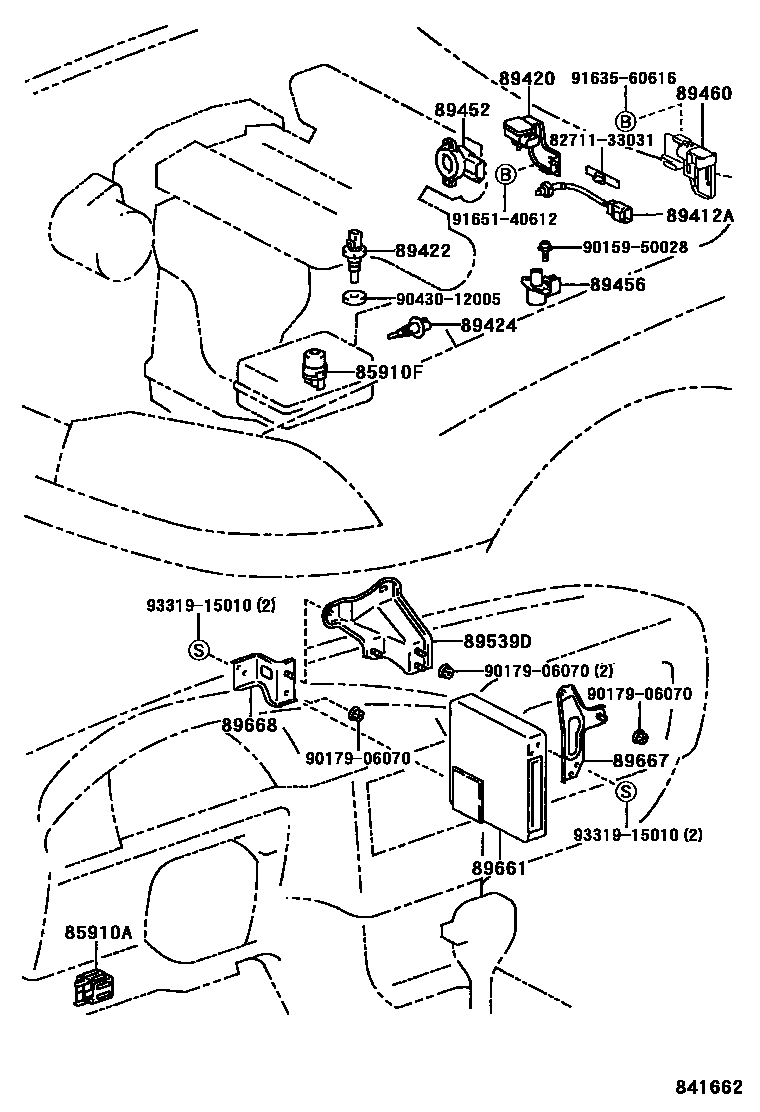

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-33010 |
| 85910F | ECU relay (for EFI) | 90084-98009 · 90987-02004 · 90987-02009 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-33040 · 89412-33050 |
| 89420 | Vacuum sensor assembly | 89420-06010 · 89420-06020 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-06010 · 89452-22090 · 89452-32060 · 89452-33010 |
| 89456 | variable resistor | 89456-50010 |
| 89460 | Steam pressure sensor assembly | 89460-33020 |
| 89539D | ECU bracket | 89539-33050 |
| 89661 | Engine control ECU | 89661-06150 · 89661-06180 · 89661-06190 · 89661-06220 · 89661-06250 · 89661-06310 · 89661-33230 · 89661-33240 · 89661-33510 · 89661-33530 |
| 89667 | Engine control ECU bracket | 89667-06030 · 89667-33010 · 89667-33050 |
| 89668 | No. 2 engine control ECU bracket | 89668-06030 · 89668-06040 · 89668-33010 · 89668-33040 · 89668-33050 |
