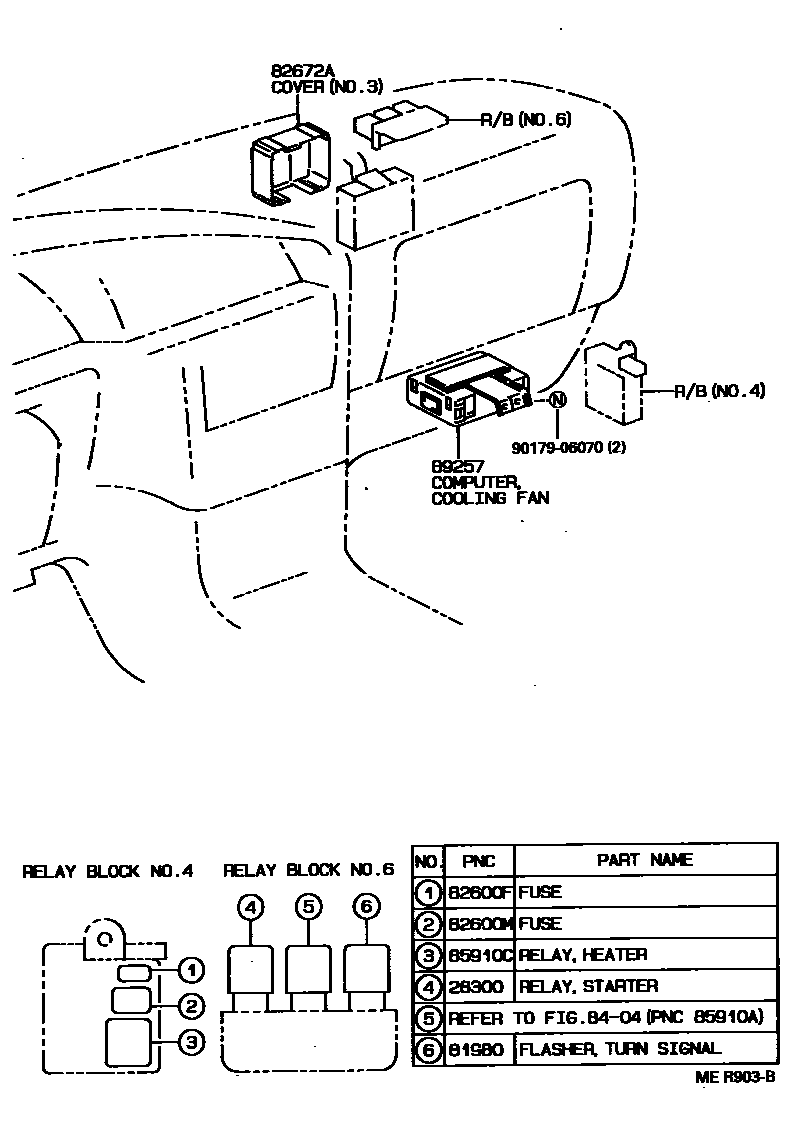

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 11 images and 87 PNC and OE references.
PNC and OE references

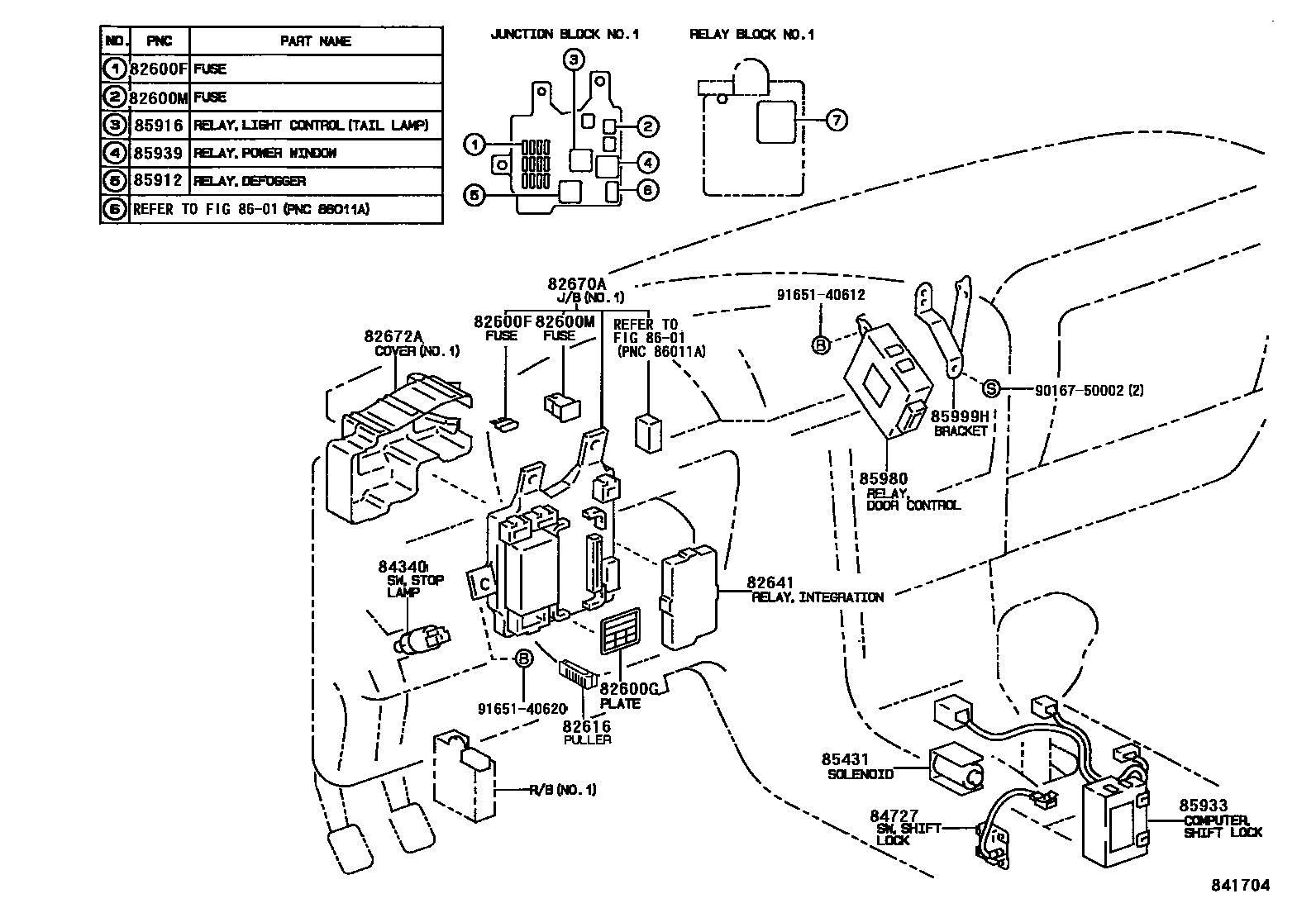

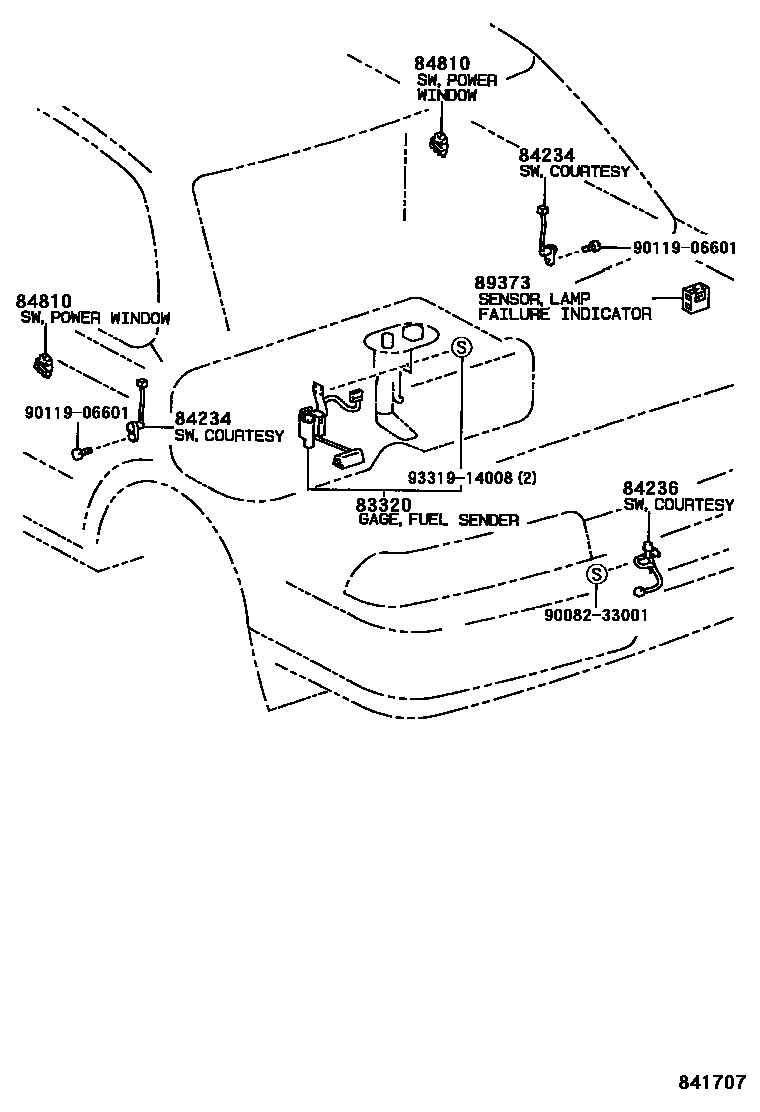

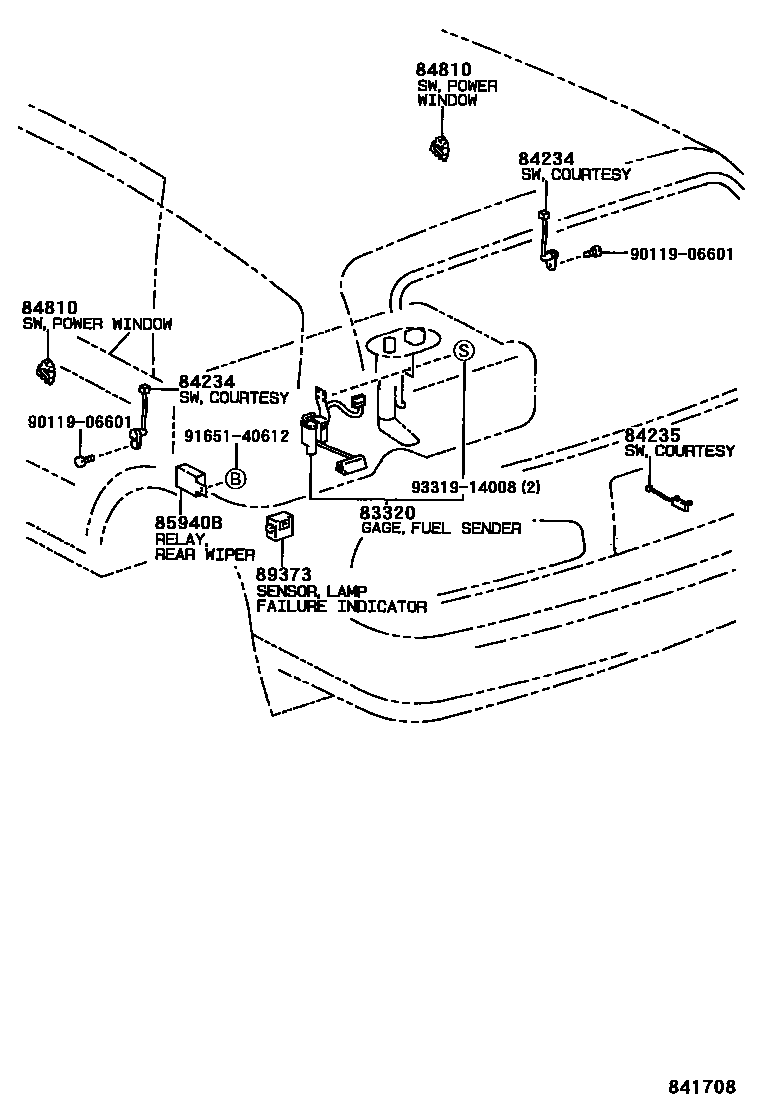

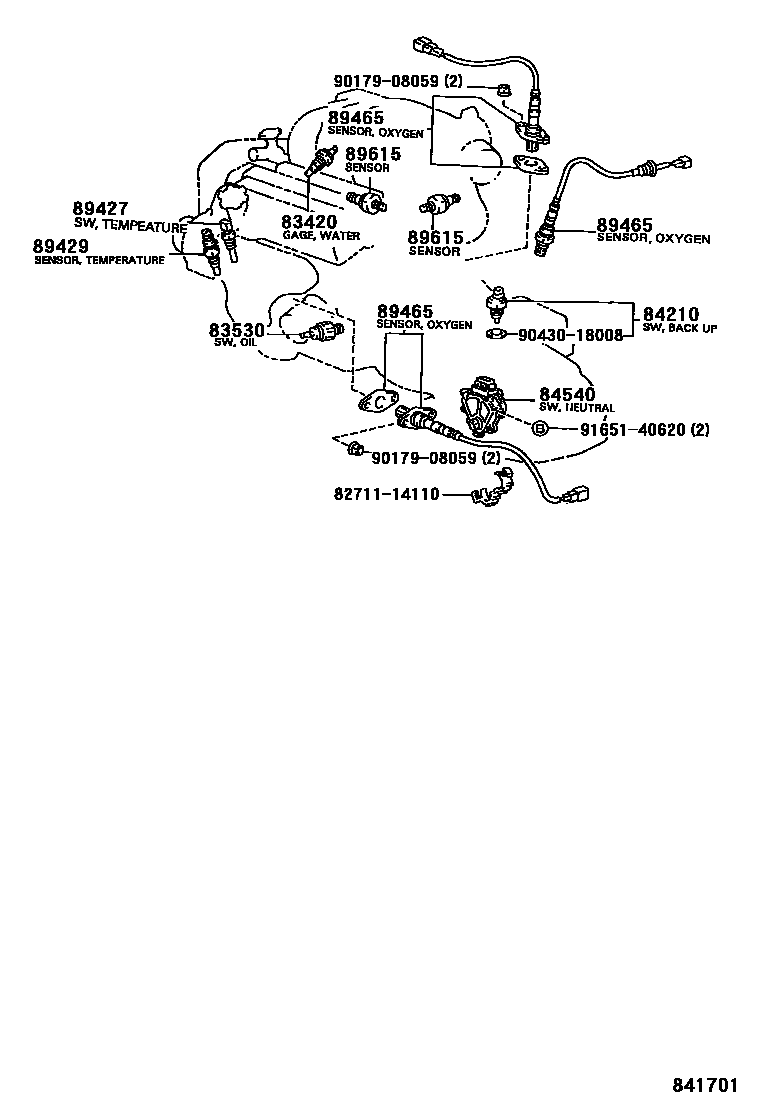

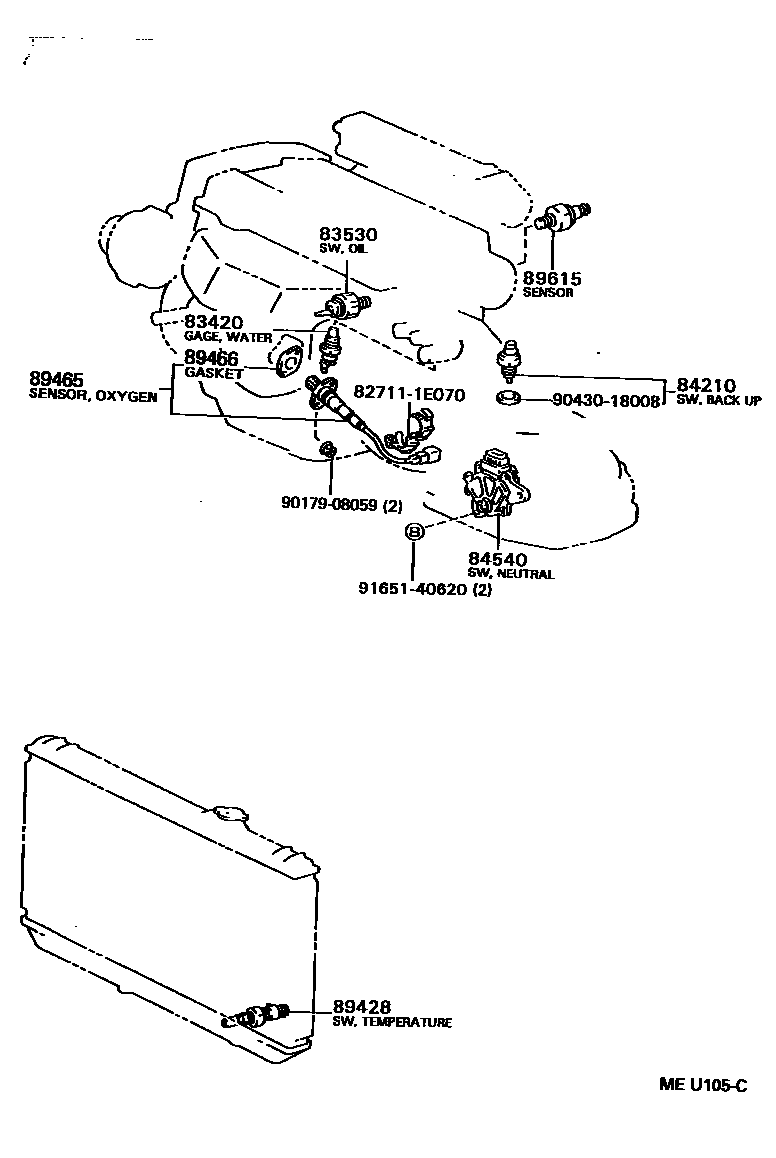

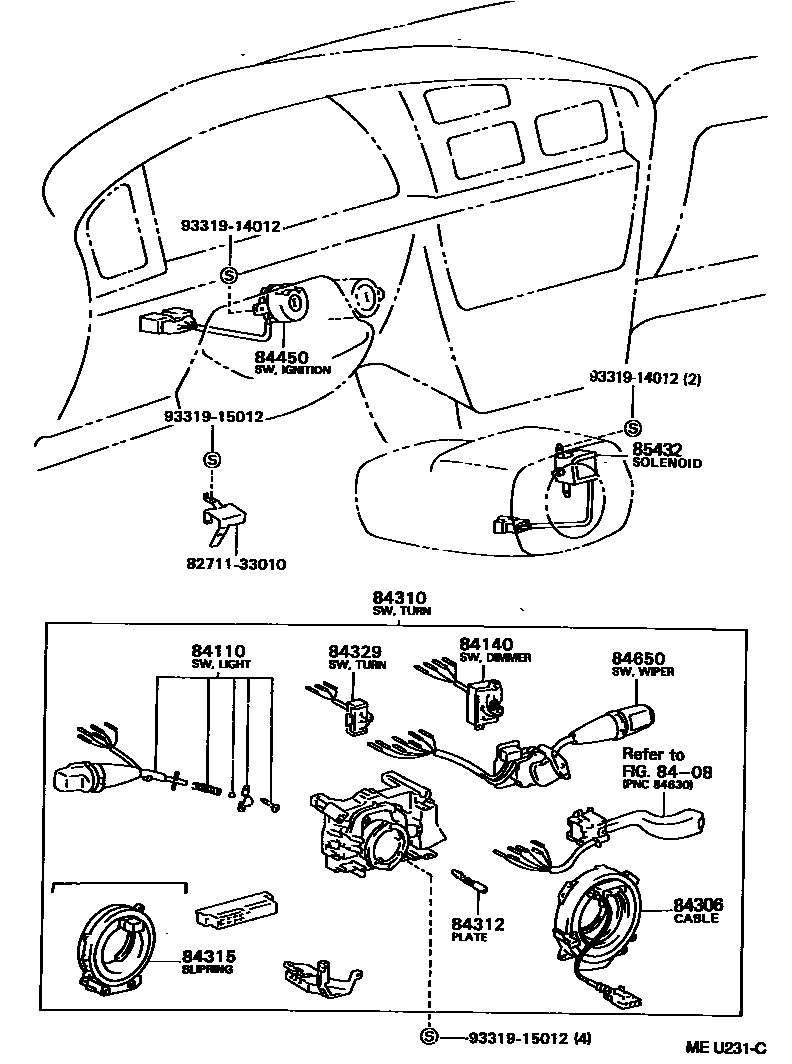

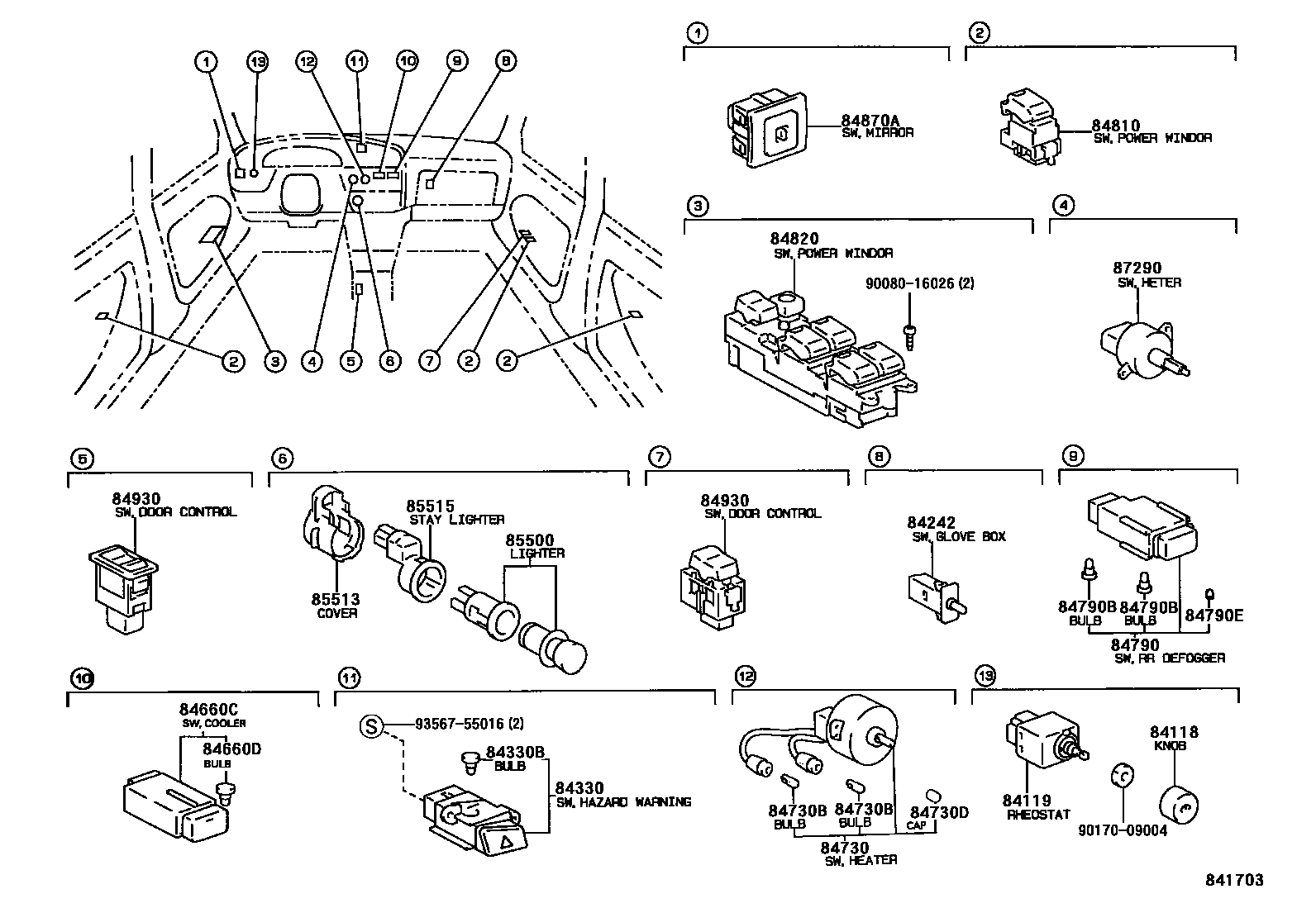

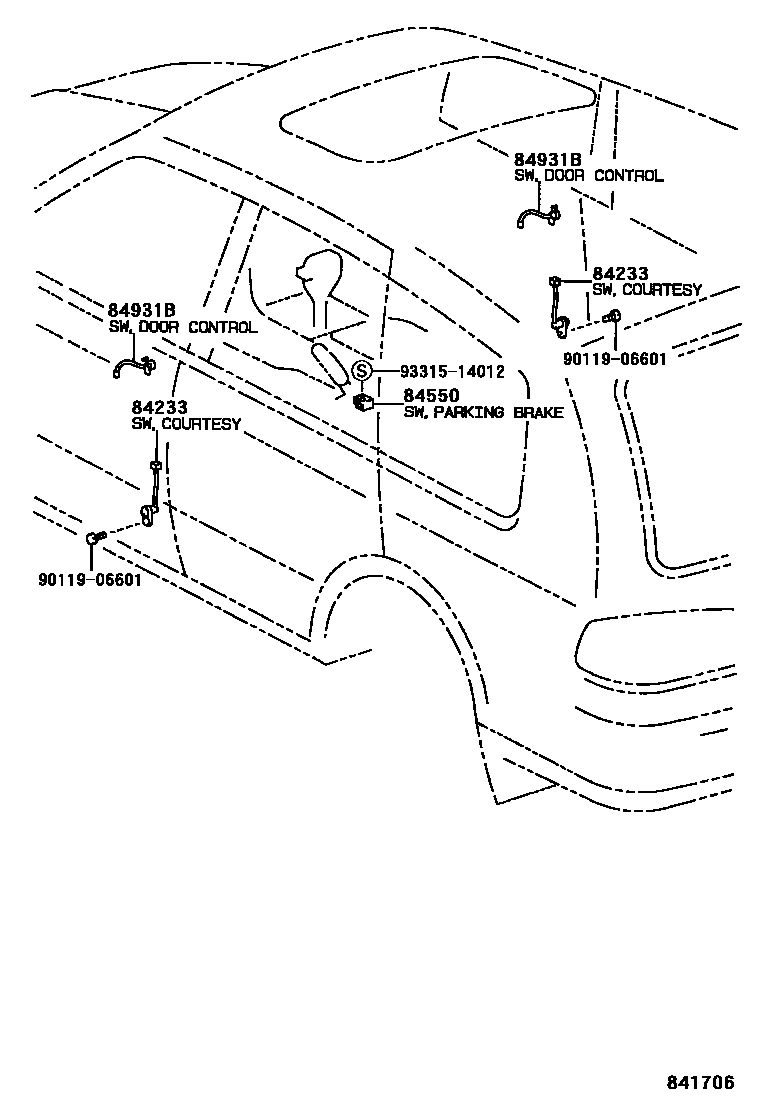

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 · 28300-16010 |
| 28371 | No. 1 ignition relay | 85925-17010 · 90987-04002 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 · 81980-50010 |
| 82600F | Spare fuse | 90080-82005 · 90080-82012 · 90080-82013 · 90080-82014 · 90080-82015 · 90080-82019 · 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 |
| 82600G | Warning nameplate (for fuses) | 82683-33010 · 82683-33050 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82616 | fuse puller | 82616-12020 |
| 82616A | No.2 fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-06010 · 82641-06020 · 82641-33041 |
| 82661 | No. 1 relay box cover | 82662-33030 · 82662-33031 · 82662-33080 · 82662-33090 · 82663-33010 |
| 82670A | No. 1 junction box assembly | 82670-33030 · 82670-33060 · 82670-33091 · 82720-33030 · 82720-33040 |
| 82672A | Junction box cover | 82672-33030 · 82672-33040 · 82672-33050 · 82672-33100 · 82672-33101 · 82672-33130 · 82674-33010 · 82674-33020 |
| 82673A | Junction box bracket | 82673-33010 |
| 82824L | Shorting pin | 82824-20140 |
| 83320 | Fuel gauge sensor assembly | 83320-80204 |
| 83420 | Water temperature sensor assembly | 83420-16040 · 83420-16050 · 83420-20030 · 83420-20040 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14060 · 83530-30090 |
| 84110 | No. 1 light control switch assembly | 84112-06020 · 84112-80094 · 84112-80129 |
| 84118 | Light control rheostat button | 84118-06010 |
| 84119 | Light control rheostat | 84119-06010 · 84119-33040 |
| 84140 | Headlight dimmer switch assembly | 84140-03010 · 84140-06020 · 84140-20350 · 84140-20400 · 84140-33090 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-32040 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12080 · 84231-32050 |
| 84235 | Door control light switch assembly (for back door) | 84231-33021 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20200 · 84231-41010 |
| 84242 | Glove box light switch | 84242-20030 |
| 84306 | Spiral cable sub-assembly | 84306-02010 · 84306-33020 |
| 84310 | Turn signal switch assembly | 84310-06030 · 84310-06040 · 84310-33190 · 84310-33191 · 84310-33230 |
| 84312 | Speaker contact piece | 84312-12050 |
| 84315 | Speaker contact slip ring | 84315-33020 |
| 84329 | turn signal switch | 84329-20110 |
| 84330 | Hazard warning signal switch assembly | 84332-06010 · 84332-33030 |
| 84330B | Hazard warning signal switch light bulb | 84999-06030 · 84999-10320 |
| 84340 | brake light switch assembly | 84340-32090 · 84340-32110 |
| 84450 | Ignition or starter switch assembly | 84450-33020 |
| 84540 | Neutral start switch assembly | 84540-20200 · 84540-20220 |
| 84550 | Parking brake switch assembly | 84550-30040 · 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-06030 · 84652-06040 · 84652-33210 · 84652-33270 |
| 84660C | Cooler switch | 84660-06010 |
| 84660D | Light bulb (for cooler switch) | 88607-06010 |
| 84727 | Shift lock control switch | 84727-06010 · 84727-33010 |
| 84730 | Heater blower switch assembly | 84732-06010 · 84732-06020 |
| 84730B | heater blower switch light bulb | 84999-06020 · 90069-98004 |
| 84730D | Heater blower switch bulb cover | 90069-09006 |
| 84742 | Sliding sunroof limit switch | 84742-32031 |
| 84790 | Rear window defogger switch assembly | 84790-06010 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10410 · 84999-10450 |
| 84790E | Bulb cover (for rear window defogger switch) | 84998-10060 |
| 84810 | Electric window lift switch assembly | 84810-06010 |
| 84820 | Electric window lift main switch assembly | 84820-06010 · 84820-06011 · 84820-33060 |
| 84870A | Exterior rearview mirror switch assembly | 84870-06010 |
| 84922 | Front electric seat switch | 84922-33020 |
| 84930 | Door control switch assembly | 84930-06010 · 84930-06011 · 84930-20050 · 84930-33020 · 84930-33040 |
| 84931B | door control switch | 84931-32070 · 84931-33010 |
| 85431 | Shift lock solenoid valve | 85431-33010 |
| 85432 | Key interlock solenoid valve | 85432-32030 |
| 85500 | Cigarette lighter assembly | 85500-06011 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-06011 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90084-98009 · 90987-02009 |
| 85916 | Light control relay | 90084-98009 · 90987-02006 · 90987-02009 |
| 85921 | Sliding sunroof control relay | 85921-32040 · 85921-33010 |
| 85927 | cooling fan relay | 90084-98009 · 90084-98011 · 90987-02009 · 90987-03003 |
| 85927A | Cooling fan relay No. 2 | 90084-98010 · 90987-04003 |
| 85933 | Shift lock control ECU | 85933-33020 |
| 85939 | Power window relay | 90084-98009 · 90987-02009 |
| 85940B | Rear wiper relay assembly | 85940-33030 |
| 85980 | Door control relay assembly | 85980-33060 · 85980-33080 |
| 85999A | No. 2 relay bracket | 85999-33050 |
| 85999H | Relay bracket | 85999-33030 · 85999-33130 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 87290 | Heater switch assembly | 87290-06010 |
| 88630G | Cooler relay assembly | 90987-02009 |
| 88630H | Cooler relay assembly | 90987-04003 |
| 88630R | No. 3 cooler relay assembly | 90987-02009 |
| 89257 | Cooling fan ECU | 89257-33030 |
| 89373 | Malfunction indicator light sensor | 89373-06010 · 89373-06020 · 89373-06030 |
| 89427 | Temperature detection switch | 89428-30130 |
| 89428 | No. 2 temperature detection switch | 89428-33010 · 89428-41010 |
| 89429 | oil temperature sensor | 89429-33010 |
| 89465 | oxygen sensor | 89465-33010 · 89465-33030 · 89465-33080 · 89465-33090 · 89465-39425 · 89465-80002 |
| 89466 | Oxygen sensor pad | 89466-20020 |
| 89615 | knock control sensor | 89615-12040 · 89615-20030 · 89615-33020 |
| 89620 | Ignition assembly | 89621-16020 · 89621-33020 · 89621-35011 |
| 89629 | Ignition bracket assembly | 89629-33010 · 89629-33030 · 89629-33050 · 89629-33060 · 89629-33070 · 89629-33090 |
