Toyota CAMRY 仪表 — Figure 8301

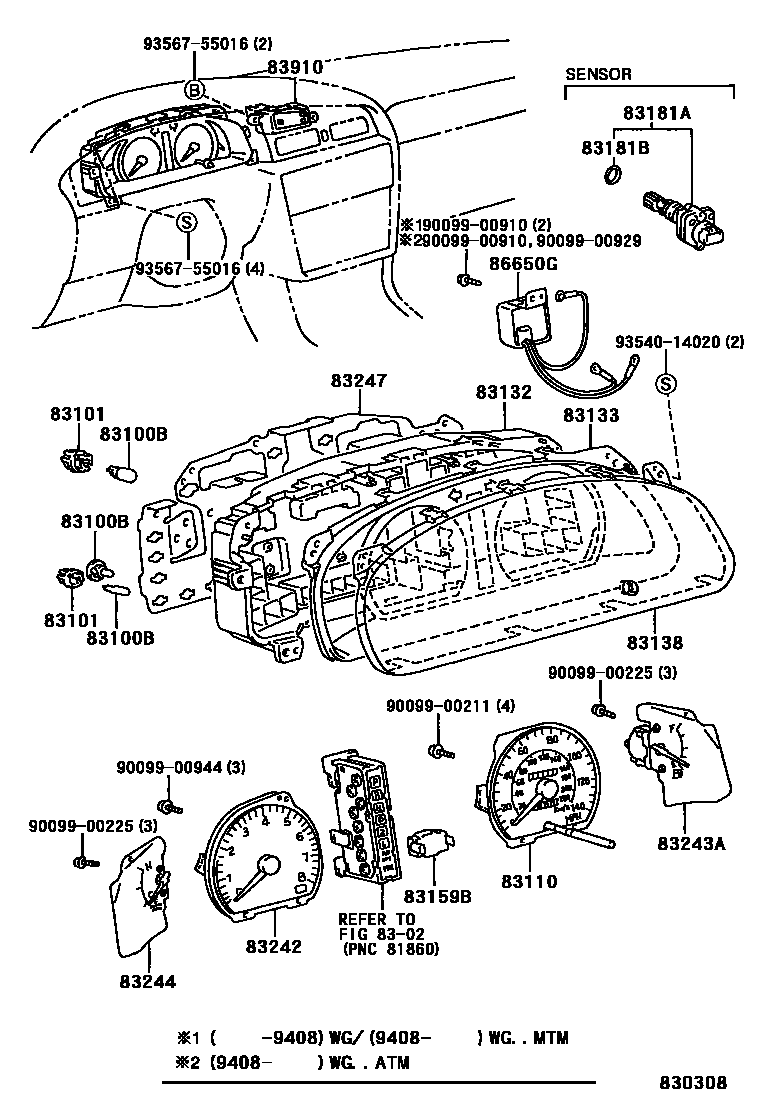

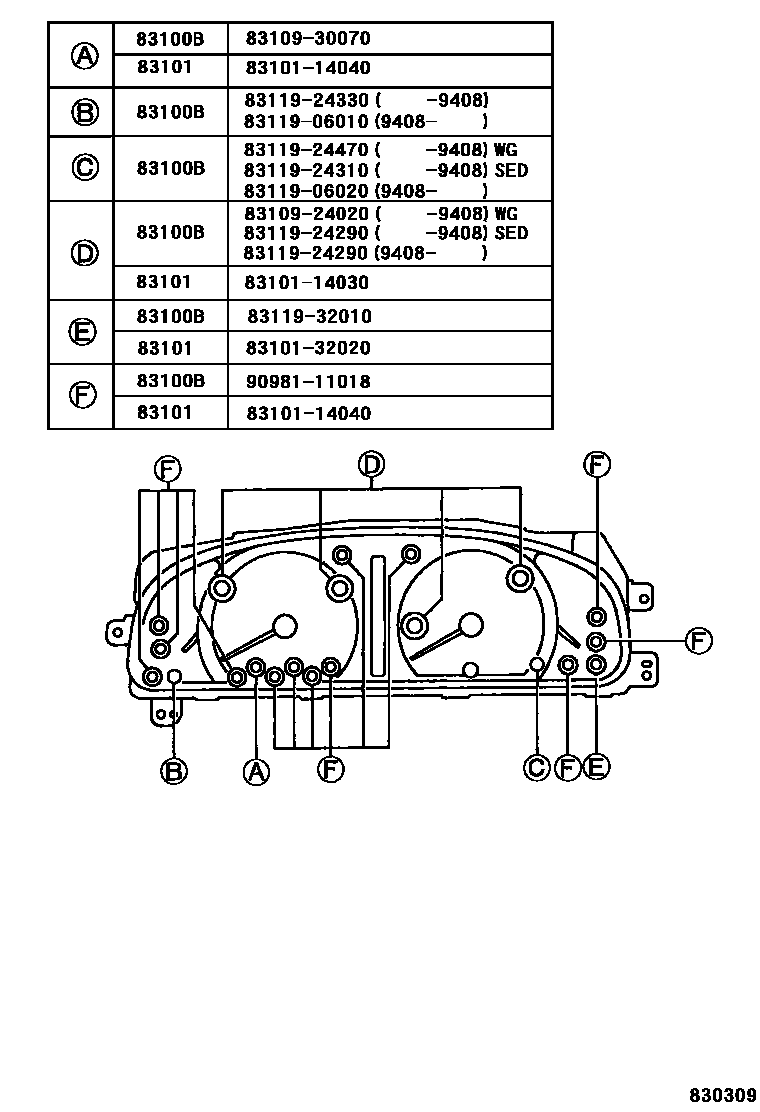

Toyota CAMRY EPC diagram 8301, 仪表, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-24020 · 83109-30070 · 83119-06010 · 83119-06020 · 83119-24290 · 83119-24310 · 83119-24330 · 83119-24470 · 83119-32010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-32020 |
| 83110 | Speedometer assembly | 83110-06020 · 83110-06070 |
| 83132 | Instrument cluster housing | 83132-06010 · 83132-33070 |
| 83133 | Combined instrument panel No. 1 | 83133-06010 · 83133-06020 · 83133-33030 · 83133-33050 |
| 83138 | speedometer glass | 83138-06010 · 83138-33030 |
| 83159B | Instrument relay assembly | 83159-22170 |
| 83181A | speedometer sensor | 83181-12030 · 83181-12040 · 83181-32030 |
| 83181B | O-ring (for speedometer sensor) | 96711-24018 |
| 83242 | Engine tachometer assembly | 83242-06030 · 83242-06040 · 83242-33070 · 83242-33350 |
| 83243A | Fuel gauge sub-assembly | 83243-06010 · 83243-33030 |
| 83244 | Water temperature meter sub-assembly | 83244-06020 · 83244-06030 · 83244-33130 · 83244-33190 |
| 83247 | Instrument circuit board | 83247-06010 · 83247-06020 · 83247-06030 · 83247-33110 · 83247-33150 · 83247-33450 |
| 83910 | clock assembly | 83910-06010 · 83910-06011 |
| 86650G | Buzzer assembly | 86650-33010 |
