Toyota CAMRY 后牌照灯 — Figure 8113

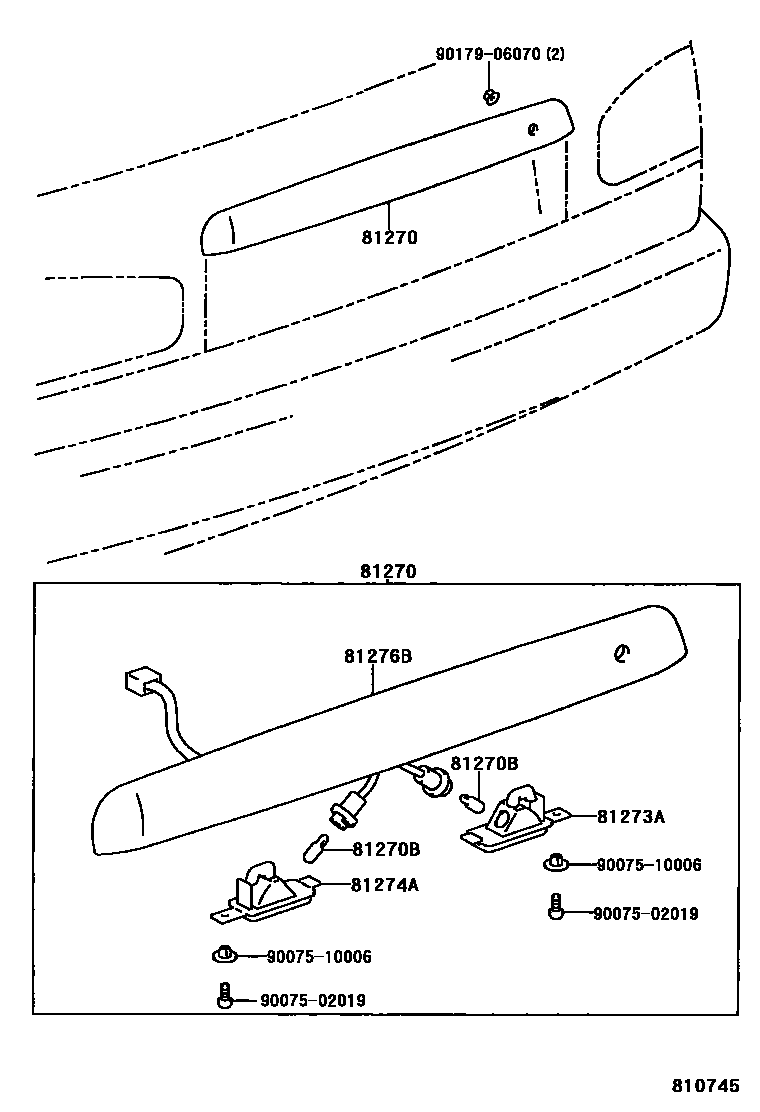

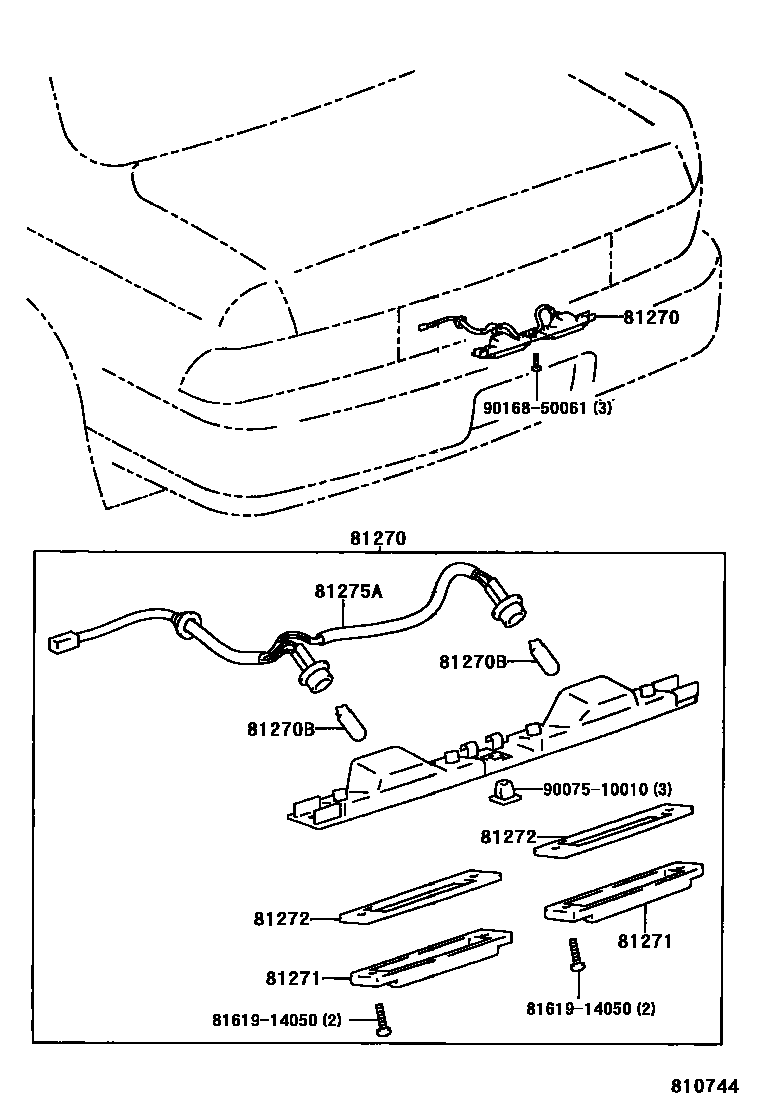

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-06010 |
| 81270B | Bulb (for license plate light) | 90981-12010 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-06010 |
| 81272 | License plate lamp shade gasket | 81274-06010 |
| 81273A | license plate light body | 81273-33020 |
| 81274A | License plate light body B | 81274-33020 |
| 81275A | License plate light wire | 81275-06010 |
