Toyota CAMRY 倒车灯 — Figure 8112

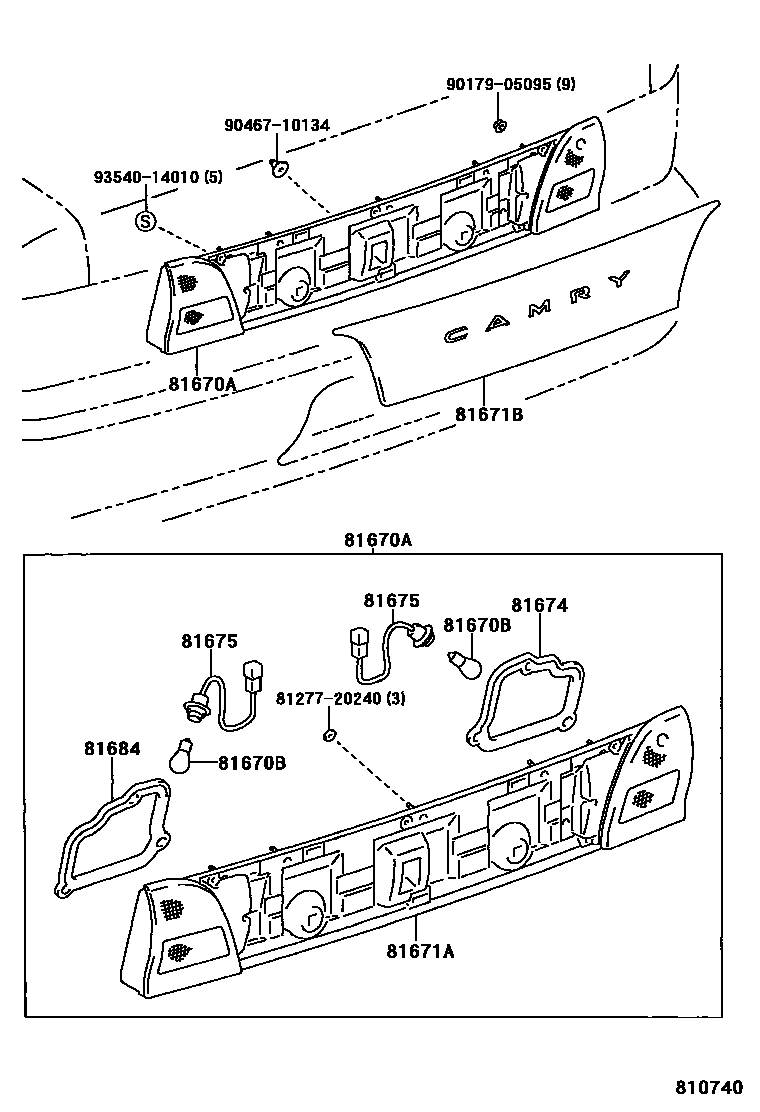

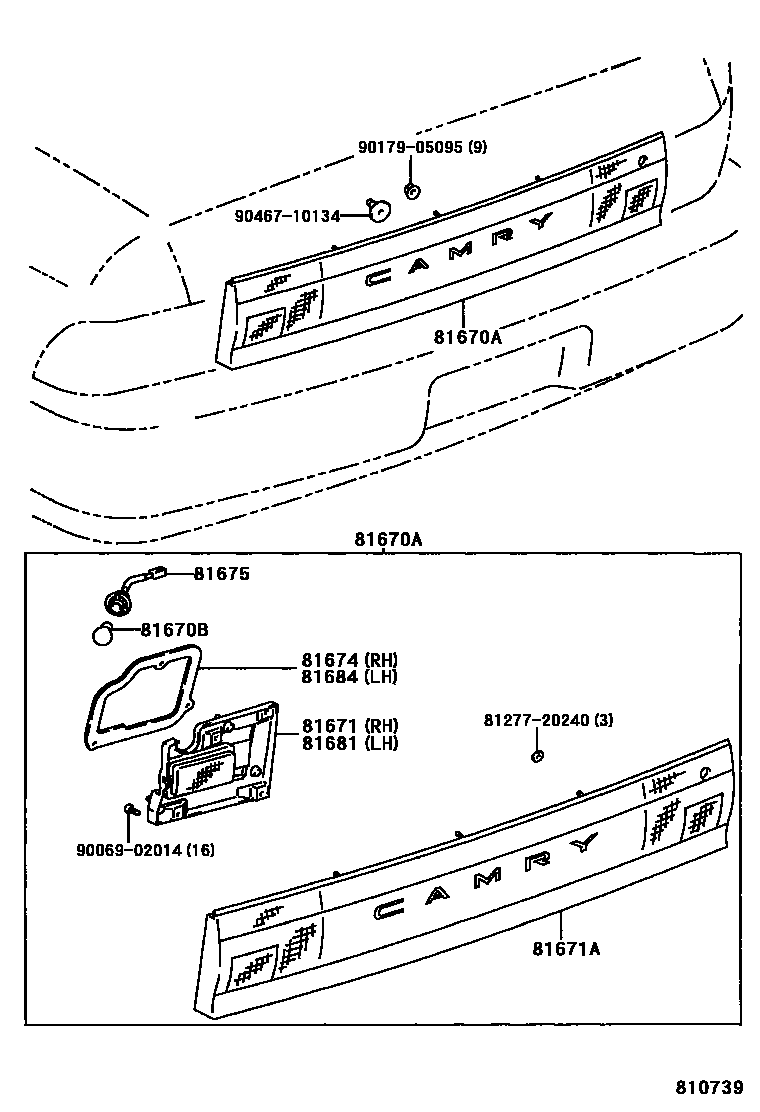

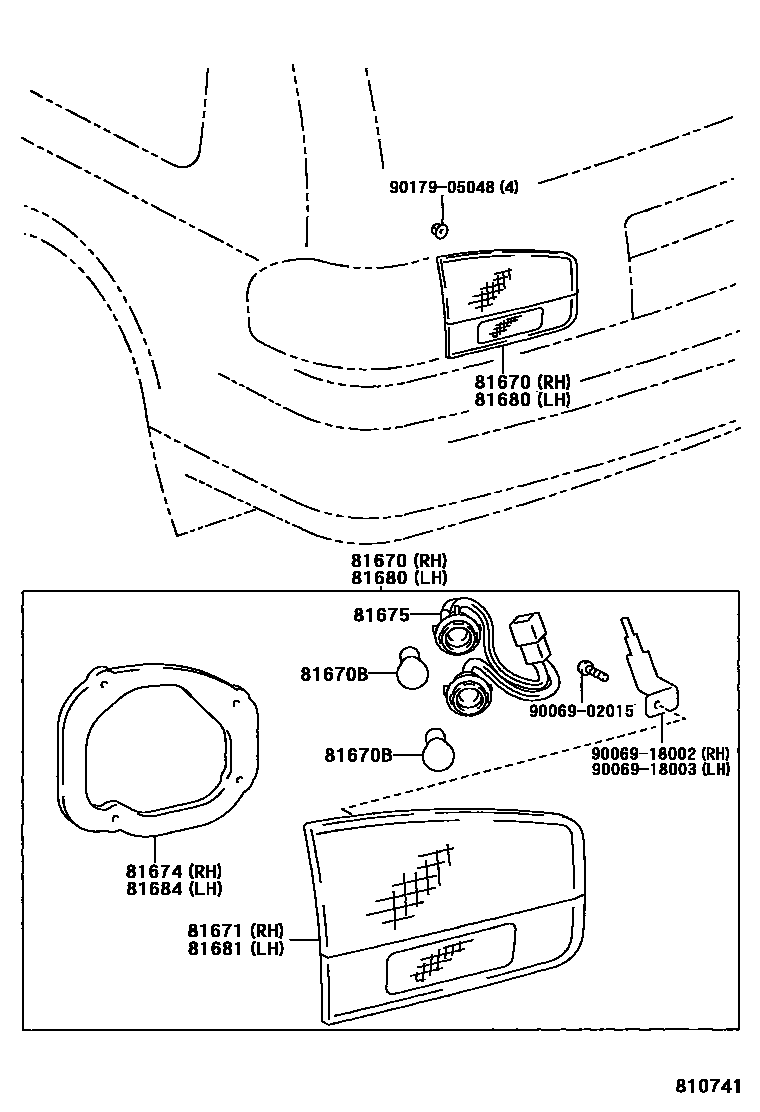

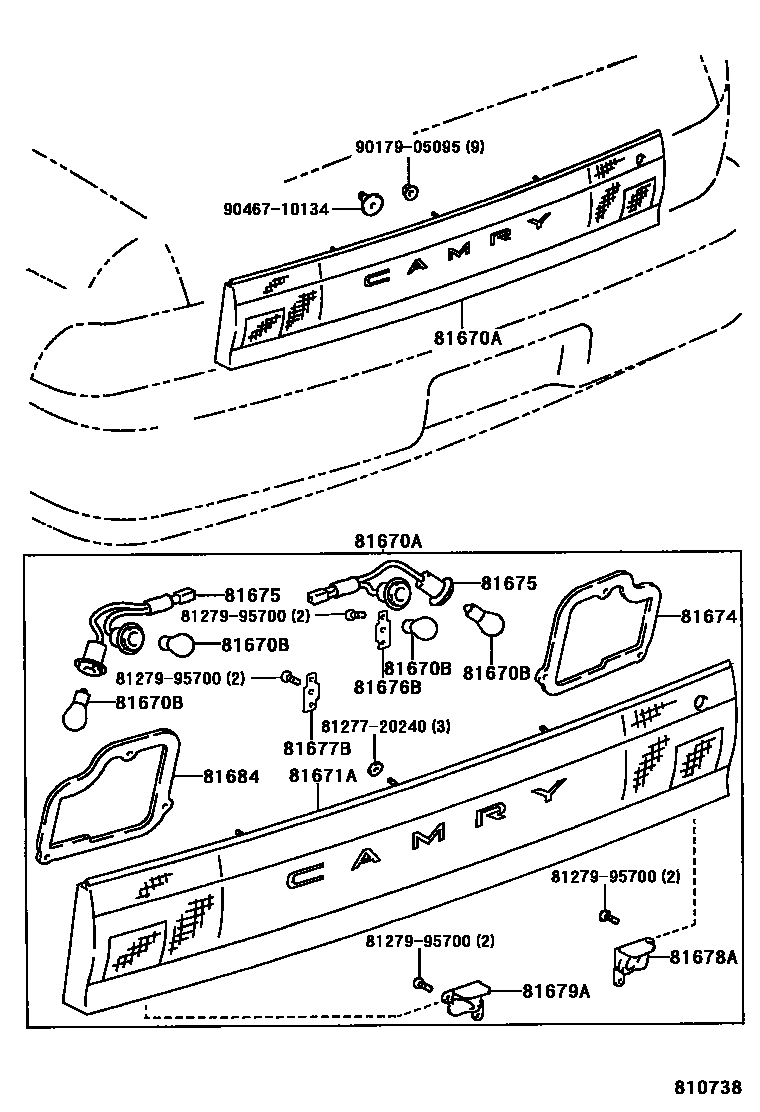

Toyota CAMRY EPC diagram 8112, 倒车灯, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-06040 |
| 81670A | Reversing light assembly | 81670-06010 · 81670-06020 · 81670-06100 |
| 81670B | Bulb (for reversing lights) | 99132-11270 · 99132-21270 |
| 81671 | Right reversing light cover | 81671-06010 · 81671-06040 |
| 81671A | Reversing light shade and body | 81671-06020 · 81671-06070 · 81677-06010 |
| 81674 | Right reversing light body gasket | 81674-06040 · 81674-06050 · 81674-06060 |
| 81675 | Reversing light holder and wiring harness | 81675-06010 · 81675-06040 · 81675-06070 · 81685-06020 |
| 81676B | Reversing light bracket | 90069-25033 |
| 81677B | Reversing light bracket | 90069-25034 |
| 81678A | Right reversing light cover | 81393-06020 |
| 81679A | Left reversing light cover | 81394-06020 |
| 81680 | Left reversing light assembly | 81680-06020 |
| 81681 | Left reversing light cover | 81681-06010 · 81681-06020 |
| 81684 | Left reversing light body gasket | 81674-06010 · 81674-06040 · 81674-06050 |
