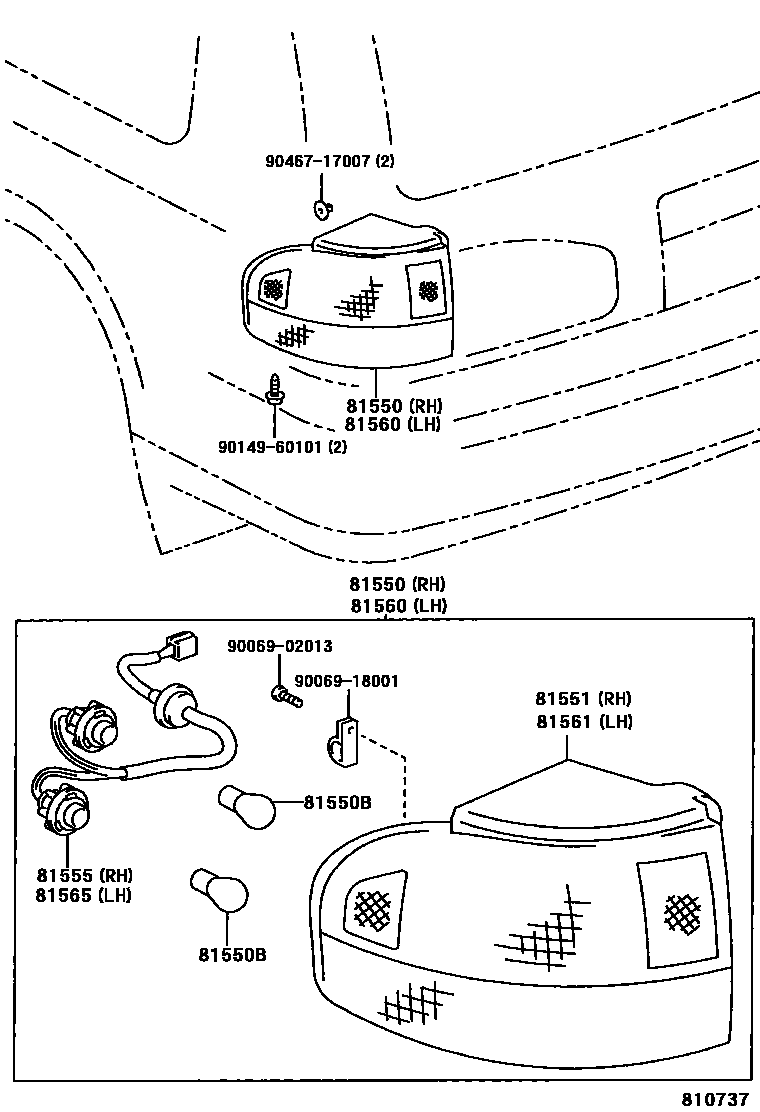

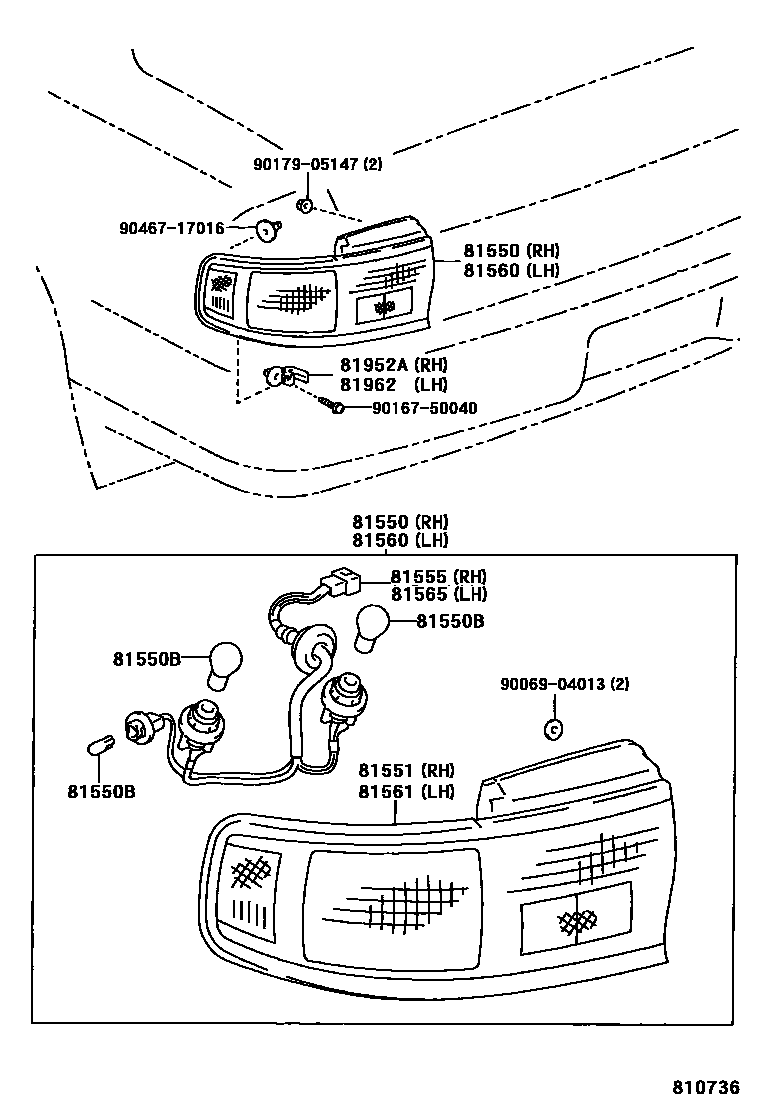

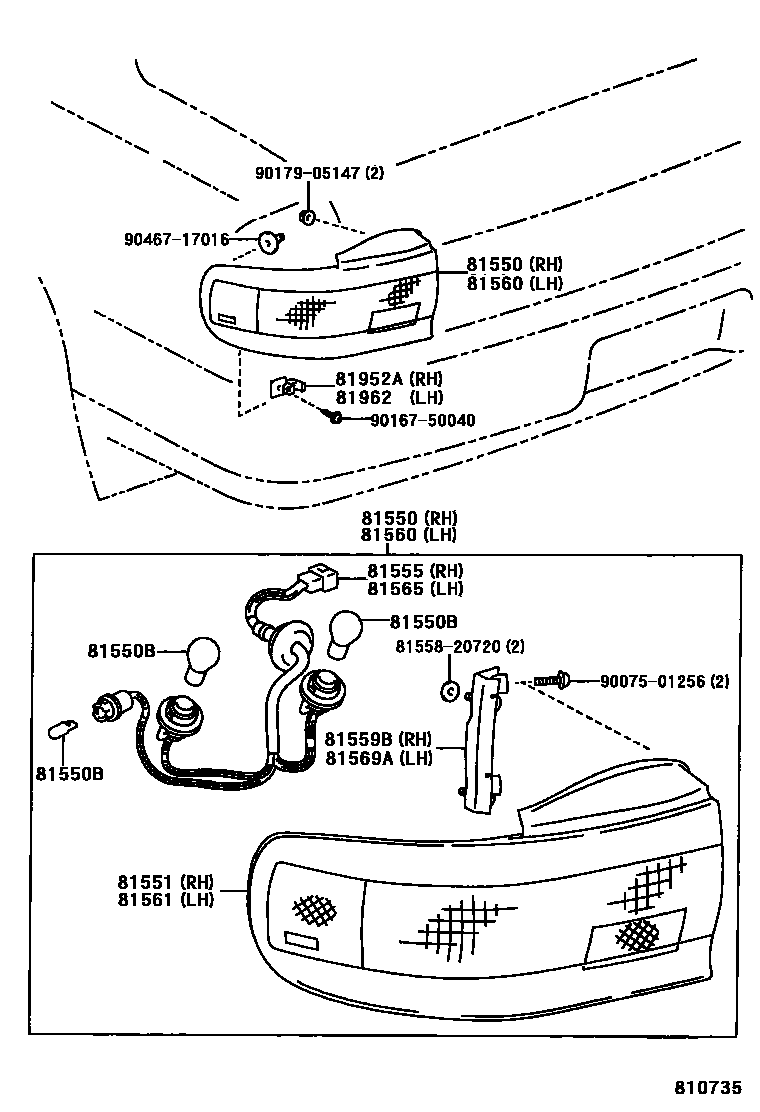

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-06010 · 81550-06011 · 81550-06020 · 81550-06070 |
| 81550B | Bulb (for rear combination lights) | 90981-11020 · 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-06010 · 81551-06011 · 81551-06020 · 81551-06070 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06010 · 81555-06020 |
| 81559B | Right rear combination light bracket | 81393-06010 |
| 81560 | Left rear combination light assembly | 81560-06010 · 81560-06011 · 81560-06020 · 81560-06070 |
| 81561 | Left rear combination lamp shade | 81561-06010 · 81561-06011 · 81561-06020 · 81561-06070 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06010 · 81555-06020 |
| 81569A | Left rear combination light bracket | 81394-06010 |
| 81952A | Right rear light cover | 61663-33010 |
| 81962 | Left rear light cover | 61664-33010 |
