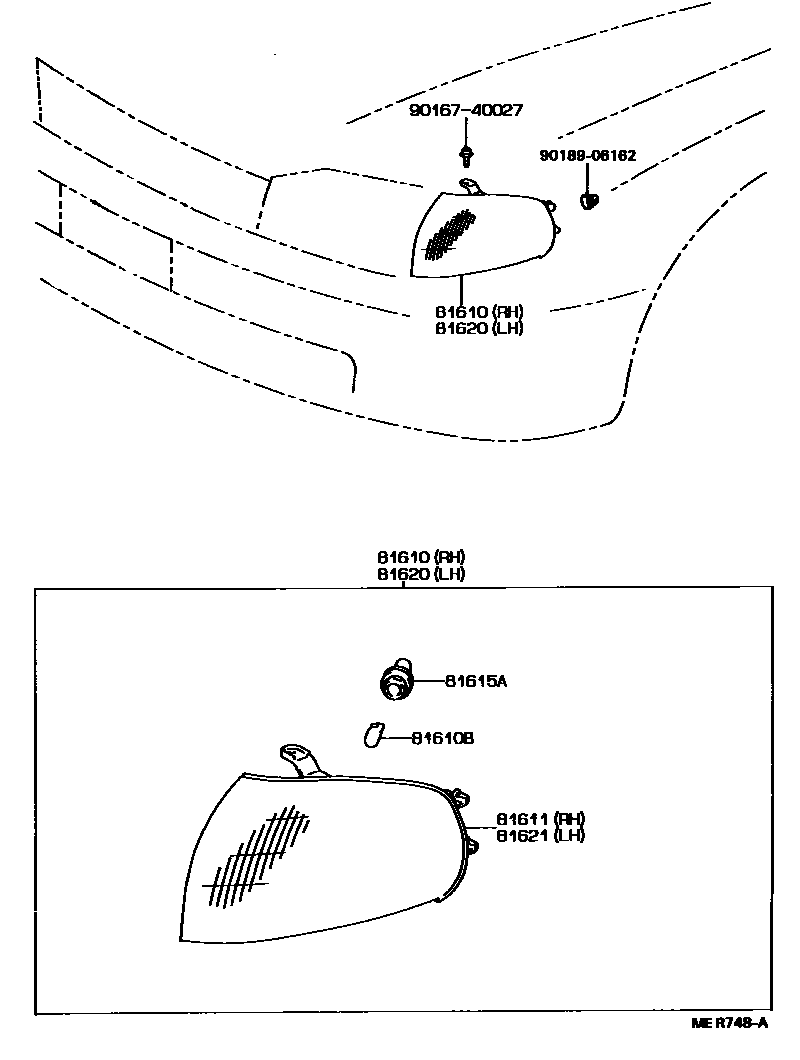

Toyota CAMRY 前示宽灯 — Figure 8104
Toyota CAMRY EPC diagram 8104, 前示宽灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-06010 · 81610-06020 · 81610-33020 |
| 81610B | Bulbs (for parking lights and side lights) | 90981-12010 · 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-06010 · 81611-06020 · 81611-33020 |
| 81615A | Width light lamp holder plug | 81615-04010 · 81945-06010 · 90075-99079 |
| 81620 | Left parking light and width indicator light assembly | 81620-06010 · 81620-06020 · 81620-33020 |
| 81621 | Left parking light and width indicator light cover | 81621-06010 · 81621-06020 · 81621-33020 |
