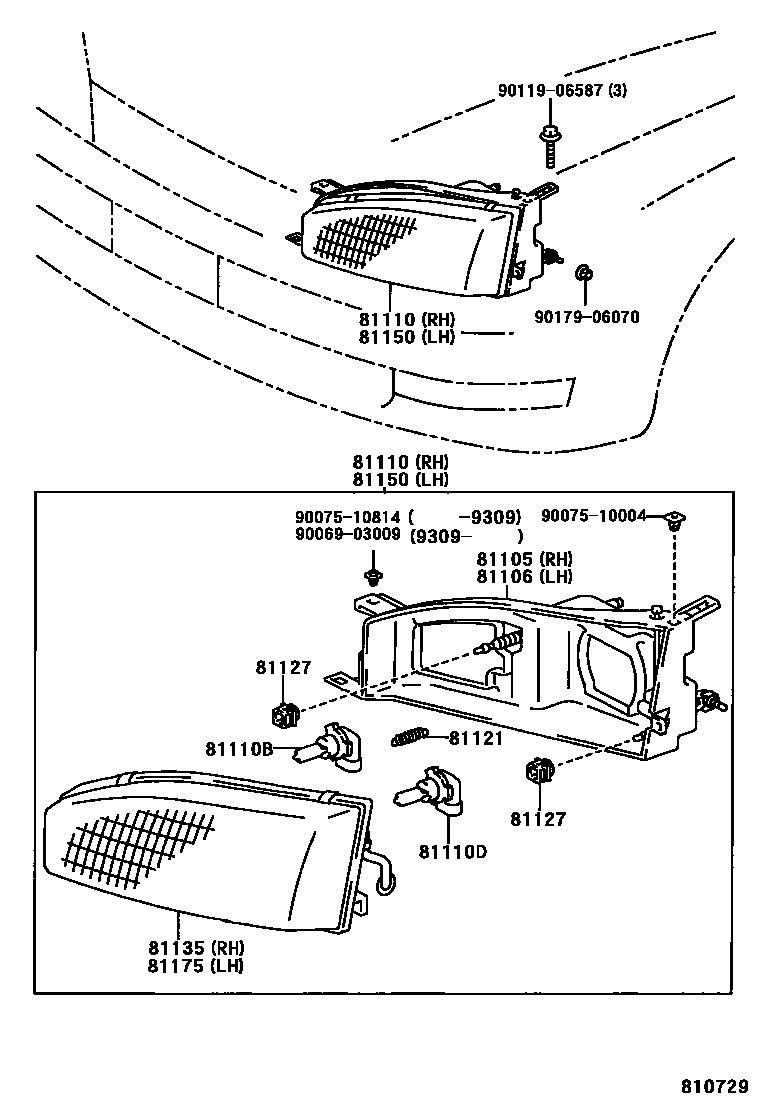

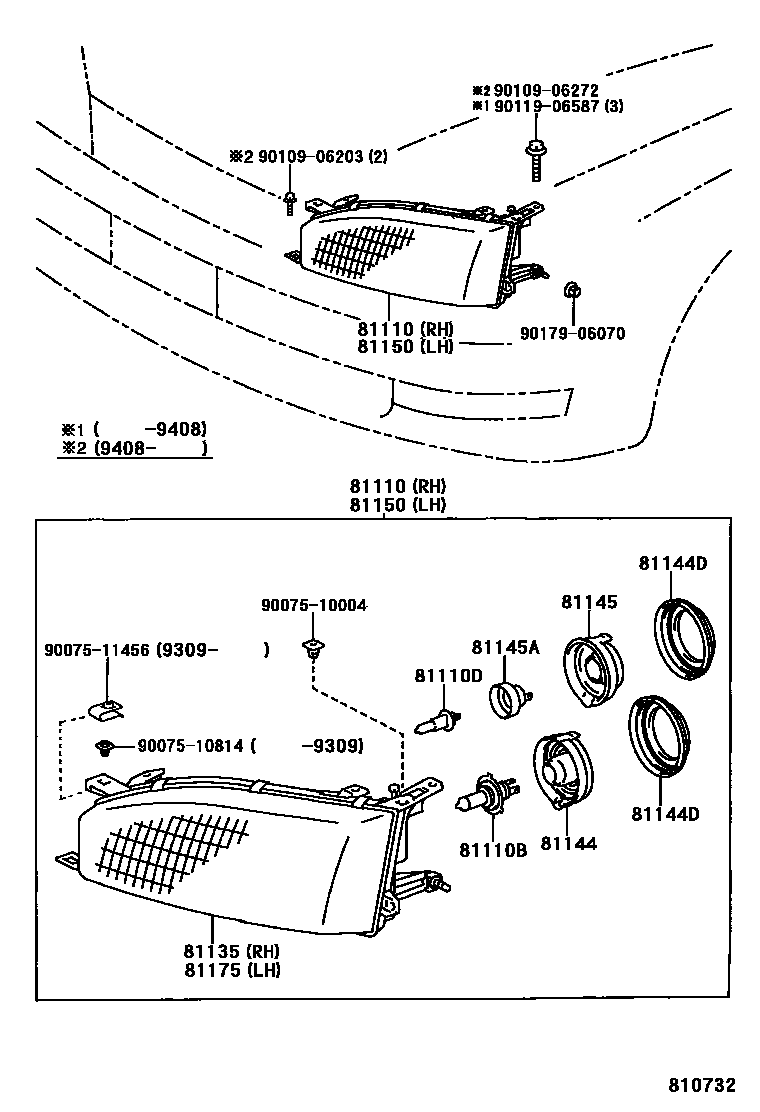

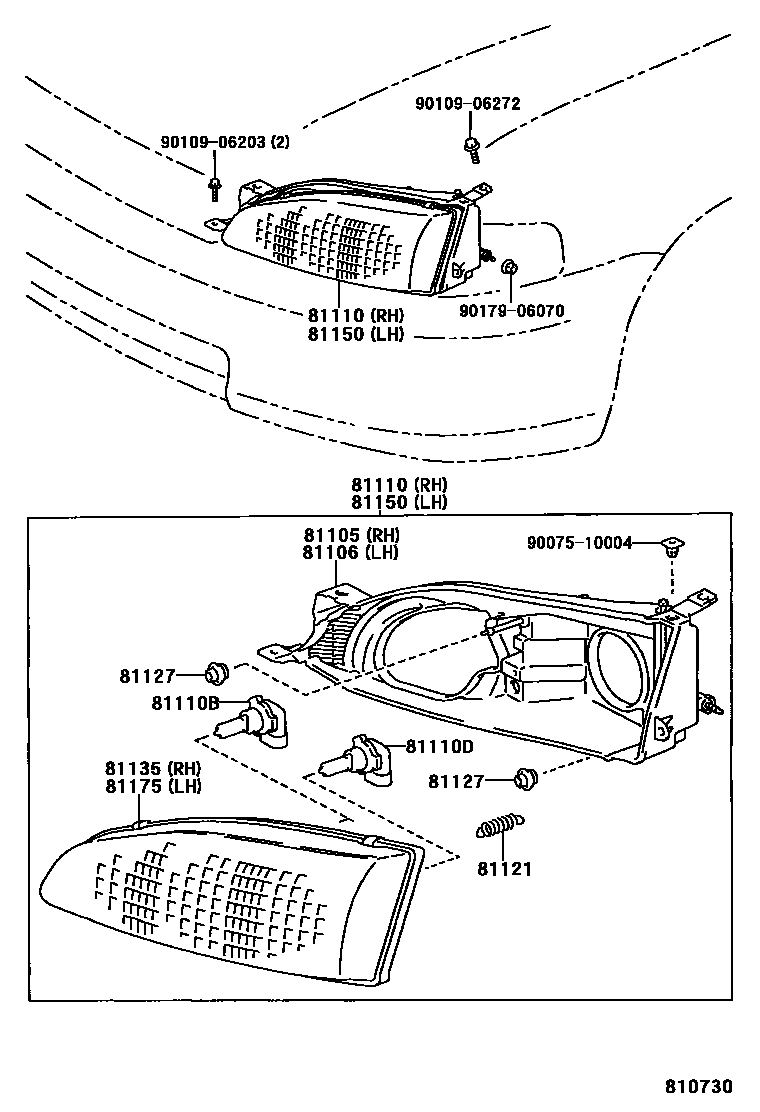

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-06010 · 81105-06030 |
| 81106 | Left headlight housing sub-assembly | 81106-06010 · 81106-06030 |
| 81110 | Right headlight assembly | 81110-06011 · 81110-06032 · 81110-33050 · 81110-33051 · 81110-33052 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13015 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90080-81040 · 90981-13017 · 90981-13047 |
| 81121 | headlight spring | 81121-06010 |
| 81127 | No. 1 headlight support | 81127-06010 |
| 81135 | Right headlight assembly assembly | 81130-06010 · 81130-06030 · 81130-33050 · 81130-33052 |
| 81144 | No. 1 headlight cover | 90075-99058 |
| 81144D | headlight lock cover | 90075-99057 |
| 81145 | No. 2 headlight cover | 90075-99058 |
| 81145A | Adapter assembly | 90075-99081 |
| 81150 | Left headlight assembly | 81150-06011 · 81150-06032 · 81150-33050 · 81150-33051 · 81150-33052 |
| 81175 | Left headlight assembly assembly | 81170-06010 · 81170-06030 · 81170-33050 · 81170-33052 |
