Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 9 PNC and OE references.

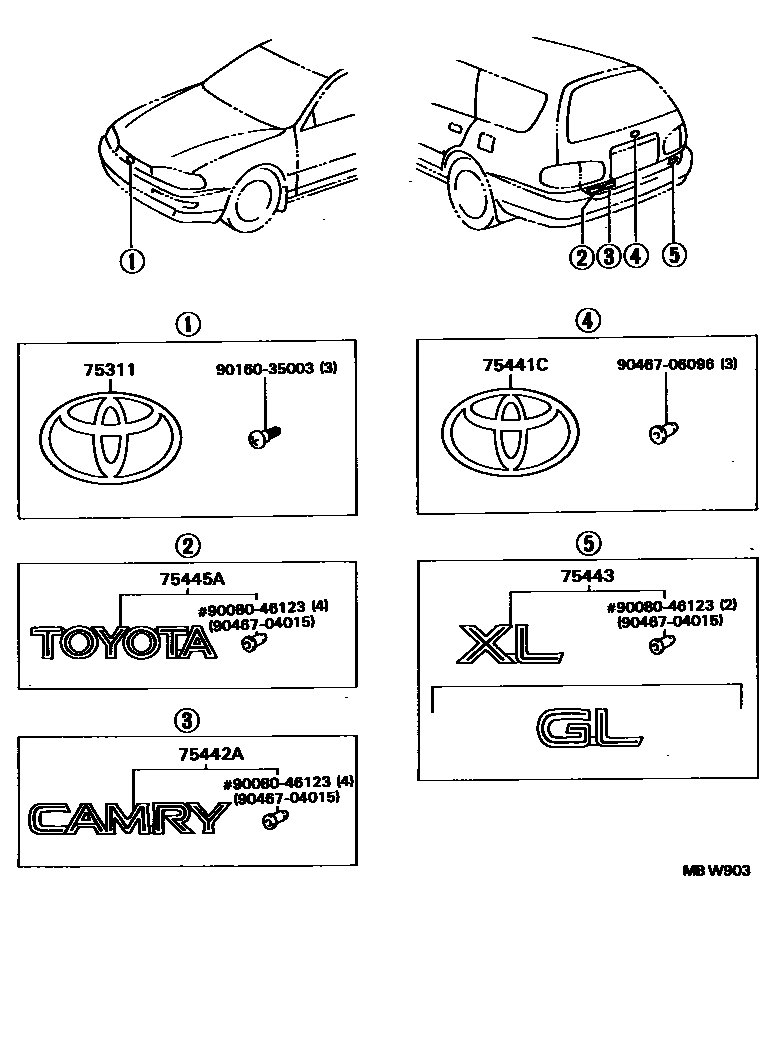

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — MBW903
丰田徽标和铭牌(车外和车内) — MBW903 (199209 – 999999)

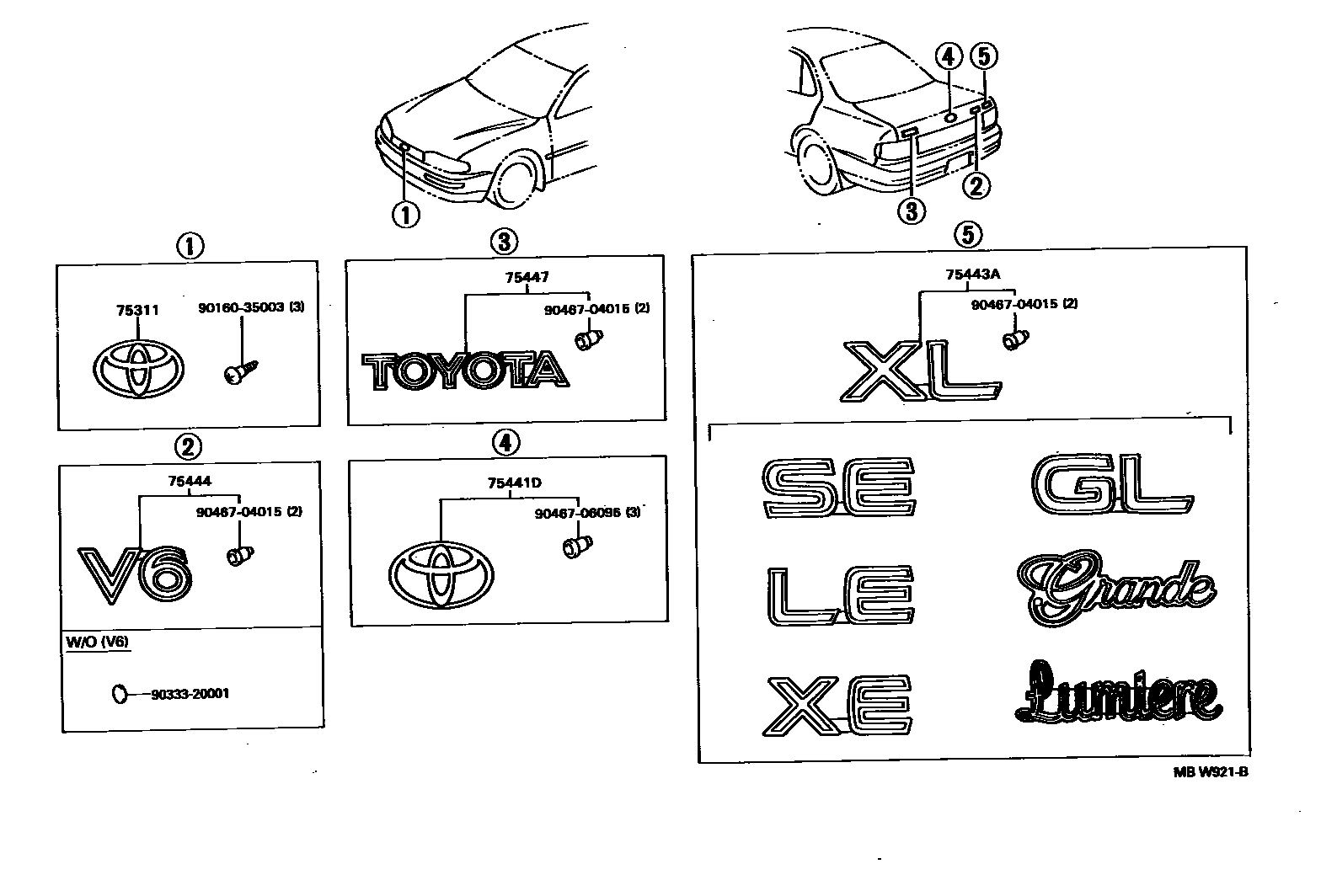

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — MBW921B
丰田徽标和铭牌(车外和车内) — MBW921B (199209 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-06010
75441CBack door nameplate75441-06040
75441DTrunk door No. 1 name plate75441-06010
75442ANo. 2 nameplate on back door75442-06020
75443No. 3 nameplate on back door75443-06050 · 75443-06060
75443ATrunk door No. 3 nameplate75443-06010 · 75443-06030 · 75443-AA010 · 75443-AA020
75444Trunk door No. 4 nameplate75444-06010 · 75444-AA010
75445ANo. 5 nameplate on back door75445-06010
75447Trunk door No. 7 nameplate75447-06010 · 75447-06030
