Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102

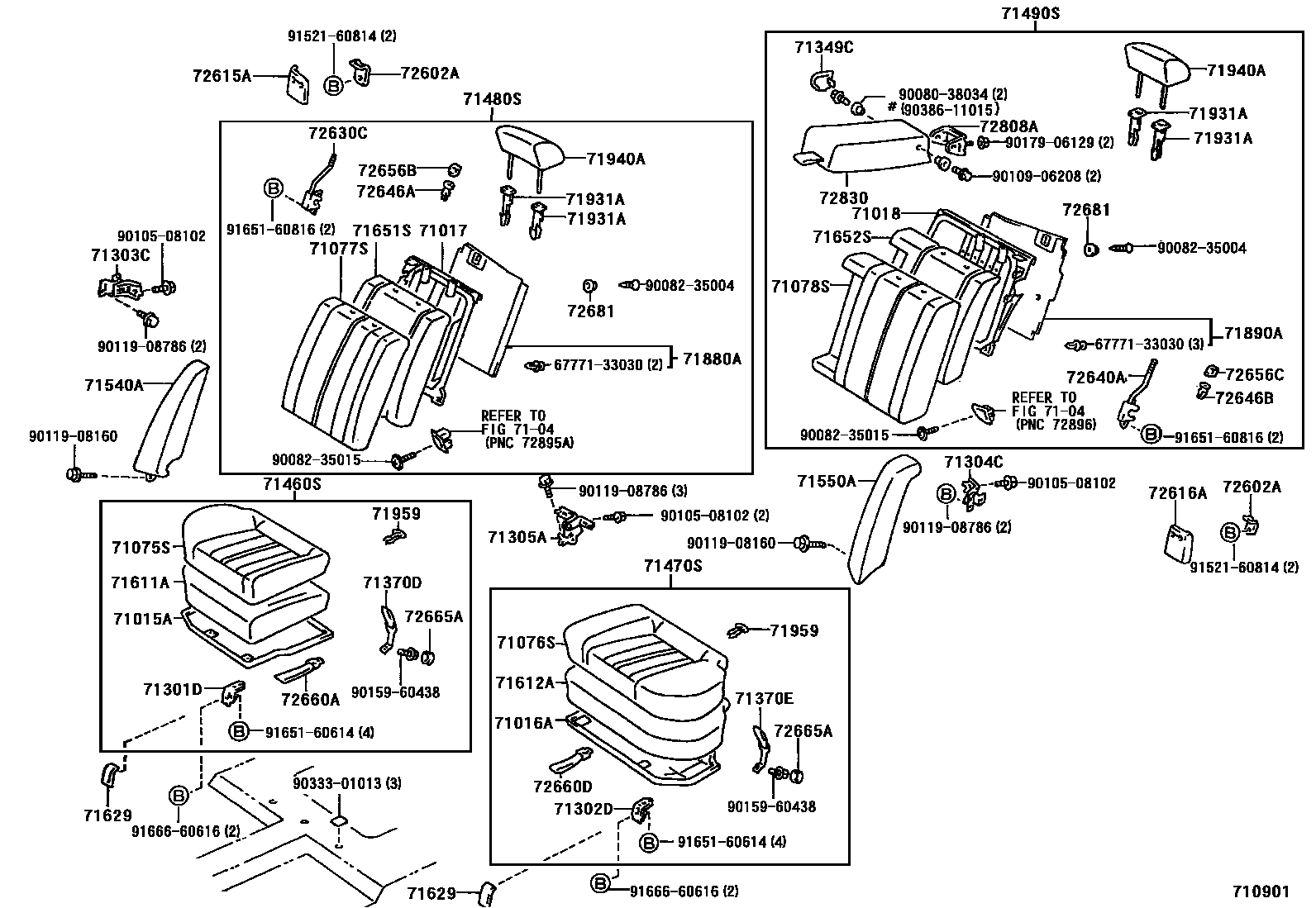

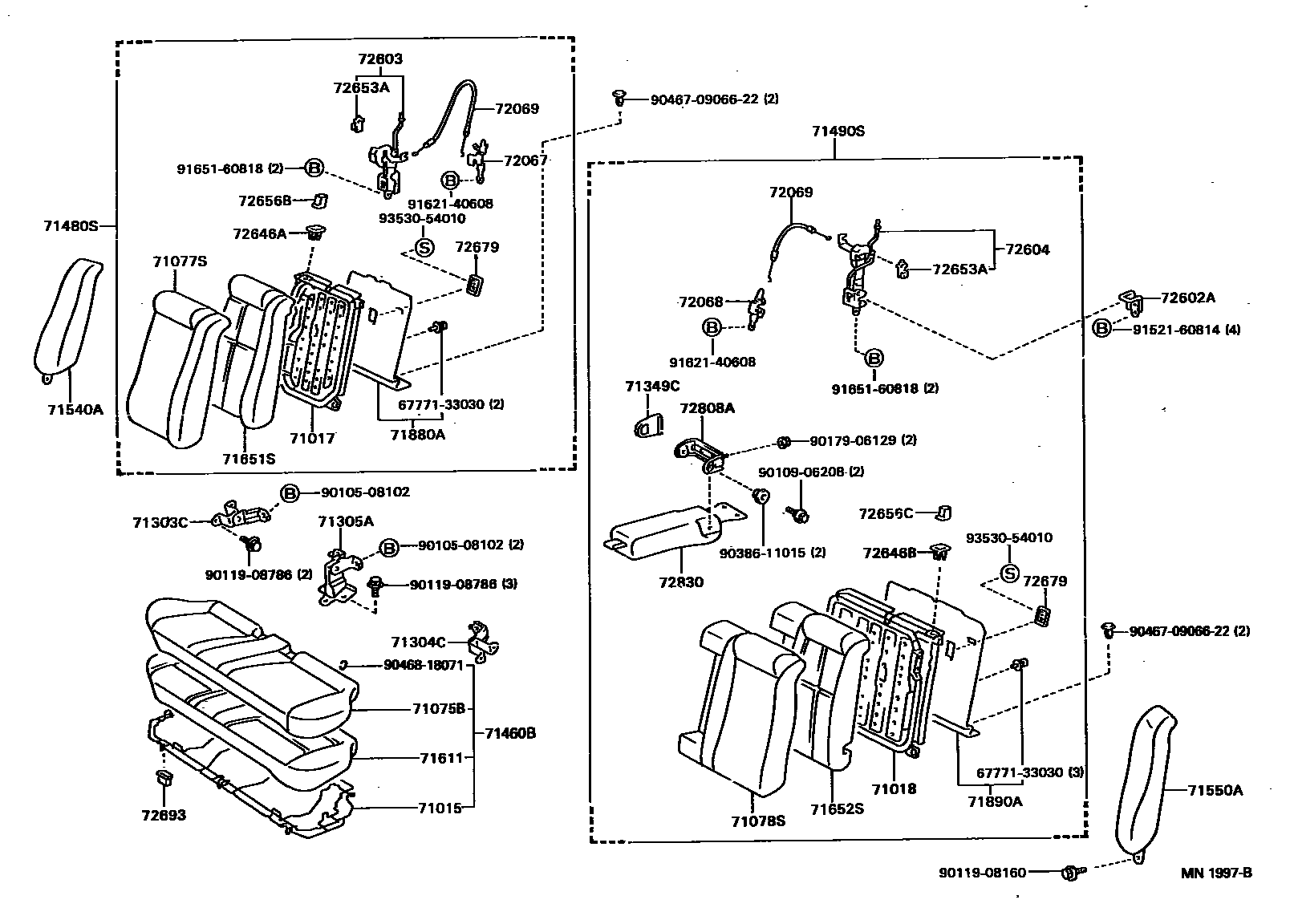

Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-06010 · 71015-06011 |
| 71017 | Right rear seat back frame sub-assembly | 71017-06020 · 71017-06030 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06010 · 71018-06020 |
| 71301D | Rear right seat hinge sub-assembly | 71301-06010 · 71301-06030 |
| 71302D | Rear left seat hinge sub-assembly | 71301-06010 · 71301-06030 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-32050 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-32050 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33010 |
| 71611 | Rear seat cushion cushion | 71611-06010 |
| 71611A | Rear right seat cushion | 71611-06020 |
| 71612A | Rear left seat cushion | 71612-06010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06020 · 71651-06030 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06010 · 71652-06020 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20011 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-20011 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-32020 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12080 |
| 72603 | Rear right seat back lock sub-assembly | 72603-32020 |
| 72604 | Rear left seat back lock sub-assembly | 72604-32020 |
| 72630C | Rear right seat back lock assembly | 72630-33010 |
| 72640A | Rear left seat back lock assembly | 72640-33010 |
| 72653A | Rear seat back lock lever buckle | 69759-24010 · 69759-24020 |
| 72693 | Rear seat cushion hook | 72693-32020 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-06010 |
