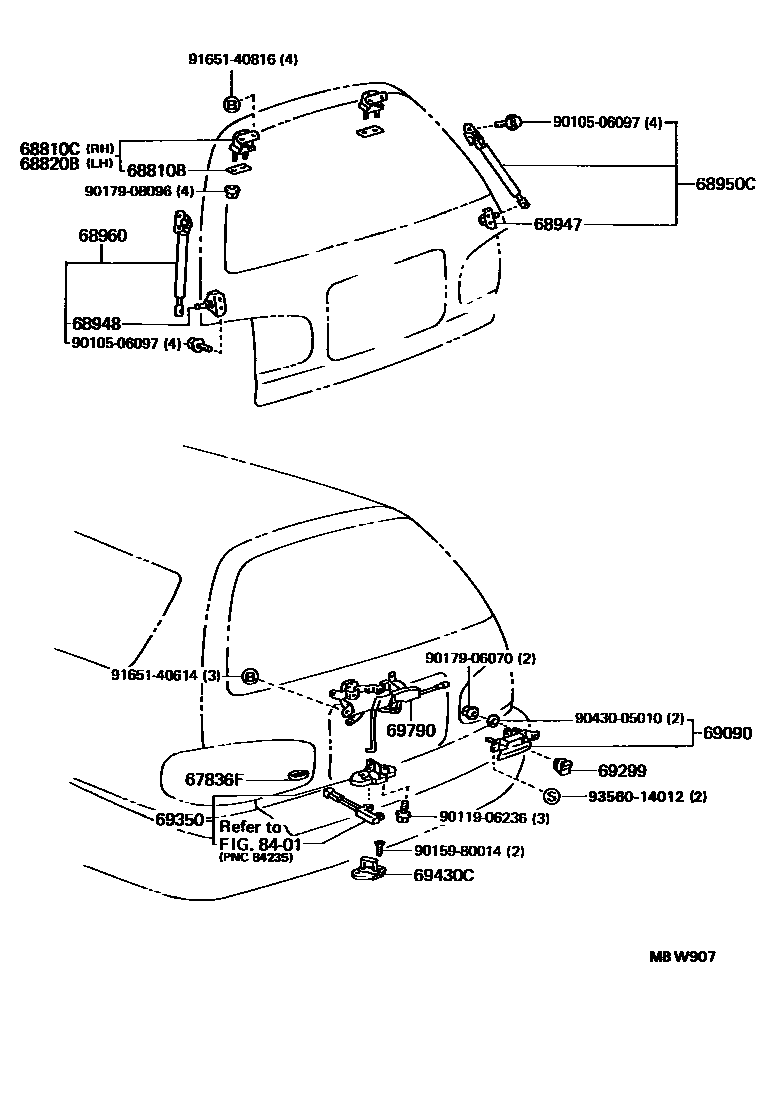

Toyota CAMRY 背门锁和背门把手 — Figure 6709
Toyota CAMRY EPC diagram 6709, 背门锁和背门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836F | Left rear door lock child restraint cover | 67836-33010 |
| 68810B | Back door hinge gasket | 68838-06010 |
| 68810C | Back door right hinge assembly | 68810-06010 · 68810-06011 |
| 68820B | Back door left hinge assembly | 68810-06010 · 68810-06011 |
| 68947 | Back door right damping strut lower bracket | 68947-06010 |
| 68948 | Rear door left damping strut lower bracket | 68948-06010 |
| 68950C | Back door right support rod assembly | 68950-09040 · 68950-09041 |
| 68960 | Back door left support rod assembly | 68960-09010 · 68960-09011 |
| 69090 | Rear door outer handle assembly | 69090-33010 |
| 69299 | Rear door handle seal | 69299-33010 |
| 69350 | Rear door lock assembly | 69350-06010 |
| 69430C | Back door lock assembly | 69410-AA010 · 69430-06010 |
| 69790 | Rear door lock control assembly | 69790-06020 |
