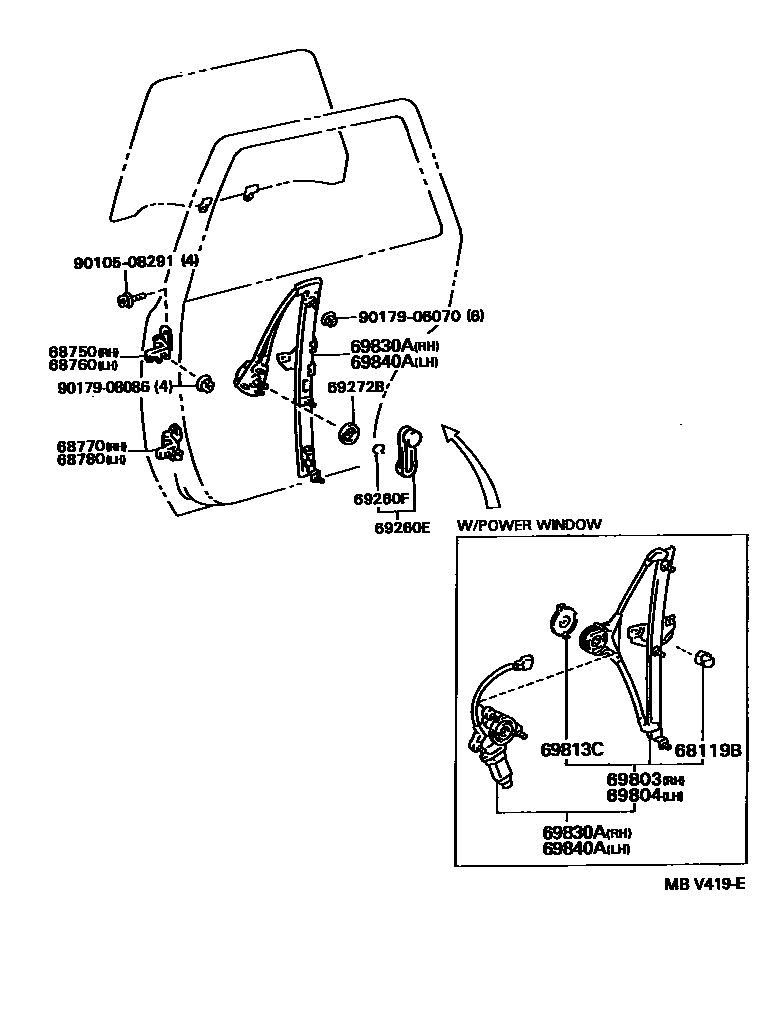

Toyota CAMRY 后门车窗升降器和合页 — Figure 6707
Toyota CAMRY EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68119B | No. 2 window lift glass bracket cushion pad | 69888-06010 · 69888-33010 |
| 68750 | Right rear door upper hinge assembly | 68750-32041 |
| 68760 | Left rear door upper hinge assembly | 68760-32041 |
| 68770 | Right rear door lower hinge assembly | 68770-32041 |
| 68780 | Left rear door lower hinge assembly | 68780-32041 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90080-52001 |
| 69272B | Rear door window regulator inner handle plate | 69268-03010 |
| 69803 | Right rear door window lifter sub-assembly | 69803-06010 · 69803-06020 |
| 69804 | Left rear door window lifter sub-assembly | 69804-06010 · 69804-06020 |
| 69813C | Rear door power window lift base plate | 69811-06020 · 69812-06010 · 69813-06010 |
| 69830A | Right rear door window lift assembly | 69830-06010 · 69830-06020 · 69830-06030 · 69830-06040 |
| 69840A | Left rear door window lift assembly | 69840-06010 · 69840-06020 · 69840-06030 · 69840-06040 |
