Toyota CAMRY 底板和底板装饰罩 — Figure 6404

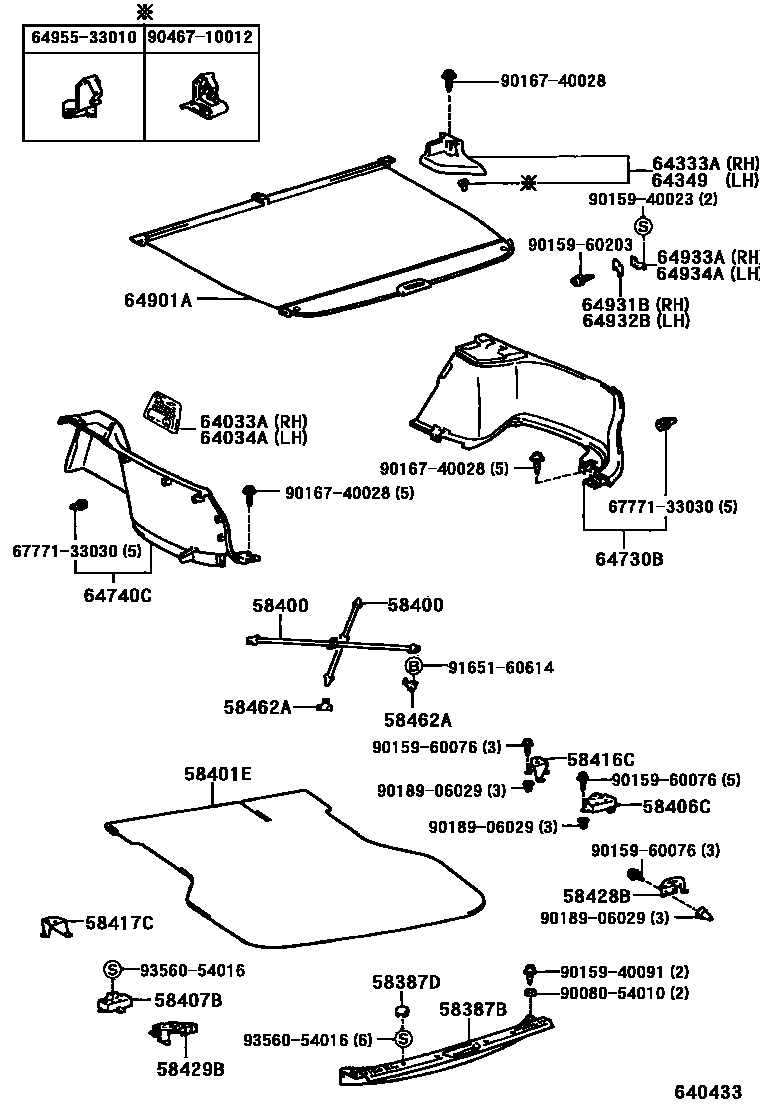

Toyota CAMRY EPC diagram 6404, 底板和底板装饰罩, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58406C | Base plate right bracket sub-assembly | 58406-06010 |
| 58407B | Base plate left bracket sub-assembly | 58407-06010 |
| 58416C | No. 1 base plate right bracket | 58416-06020 |
| 58417C | No. 1 base plate left bracket | 58417-06020 |
| 58428B | No. 5 bottom plate right bracket | 58428-06020 |
| 58429B | No. 5 base plate left bracket | 58429-06020 |
| 58462A | No. 2 suitcase fixing strap lock | 58462-06010 |
| 64933A | Right trunk trim cover retainer | 64933-06010 |
| 64934A | Left trunk trim cover retainer | 64934-06010 |
