Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

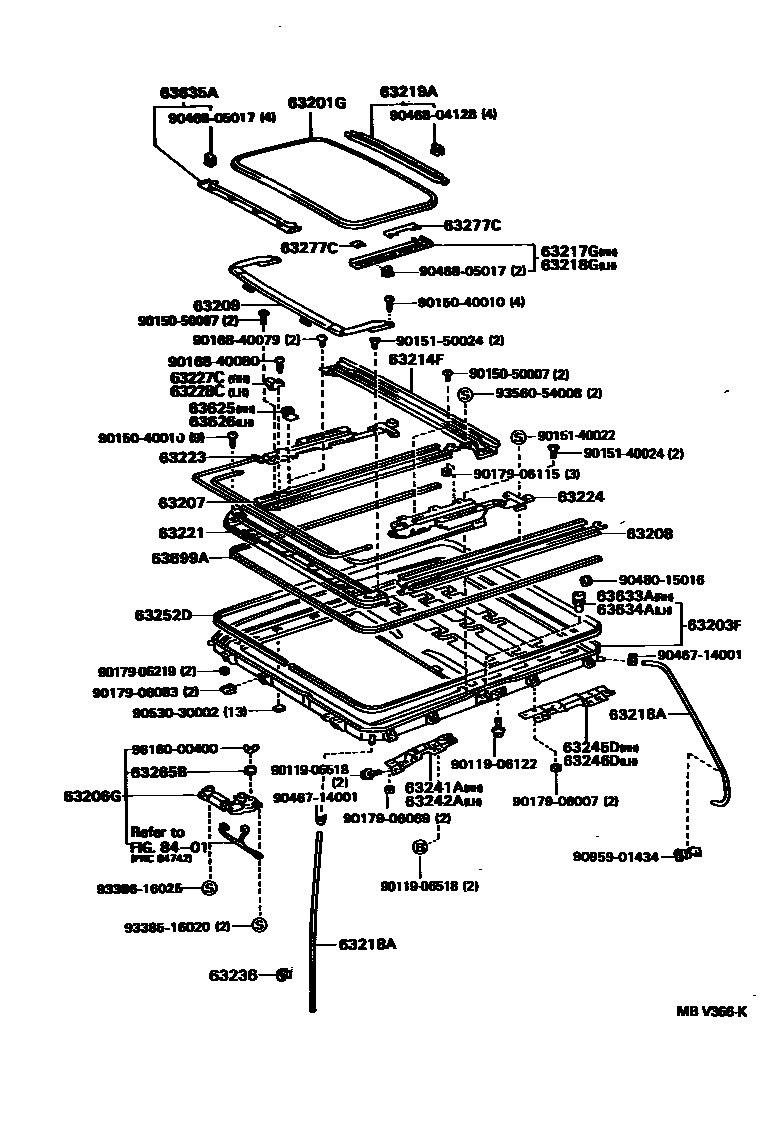

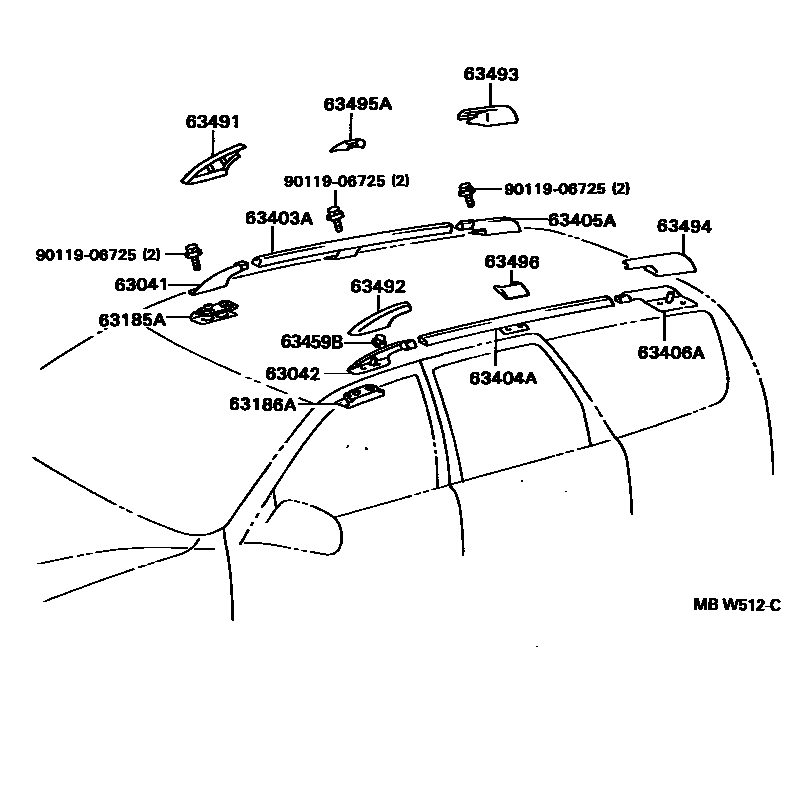

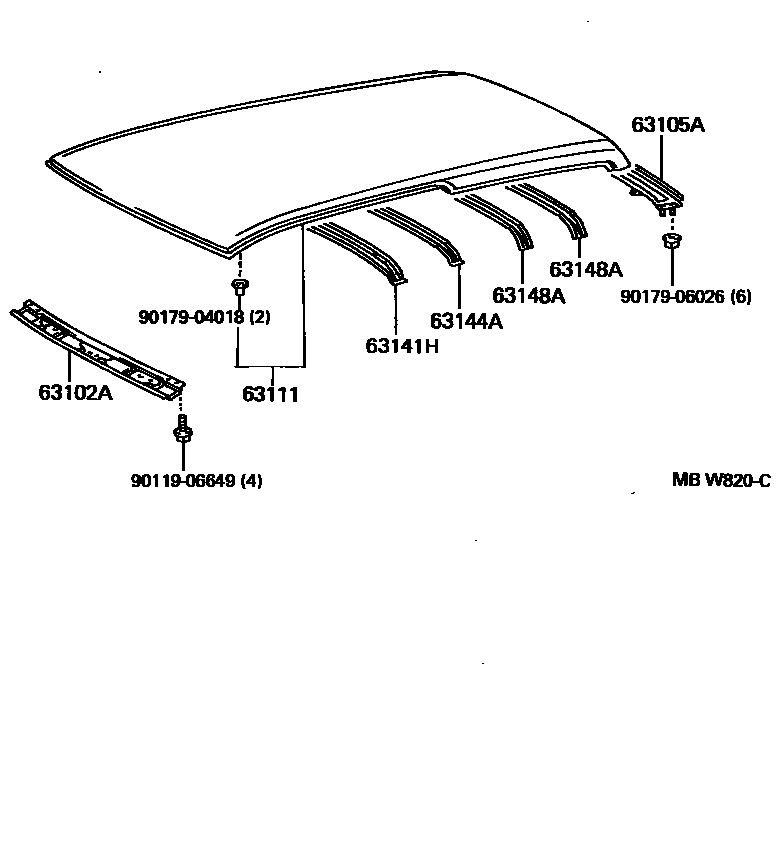

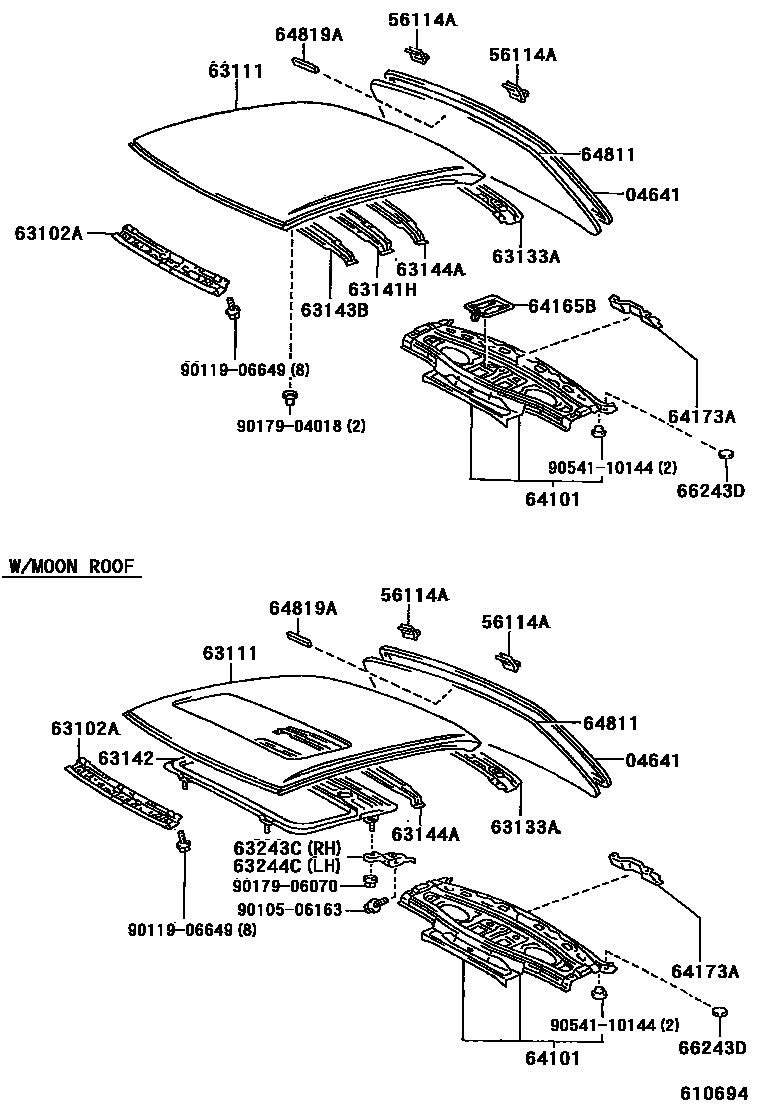

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-12010 |
| 56114A | Back window glass fixings | 56114-20010 |
| 63041 | Right front roof rack support foot sub-assembly | 63041-06010 |
| 63042 | Left front roof rack support foot sub-assembly | 63042-06010 |
| 63102A | Windshield roof sub-assembly | 63102-06010 |
| 63105A | Back door opening frame sub-assembly | 63105-06020 |
| 63111 | roof panel | 63111-06010 · 63111-06020 · 63111-06070 · 63111-06140 · 63111-06210 · 63111-06900 · 63111-06902 · 63111-06910 |
| 63133A | upper frame of back window | 63133-33010 |
| 63141H | Center roof panel reinforcement | 63141-06010 · 63141-33011 |
| 63142 | No. 2 roof panel reinforcement | 63142-33900 |
| 63143B | No. 3 roof panel reinforcement | 63143-33010 |
| 63144A | No. 4 roof panel reinforcement | 63106-06010 · 63144-33010 · 63144-33030 |
| 63148A | No. 7 roof panel reinforcement | 63148-06010 |
| 63185A | Right front roof rack bracket | 63185-33010 |
| 63186A | Left front roof rack bracket | 63186-33010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-06010 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-33010 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-32023 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-22040 · 63207-33010 · 63207-33020 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-22040 · 63208-33010 · 63208-33020 |
| 63209 | Roof deflector sub-assembly | 63209-33010 |
| 63214F | Roof rear drain channel | 63214-33010 |
| 63218A | Hoses (for sliding roof or removable roof drainage) | 63249-32100 · 63249-32110 |
| 63221 | Sliding sunroof cable duct | 63221-33010 |
| 63223 | Right sliding sunroof transmission cable | 63223-22030 · 63223-32030 |
| 63224 | Left sliding sunroof transmission cable | 63224-22030 · 63224-32030 |
| 63227C | Right front sliding sunroof sunshade stop | 63227-20010 |
| 63228C | Left front sliding sunroof sunshade stop | 63228-20010 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-33010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-32010 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-32010 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-33010 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-33010 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-32010 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-32010 |
| 63252D | Sliding skylight frame sealing strip | 63252-33010 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63277C | Sliding skylight panel gasket | 63277-20020 · 63277-20030 · 63277-20040 · 63277-20050 |
| 63403A | Right center roof rack bracket sub-assembly | 63403-06010 |
| 63404A | Left center roof rack bracket sub-assembly | 63404-06010 |
| 63405A | Rear roof rack bracket sub-assembly | 63405-06010 |
| 63406A | Left rear roof rack bracket sub-assembly | 63406-06010 |
| 63459B | No. 2 roof rack fixings | 63459-06030 |
| 63491 | Right front roof rack leg cover | 63491-06010 |
| 63492 | Left front roof rack leg cover | 63492-06010 |
| 63493 | Right rear roof rack foot cover | 63493-06010 |
| 63494 | Left rear roof rack leg cover | 63494-06010 |
| 63495A | Center roof rack foot cover | 63495-06010 |
| 63496 | Left center roof rack foot cover | 63496-06010 |
| 63625 | Right sliding sunroof guide block | 63625-33010 · 63625-33011 |
| 63626 | Left sliding sunroof guide block | 63626-33010 · 63626-33011 |
| 63633A | Sliding sunroof frame bushing No. 1 | 63633-50010 |
| 63634A | Sliding sunroof frame bushing No. 2 | 63634-50010 |
| 63699A | Sliding sunroof guide seals | 63699-33010 |
| 64101 | Upper back panel sub-assembly | 64101-06030 · 64101-06040 |
| 64165B | No. 1 upper back panel hole cover | 64165-33010 |
| 64173A | high brake light bracket | 64173-33010 |
| 64811 | back window glass | 64811-06010 |
| 64819A | No. 2 back window glass spacer | 64819-33010 |
| 66243D | Rear body protection piece No. 1 | 66243-20010 · 90950-06063 |
