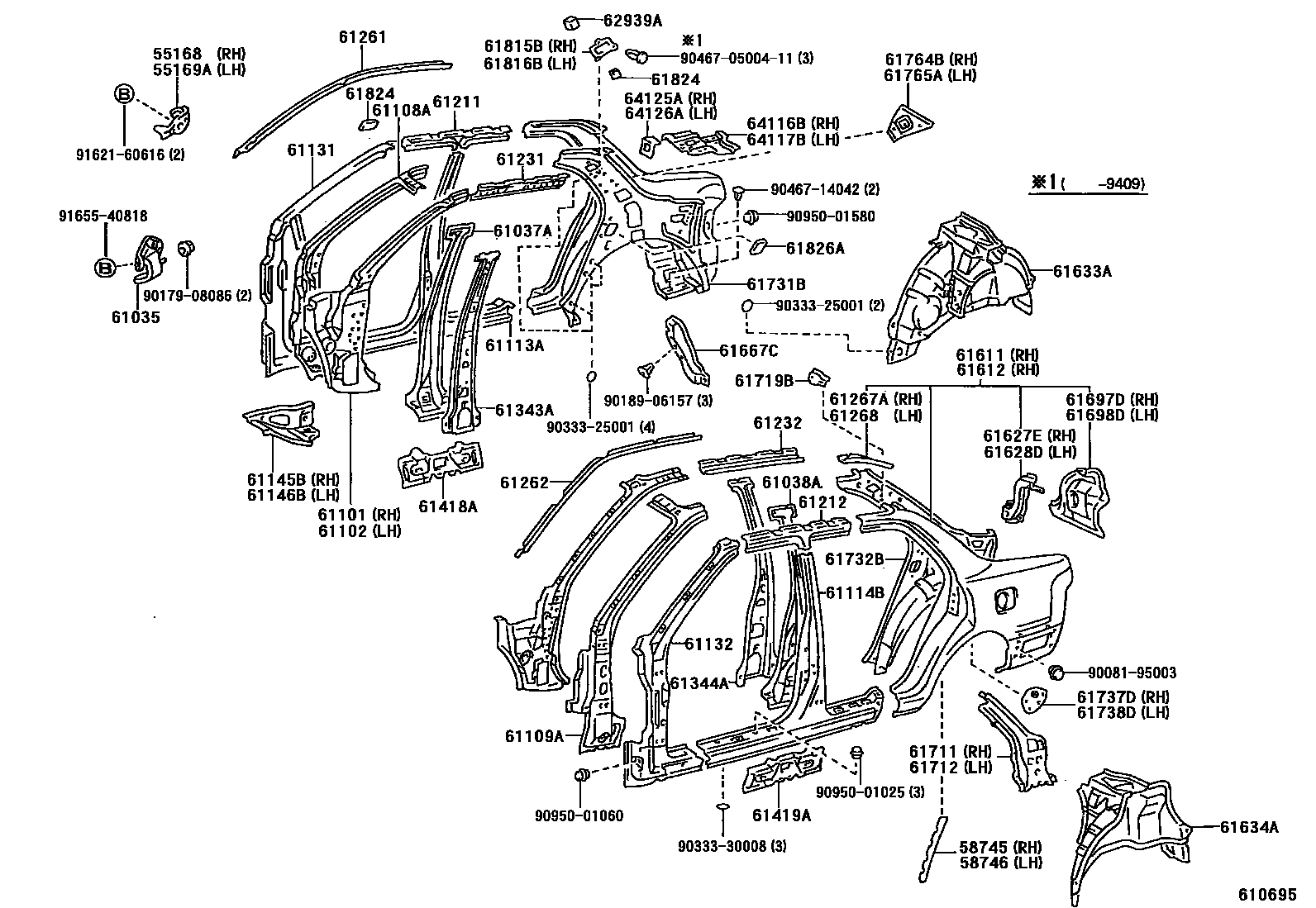

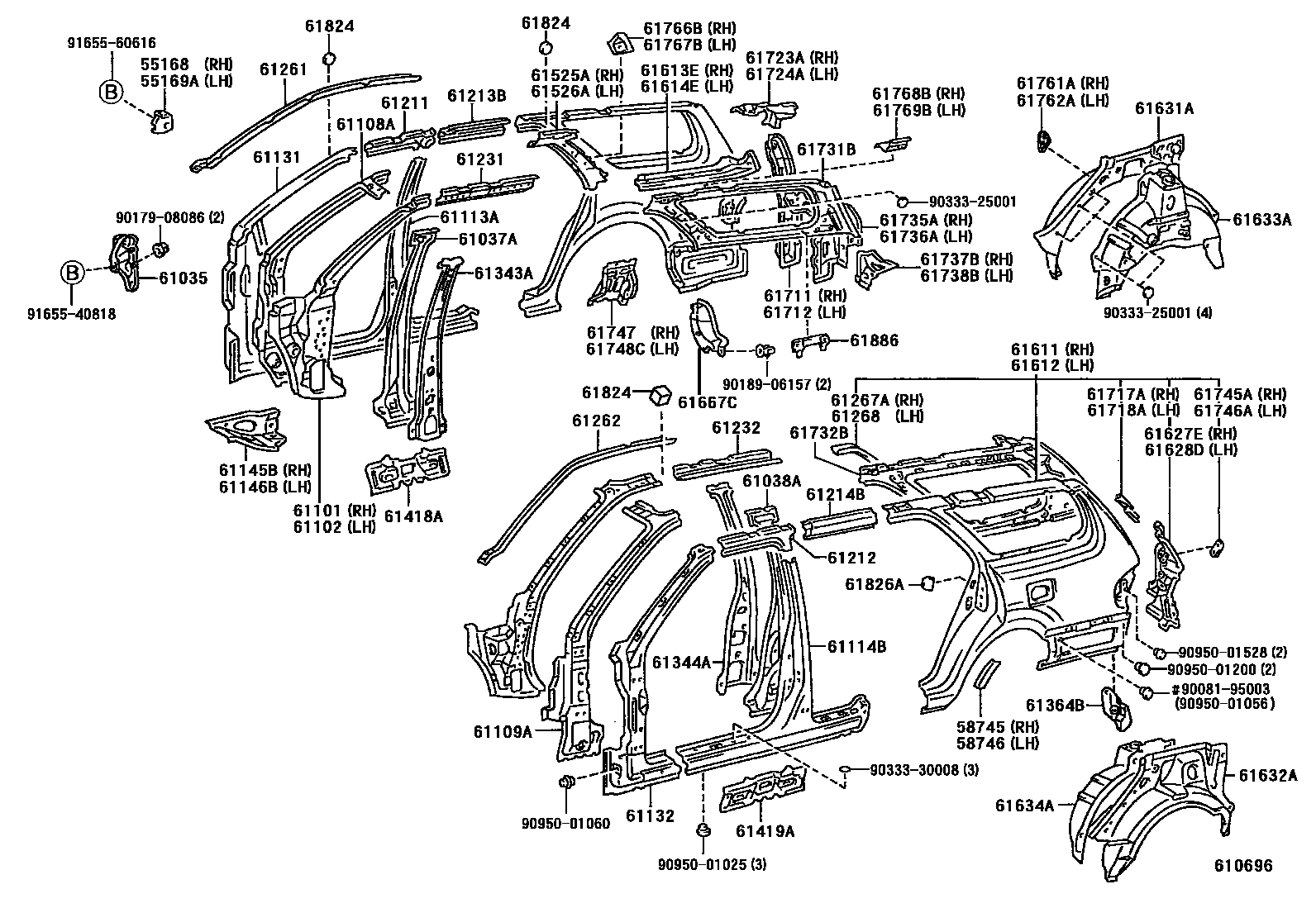

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 55168-32010 |
| 55169A | Left front fender mounting bracket | 55169-32010 |
| 58745 | Right front side panel protector | 58745-33020 |
| 58746 | Left front side panel protector | 58746-33020 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61165-33010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-33020 · 61037-33060 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-33020 · 61038-33060 |
| 61101 | Right front wall side panel sub-assembly | 61101-06900 · 61101-06902 |
| 61102 | Left front wall side panel sub-assembly | 61102-06901 · 61102-06903 · 61102-06904 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-06900 · 61108-06904 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-06900 · 61109-06901 · 61109-06904 |
| 61113A | No. 2 right outer panel | 61113-06010 |
| 61114B | No. 2 left outer panel | 61114-06010 |
| 61131 | Right body outer front upper pillar | 61131-06010 |
| 61132 | Left body outer front upper pillar | 61132-06010 |
| 61145B | Right body front pillar lower corner panel | 61145-33010 |
| 61146B | Left body front pillar lower corner panel | 61146-33010 |
| 61211 | Roof right outer longitudinal beam | 61211-06020 |
| 61212 | Roof left outer longitudinal beam | 61212-06020 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61211-06010 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61212-06010 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-06010 · 61231-33010 |
| 61232 | Roof left inner longitudinal beam | 61232-06010 · 61232-33010 |
| 61261 | Drainage channel on the right side of the roof | 61261-06010 · 61261-06020 |
| 61262 | Drainage channel on the left side of the roof | 61262-06010 · 61262-06020 |
| 61267A | Roof right rear gutter | 61267-06010 · 61267-06020 |
| 61268 | Roof left rear gutter | 61268-06010 · 61268-06020 |
| 61343A | Right body inner center pillar | 61343-33010 · 61343-33020 |
| 61344A | Left body inner center pillar | 61344-33010 · 61344-33020 |
| 61364B | Left side seat belt anchor side reinforcement | 61364-33010 |
| 61418A | Right side door sill panel reinforcement | 61418-32020 |
| 61419A | Left side rocker panel reinforcement | 61419-32020 |
| 61525A | Right release lever bracket fixing | 61525-06010 |
| 61526A | Left release lever bracket fixing | 61526-06010 |
| 61611 | Right side hoarding | 61601-06011 · 61601-06021 · 61601-06030 · 61601-06040 |
| 61612 | left side panel | 61602-06011 · 61602-06020 · 61602-06030 · 61602-06040 · 61602-06050 |
| 61613E | Right side inner panel | 61613-06010 |
| 61614E | Left side inner panel | 61614-06010 |
| 61627E | Right rear side panel lower extension | 61627-06010 · 61627-06020 |
| 61628D | Left rear side panel lower extension | 61628-06010 · 61628-06020 |
| 61631A | Right wheel cover outer panel | 61631-06010 |
| 61632A | Left side wheel cover outer panel | 61632-06010 |
| 61633A | Right wheel housing lining panel | 61603-06030 · 61603-06900 |
| 61634A | Left side wheel housing lining panel | 61604-06030 · 61604-06900 |
| 61667C | No. 1 side panel seal | 61667-06010 · 61667-06020 |
| 61697D | Right side enclosure end cover | 61697-06012 |
| 61698D | Left side enclosure end cover | 61698-06012 |
| 61711 | Roof right side outer panel | 61711-06010 · 61711-06020 |
| 61712 | Roof left outer panel | 61712-06010 · 61712-06020 |
| 61717A | Right side panel extension reinforcement | 61717-33010 |
| 61718A | Left side bulkhead extension reinforcement | 61718-33010 |
| 61719B | roof inner bracket | 61719-33010 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-06010 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-06010 |
| 61731B | Roof right inner panel | 61731-06010 · 61731-06030 |
| 61732B | Roof left inner panel | 61732-06010 · 61732-06020 |
| 61735A | Right rear roof inner panel | 61735-06010 |
| 61736A | Left rear roof inner panel | 61736-06010 |
| 61737B | Right inner lower panel of the roof | 61737-06020 |
| 61737D | Roof right inner reinforcement | 61737-06010 |
| 61738B | Roof left inner lower panel | 61738-06020 |
| 61738D | Roof left inner reinforcement | 61738-06010 |
| 61745A | Back door opening lower right reinforcement | 61745-06010 |
| 61746A | Rear door opening lower left reinforcement | 61745-06010 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-06010 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-06010 |
| 61761A | Seat belt anchor upper reinforcement for No. 1 right-hand seat | 61761-33010 |
| 61762A | Left No. 1 seat belt anchor upper reinforcement | 61762-33010 |
| 61764B | Seat belt anchor reinforcement for seat No. 2, right | 61764-33010 |
| 61765A | Seat belt anchor reinforcement for No. 2 left seat | 61765-33010 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-33010 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-33010 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-33010 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-33010 |
| 61815B | Right inner upper cover of the roof | 61815-33010 · 61815-33030 |
| 61816B | Roof left inner upper cover | 61815-33030 · 61816-33010 |
| 61824 | Noise Control Panel No. 1 | 61824-06010 |
| 61826A | Noise Control Panel No. 3 | 61826-06010 |
| 61886 | Rear roof inner panel | 61886-33010 |
| 62939A | Side ventilation silencers | 62939-06010 |
| 64116B | Right rear upper reinforcement | 64116-33010 |
| 64117B | Left rear upper reinforcement | 64117-33010 |
| 64125A | Upper right back panel bracket | 64125-33010 |
| 64126A | Upper left back panel bracket | 64126-33010 |
