Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

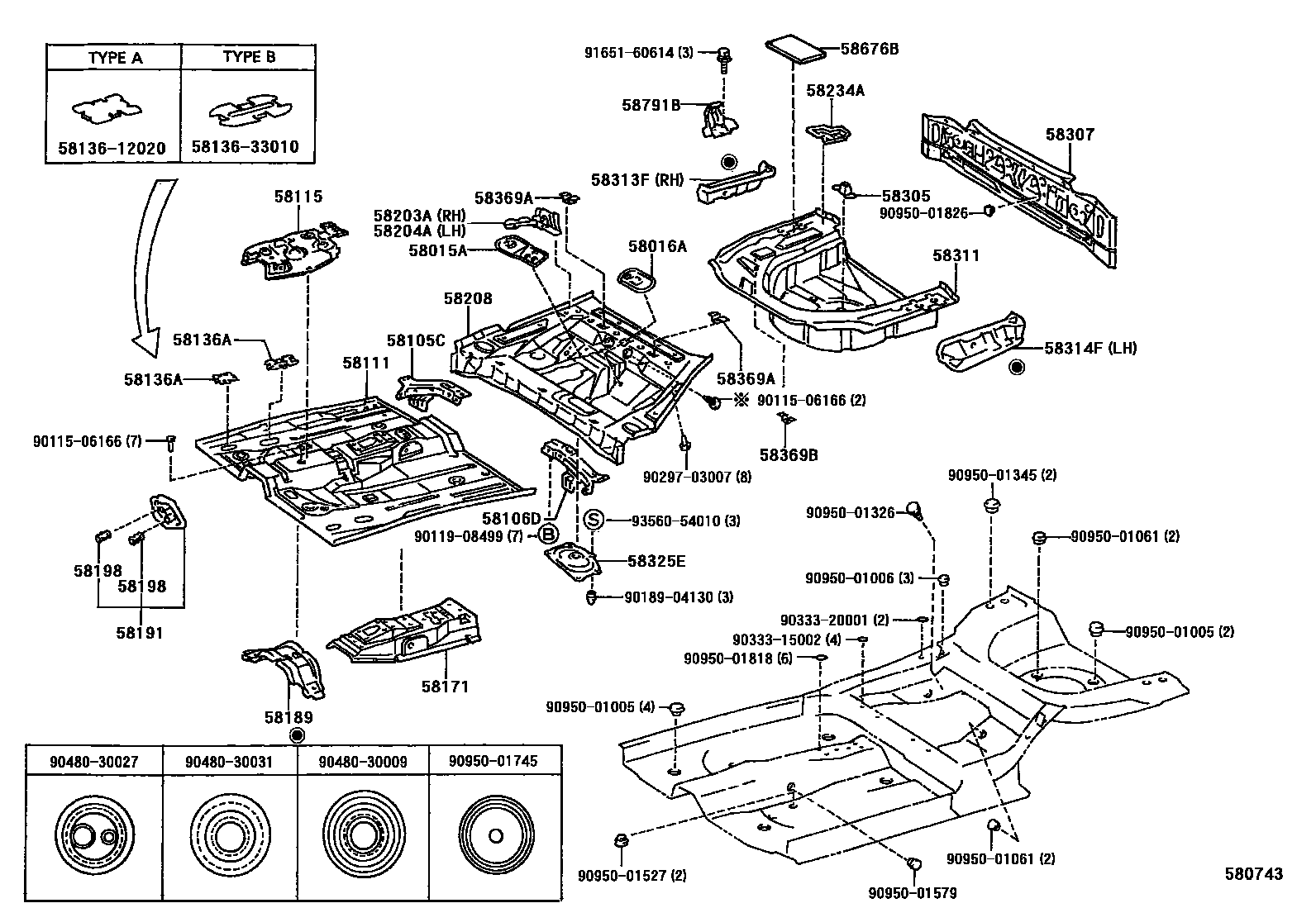

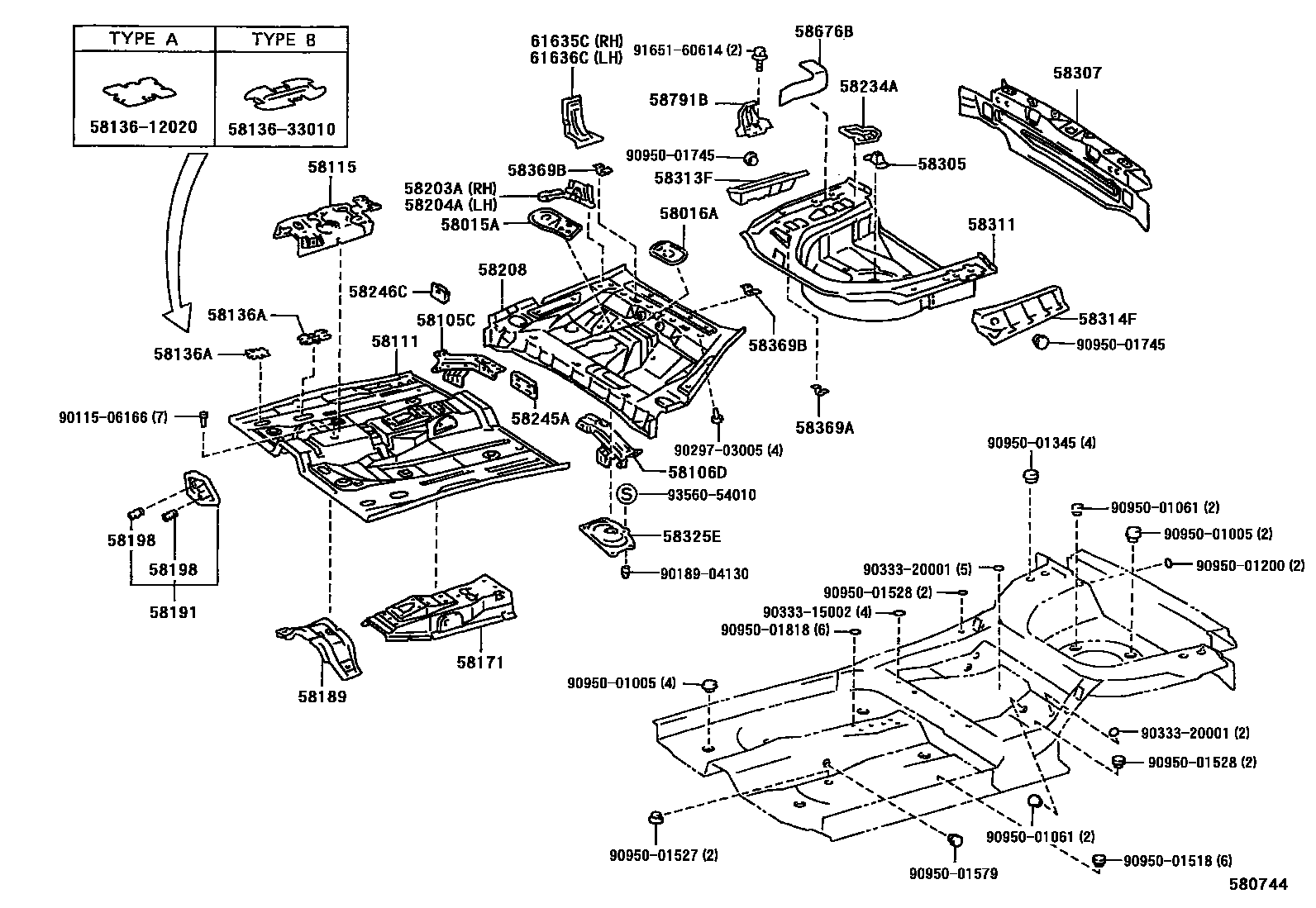

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-33010 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-33010 · 58016-33020 |
| 58105C | Right front wheel housing inner corner plate sub-assembly | 58105-33010 |
| 58106D | Left front wheelhouse inner corner plate sub-assembly | 58106-33010 |
| 58111 | front floor pan | 58111-33010 |
| 58115 | Front floor reinforcement | 58013-33010 · 58013-33020 · 58103-33020 |
| 58136A | Front floor access hole cover | 58136-12020 · 58136-33010 |
| 58171 | Parking brake base reinforcement | 58107-33010 · 58107-33040 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33010 |
| 58191 | Front floor footrest | 58192-06010 |
| 58198 | Footrest clip | 58198-06010 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-33010 · 58213-33010 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-33010 · 58214-33010 |
| 58208 | central floor base | 58211-06030 · 58211-06040 · 58211-06050 |
| 58234A | Exhaust pipe mounting bracket | 58234-33010 · 58234-41010 |
| 58245A | Rear center seat hinge No. 1 bracket | 58245-06010 |
| 58246C | Rear center seat hinge No. 2 bracket | 58246-06010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-06011 · 58307-06012 · 58307-06020 |
| 58311 | rear floor pan | 58311-06010 · 58311-06030 |
| 58313F | Rear floor pan to right side apron extension | 58305-06010 · 58305-06020 |
| 58314F | Rear floor pan to left side apron extension | 58314-06010 · 58314-06020 |
| 58325E | Rear floor access hole cover | 58325-06010 |
| 58369A | No. 3 fuel pipe bracket | 58369-06010 |
| 58369B | No. 3 fuel pipe bracket | 58369-06010 |
| 58676B | Rear floor No. 1 right muffler pad | 58676-33010 · 58676-33020 |
| 58791B | jack bracket | 58791-32060 · 58791-33010 |
| 61635C | Right wheel cover bracket | 61635-33010 |
| 61636C | Left side wheel cover bracket | 61636-33010 |
