Toyota CAMRY Floor stringers — Figure 5305

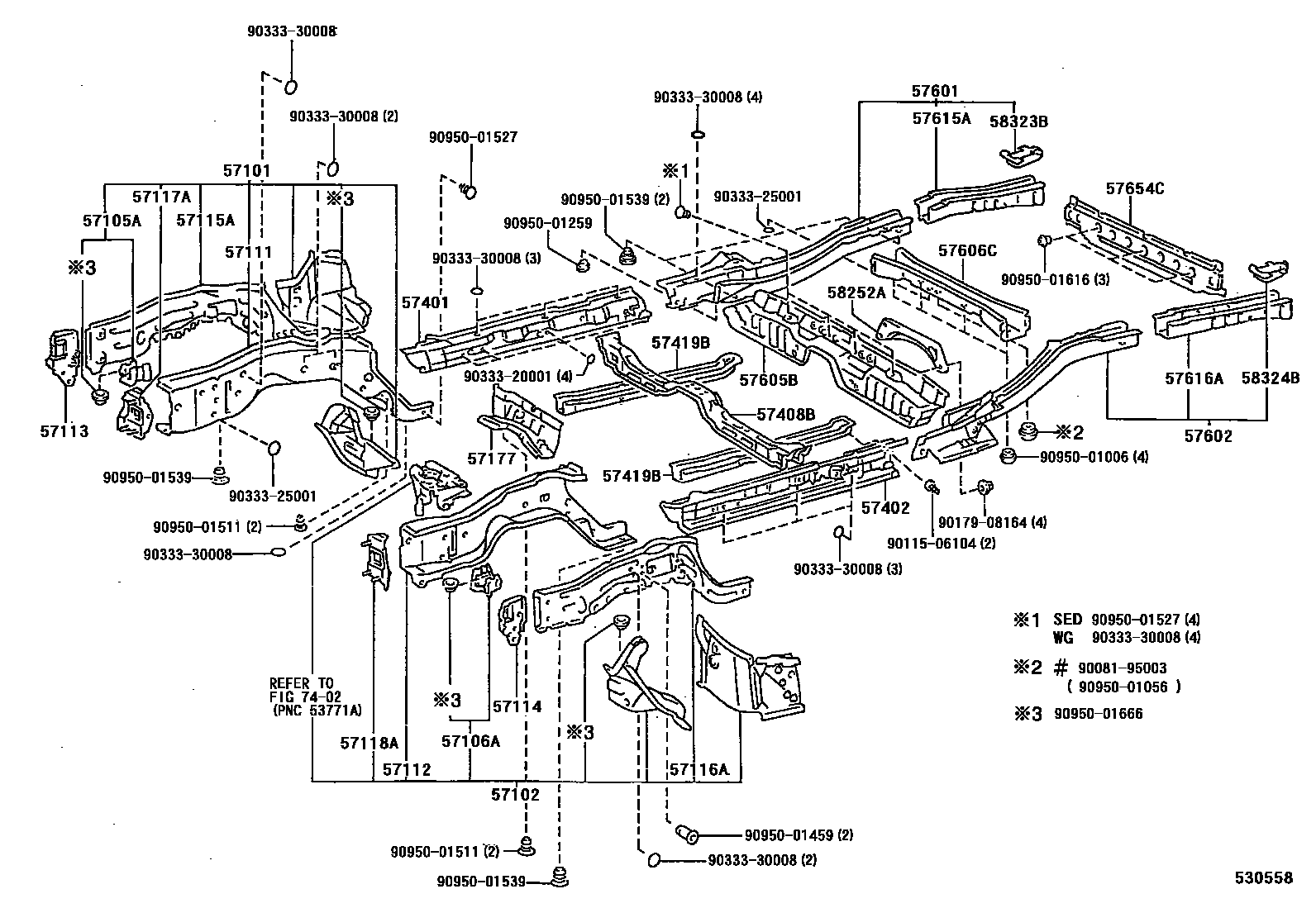

Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-06010 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-06010 · 57102-06020 |
| 57105A | Right front longitudinal beam plate sub-assembly | 57105-33010 · 57105-33011 |
| 57106A | Left front longitudinal beam plate sub-assembly | 57106-33010 · 57106-33011 |
| 57111 | Right front longitudinal beam | 57111-33010 |
| 57112 | Left front longitudinal beam | 57112-06020 · 57112-33010 · 57112-33020 |
| 57113 | Right front longitudinal beam extension | 57113-33010 |
| 57114 | Left front longitudinal beam extension | 57114-33010 |
| 57115A | Right front longitudinal beam outer panel | 57115-33010 |
| 57116A | Left front longitudinal beam outer panel | 57116-33010 |
| 57117A | Front bumper mounting reinforcement | 57117-33010 · 57117-41010 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-33010 · 57118-41010 |
| 57177 | Front longitudinal beam to dash panel cross member | 57177-33010 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-06010 · 57401-06020 · 57401-06030 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-06010 · 57402-06020 · 57402-06030 |
| 57408B | Front floor cross member sub-assembly | 57408-06010 · 57408-06020 · 57408-06030 |
| 57419B | Front floor and rear lower reinforcement | 57419-33010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06020 · 57601-06040 · 57601-06060 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06020 · 57602-06040 · 57602-06041 · 57602-06060 · 57602-06061 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06010 · 57605-06020 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-06010 |
| 57615A | Rear floor right rear longitudinal member | 57615-06900 |
| 57616A | Rear floor left rear longitudinal member | 57616-06900 · 57616-06901 |
| 57654C | Rear floor beam No. 3 | 57654-06010 · 57654-06020 · 57654-33010 |
| 58252A | rear floor bracket | 58252-06010 · 58252-33010 |
| 58323B | Rear bumper arm right bracket reinforcement | 58303-33010 · 58303-33020 |
| 58324B | Rear bumper arm left bracket reinforcement | 58303-33020 |
