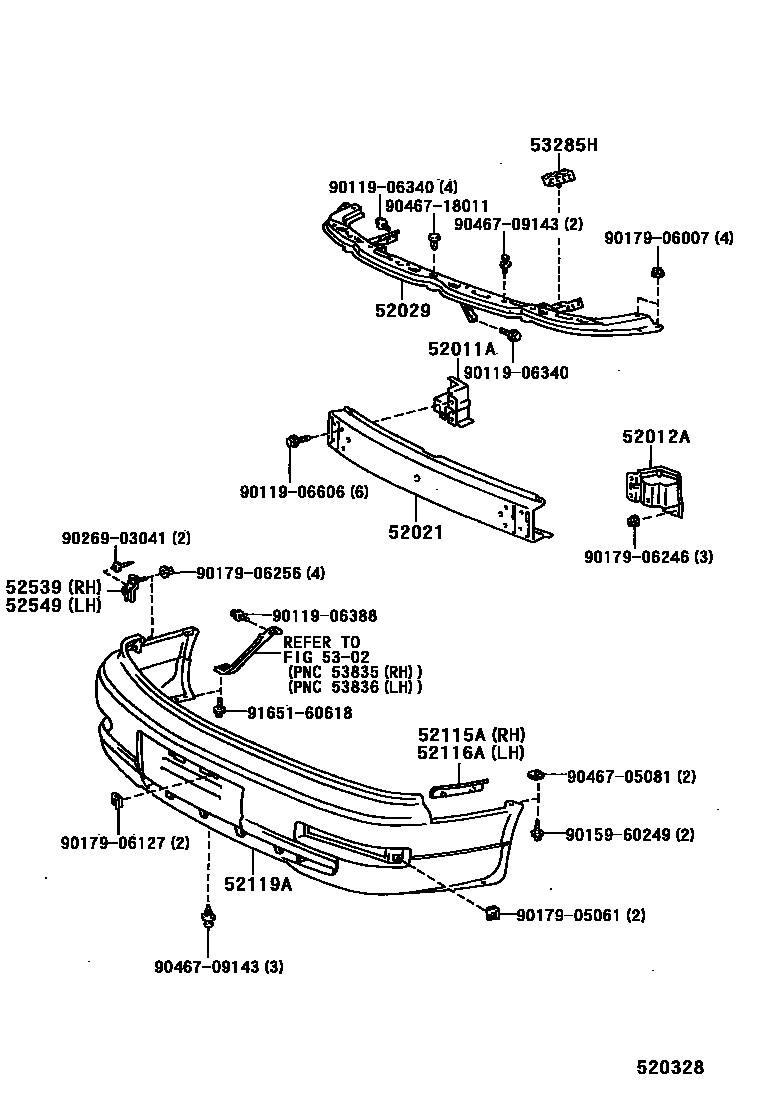

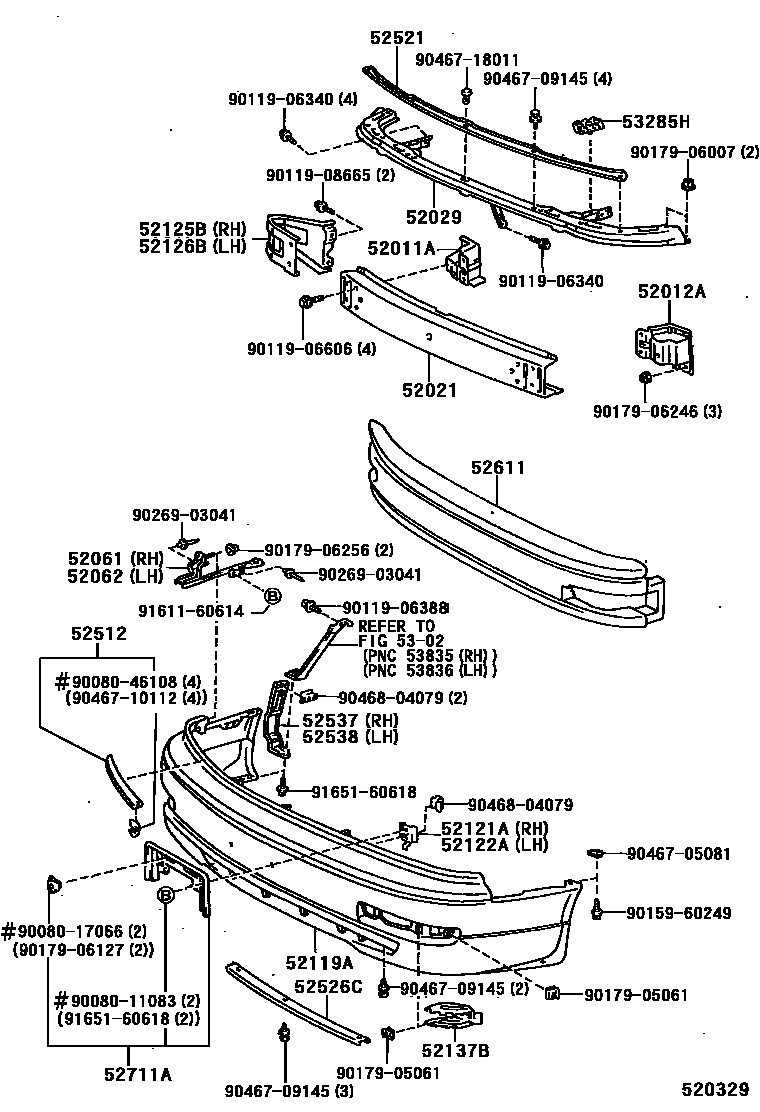

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-06010 |
| 52012A | Front bumper left arm sub-assembly | 52012-06010 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06012 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-06010 · 52029-33030 · 52029-AA010 |
| 52061 | Front bumper right side bracket sub-assembly | 52061-06010 |
| 52062 | Front bumper left bracket sub-assembly | 52062-06010 |
| 52115A | Front bumper right side bracket | 52115-33010 |
| 52116A | Front bumper left bracket | 52116-33010 |
| 52119A | front bumper cover | 52119-06900 · 52119-33901 · 52119-AA900 |
| 52121A | Front license plate right mounting bracket | 52121-06010 |
| 52122A | Front license plate left mounting bracket | 52121-06010 |
| 52125B | Front bumper reinforcement right extension section | 52125-06010 · 52125-AA010 |
| 52126B | Front bumper reinforcement left extension section | 52126-06010 · 52126-AA010 |
| 52137B | Front bumper No. 1 bracket plate | 52137-06010 |
| 52512 | Front bumper right curved filler | 52512-06010 |
| 52521 | Front bumper upper center fixing bracket | 52521-06010 · 52521-AA010 |
| 52526C | Front bumper lower fixing bracket | 52526-06010 |
| 52537 | Front bumper right end fixing bracket | 52537-06010 · 52537-AA010 |
| 52538 | Front bumper left end fixing bracket | 52538-06010 · 52538-AA010 |
| 52539 | Front bumper No. 3 right side fixing bracket | 52539-33020 |
| 52549 | Front bumper No. 3 left side fixing bracket | 52549-33020 |
| 52611 | front bumper energy absorber | 52611-06010 · 52611-AA010 |
| 52711A | front bumper decorative panel | 52711-06010 · 52711-AA010 |
| 53285H | Radiator side 1 air seal | 53285-33010 |
