VOCR EPC

Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 3 images and 5 PNC and OE references.

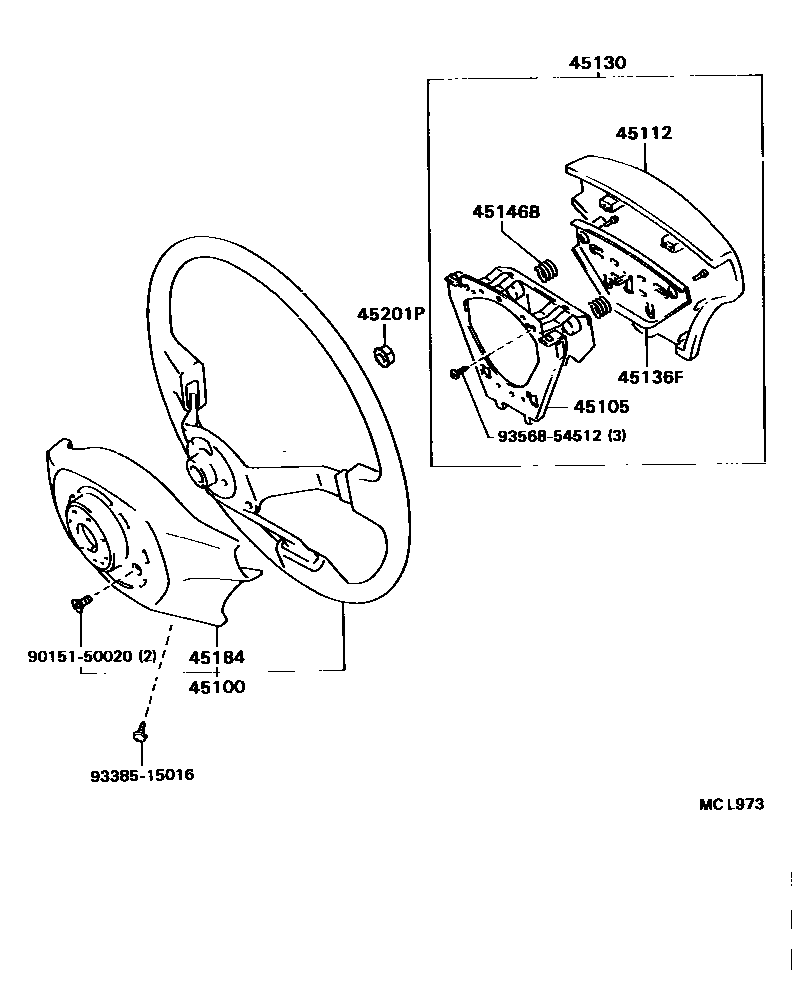

Toyota CAMRY Steering Wheel EPC diagram — MCL973
Steering Wheel — MCL973 (199209 – 999999)

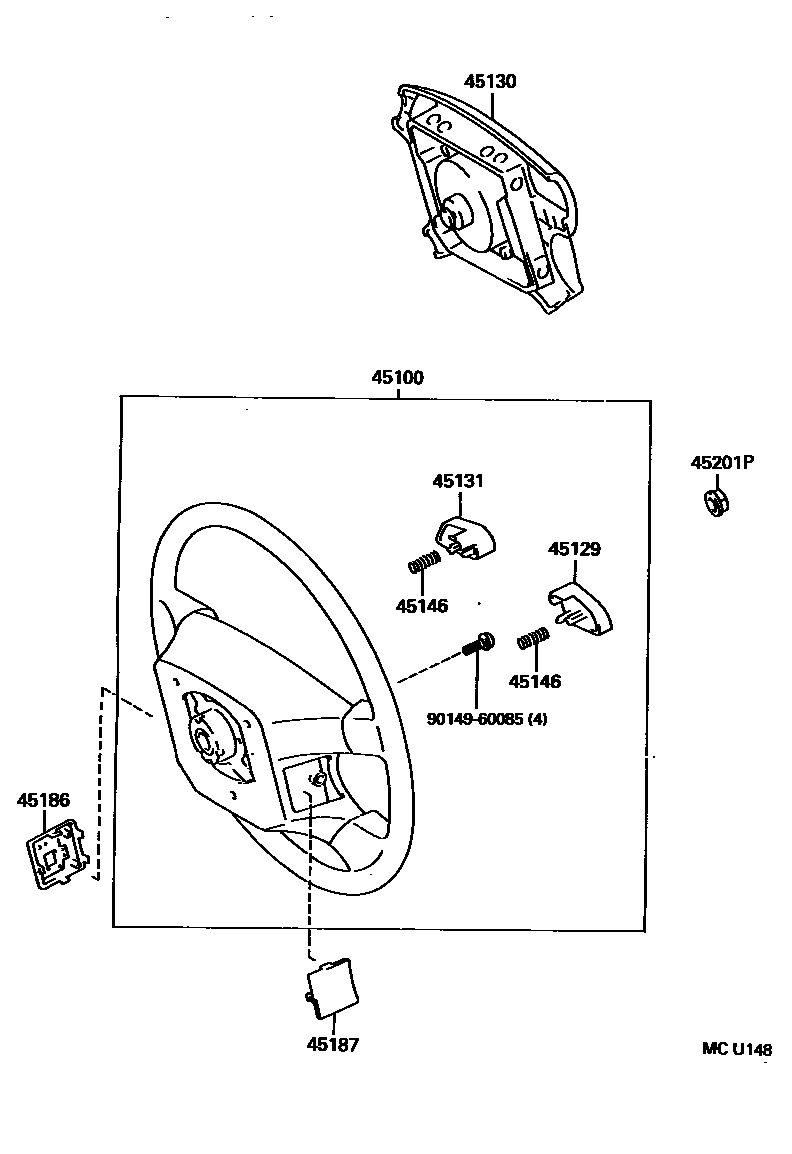

Toyota CAMRY Steering Wheel EPC diagram — MCU148
Steering Wheel — MCU148 (199508 – 999999)

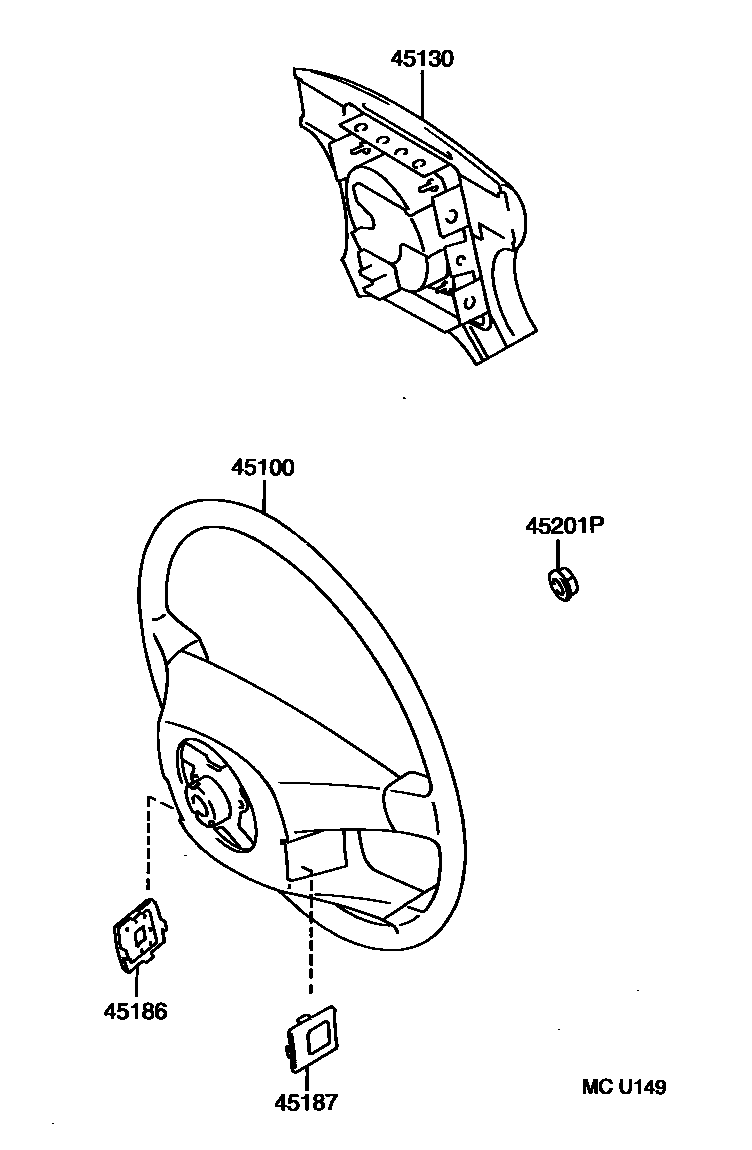

Toyota CAMRY Steering Wheel EPC diagram — MCU149
Steering Wheel — MCU149 (199209 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-32060
45136FNo. 1 horn button contact piece45136-32110
45146Horn button contact spring45146-20230
45146BNo. 1 horn button contact spring45146-20140
45201PSteering wheel fixing nut90179-12071 · 90179-12086
