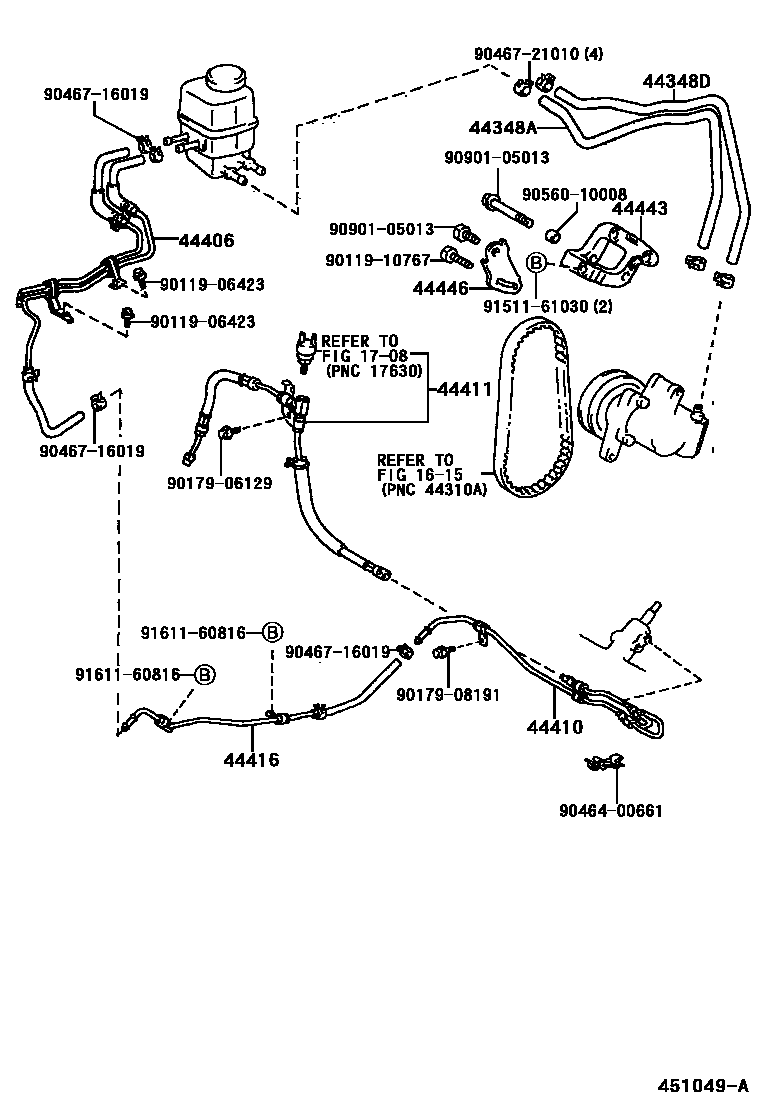

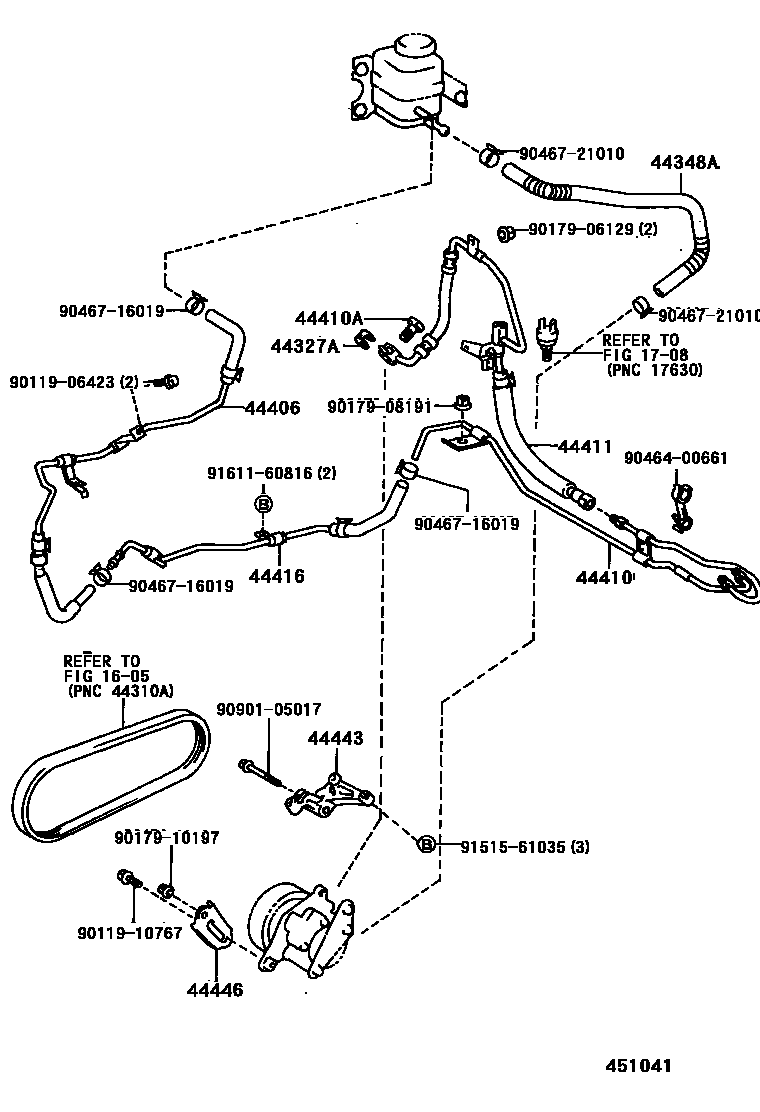

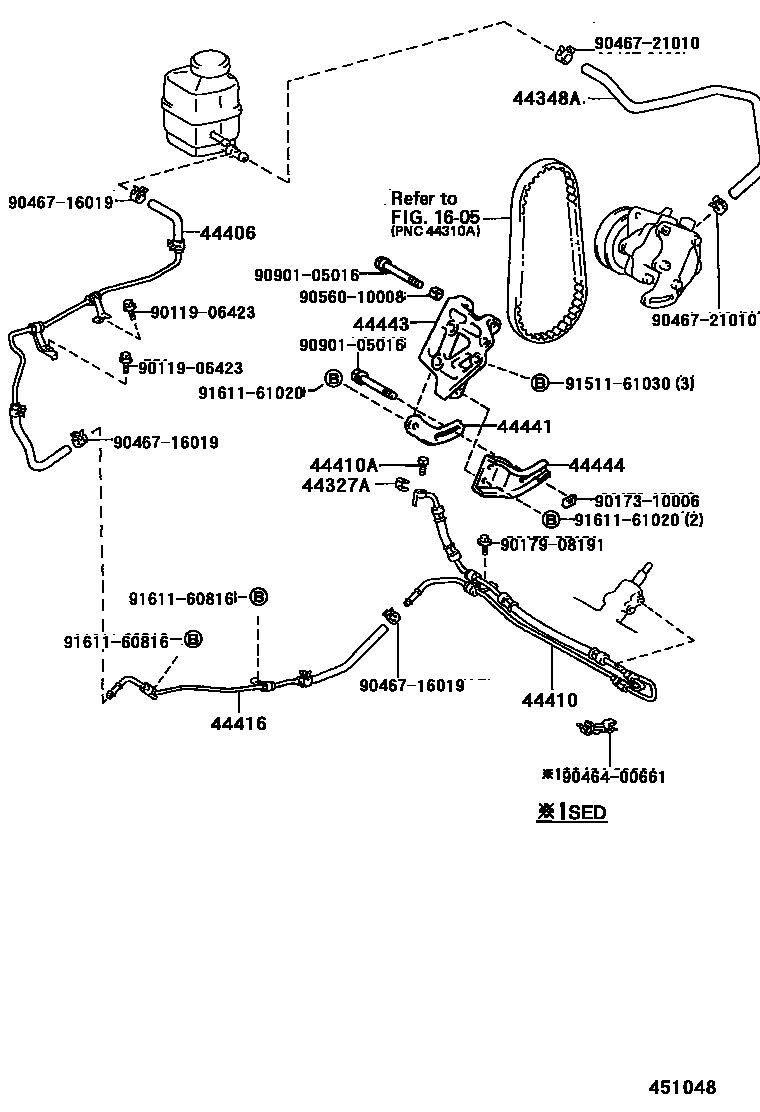

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-06080 · 44348-06100 · 44348-06120 · 44348-06140 · 44348-07010 · 44348-33070 · 44348-33090 |
| 44348D | No. 2 hose (tank to pump) | 44348-06110 · 44348-33100 |
| 44406 | Oil return pipe sub-assembly | 44406-06020 · 44406-06030 · 44406-06040 |
| 44410 | Pressure supply pipe assembly | 44410-06010 · 44410-06021 · 44410-06060 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 |
| 44411 | pressure supply hose | 44411-06020 · 44411-06030 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-06010 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-20050 · 44443-33020 · 44443-33030 · 44443-33040 |
| 44444 | Pump back stay | 44444-20030 |
| 44446 | Adjust the stand | 44446-33010 · 44446-AC010 |
