Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502

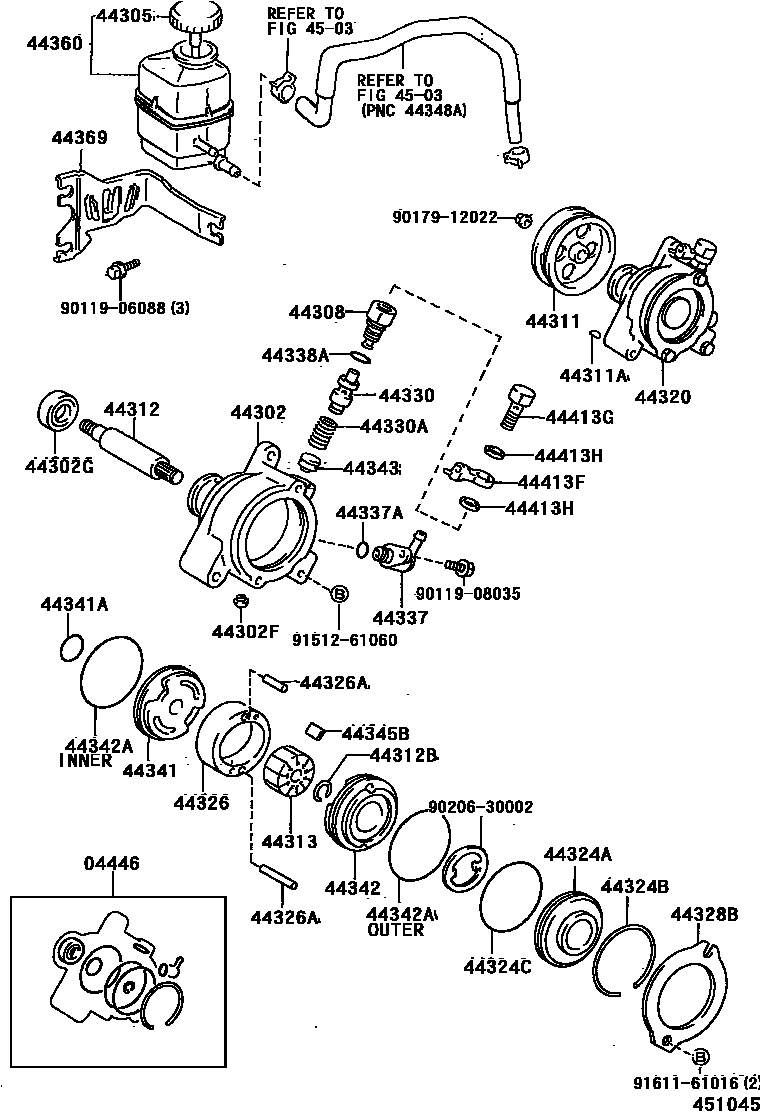

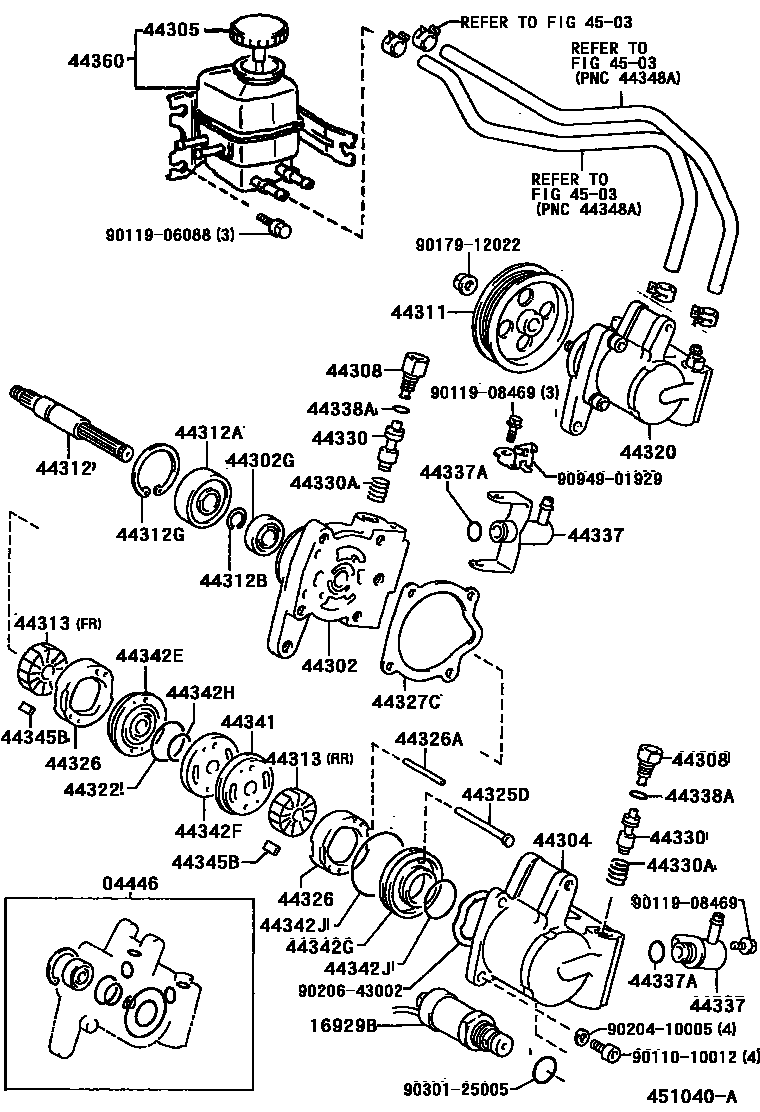

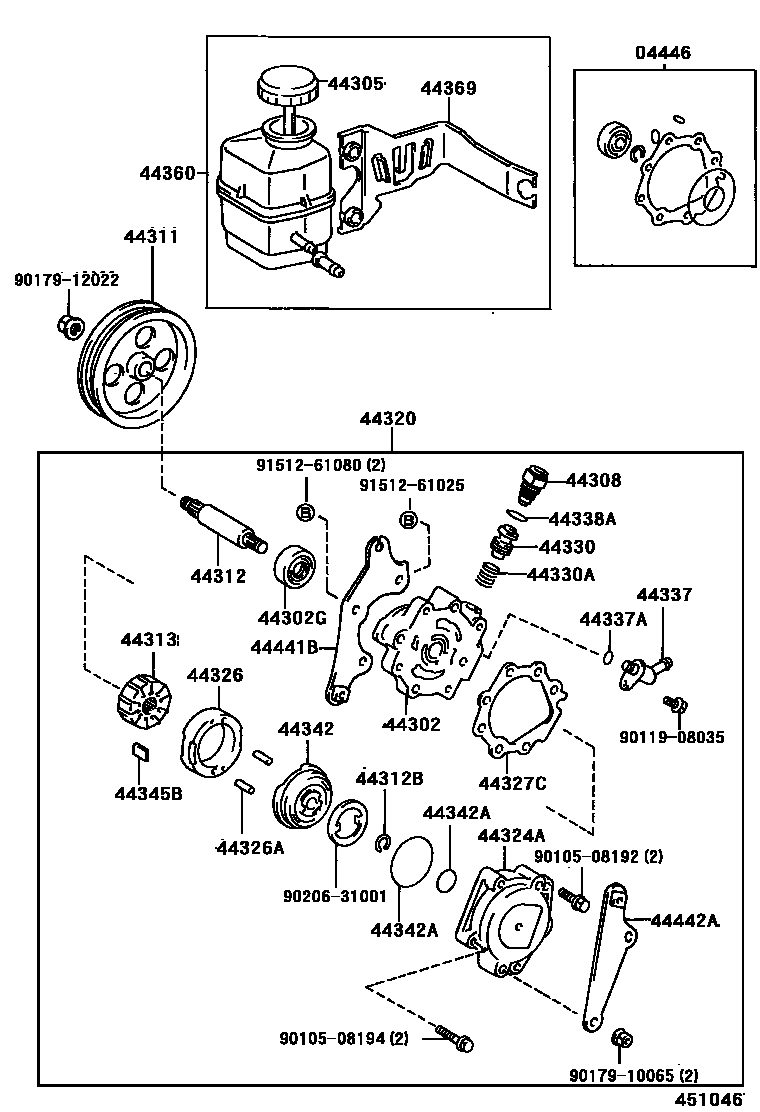

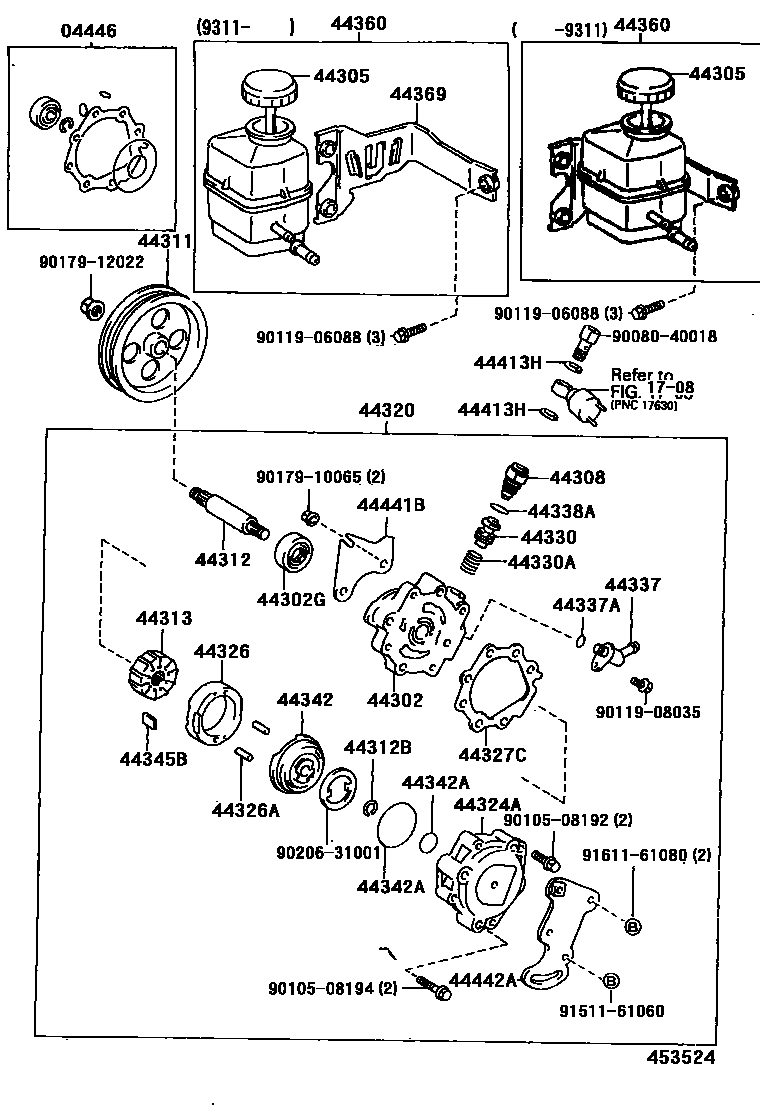

Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 4 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-04010 · 04446-20090 · 04446-32011 · 04446-32021 · 04446-33011 · 04446-33021 |
| 16929B | Hydraulic motor control valve | 16929-62020 |
| 44302 | Front vane pump housing sub-assembly | 44302-06020 · 44302-06021 · 44302-07010 · 44302-07011 · 44302-20060 · 44302-33010 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90080-31020 · 90311-17007 · 90311-18007 · 90311-18015 |
| 44304 | Vane pump rear housing sub-assembly | 44304-33010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-06010 · 44305-32020 |
| 44308 | Pressure hole connector sub-assembly | 44308-32060 · 44308-33010 · 44308-33060 · 44308-33070 |
| 44311 | vane pump pulley | 44311-06010 · 44311-07010 · 44311-20060 · 44311-32050 · 44311-33010 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-06010 · 44312-12030 · 44312-32020 · 44312-32030 |
| 44312A | Bearings (for vane pump shafts) | 90363-17011 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52033 · 90520-10003 · 90520-15001 |
| 44312G | No. 2 snap ring (for vane pump shaft bearing) | 90521-51003 |
| 44313 | vane pump rotor | 44313-06010 · 44313-06020 · 44313-06030 · 44313-06040 · 44313-06050 · 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 · 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 · 44313-32010 · 44313-32020 · 44313-32030 · 44313-32040 · 44313-32050 |
| 44320 | Vane pump assembly | 44320-06010 · 44320-06011 · 44320-06020 · 44320-07010 · 44320-07011 · 44320-33040 · 44320-33080 |
| 44322 | Vane pump end cover sealing ring | 44322-32010 |
| 44324A | Pump back shell | 44324-06010 · 44324-07010 · 44324-12031 · 44324-32031 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-53004 · 90301-53006 |
| 44325D | Ring pin (for vane pump cam ring) | 90253-04001 |
| 44326 | Cam ring (for vane pumps) | 44325-06010 · 44325-06020 · 44325-06030 · 44325-06040 · 44325-06050 · 44325-30100 · 44325-30110 · 44325-30120 · 44325-30130 · 44325-30140 · 44325-32110 · 44325-32120 · 44325-32130 · 44325-32140 · 44325-32150 · 44325-32270 · 44325-32280 · 44325-32290 · 44325-32300 · 44325-32310 · 44325-33030 · 44325-33040 · 44325-33050 · 44325-33060 · 44325-33070 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 · 90250-04071 · 90250-04083 |
| 44327C | Vane pump casing gasket | 44327-26010 · 44327-32010 |
| 44328B | Vane pump casing end | 44328-35010 |
| 44330 | Flow control valve assembly | 44330-26011 · 44330-26021 · 44330-26031 · 44330-26041 · 44330-26051 · 44330-26061 · 44330-26071 · 44330-26081 · 44330-26091 · 44330-26101 · 44330-26111 · 44330-26121 · 44330-33010 · 44330-33020 · 44330-33030 · 44330-33040 · 44330-33050 · 44330-33060 · 44330-33130 · 44330-33140 · 44330-33150 · 44330-33160 · 44330-33170 · 44330-33180 · 44330-33190 · 44330-33200 · 44330-33210 · 44330-33220 · 44330-33230 · 44330-33240 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 · 90501-13034 |
| 44337 | Power steering suction port connector | 44337-06010 · 44337-07010 · 44337-12020 · 44337-28030 · 44337-32070 · 44337-33010 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30034 · 90301-11010 · 90301-12003 · 96711-19016 |
| 44338A | O-ring (for pressure port connector) | 90080-30035 · 90301-19003 |
| 44341 | Vane pump front cover | 44341-20010 · 44341-32021 |
| 44341A | O-ring (for vane pump front cover) | 90301-25008 · 90301-53004 |
| 44342 | Vane pump rear end cover | 44342-06010 · 44342-20010 · 44342-26020 |
| 44342A | O-ring (for vane pump rear end cover) | 90080-30031 · 90080-30032 · 90301-18007 · 90301-47001 · 90301-53004 |
| 44342E | No. 1 vane pump rear end cover | 44342-32021 |
| 44342F | No. 2 vane pump rear end cover | 44342-32030 |
| 44342G | No. 3 vane pump rear end cover | 44342-32041 |
| 44342H | O-ring (for No. 1 vane pump rear end cover) | 90301-15008 |
| 44342J | O-ring (for No. 2 vane pump rear end cover) | 90301-36007 · 90301-56003 |
| 44343 | Flow control spring seat | 44343-12010 |
| 44345B | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 · 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 · 44345-32060 · 44345-32070 |
| 44360 | Vane pump oil storage tank assembly | 44360-06010 · 44360-33010 · 44360-33020 |
| 44369 | No. 1 oil storage tank bracket | 44390-06010 |
| 44413F | No. 2 pressure supply pipe | 44413-12150 |
| 44413G | Joint bolt (for pressure supply pipe No. 2) | 96341-41603 |
| 44413H | Gasket (for pressure supply pipe No. 2) | 90430-16242 |
| 44441B | Pump front bracket | 44441-06010 · 44441-07010 |
| 44442A | Vane pump rear bracket | 44442-06010 · 44442-07010 |
