Toyota CAMRY Front Drive Shaft — Figure 4302

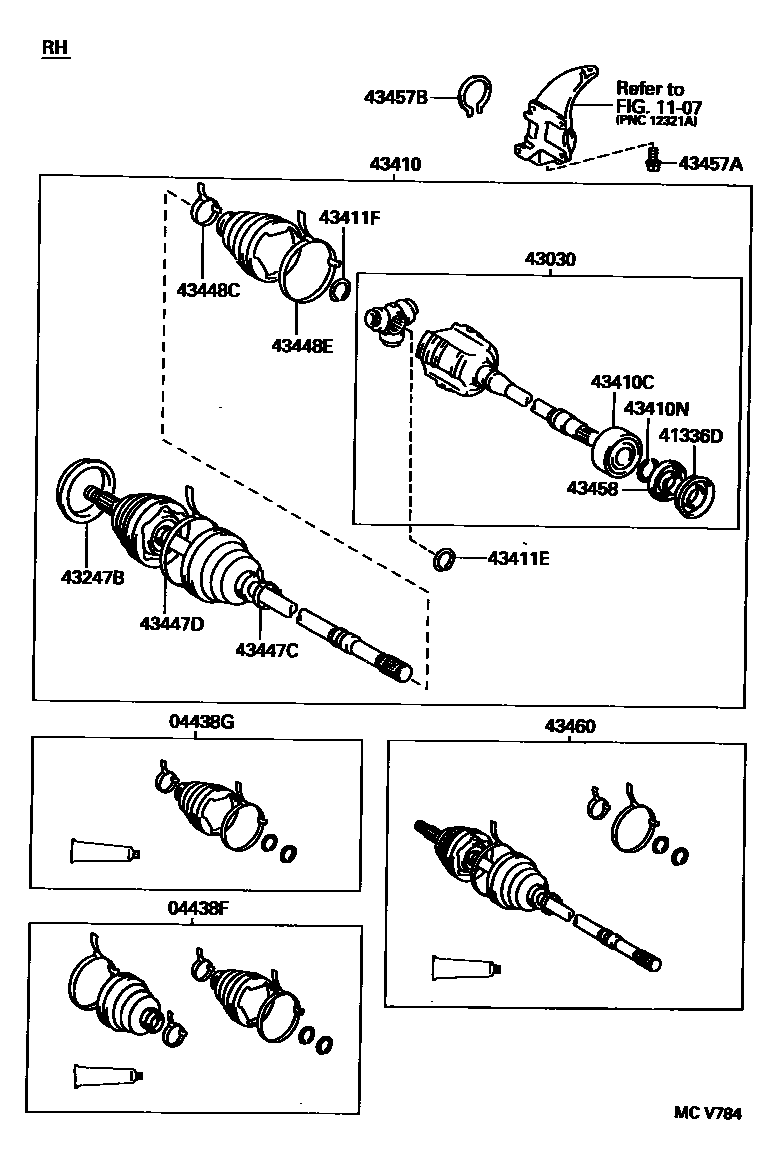

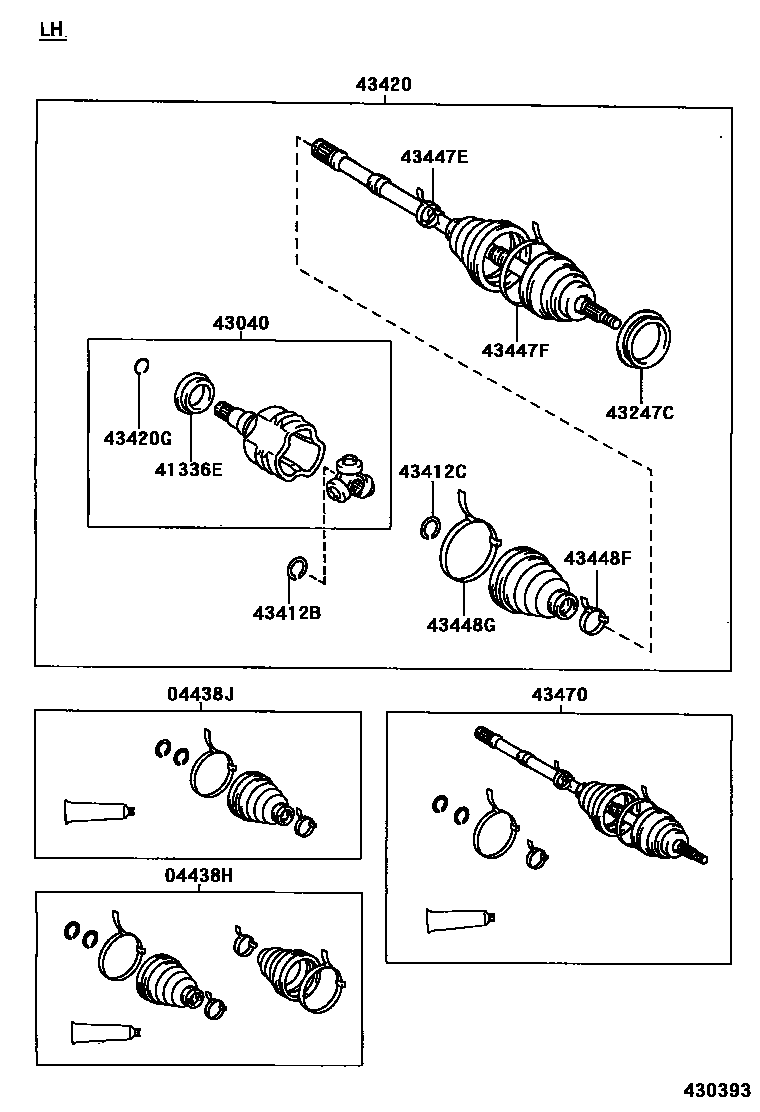

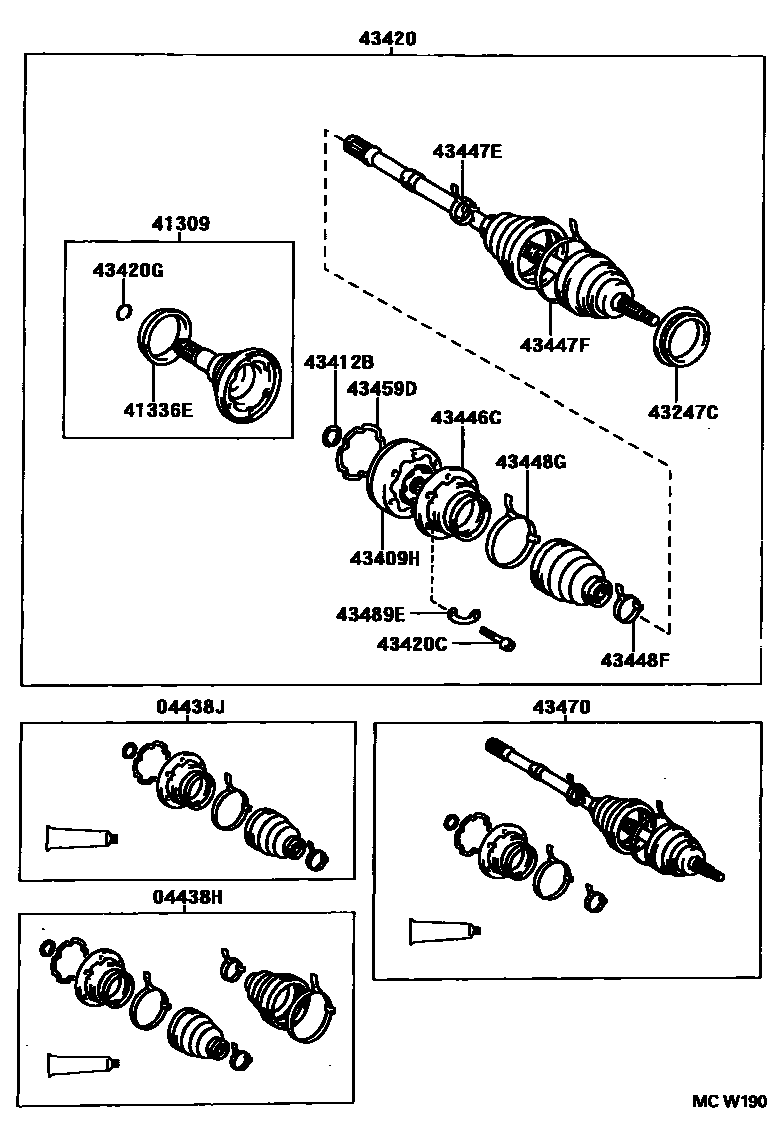

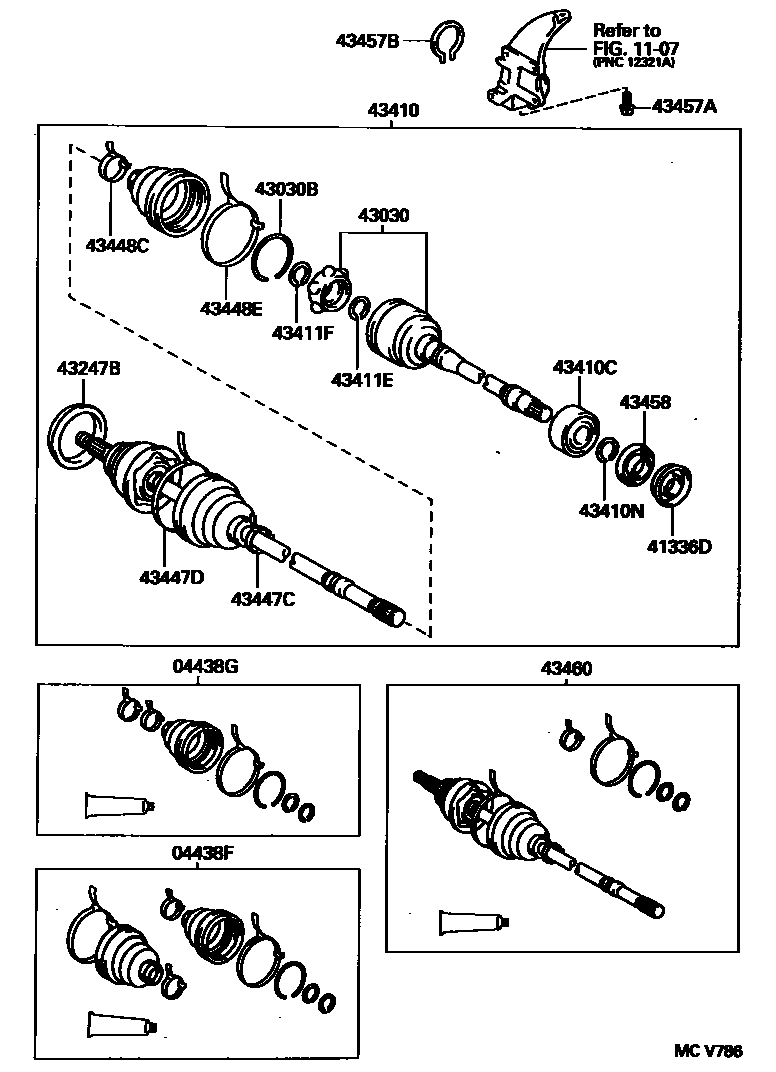

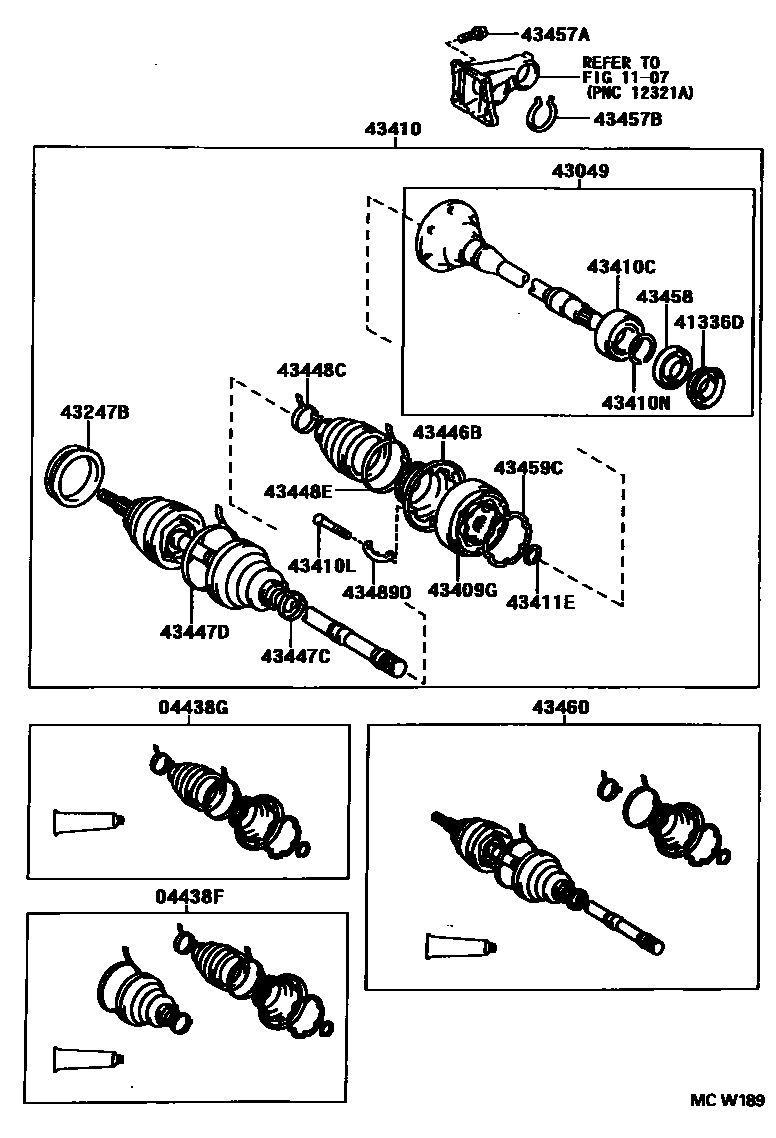

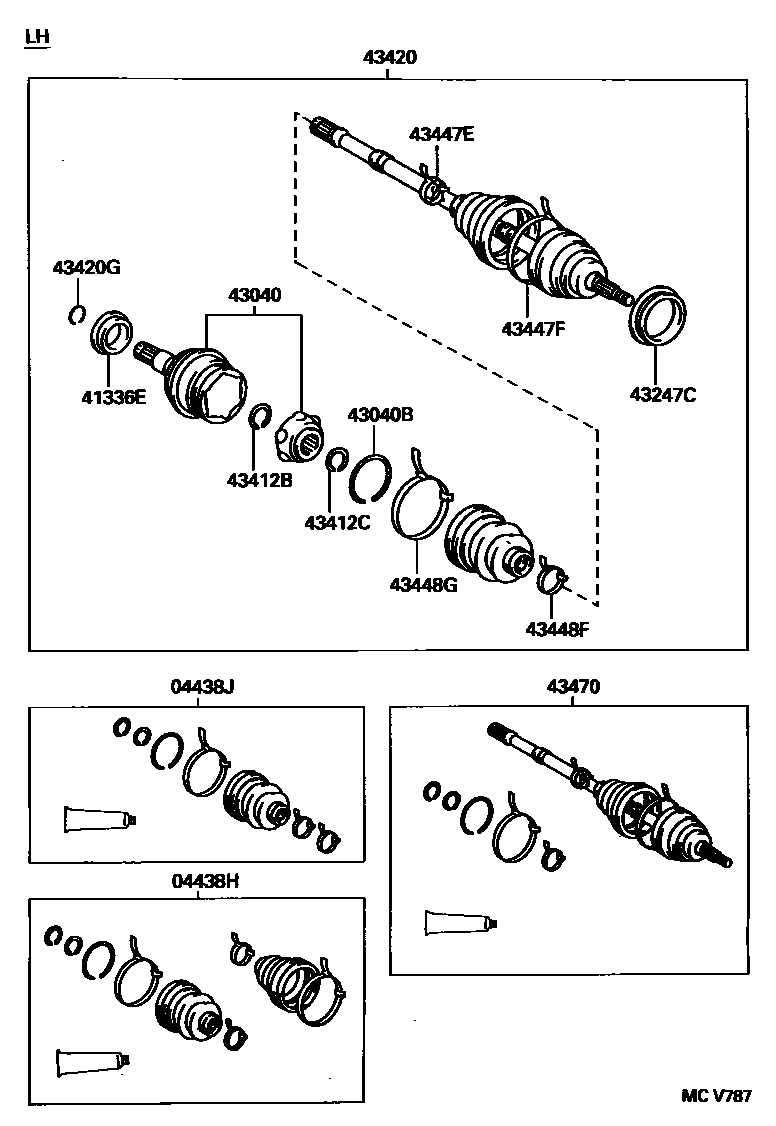

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 6 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-06020 · 04438-06021 · 04438-06060 · 04438-20070 · 04438-20090 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-06010 · 04438-06011 · 04438-06050 · 04438-20060 · 04438-20080 · 04438-20330 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-06020 · 04438-06021 · 04438-06060 · 04438-20070 · 04438-20090 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06010 · 04438-06011 · 04438-06050 · 04438-20060 · 04438-20080 · 04438-20330 |
| 41309 | Left differential side gear shaft sub-assembly | 41309-06020 |
| 41336D | Right front driveshaft dust cover | 41336-06010 · 41336-06020 · 41336-20011 |
| 41336E | Left front driveshaft dust cover | 41336-06030 · 41336-06040 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06020 · 43030-33010 · 43030-33020 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-79001 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06020 · 43040-20020 · 43040-32010 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-79001 |
| 43049 | Front drive flange shaft sub-assembly | 43049-06020 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-06010 · 43247-06020 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-06010 · 43247-06020 · 43247-33010 |
| 43409G | Right front drive shaft cross-slot universal joint sub-assembly | 43409-06010 |
| 43409H | Left front drive shaft cross-slot universal joint sub-assembly | 43409-06010 |
| 43410 | Right front driveshaft assembly | 43410-06050 · 43410-06060 · 43410-06080 · 43410-33010 · 43410-33050 |
| 43410C | Bearings (for front driveshaft) | 90080-36048 · 90369-36001 · 90369-41001 |
| 43410L | Bolt (for right front driveshaft cross-recessed universal joint) | 90080-11034 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52013 · 90081-52006 · 90520-33008 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90080-52018 · 90080-52036 · 90520-25034 · 90520-26048 |
| 43411F | Outer shaft snap ring (for right front axle inner drive shaft) | 90080-52019 · 90520-25033 · 90520-25037 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90080-52018 · 90080-52036 · 90520-25034 · 90520-26048 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90080-52019 · 90520-25033 · 90520-25037 |
| 43420 | Left front drive shaft assembly | 43420-06050 · 43420-06060 · 43420-06080 · 43420-33010 · 43420-33050 |
| 43420C | Bolt (for left front driveshaft cross-recessed universal joint) | 90080-11034 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 · 90081-52005 · 90521-27005 |
| 43446B | Right front axle inner universal joint cover | 43446-03020 |
| 43446C | Left front axle inner universal joint cover | 43446-03020 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 90080-46084 · 90080-46106 · 90949-01108 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16060 · 90080-46086 · 90080-46109 · 90949-01107 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 90080-46084 · 90080-46106 · 90949-01108 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16060 · 90080-46086 · 90080-46109 · 90949-01107 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90080-46084 · 90080-46106 · 90081-46024 · 90949-01108 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06010 · 42345-16090 · 42346-22010 · 90080-46173 · 90081-46023 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90080-46084 · 90080-46106 · 90081-46024 · 90949-01108 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16090 · 42346-22010 · 90080-46084 · 90080-46173 · 90081-46023 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 · 90521-78002 |
| 43458 | Front drive shaft dust cover | 43458-06010 · 43458-06020 · 43458-20011 |
| 43459C | Right front driveshaft cross-recessed universal joint gasket | 43459-06010 |
| 43459D | Left front driveshaft cross-recessed universal joint gasket | 43459-06010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-09160 · 43470-09180 · 43470-09190 · 43470-39175 · 43470-39235 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09160 · 43470-09180 · 43470-09190 · 43470-39175 · 43470-39235 |
| 43489D | Right front driveshaft cross-recessed universal joint washer | 43489-03010 |
| 43489E | Left front driveshaft cross-recessed universal joint washer | 43489-03010 |
