Toyota CAMRY 变速器壳和油底壳(ATM) — Figure 3503

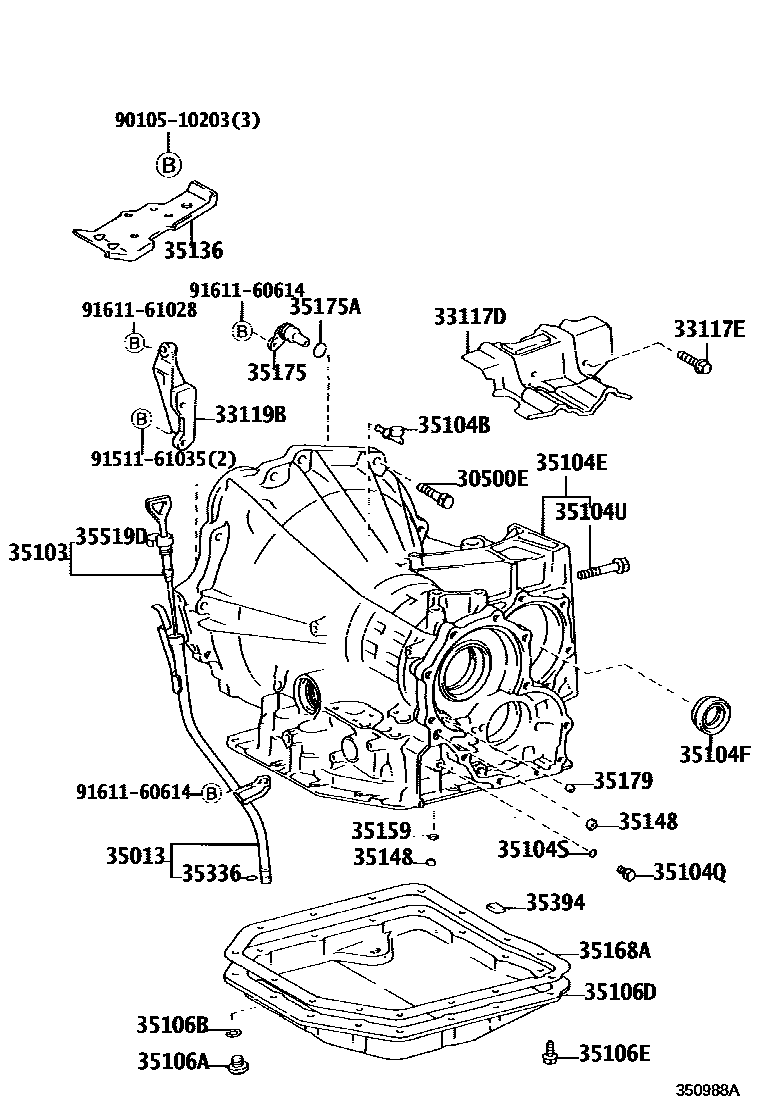

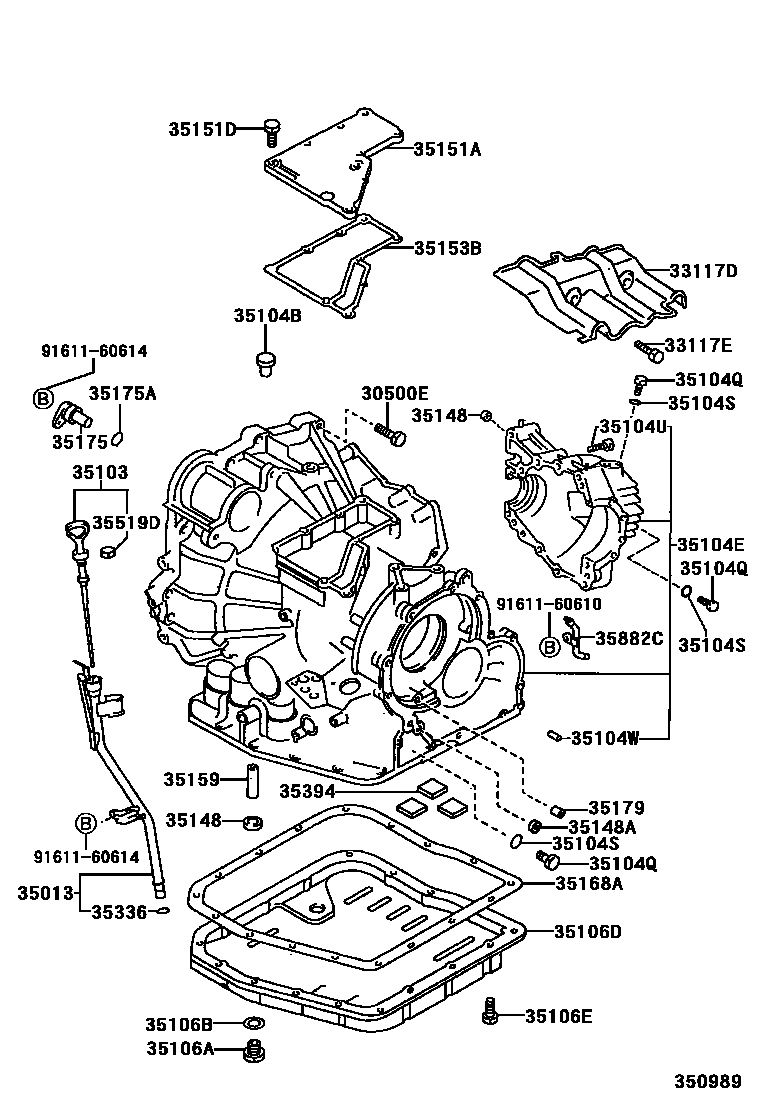

Toyota CAMRY EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90105-08040 · 90105-10077 · 90119-12168 · 91619-61245 · 91619-61265 · 91651-41022 · 92412-H1055 |
| 33117D | automatic transmission guard plate | 33117-07010 · 33117-32040 · 33117-32060 |
| 33117E | Bolts (for automatic transmission guard) | 90105-08040 |
| 33119B | Left reinforcement plate (ATM) | 33119-32020 |
| 35013 | Transmission oil pipe sub-assembly | 35013-06010 · 35013-06030 |
| 35103 | Transmission oil level scoring assembly | 35103-33010 · 35103-33040 · 35103-33060 · 35103-33080 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03001 · 90930-03089 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-32101 · 35104-32102 · 35104-32170 · 35104-33900 |
| 35104F | Oil seal (for transmission axle housing) | 90311-35019 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104U | Bolts (for transaxle housing) | 90105-10222 · 90105-10223 · 90105-10224 · 90105-12052 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10232 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-32012 · 35106-33010 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35136 | No. 1 transmission hanger | 35136-33010 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35148-16010 |
| 35148A | Governor oil supply pipe gasket No. 2 | 35148-16010 |
| 35151A | Transmission axle housing upper cover | 35151-33020 |
| 35151D | Bolts (for transmission axle housing upper cover) | 90105-06113 · 90109-08235 |
| 35153B | Transmission axle housing upper cover gasket | 35153-33020 |
| 35159 | brake drum gasket | 35159-32011 |
| 35168A | Automatic transaxle oil pan gasket | 35168-32010 · 35168-33010 |
| 35175 | No. 2 transmission axle housing cover | 35175-32010 · 35175-33010 |
| 35175A | O-ring (for transmission axle housing cover) | 90301-16006 · 90301-21002 |
| 35179 | overdrive brake pad | 35179-32010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35519D | Automatic transmission information label | 35519-32030 · 35519-32040 |
| 35882C | Differential gear lubricant oil supply pipe | 35882-33020 |
