Toyota CAMRY 换档拨叉和换档杆轴(MTM) — Figure 3307

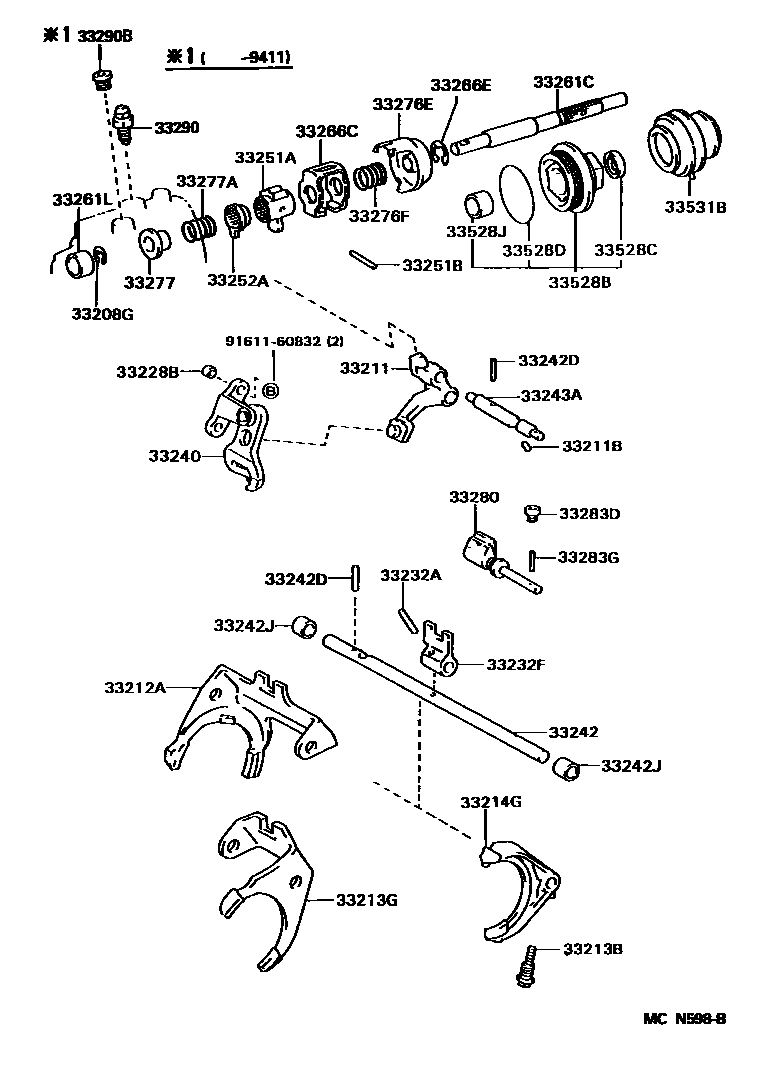

Toyota CAMRY EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33208G | E-ring (for reverse gear positioning pin) | 90523-12003 |
| 33211 | Reverse Shift Fork | 33270-33011 |
| 33211B | Roller (for reverse shift fork) | 90361-08002 |
| 33212A | No. 1 shift fork | 33210-32023 |
| 33213B | Bolt (for securing shift fork) | 90105-06065 |
| 33213G | No. 2 shift fork | 33220-32023 |
| 33214G | No. 3 shift fork | 33214-33010 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232F | No. 1 transmission guide block | 33232-32012 |
| 33240 | Reverse shift arm bracket assembly | 33240-33010 |
| 33242 | No. 1 shift fork shaft | 33242-33020 |
| 33242D | Slotted spring pin (for shift fork shaft) | 90254-05001 |
| 33242J | Bushing (for shift fork shaft) | 90384-14005 · 90389-14043 |
| 33243A | No. 2 shift fork shaft | 33243-32010 |
| 33251A | Internal shift lever No. 1 | 33251-33010 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05007 |
| 33252A | Internal shift lever No. 2 | 33252-33010 |
| 33261C | shift lever shaft | 33261-33010 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-15002 |
| 33266C | shift interlock plate | 33266-33011 |
| 33266E | E-ring (with shift interlock plate) | 90523-14001 |
| 33276E | No. 1 gear selector spring seat | 33276-33011 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-13036 |
| 33277 | No. 2 gear selector spring seat | 33277-33010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-16135 · 90501-16144 |
| 33280 | Reverse gear positioning pin assembly | 33280-32012 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-04005 |
| 33290 | No. 1 locking steel ball assembly | 33290-33010 · 33290-33011 |
| 33290B | No. 2 locking steel ball assembly | 90341-16015 |
| 33528B | control shaft cover | 33506-33010 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528D | O-ring (used to control shaft cover) | 90301-65004 |
| 33528J | Bimetallic bushing (for control shaft cover) | 90384-18017 |
| 33531B | Dust boot (for shift lever shaft) | 33531-32011 |
