Toyota CAMRY 分电器 — Figure 1902

Toyota CAMRY EPC diagram 1902, 分电器, with 2 images and 12 PNC and OE references.

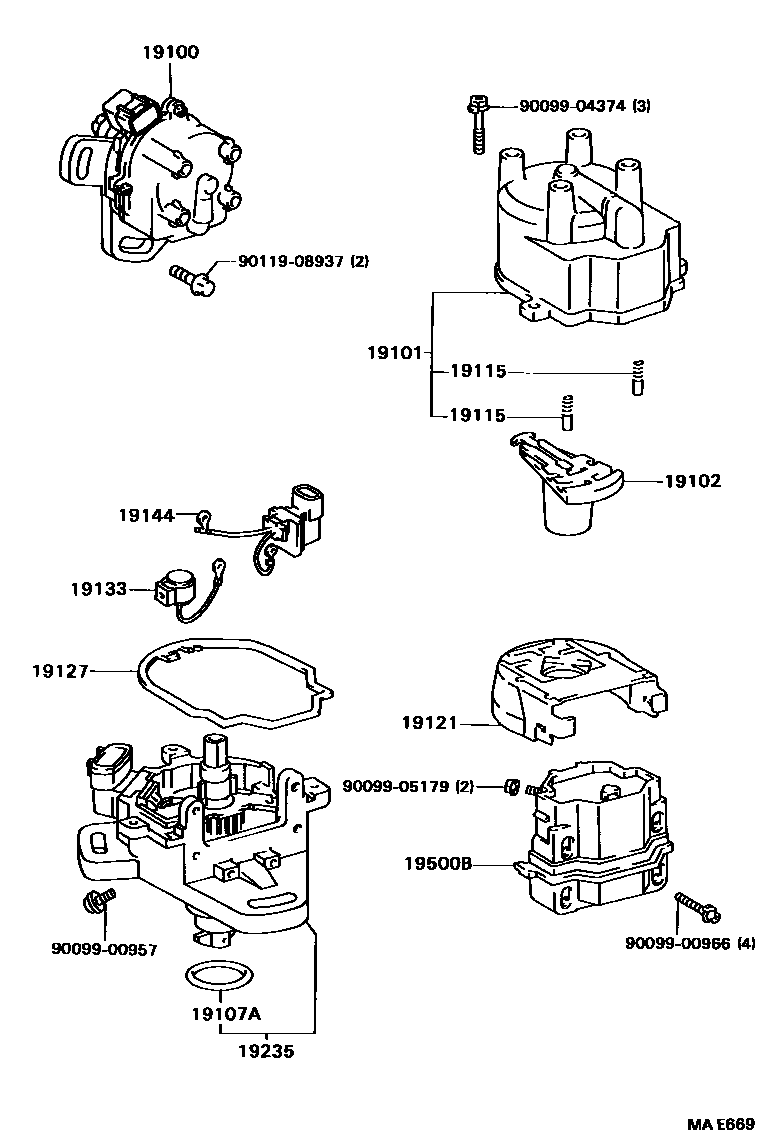

Toyota CAMRY 分电器 EPC diagram — MAE669
分电器 — MAE669 (199209 – 199607)

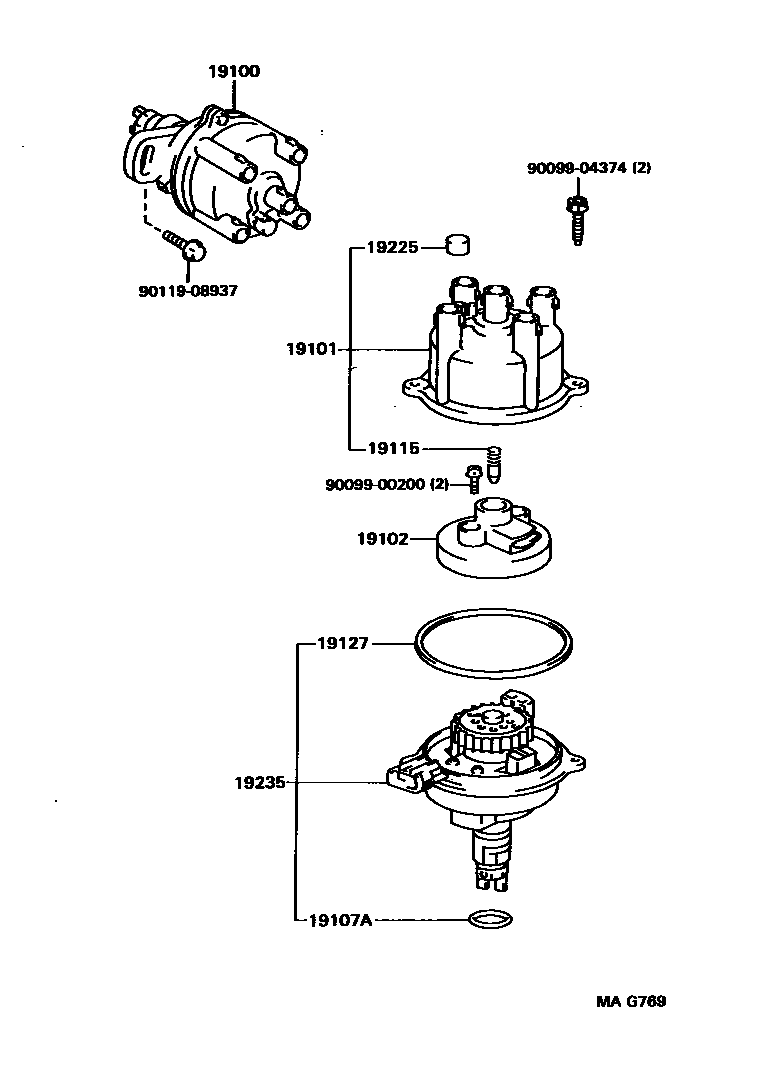

Toyota CAMRY 分电器 EPC diagram — MAG769
分电器 — MAG769 (199508 – 199607)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19050-74010 · 19050-74030 · 19100-74230
19101Distributor cover sub-assembly19101-74110 · 19101-74170 · 19101-74180
19102Distributor flame head sub-assembly19102-11031 · 19102-74040
19107ADistributor housing O-ring90099-14091 · 90099-14127
19115Distributor cover center piece19115-63010 · 19115-88280
19121dust cover19121-11080
19127Dust seal19127-63080 · 19127-74040 · 19127-74050
19133Distributor capacitor19133-16240
19144Distributor breaker lead19144-74100
19225rubber cap19225-74060
19235Distributor housing19235-74180 · 19235-74230
19500BIgnition coil assembly90919-02163
