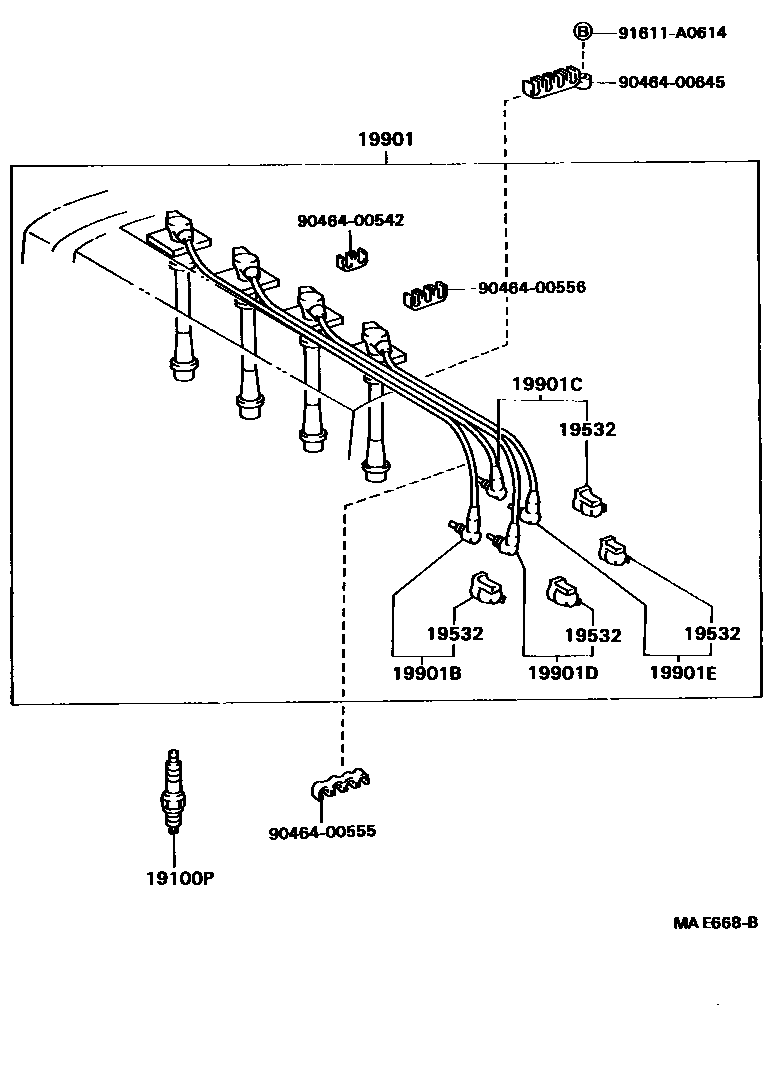

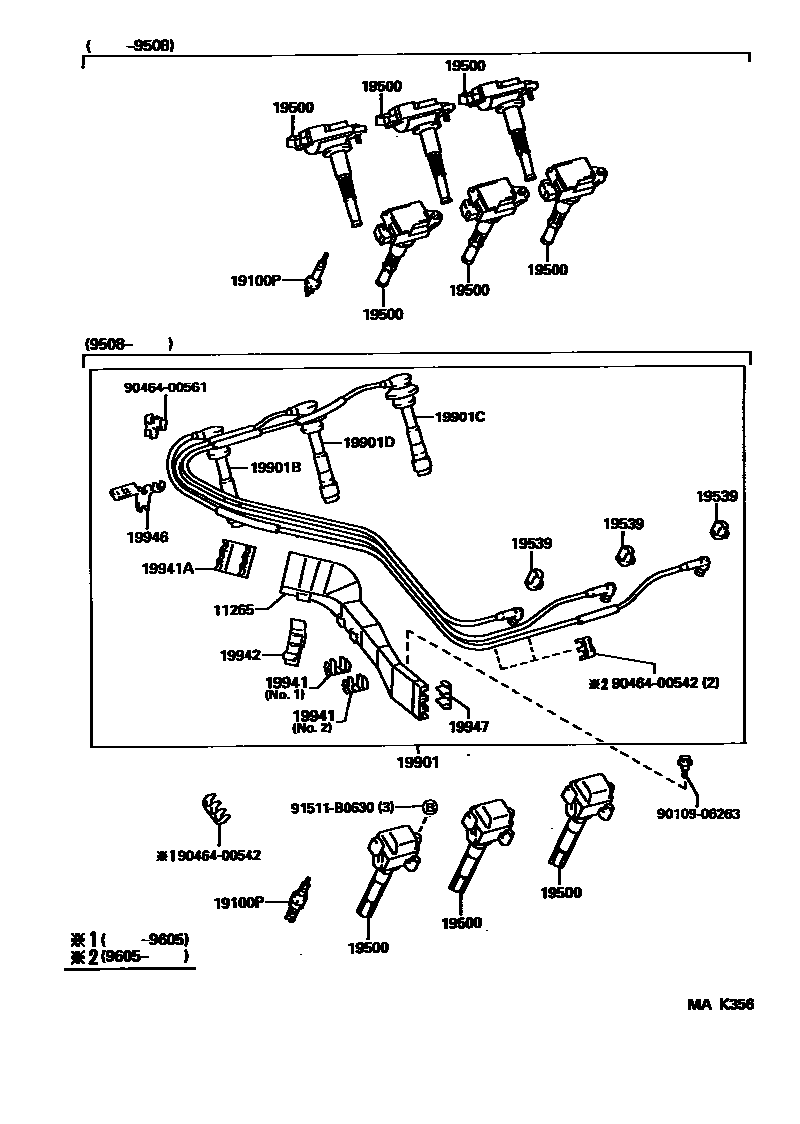

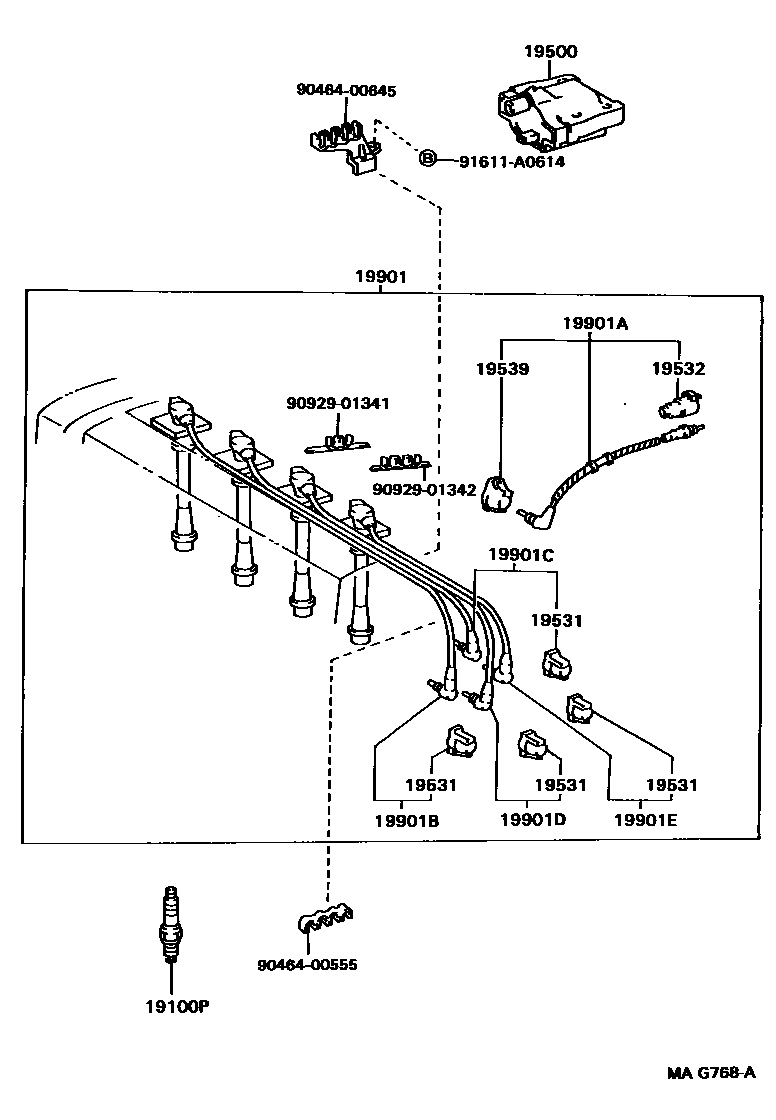

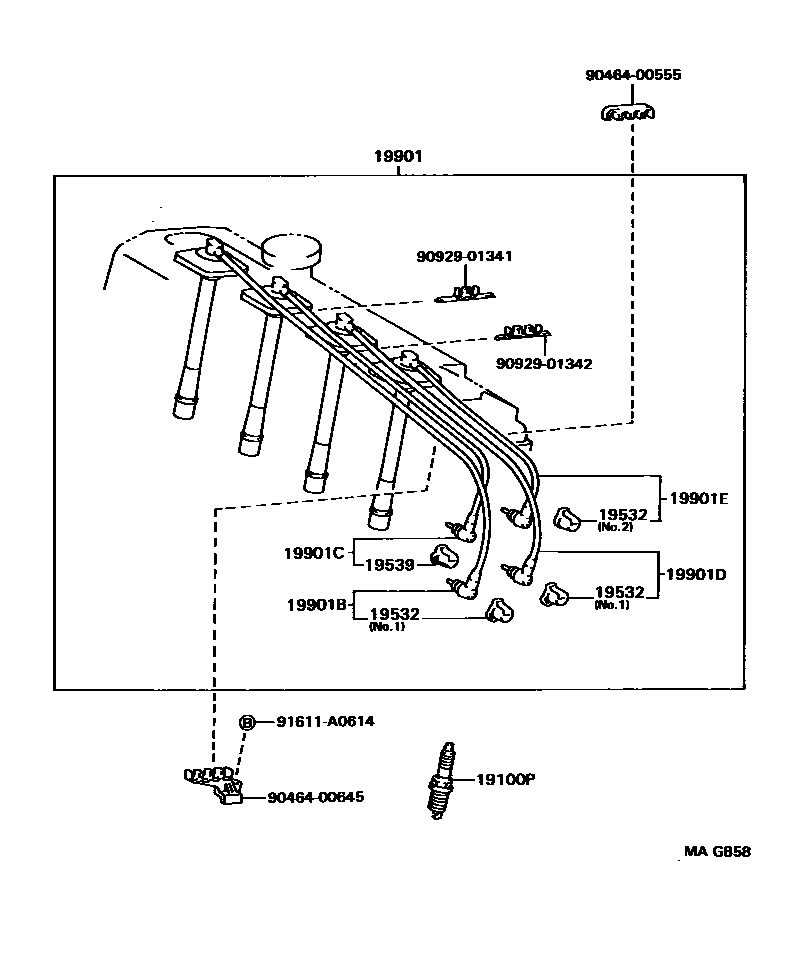

Toyota CAMRY 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-20010 · 11265-20020 |
| 19100P | spark plug | 90919-01178 · 90919-01184 · 90919-01194 · 90919-01195 |
| 19500 | Ignition coil assembly | 90919-02197 · 90919-02211 · 90919-02214 · 90919-02215 |
| 19531 | No. 1 damping wire fixing piece | 19531-74010 |
| 19532 | No. 2 damping wire fixing piece | 19532-46010 · 19532-50010 · 19539-74030 |
| 19539 | No. 4 damping wire fixing piece | 19539-11040 · 19539-62020 · 19539-74010 · 19539-74040 |
| 19901 | Coil and spark plug assembly with damper wire | 19037-20010 · 19037-20011 · 90919-21582 · 90919-22319 · 90919-22370 |
| 19901A | coil damping line | 19590-74210 |
| 19901B | No. 1 spark plug damper wire | 90080-91038 · 90080-91069 · 90080-91074 · 90919-15165 · 90919-15169 · 90919-15308 · 90919-15400 · 90919-15409 |
| 19901C | No. 2 spark plug damper wire | 90080-91039 · 90080-91070 · 90080-91075 · 90919-15166 · 90919-15170 · 90919-15309 · 90919-15401 · 90919-15411 |
| 19901D | No. 3 spark plug damper wire | 90080-91040 · 90080-91071 · 90080-91076 · 90919-15167 · 90919-15171 · 90919-15310 · 90919-15402 · 90919-15410 |
| 19901E | No. 4 spark plug damper wire | 90080-91041 · 90080-91072 · 90080-91077 · 90919-15168 · 90919-15172 · 90919-15261 · 90919-15349 |
| 19941 | No. 1 damping wire clip | 19941-20010 · 19941-20020 |
| 19941A | Clamp (for damping wire) | 19941-65040 |
| 19942 | No. 2 damping wire clip | 19942-20010 |
| 19946 | No. 3 impedance wire clip | 19946-20010 |
| 19947 | No. 4 impedance wire clip | 19947-20010 |
