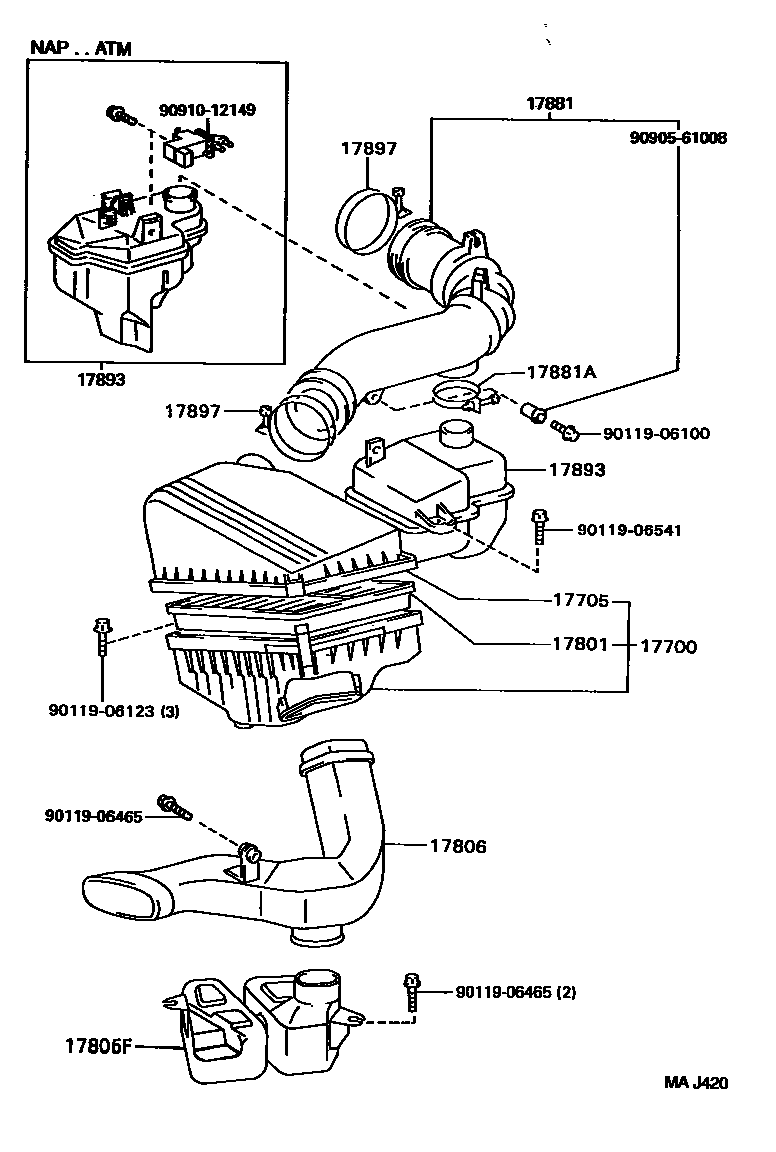

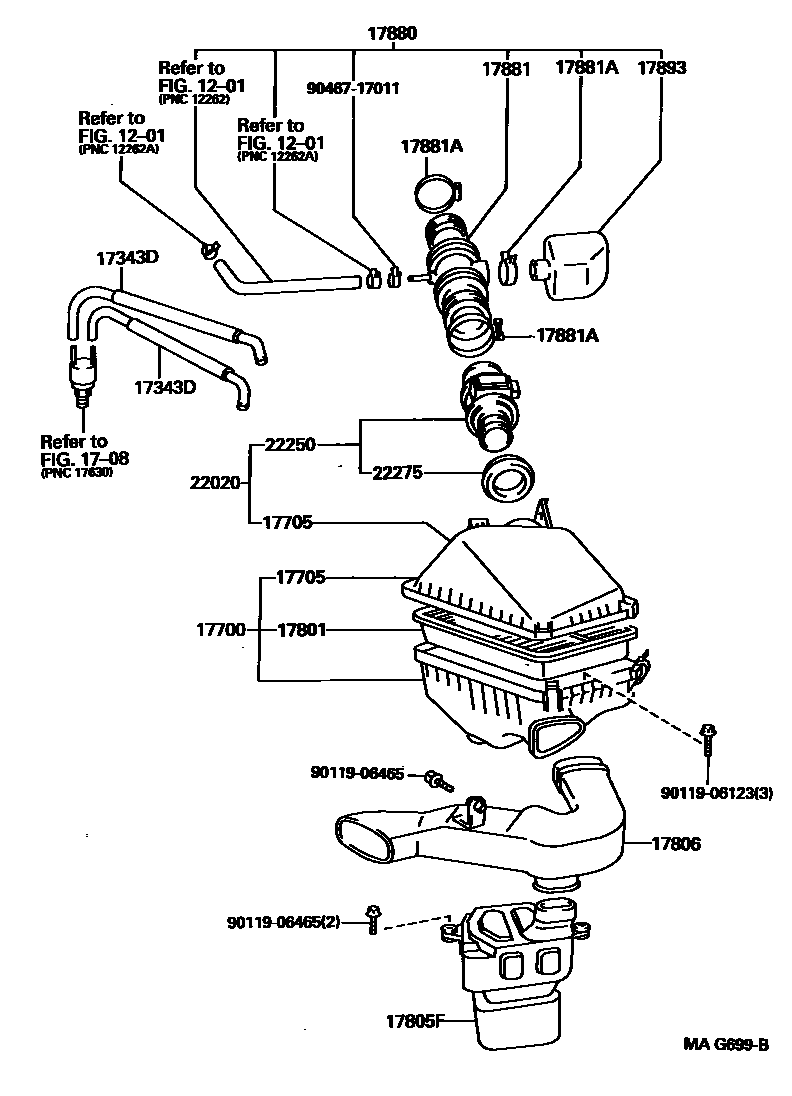

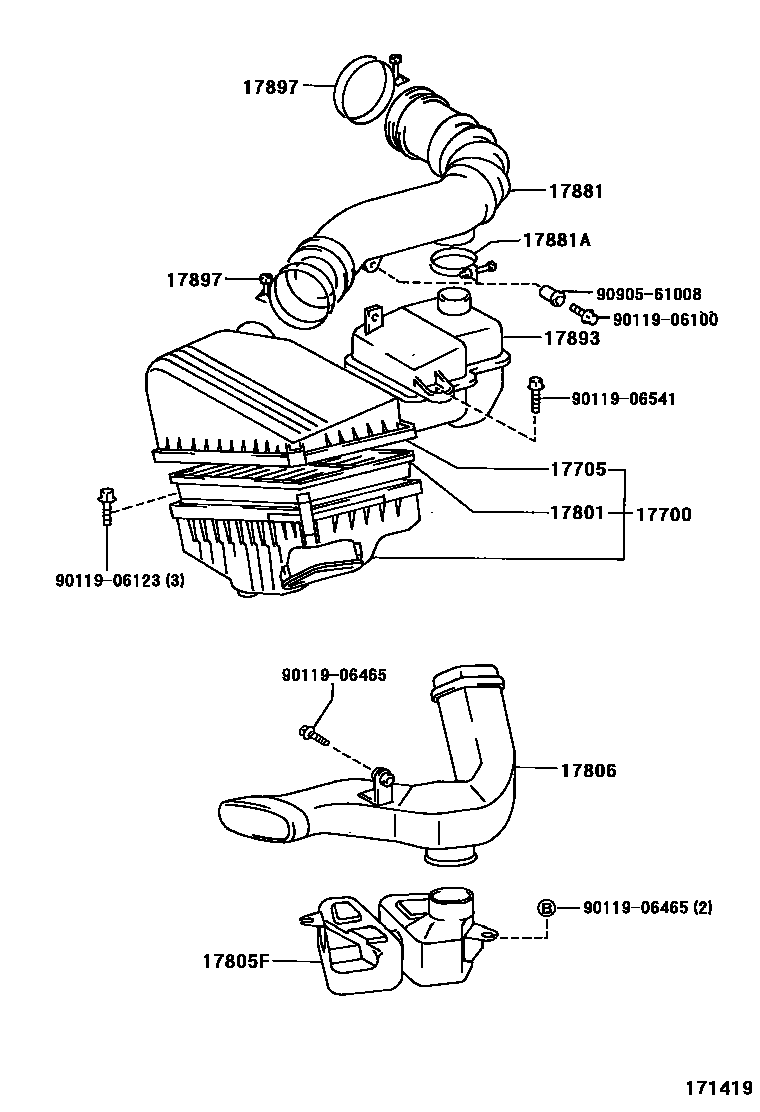

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17343D | No. 3 air hose | 17343-0A010 |
| 17700 | air filter assembly | 17700-03040 · 17700-03080 · 17700-0A010 · 17700-74380 |
| 17705 | Air filter cover sub-assembly | 17705-03030 · 17705-03070 · 17705-0A010 · 17705-74260 |
| 17801 | Air filter element sub-assembly | 17801-03010 · 17801-74060 |
| 17805F | Intake resonator sub-assembly | 17805-03010 · 17805-07010 |
| 17806 | No. 2 air filter pipe assembly | 17806-03010 · 17806-07010 |
| 17880 | Air cleaner hose assembly | 17880-0A010 |
| 17881 | No. 1 air cleaner hose | 17881-03040 · 17881-0A010 · 17881-74390 · 17881-74640 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90467-38002 · 96111-10570 · 96111-10800 · 96111-10880 |
| 17893 | Intake resonator | 17893-03010 · 17893-03041 · 17893-0A010 · 17893-74190 · 17893-74310 |
| 17897 | Hose clamp (for air cleaner) | 96111-10710 |
| 22020 | Air flow meter assembly with air filter | 22020-0A010 · 22020-0A011 · 22020-0A030 |
| 22250 | Intake air flow meter assembly | 22250-20010 · 22250-20020 · 22250-20030 |
| 22275 | air flow meter gasket | 22275-20010 |
