Toyota CAMRY Exhaust Pipe — Figure 1702

Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 3 images and 24 PNC and OE references.

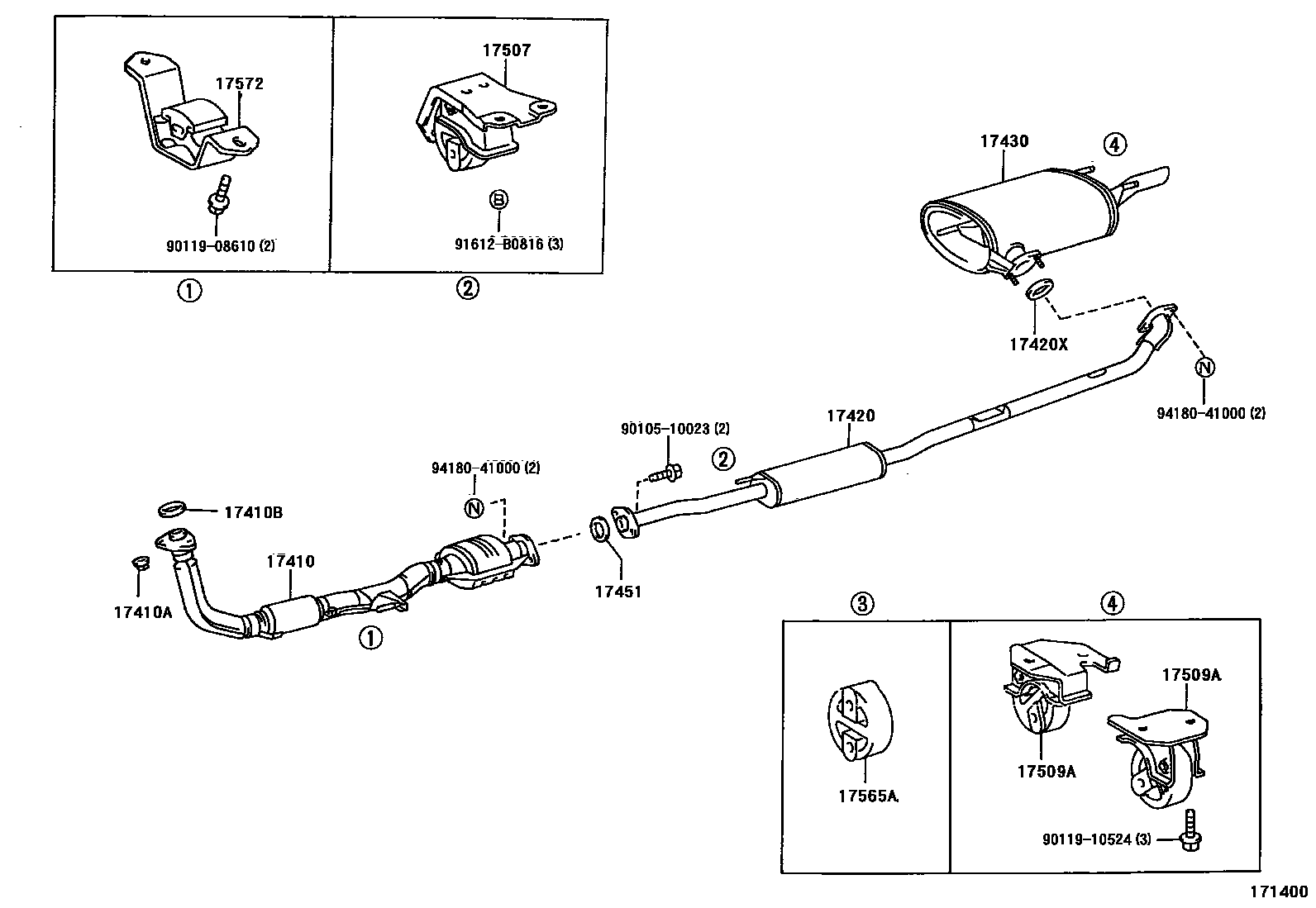

Toyota CAMRY Exhaust Pipe EPC diagram — 171400 — Exhaust Pipe — 171400 (199309 – 199607)

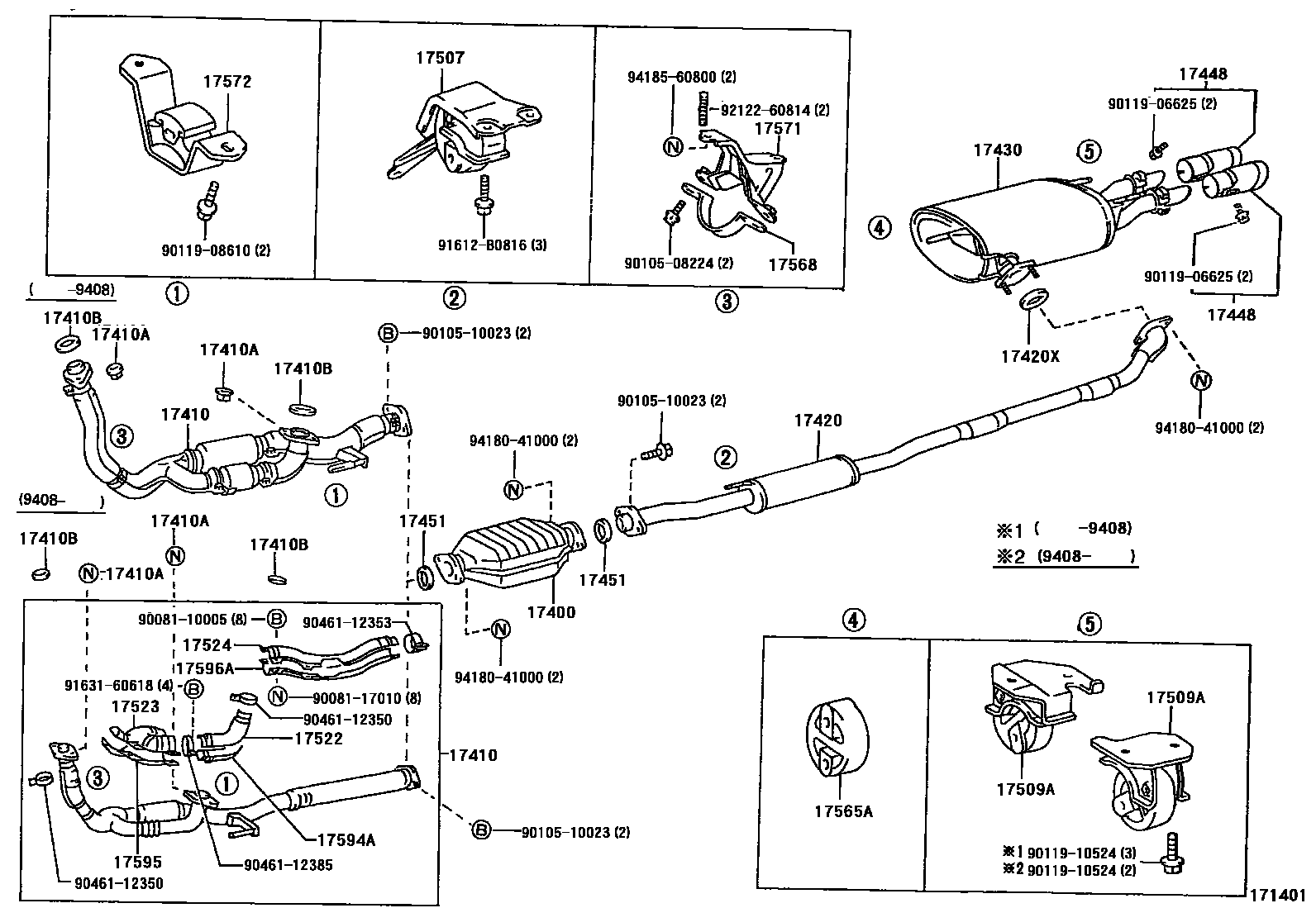

Toyota CAMRY Exhaust Pipe EPC diagram — 171401 — Exhaust Pipe — 171401 (199309 – 199607)

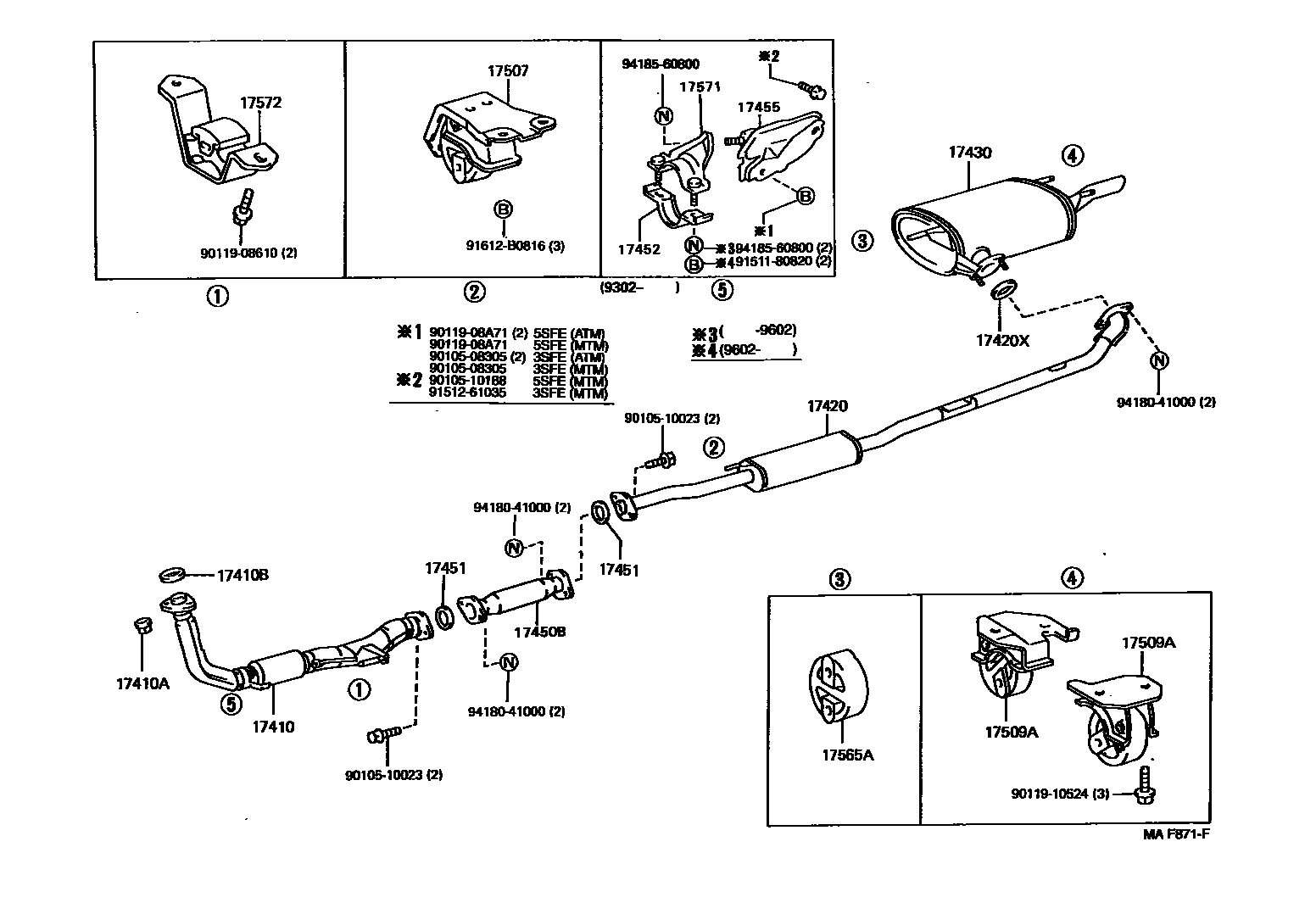

Toyota CAMRY Exhaust Pipe EPC diagram — MAF871F — Exhaust Pipe — MAF871F (199209 – 199607)

PNC and OE references

PNC	Part name	OE numbers
17400	Three-way catalytic converter assembly with catalyst	18450-62080
17410	Front exhaust pipe assembly	17410-03041 · 17410-03051 · 17410-03100 · 17410-03180 · 17410-03190 · 17410-03200 · 17410-0A010 · 17410-0A040
17410A	Exhaust pipe fixing studs and nuts	90179-10070
17410B	Exhaust pipe gasket	90917-06042 · 90917-06045 · 90917-06065 · 90917-06066
17420	Central exhaust pipe assembly	17420-03040 · 17420-03050 · 17420-03110 · 17420-0A010 · 17420-0A030
17420X	Center exhaust pipe liner	90917-06045 · 90917-06073
17430	Exhaust tailpipe assembly	17430-03041 · 17430-03050 · 17430-03100 · 17430-03140 · 17430-03150 · 17430-03180 · 17430-0A010 · 17430-0A040
17448	Exhaust pipe tail throat	17448-79036
17450B	No. 2 front exhaust pipe assembly	17450-03010
17451	Exhaust pipe gasket	90917-06043 · 90917-06045 · 90917-06054
17452	Exhaust pipe clamp	17452-74080
17455	Exhaust pipe bracket	17455-74080
17507	No. 2 exhaust pipe bracket sub-assembly	17507-03020 · 17507-07010 · 17507-0A010 · 17507-0A020 · 17507-0A030 · 17507-0A040
17509A	No. 4 exhaust pipe bracket sub-assembly	17509-07010 · 17509-07020 · 17509-0A020
17522	No. 2 upper exhaust pipe protection device	17522-20010
17523	No. 3 upper exhaust pipe protection device	17523-20010
17524	No. 4 upper exhaust pipe protection device	17524-62020
17565A	No. 4 exhaust pipe lifting lug	17565-07050
17568	Exhaust pipe bracket stay	17568-0A020 · 17568-20020
17571	No. 1 exhaust pipe bracket	17571-0A010 · 17571-20040 · 17571-74370
17572	No. 1 exhaust pipe bracket	17572-07020 · 17572-0A010
17594A	No. 2 lower exhaust pipe protection device	17594-20010
17595	No. 3 lower exhaust pipe protection device	17595-20010
17596A	No. 4 lower exhaust pipe protection device	17596-62020
