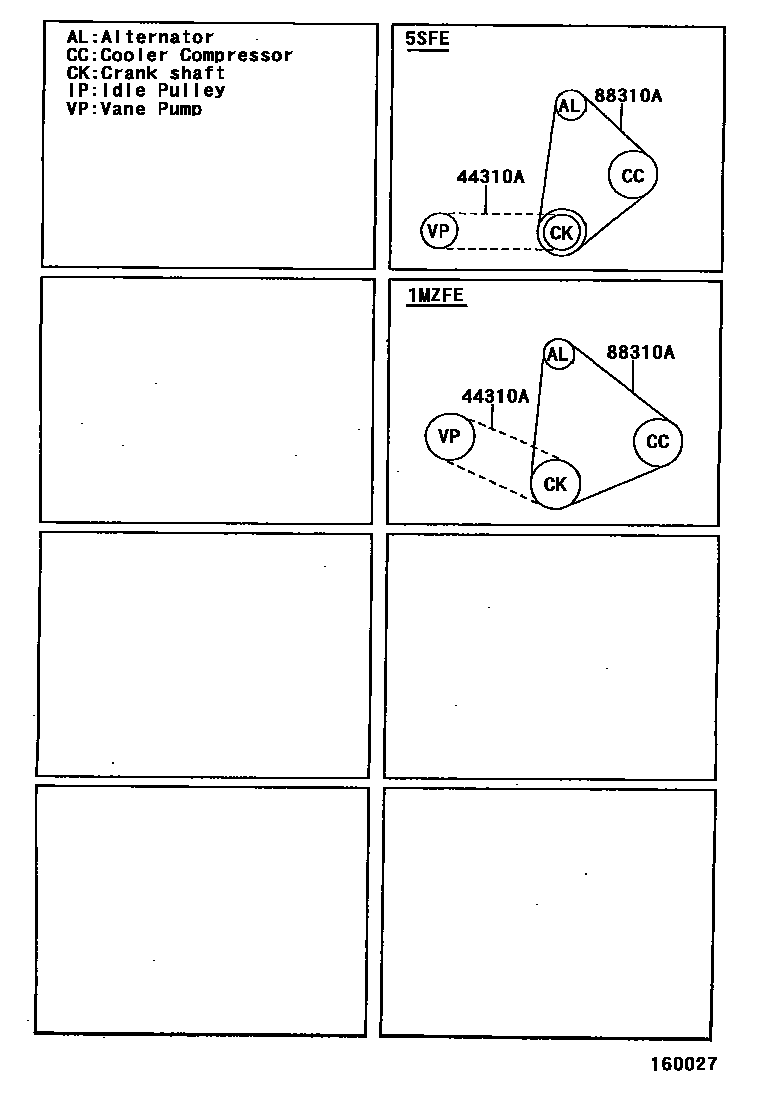

Toyota CAMRY V-Belt — Figure 1605
Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44310A | V-belt (for vane pump) | 90080-91054 · 90080-91088 · 90080-91093 · 90916-02386 · 99363-80760 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90080-91049 · 90080-91087 · 90080-91099 · 90916-02401 · 99365-21110 · 99365-71110 · 99365-81110 |
