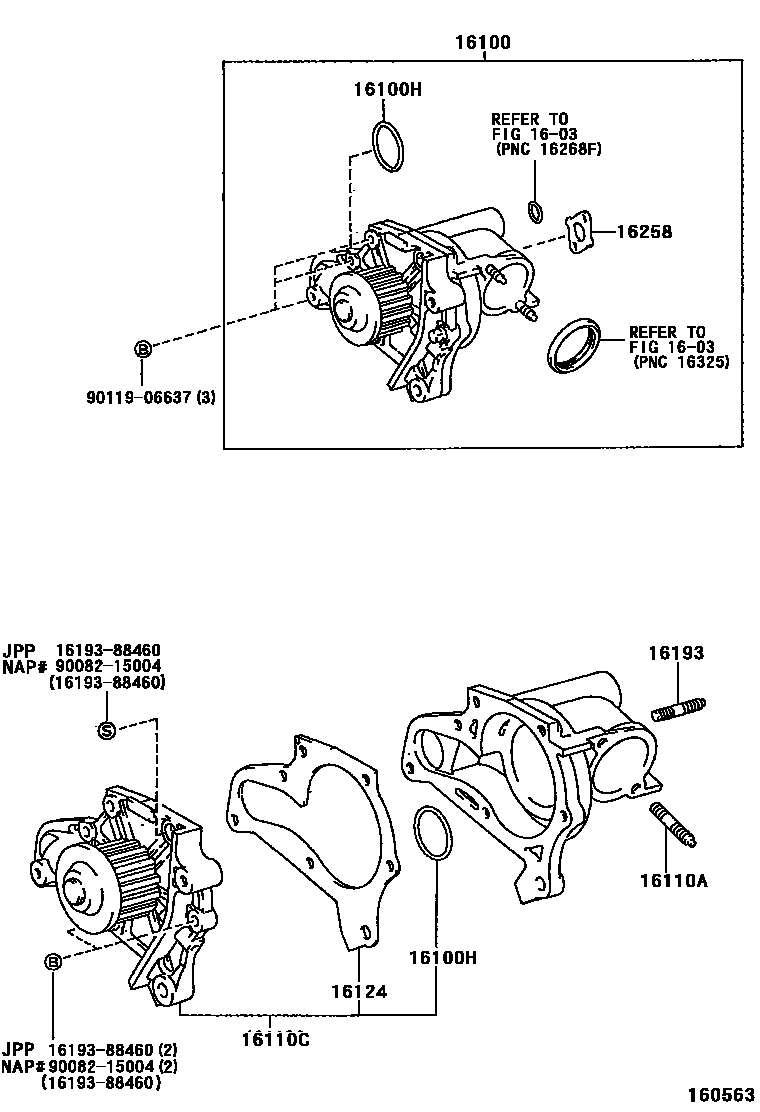

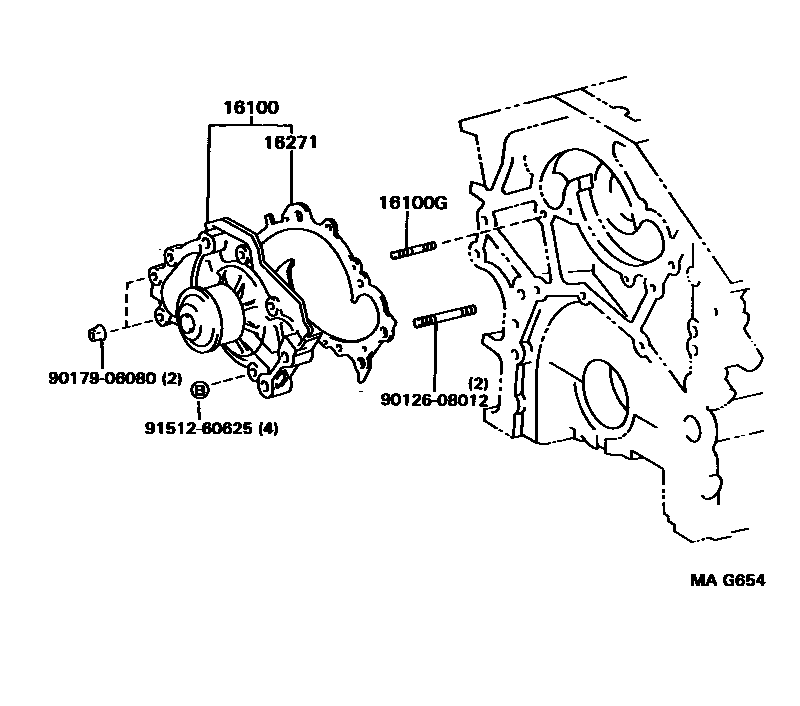

Toyota CAMRY Water Pump — Figure 1601
Toyota CAMRY EPC diagram 1601, Water Pump, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09040 · 16100-09070 · 16100-29085 · 16100-79185 |
| 16100G | Studs (for water pump assembly) | 90116-06144 |
| 16100H | O-ring (for water pump) | 90301-37005 |
| 16110A | Stud bolts (for fixing the water outlet) | 16193-03010 · 16193-63010 |
| 16110C | Water pump assembly without cover | 16110-09010 · 16110-79025 |
| 16124 | water pump cover gasket | 16124-03010 · 16124-03011 · 16124-74020 · 16124-88460 |
| 16193 | Studs (for water pump cover) | 90029-01500 · 90080-11042 |
| 16258 | Pad (for heater return) | 16258-03020 · 16258-74020 · 16258-74021 |
| 16271 | water pump gasket | 16271-20020 |
