Toyota CAMRY Engine Mounting — Figure 1107

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 3 images and 23 PNC and OE references.

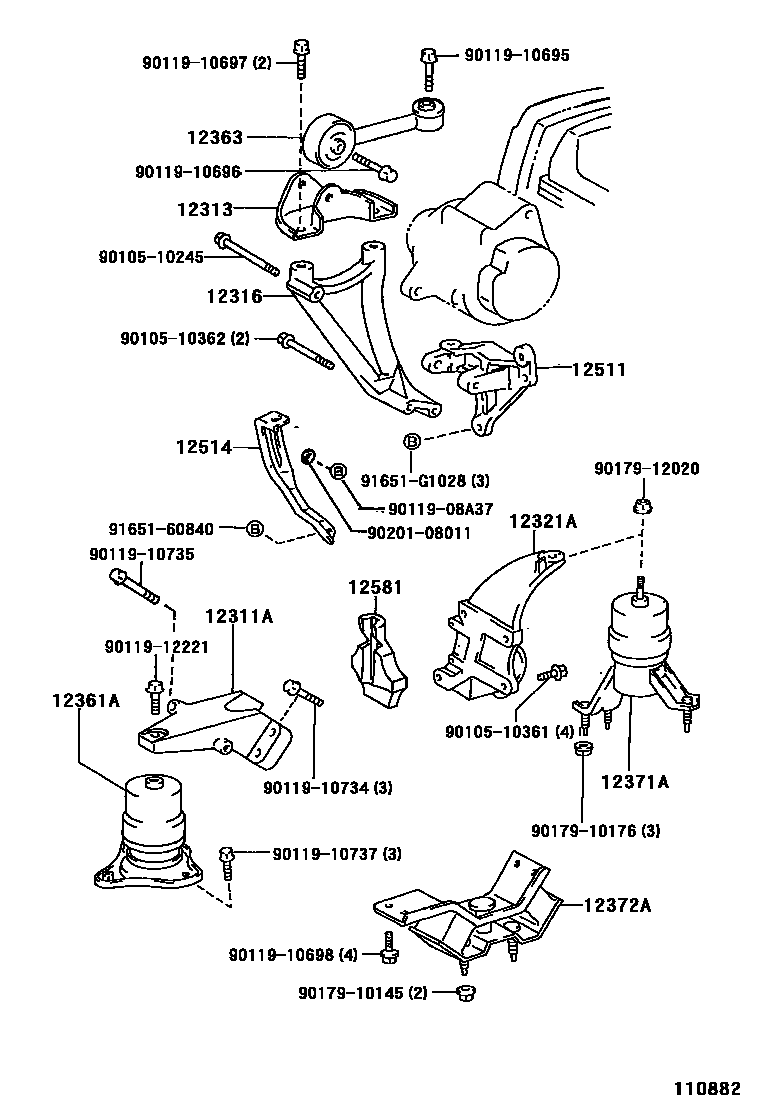

Toyota CAMRY Engine Mounting EPC diagram — 110882 — Engine Mounting — 110882 (199209 – 199607)

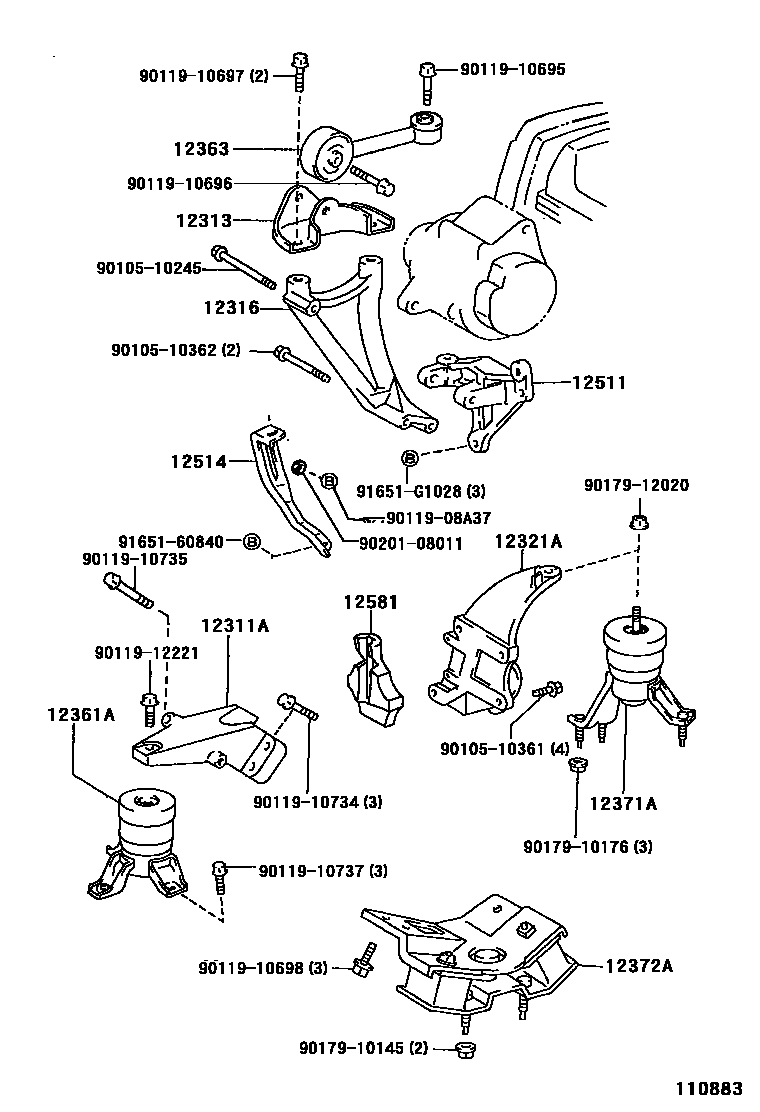

Toyota CAMRY Engine Mounting EPC diagram — 110883 — Engine Mounting — 110883 (199209 – 199607)

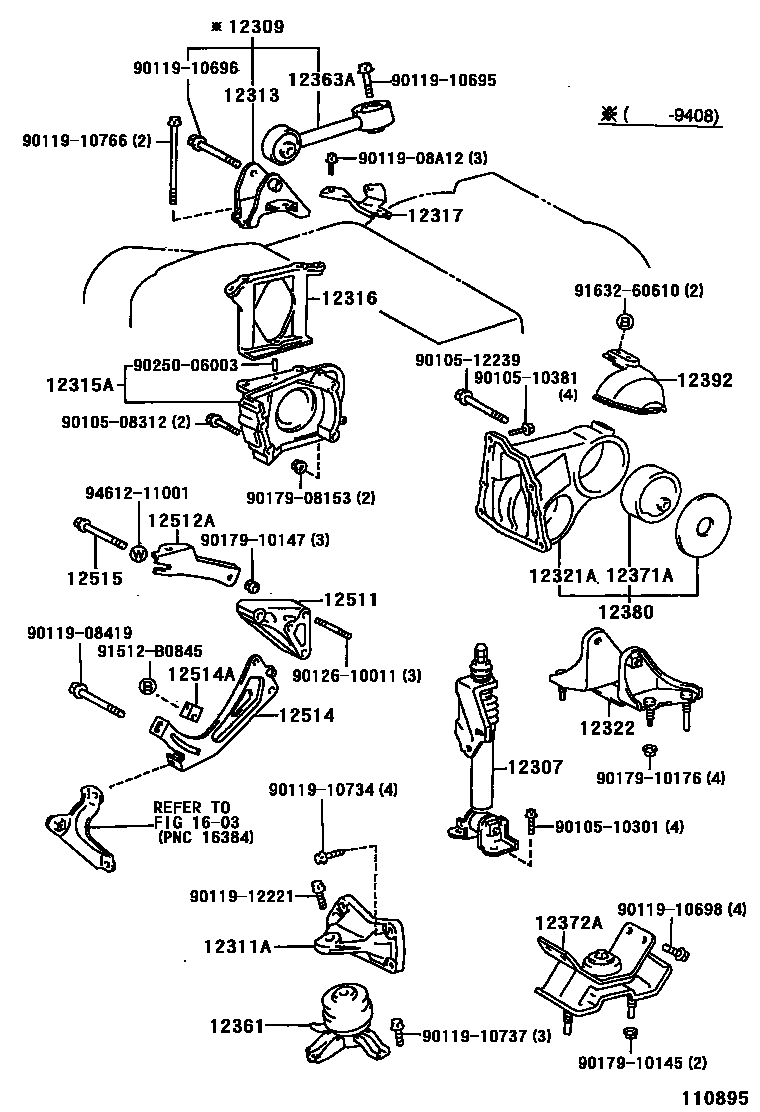

Toyota CAMRY Engine Mounting EPC diagram — 110895 — Engine Mounting — 110895 (199309 – 199607)

PNC and OE references

PNC	Part name	OE numbers
12307	Engine mount damper sub-assembly	12307-62010
12309	Engine motion control lever sub-assembly	12309-0A010
12311A	Engine front mounting bracket (for transverse engine)	12311-0A010 · 12311-20020 · 12311-20030 · 12311-74130 · 12311-74210
12313	Engine mount control bracket (for transversely mounted engines)	12313-03020 · 12313-0A010 · 12313-74040
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-0A010 · 12315-20020
12316	Engine No. 2 right side suspension bracket	12316-0A010 · 12316-62020 · 12316-74030
12317	Engine right mounting bracket	12317-0A010 · 12317-20010
12321A	Rear engine mounting bracket (for transverse engine)	12321-20020 · 12321-74250
12322	Engine No. 2 rear suspension bracket	12322-0A010 · 12322-20020
12361	Engine front mounting vibration isolation pad	12361-0A010
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-03040 · 12361-03041 · 12361-74241 · 12361-74251 · 12361-74252
12363	Engine center mount vibration isolation pad	12363-03020 · 12363-03030 · 12363-74110 · 12363-74120
12363A	Engine movement control lever	12363-0A010
12371A	Engine rear mount vibration isolation pad	12371-03040 · 12371-03041 · 12371-0A010 · 12371-74301 · 12371-74311 · 12371-74312
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-03030 · 12372-03040 · 12372-0A010 · 12372-62080 · 12372-74370 · 12372-74380
12380	Engine rear mount vibration isolation pad assembly	12380-0A010
12392	Engine left front mounting heat insulation pad	12392-07010
12511	No. 1 generator bracket	12511-20020 · 12511-74100
12512A	No. 2 generator bracket	12512-20010
12514	Generator belt adjustment lever	12514-03020 · 12514-03030 · 12514-0A010 · 12514-20010 · 12514-74011 · 12514-74050
12514A	Fan belt adjustment slider	16385-20010
12515	Generator through bolts	12515-20010
12581	No. 1 cylinder block vibration isolation pad	12581-74010
