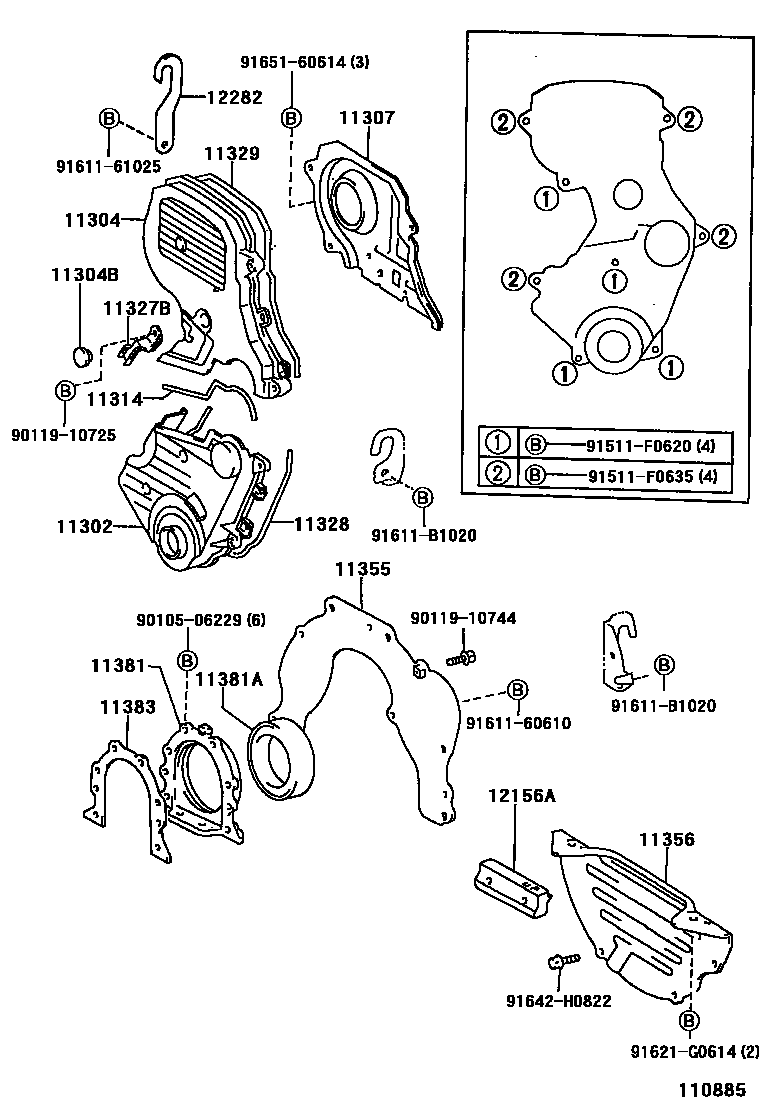

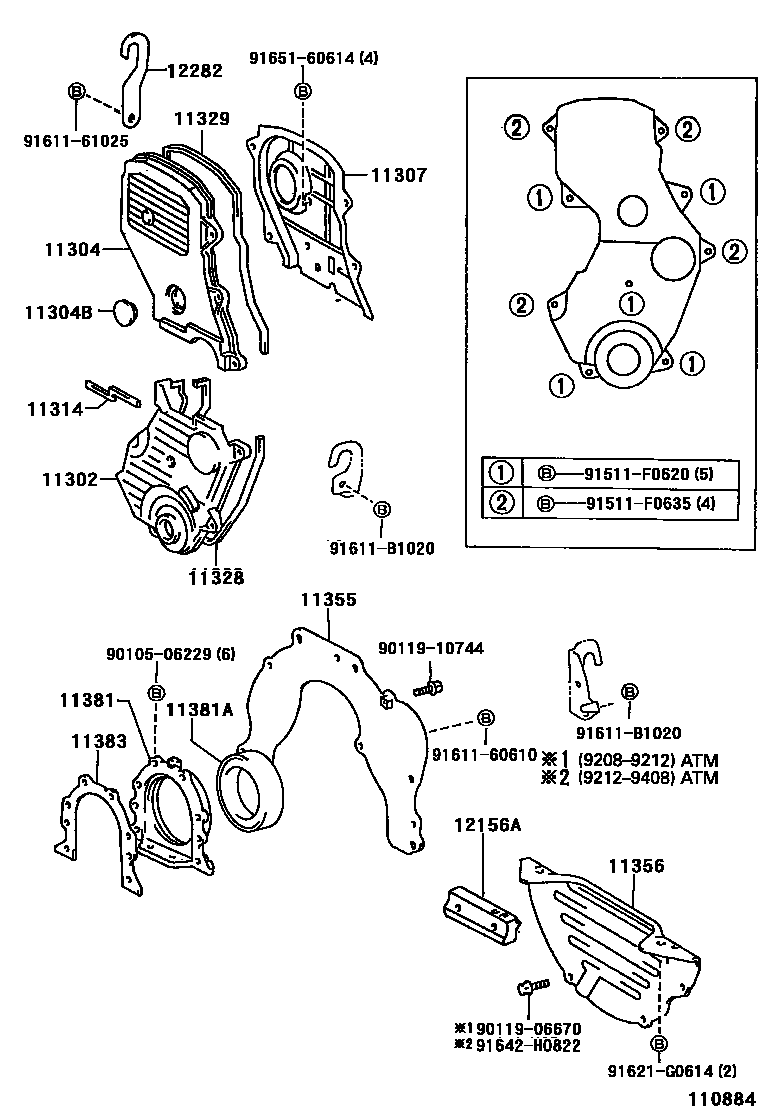

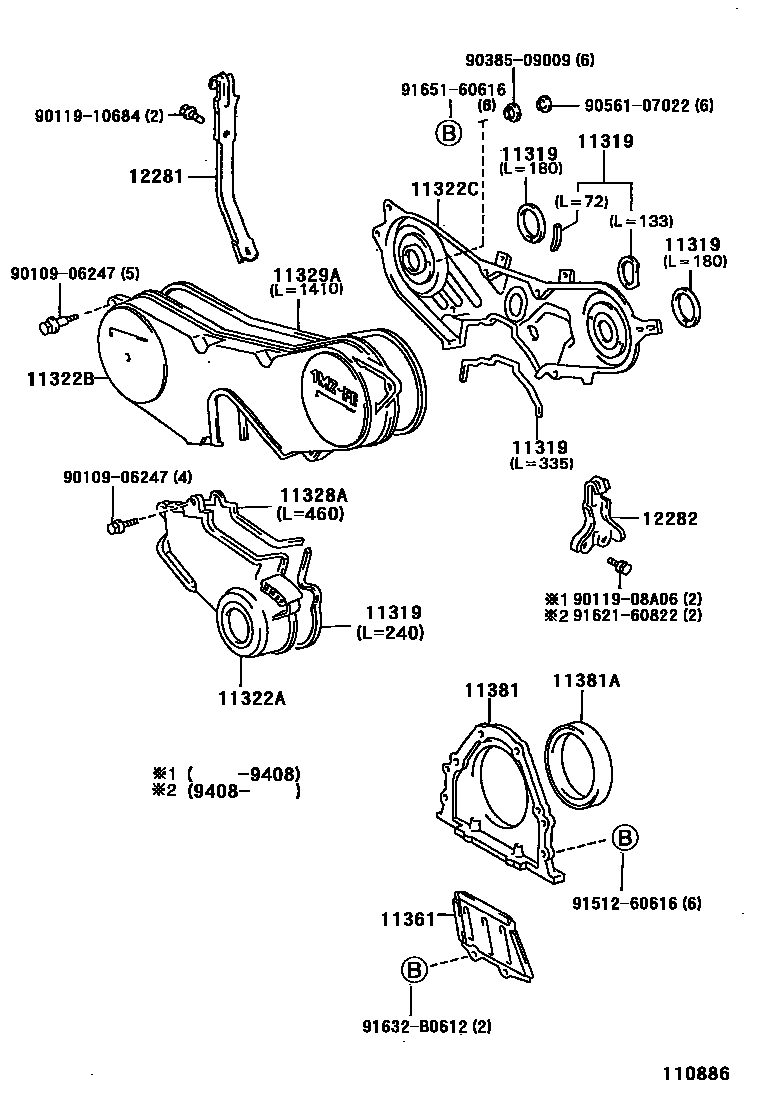

Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106
Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-74011 · 11302-74040 |
| 11304 | No. 2 timing chain or timing belt cover | 11303-74030 · 11303-74050 |
| 11304B | Half-round plug (for No. 2 timing chain cover) | 90950-01489 |
| 11307 | No. 3 timing belt cover sub-assembly | 11304-74030 · 11304-74040 |
| 11314 | No. 2 timing chain cover gasket | 11319-03020 · 11319-63010 · 11319-74030 |
| 11319 | No. 3 timing belt cover gasket | 11319-20010 |
| 11322A | No. 1 timing belt cover | 11321-20900 |
| 11322B | No. 2 timing belt cover | 11322-20900 |
| 11322C | No. 3 timing belt cover | 11304-20900 |
| 11327B | Timing belt cover bracket | 11327-74010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-03020 · 11328-74010 · 11328-74060 |
| 11328A | No. 1 timing belt cover gasket | 11328-20020 |
| 11329 | Timing gear rear cover gasket | 11329-03020 · 11329-74050 · 11329-74080 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-20010 |
| 11355 | rear end plate | 11355-74010 |
| 11356 | No. 2 rear end plate | 11356-03021 · 11356-74040 |
| 11361 | Flywheel housing bottom cover | 11361-0A010 · 11361-20010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0A010 · 11381-20010 · 11381-63012 |
| 11381A | SEAL, ENGINE REAR OIL | 90080-31021 · 90080-31033 · 90311-85006 · 90311-85007 · 90311-92007 |
| 11383 | Engine rear oil seal seat gasket | 11383-03020 · 11383-74021 |
| 12156A | Oil pan vibration isolation pad | 12156-74010 · 12156-74011 |
| 12281 | Engine No. 1 hanger | 12281-0A010 · 12281-20020 |
| 12282 | ENGINE HANGER, NO.2 | 12282-20020 · 12282-74030 |
