Toyota CAMRY Cylinder Head — Figure 1104

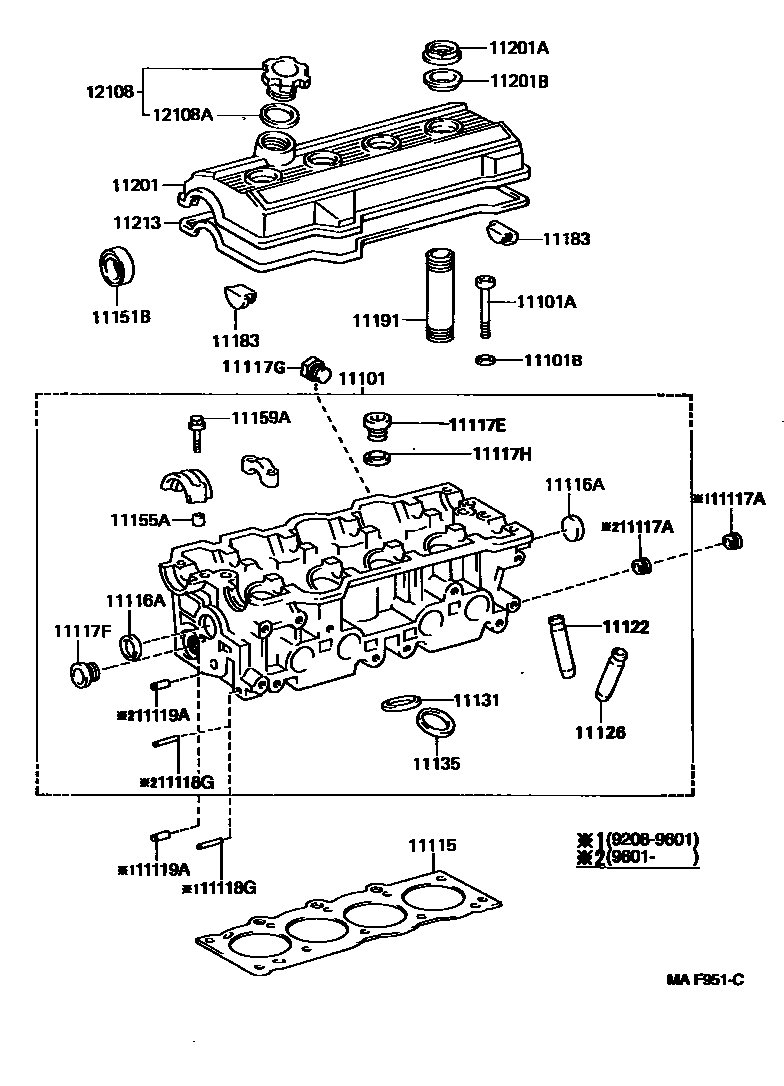

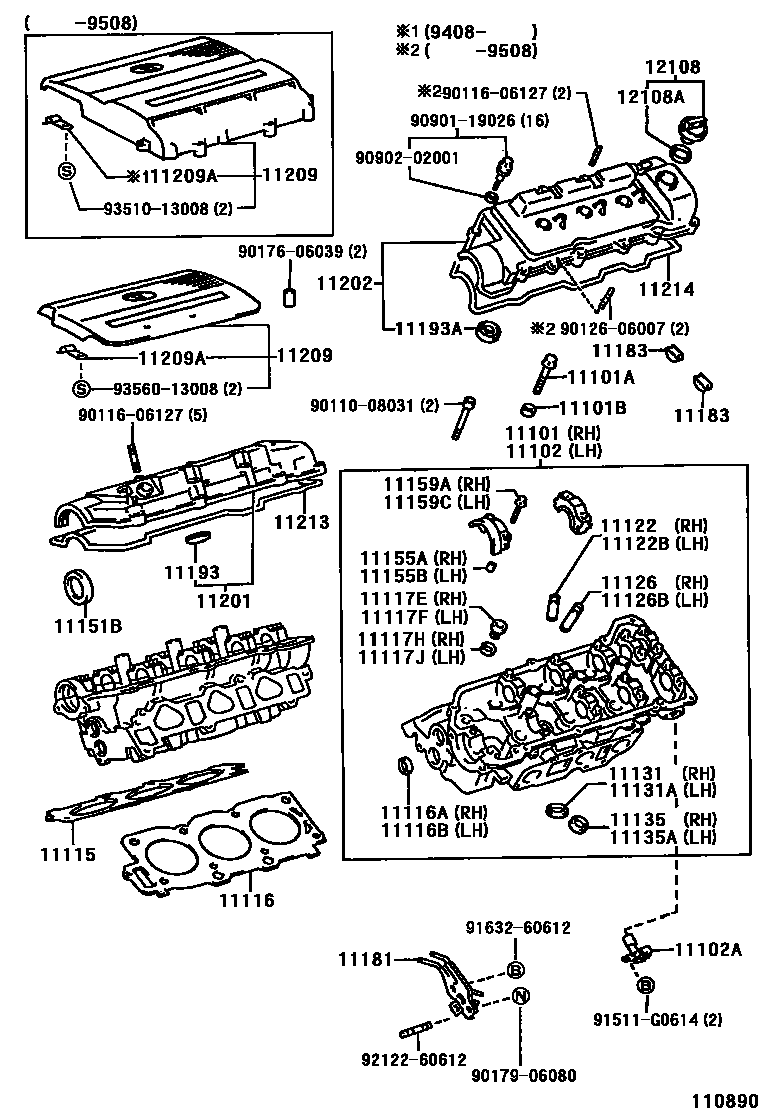

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-03010 · 11101-09030 · 11101-29385 · 11101-74151 · 11101-74160 · 11101-79115 · 11101-79165 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90109-10132 · 90910-02117 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11026 · 90201-11031 |
| 11102 | left cylinder head | 11102-29015 |
| 11102A | Camshaft position sensor | 90919-05013 |
| 11115 | GASKET, CYLINDER HEAD | 11115-20010 · 11115-74080 |
| 11116 | No. 2 cylinder head gasket | 11116-20010 |
| 11116A | No. 1 sealing plug | 96411-42800 · 96411-63000 |
| 11116B | No. 2 sealing plug | 96411-63000 |
| 11117A | No. 1 headed tapered thread plug | 90344-53011 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-24013 · 90341-24090 |
| 11117F | No. 2 headed straight thread plug | 90341-24013 · 90341-32031 |
| 11117G | No. 3 headed straight thread plug | 90341-18002 |
| 11117H | Gasket (for coolant hole) | 90430-24246 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-24246 |
| 11118G | Slotted Spring Pin No. 1 | 90249-06084 |
| 11119A | No. 1 direct sales | 90250-06003 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-20020 · 11122-74030 · 11123-20020 · 11123-74030 |
| 11122B | No. 2 intake valve guide bushing | 11122-20020 · 11123-20020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-16010 · 11123-16010 · 11126-20020 · 11127-20020 |
| 11126B | No. 2 exhaust valve guide bushing | 11126-20020 · 11127-20020 |
| 11131 | intake valve seat | 11131-62030 · 11131-74020 · 11131-74040 · 11132-62030 · 11132-74020 · 11132-74040 |
| 11131A | No. 2 intake valve seat | 11131-62030 · 11132-62030 |
| 11135 | Exhaust valve seat | 11135-62020 · 11135-74030 · 11135-74041 · 11136-62020 · 11136-74030 · 11136-74041 |
| 11135A | No. 2 exhaust valve seat | 11135-62020 · 11136-62020 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90080-31023 · 90080-31035 · 90311-38034 · 90311-38046 |
| 11155A | PIN, RING W/HEAD | 90253-10004 |
| 11155B | PIN, RING | 90253-10004 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-07009 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-07009 |
| 11181 | cylinder head rear plate | 11181-0A010 · 11181-20020 |
| 11183 | PLUG, SEMICIRCULAR | 11183-0A010 · 11183-20010 · 11183-62010 · 11183-74010 |
| 11191 | spark plug sleeve | 11191-74030 |
| 11193 | spark plug bushing gasket | 11193-0A010 · 11193-16010 |
| 11193A | Left spark plug bushing gasket | 11193-0A010 · 11193-16010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-03020 · 11201-0A010 · 11201-20010 · 11201-74050 |
| 11201A | Cap nut (for cylinder head cover) | 90179-28004 |
| 11201B | Gasket (for cylinder head cover) | 90480-30025 |
| 11202 | Left cylinder head cover sub-assembly | 11202-0A010 · 11202-0A020 · 11202-20010 · 11202-20030 |
| 11209 | V-shaped cylinder head sub-assembly | 11209-0A010 · 11209-0A020 · 11209-20010 |
| 11209A | Pipe clamp | 17578-20010 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-20020 · 11213-74020 |
| 11214 | No. 2 cylinder head cover gasket | 11214-20010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-13030 · 12180-15011 · 12180-46021 · 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-46011 · 90430-37140 |
