Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

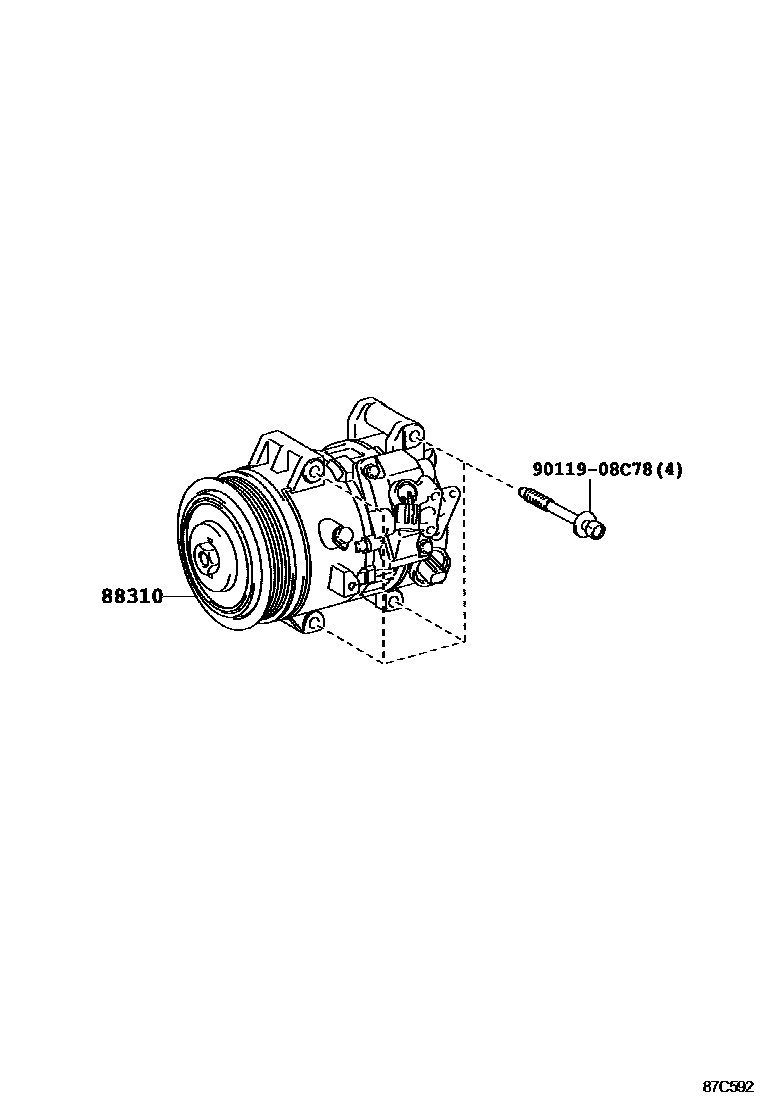

| 88310 | Compressor assembly with pulley | 88310-06480 · 88310-06481 · 88310-06490 · 88310-06491 · 88310-06500 · 88310-06501 · 88310-06510 · 88310-06511 · 88310-06540 · 88310-06541 · 88310-06550 · 88310-06551 |

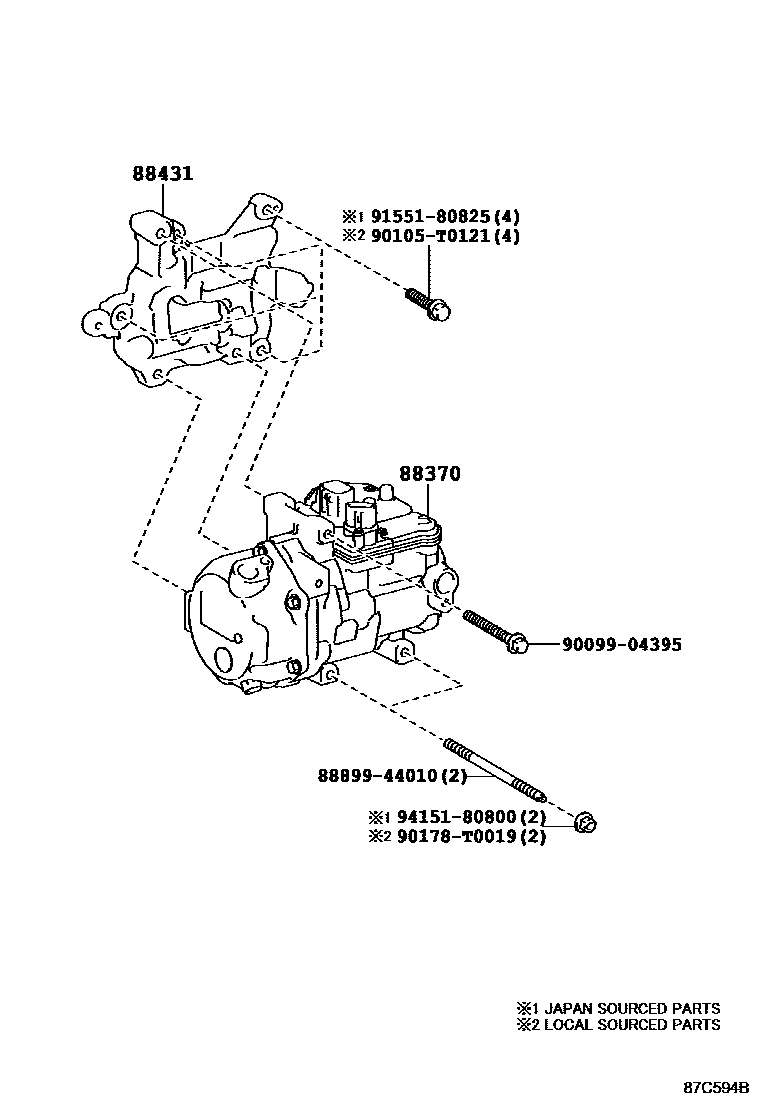

| 88370 | Compressor assembly with motor | 88370-33020 |

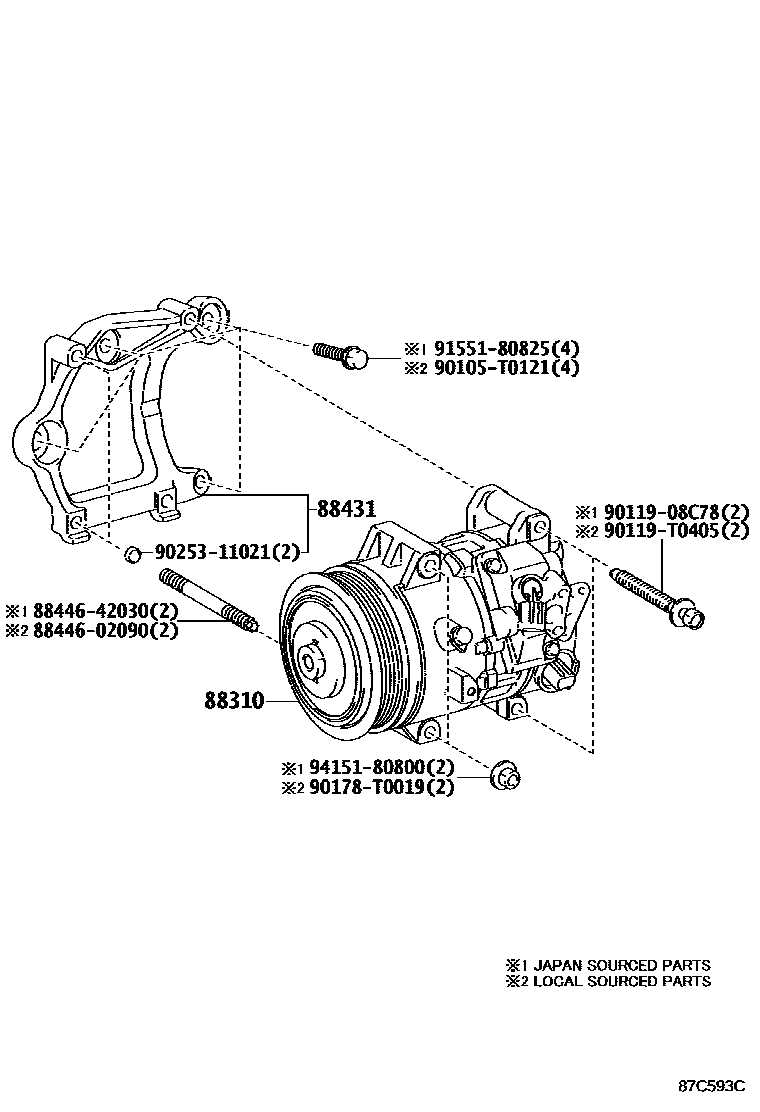

| 88431 | Compressor No. 1 mounting bracket | 12502-0V010 · 12502-36010 · 88431-06050 · 88431-06060 |
