Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

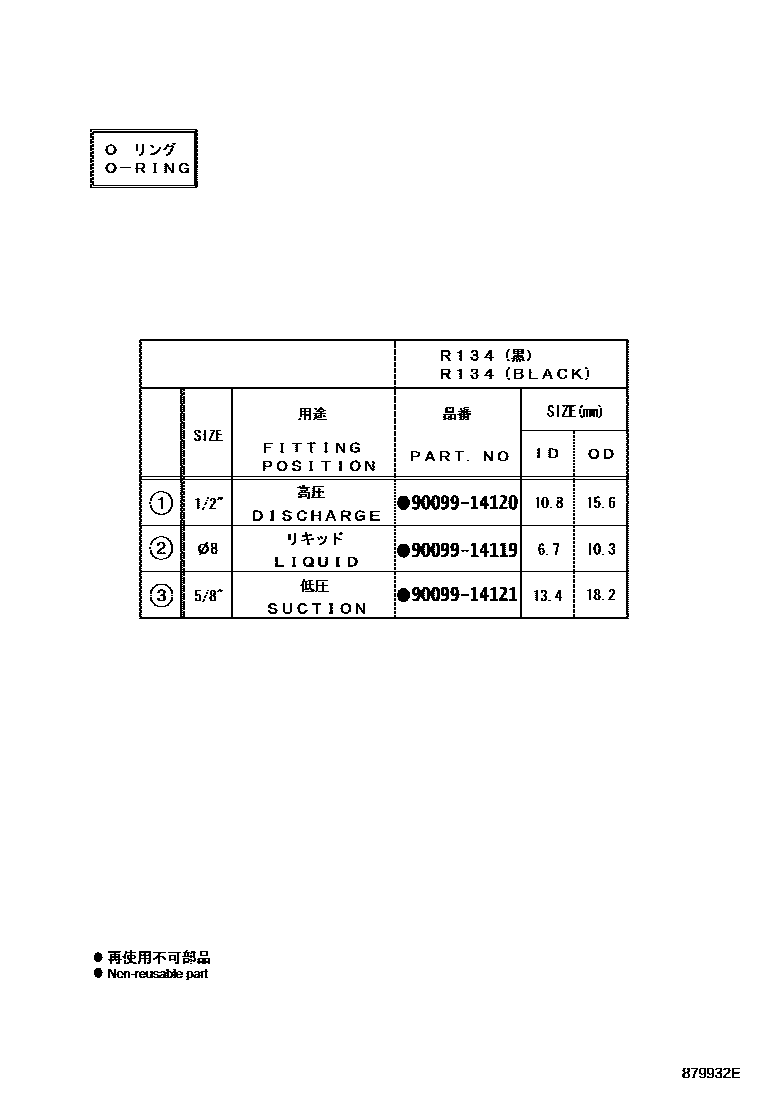

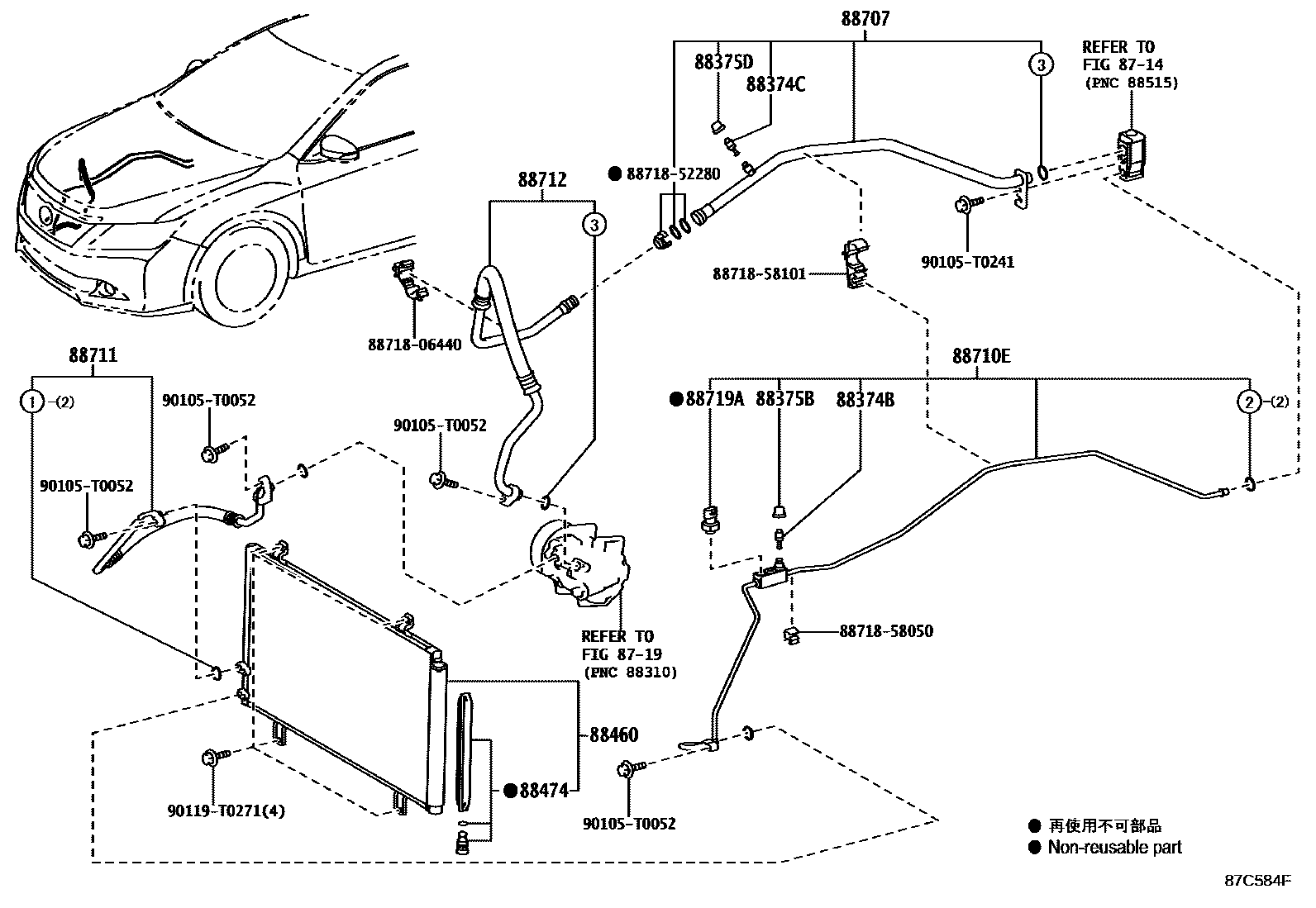

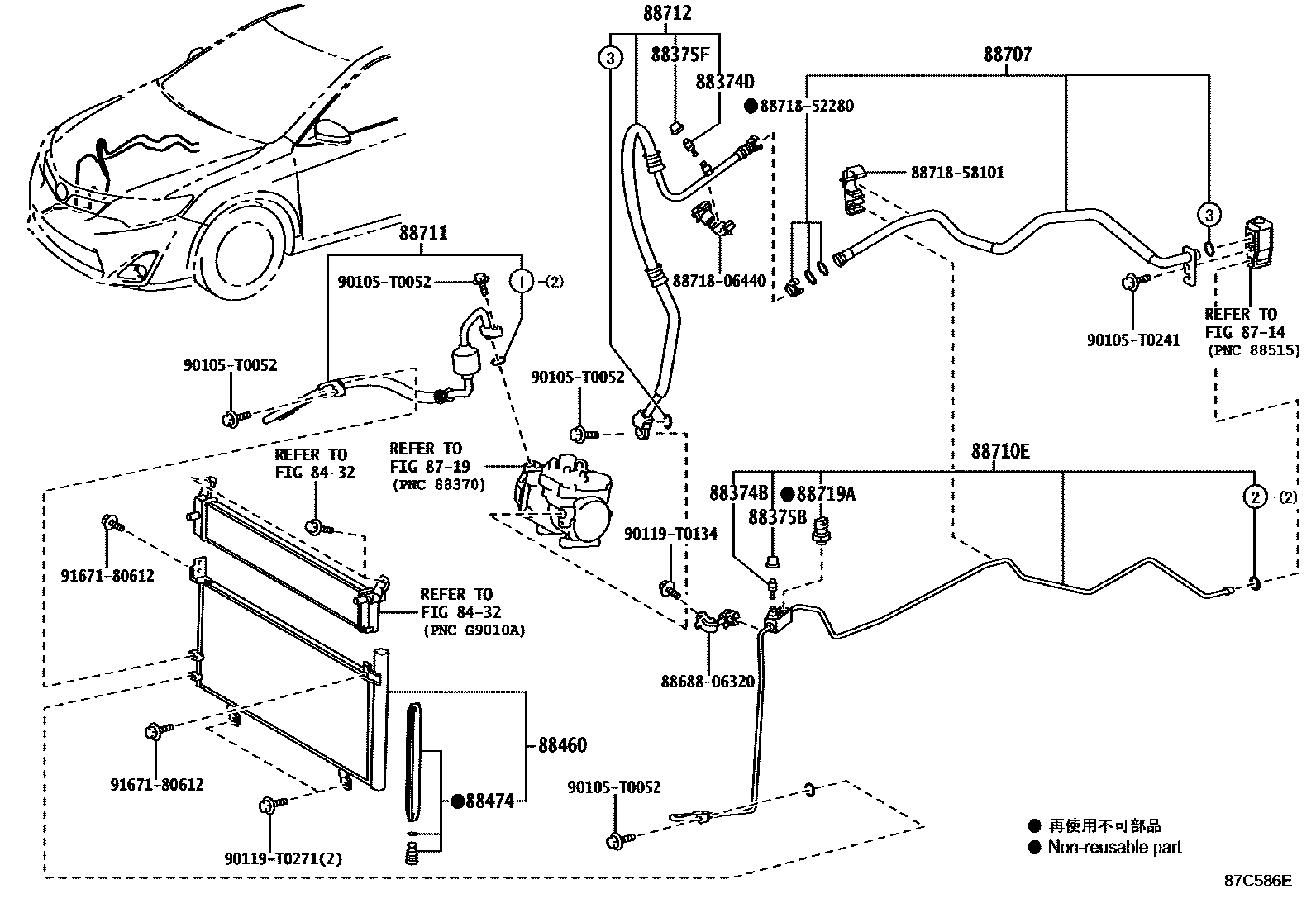

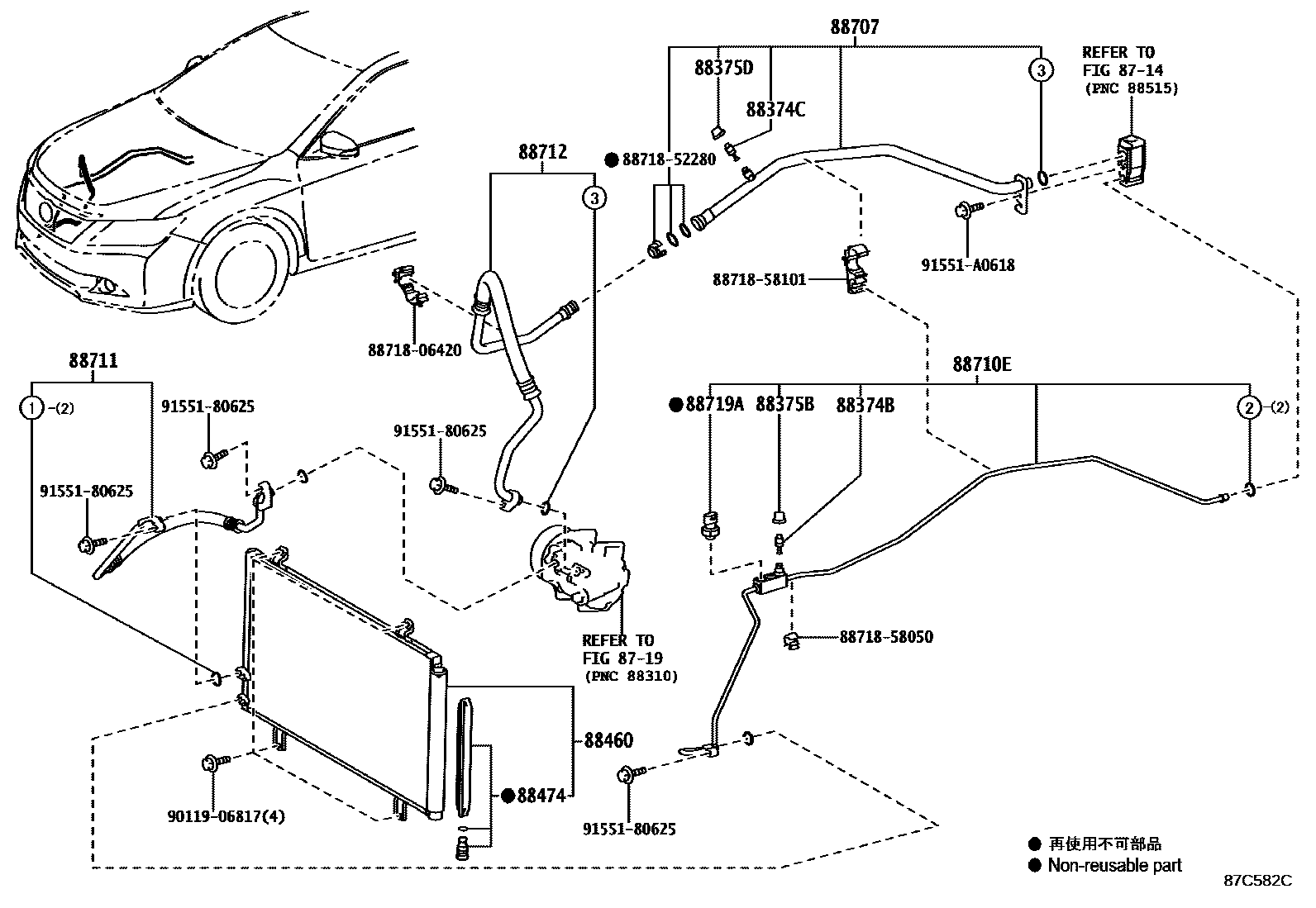

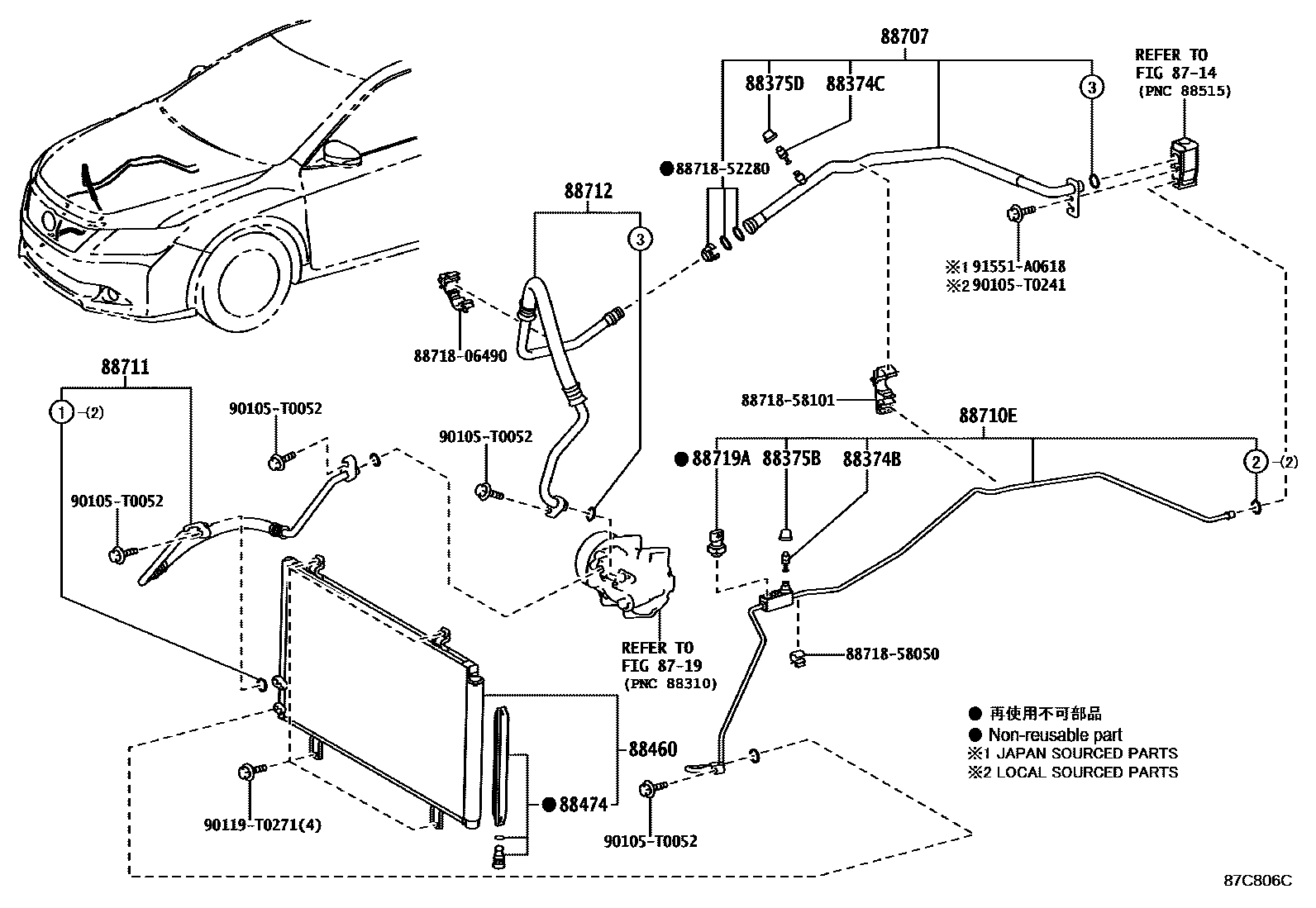

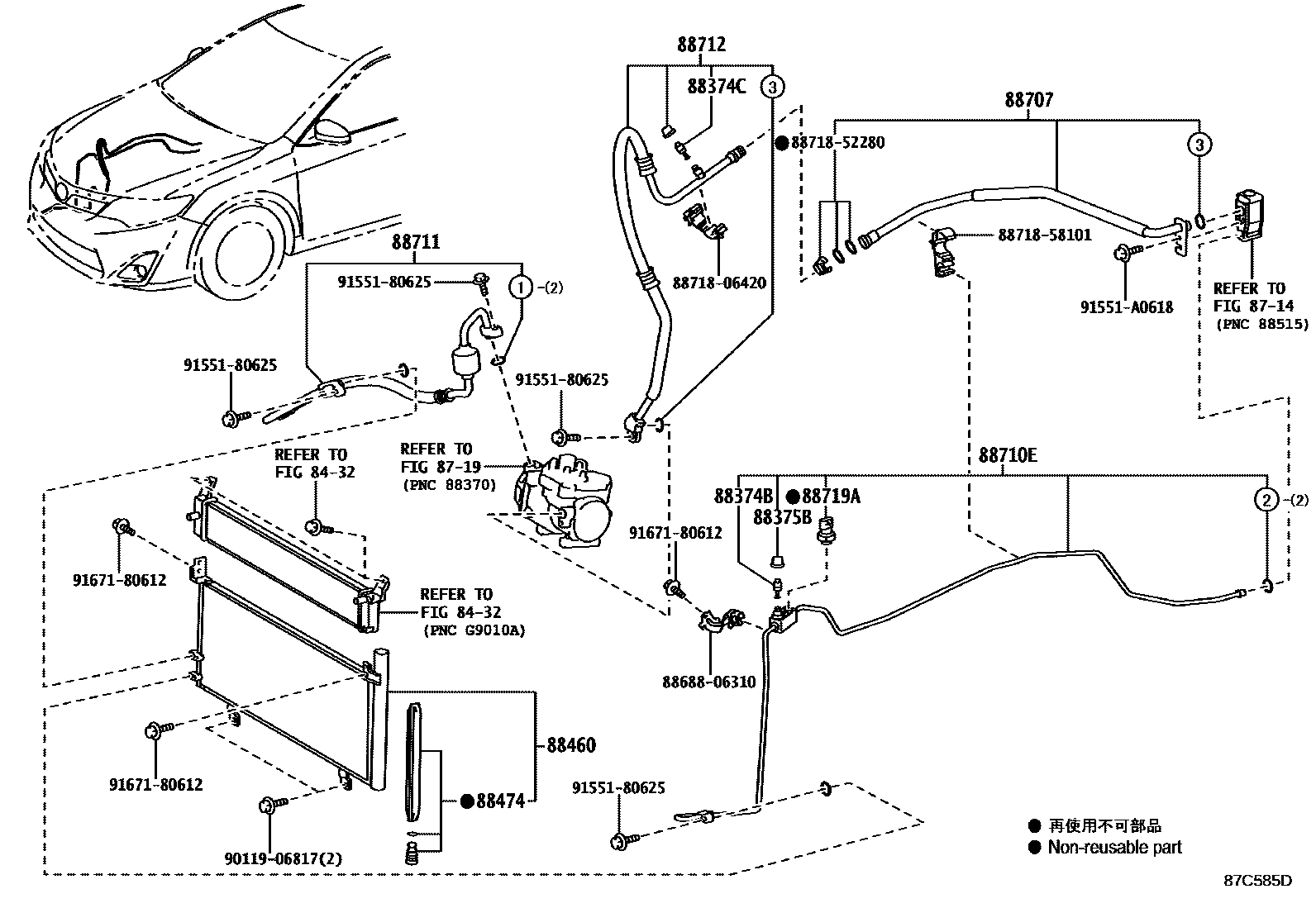

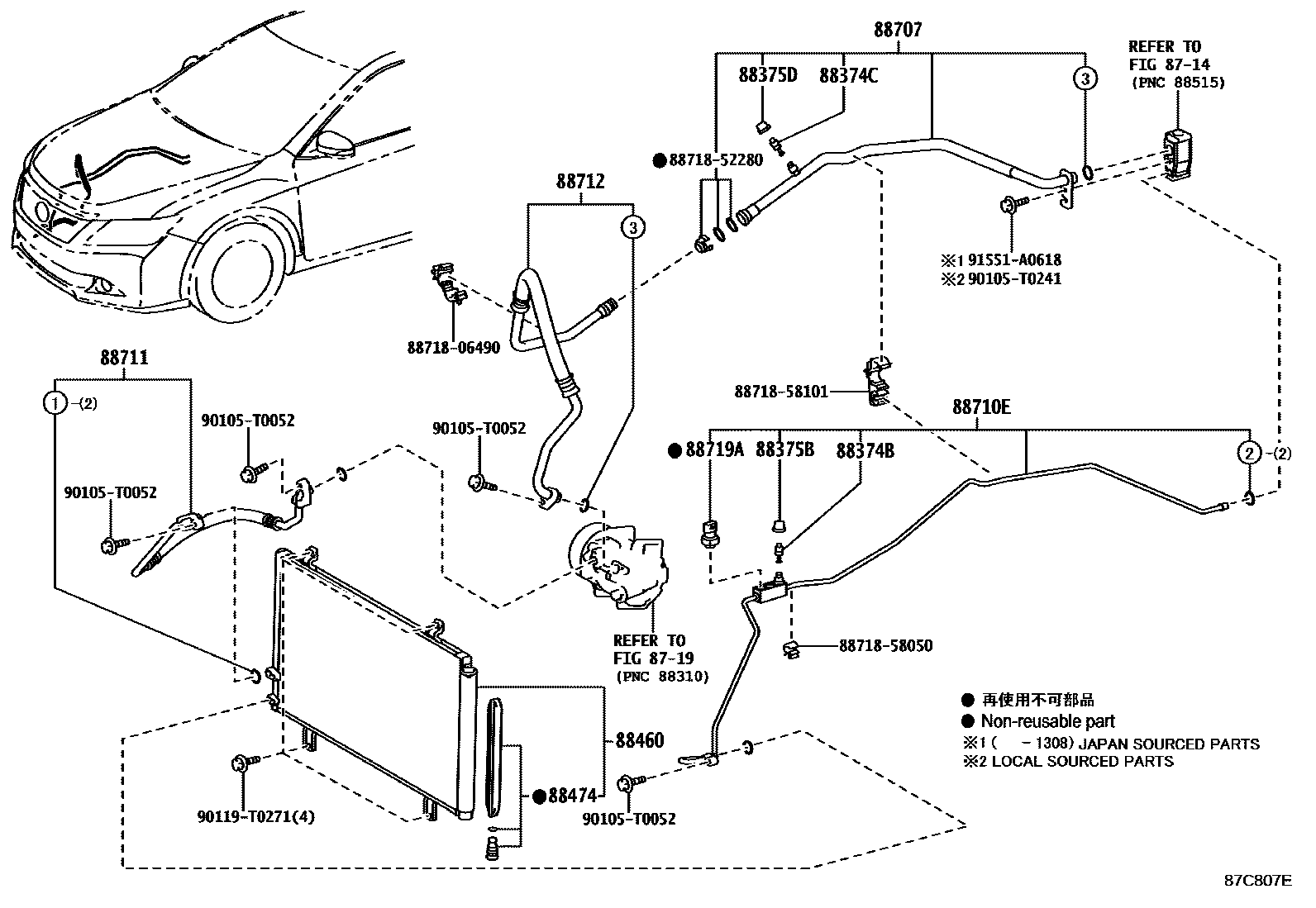

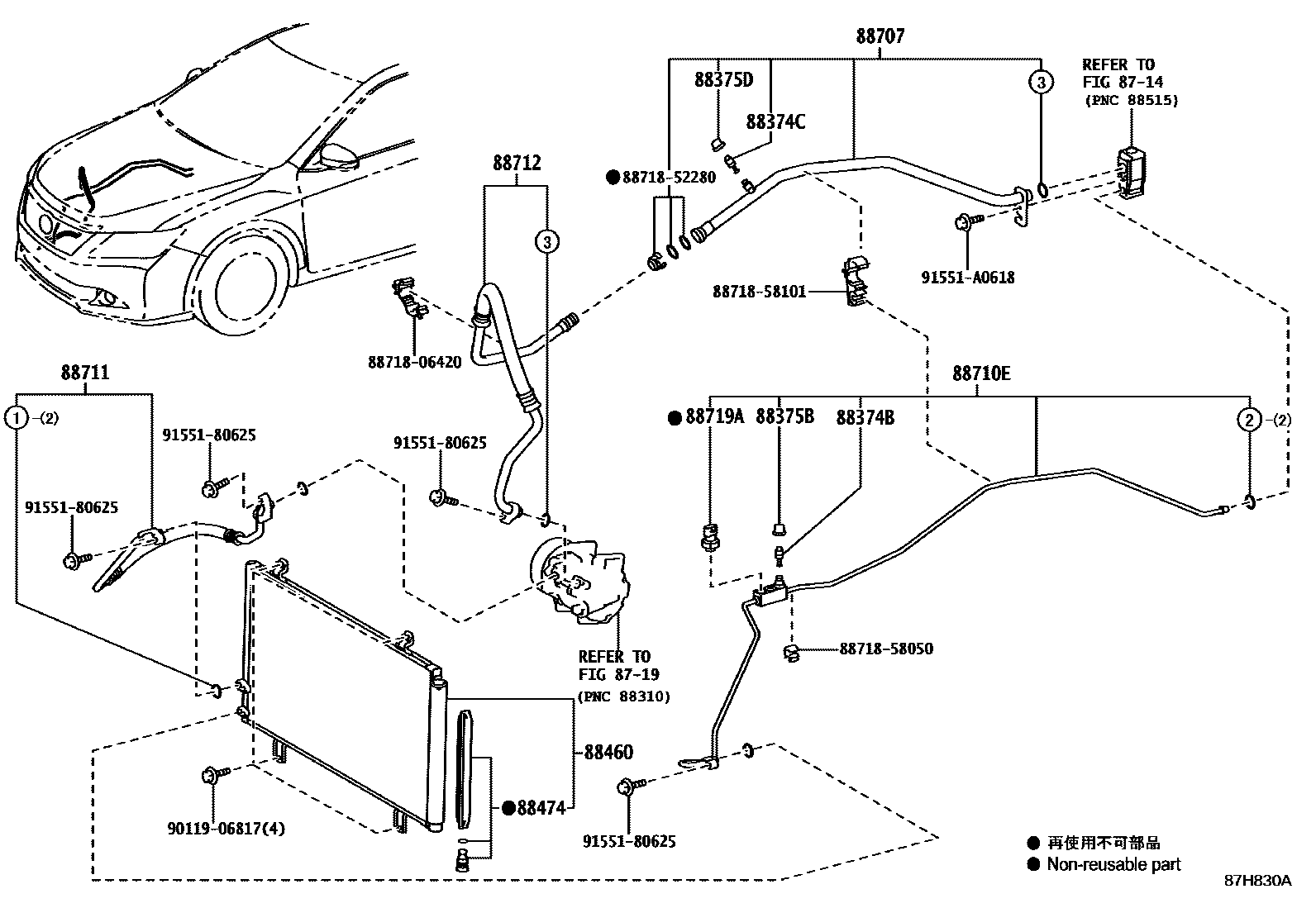

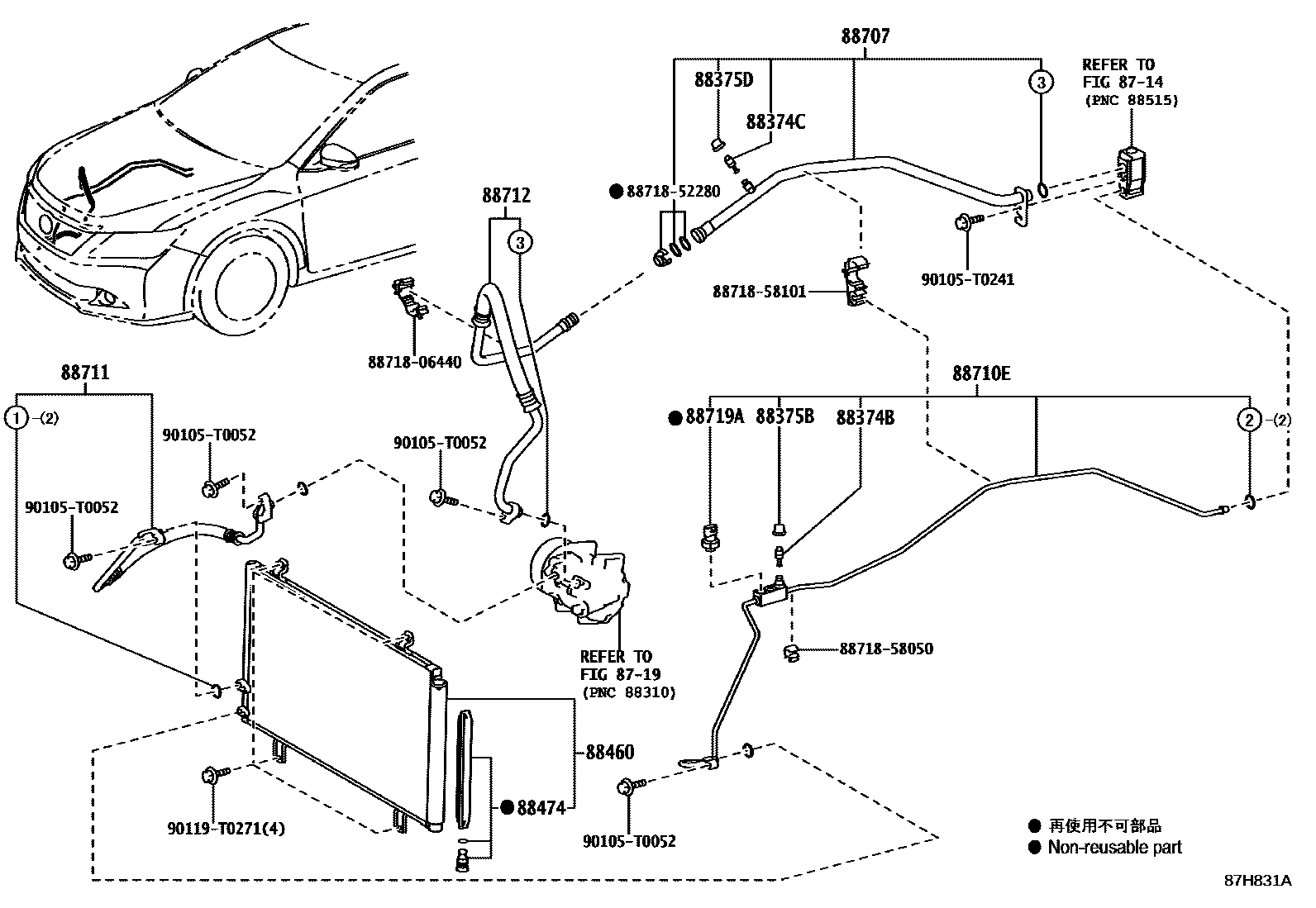

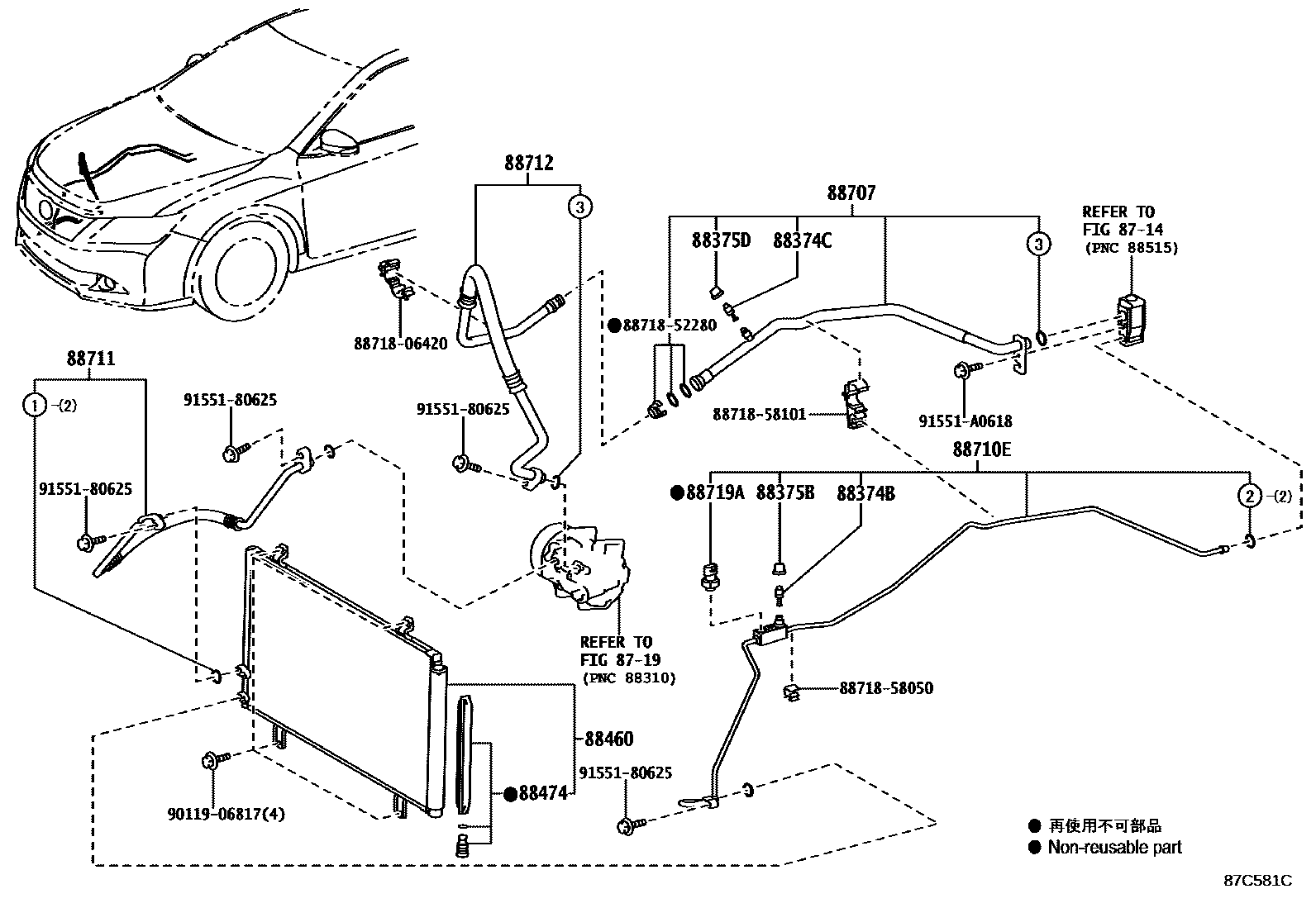

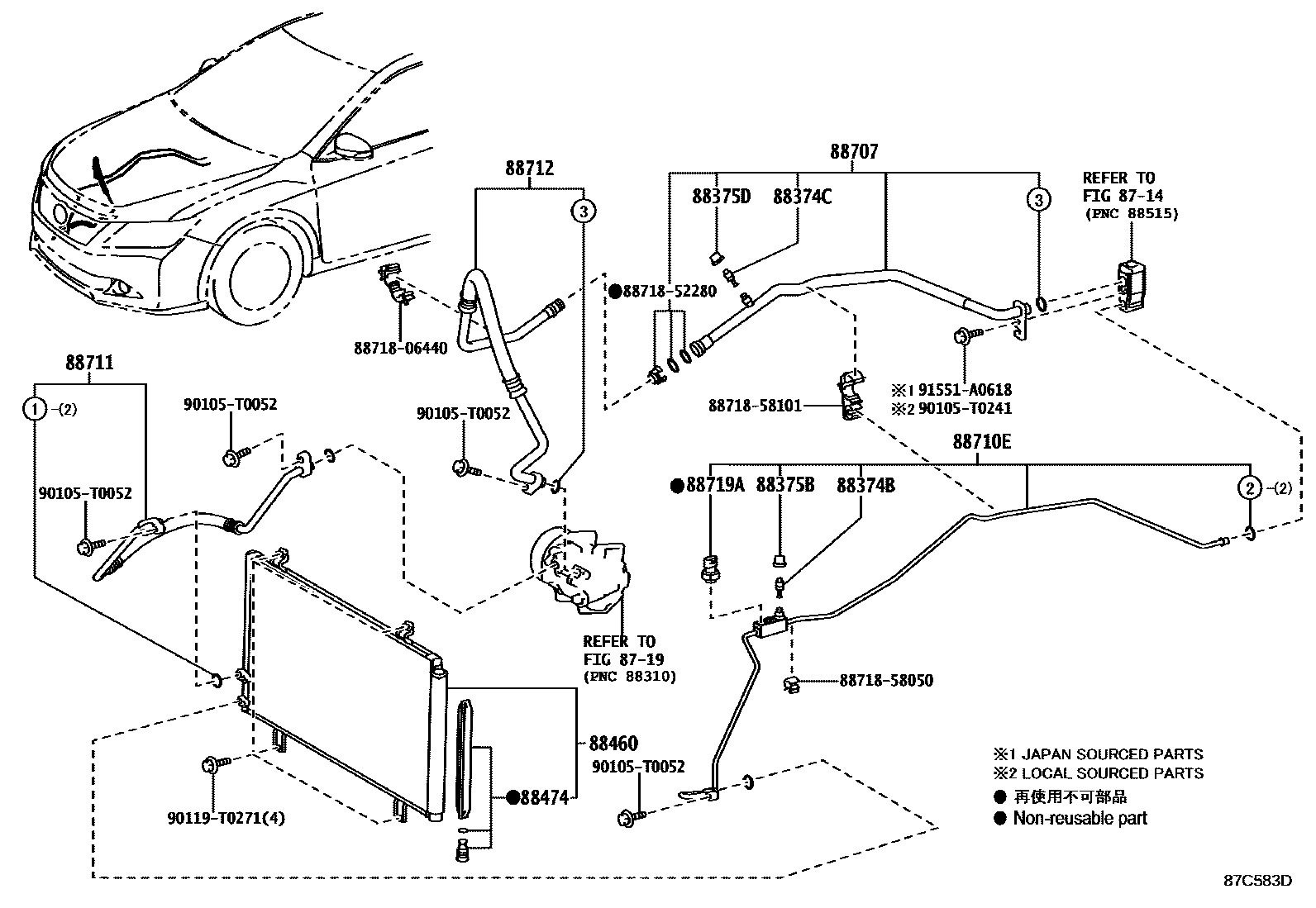

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 11 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88374D | No. 3 maintenance valve | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88375F | No. 3 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-06260 · 88460-06270 · 88460-06290 · 88460-33130 |
| 88474 | cooler dryer | 88474-17010 · 88474-47020 |
| 88707 | Suction pipe sub-assembly | 88707-06160 · 88707-06170 · 88707-06180 · 88707-06190 · 88707-06200 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06400 · 88710-06410 · 88710-06420 · 88710-06430 · 88710-06460 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06510 · 88711-06520 · 88711-06530 · 88711-06540 · 88711-06550 · 88711-06560 · 88711-06580 · 88711-06590 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-06310 · 88712-06320 · 88712-06330 · 88712-06340 · 88712-06350 · 88712-06360 · 88712-06370 · 88712-06380 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
