Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

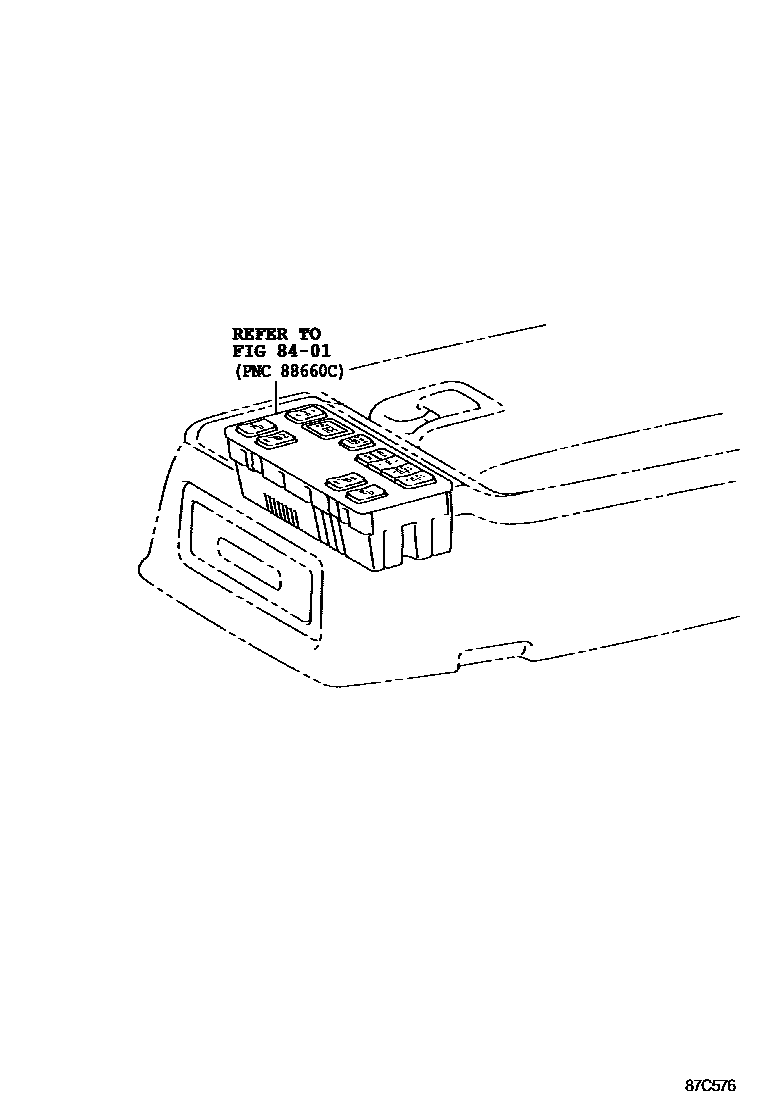

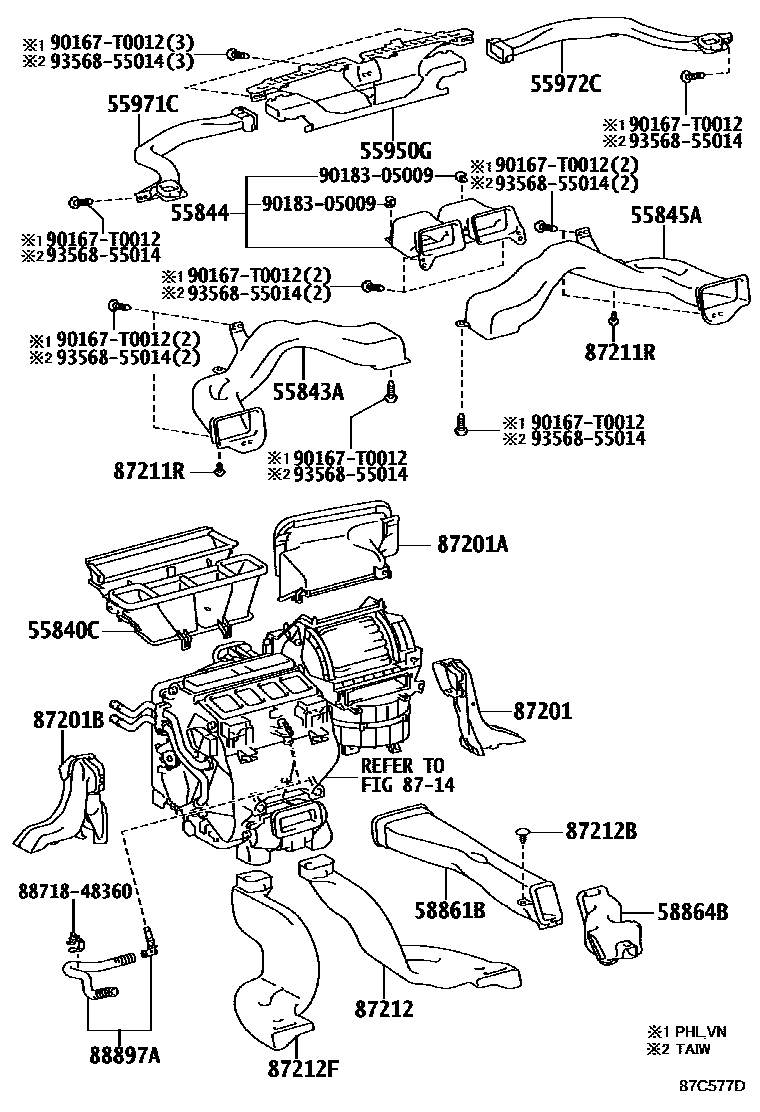

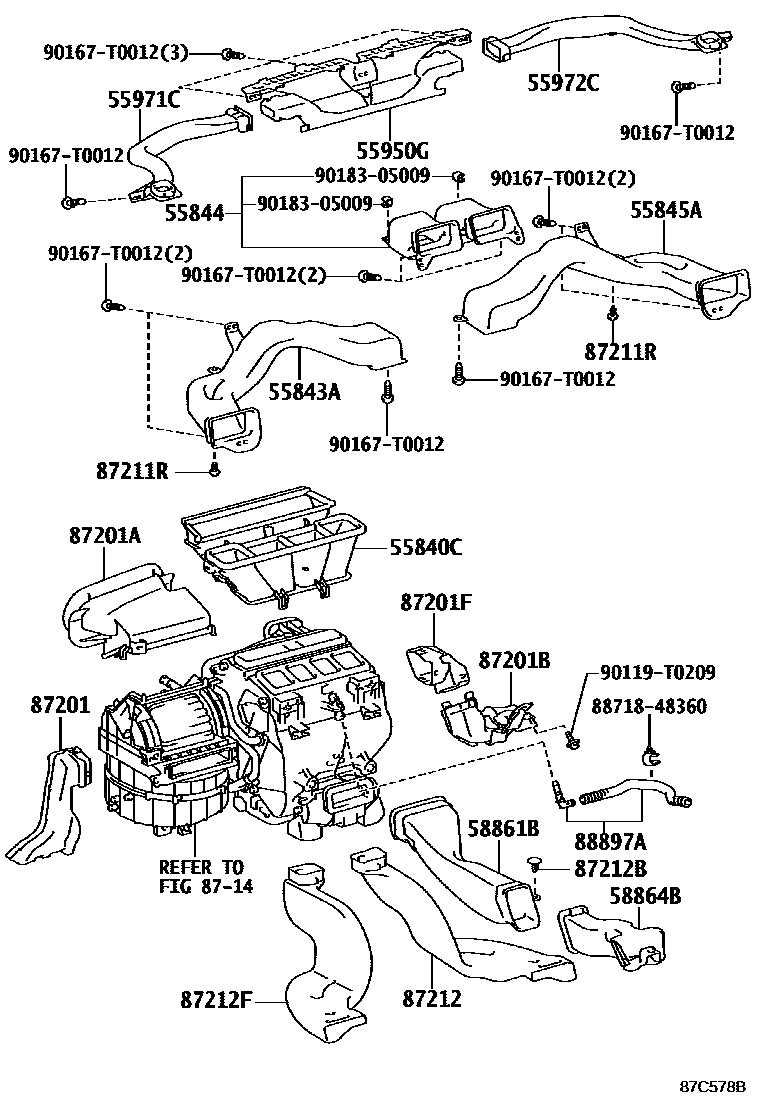

| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-06021 · 55840-06031 · 55840-06140 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06200 · 55843-06220 · 55843-06250 · 55843-06260 · 55870-33010 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06140 · 55844-06150 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06130 · 55845-06150 · 55845-06151 · 55870-06040 |

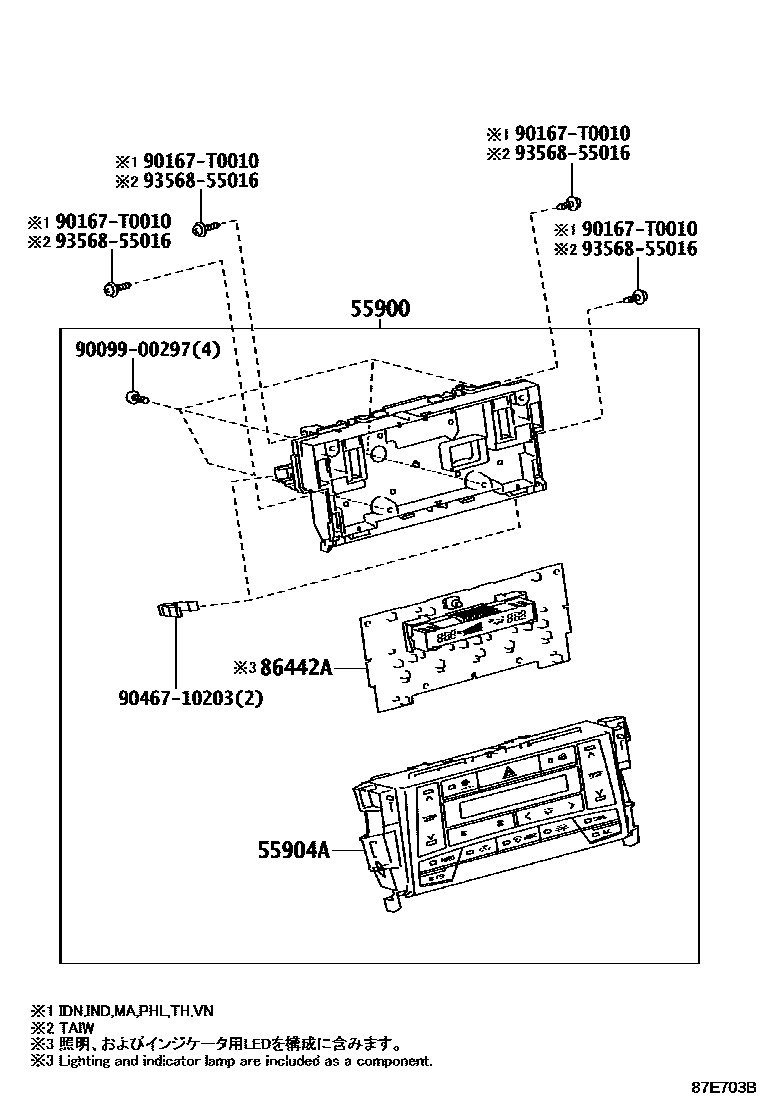

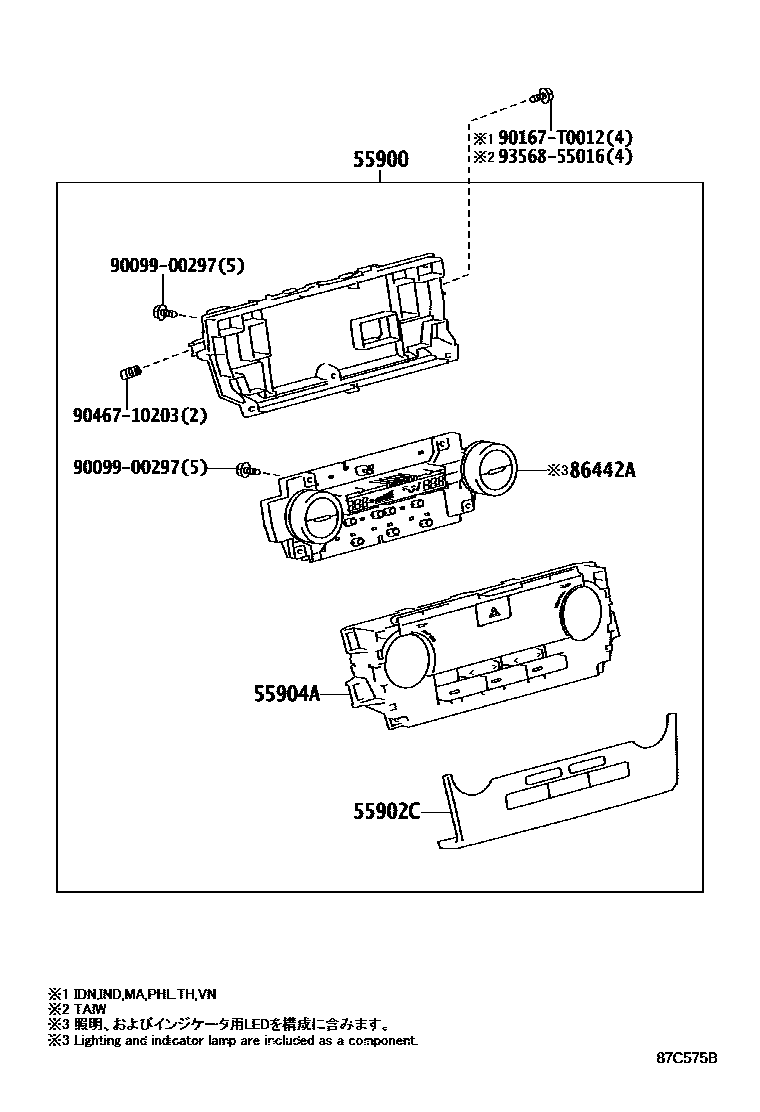

| 55900 | Air conditioning control assembly | 55900-33C30 · 55900-33E00 · 55900-33E10 · 55900-33E20 · 55900-33E30 · 55900-33E80 · 55900-33F00 · 55900-33F20 · 55900-33F50 · 55900-33F60 · 55900-33F70 · 55900-33F80 · 55900-33F90 |
| 55902C | Air conditioning panel sub-assembly | 55902-33A80 |
| 55904A | Heater control housing sub-assembly | 55904-33270 · 55904-33280 · 55904-33300 · 55904-33310 · 55904-33320 |
| 55950G | Defroster nozzle assembly | 55950-06130 · 55950-06140 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06110 · 55971-06120 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06110 · 55972-06120 |
| 58861B | Air duct No. 1 for armrest box | 58861-06160 · 58861-06170 |
| 58864B | Armrest box No. 4 air duct | 58864-06110 · 58864-06120 |
| 86442A | Heater control switch board | 86442-33040 · 86442-33050 · 86442-33060 · 86442-33070 · 86442-33090 · 86442-33100 · 86442-33110 · 86442-33120 |
| 87201 | No. 1 air duct sub-assembly | 87201-06180 · 87201-06220 · 87201-06260 · 87201-06710 |
| 87201A | Air duct sub-assembly | 87201-06560 · 87201-06600 · 87201-06640 · 87201-06680 |
| 87201B | No. 2 air duct sub-assembly | 87201-06580 · 87201-06590 · 87201-06620 · 87201-06660 · 87201-06700 · 87201-06820 |
| 87201F | No. 3 air duct sub-assembly | 87201-06650 · 87201-06690 |
| 87212 | No. 1 rear air duct | 87212-06040 · 87212-06050 |
| 87212F | No. 2 rear air duct | 87213-06040 · 87213-06050 |

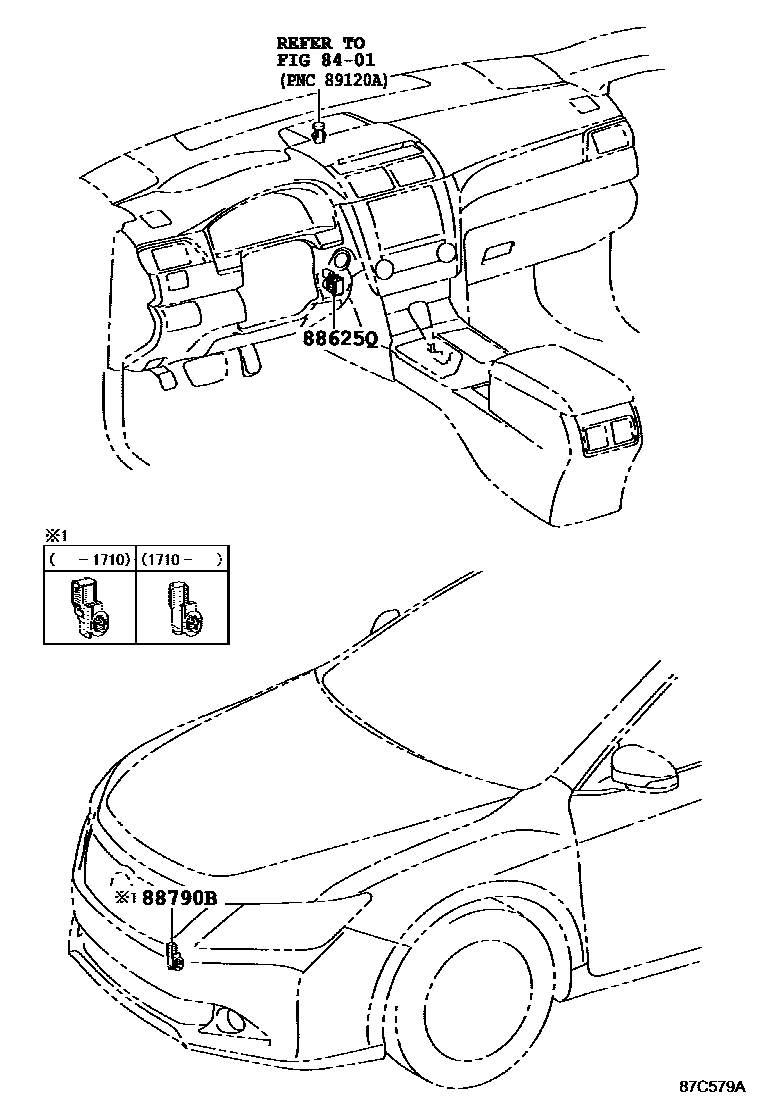

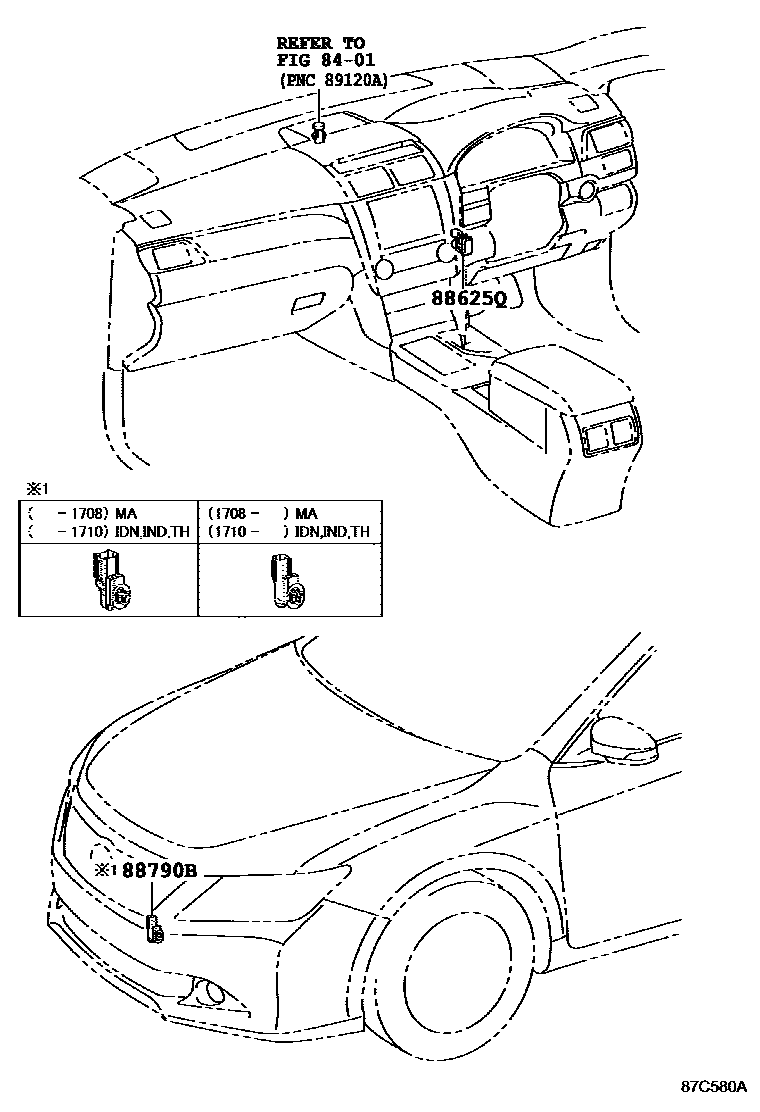

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-22131 · 88790-28100 |
| 88897A | aspirator tube | 87201-06570 · 87201-06610 · 87201-06720 |
