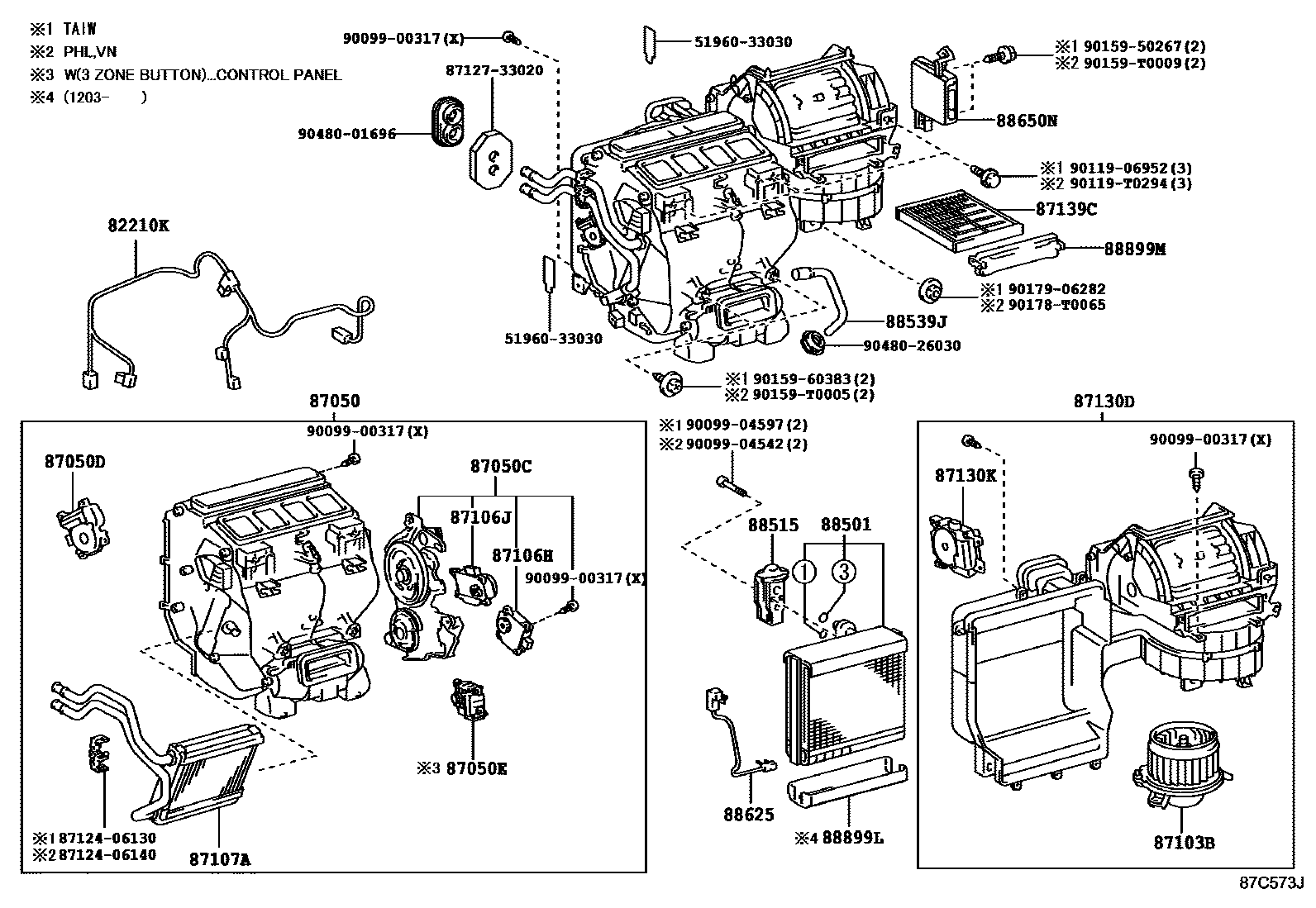

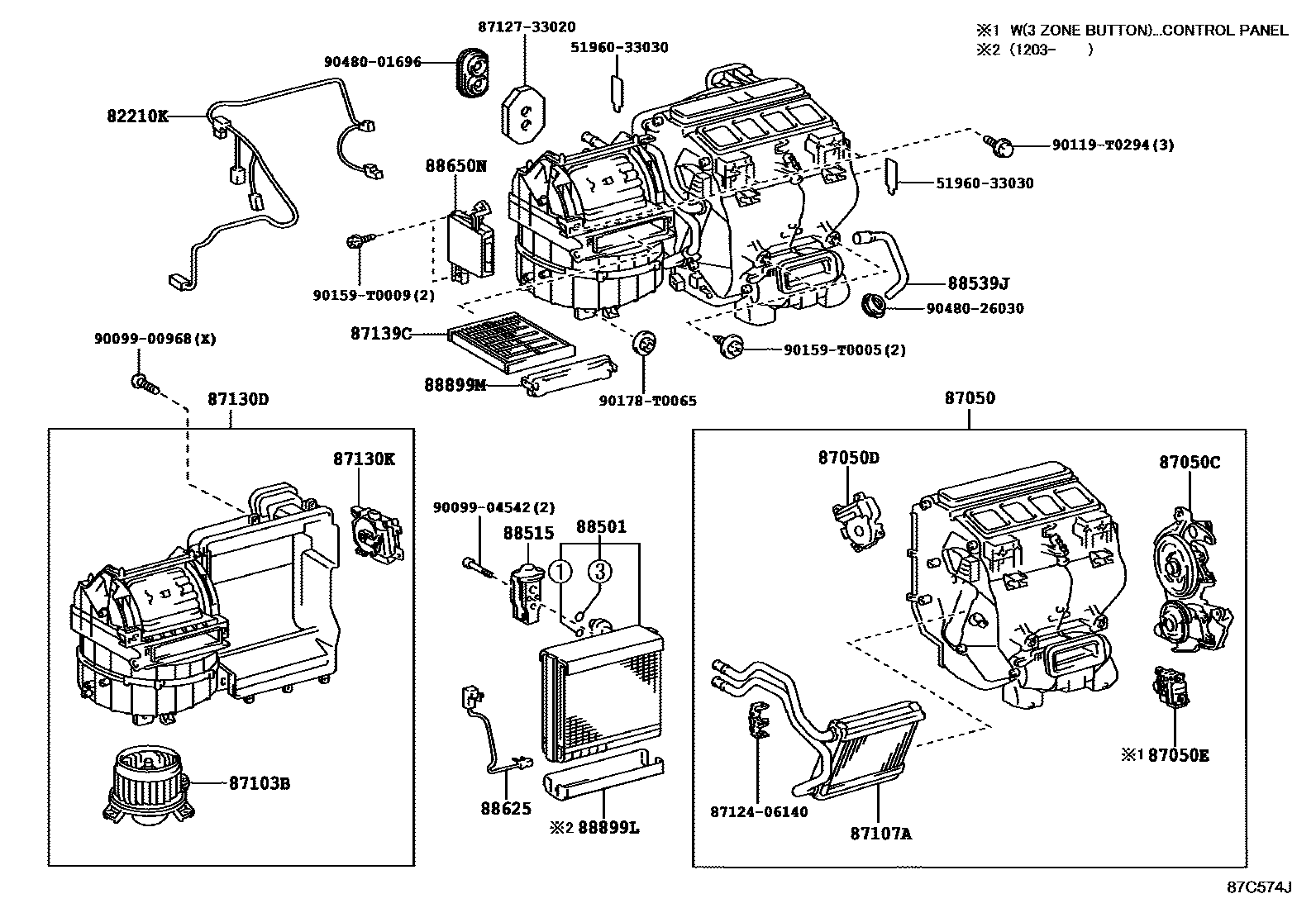

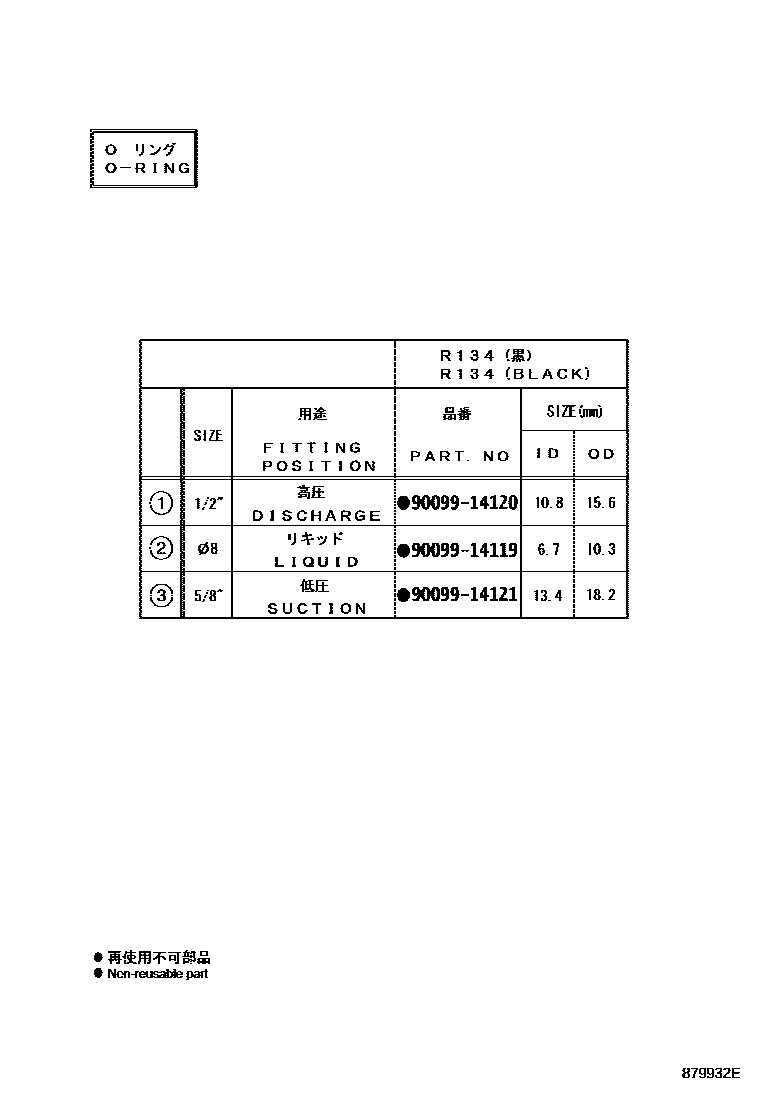

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06020 · 82212-06021 · 82212-06030 · 82212-06031 · 82212-06050 · 82212-06051 · 82212-06160 · 82212-06161 · 82212-06170 · 82212-06171 · 82212-06180 · 82212-06181 |
| 87050 | Air conditioning radiator assembly | 87050-06421 · 87050-06422 · 87050-06431 · 87050-06432 · 87050-06441 · 87050-06442 · 87050-06680 · 87050-06681 · 87050-06690 · 87050-06691 · 87050-06700 · 87050-06701 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06161 · 87106-06270 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-06170 · 87106-06280 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-06320 · 87106-06330 |
| 87103B | Blower motor sub-assembly with fan | 87103-06061 · 87103-06100 · 87103-06110 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-30450 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-30450 |
| 87107A | Heater radiator device sub-assembly | 87107-06060 · 87107-06090 |
| 87130D | Blower assembly | 87130-06260 · 87130-06270 · 87130-06280 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-06260 · 87106-06340 · 87106-06350 |
| 87139C | air purification filter | 87139-02110 · 87139-02130 · 87139-02140 · 87139-50100 · 87139-52020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06180 · 88501-06181 · 88501-06320 · 88501-06321 · 88501-06330 · 88501-06331 · 88501-06340 · 88501-06341 |
| 88515 | Cooler expansion valve | 88515-06110 · 88515-06120 |
| 88539J | Cooler drain hose | 88539-06050 · 88539-06060 · 88539-06170 |
| 88625 | Cooler No. 1 Thermistor | 88620-06030 · 88620-06040 |
| 88650N | Air conditioning amplifier assembly | 88650-06550 · 88650-06610 · 88650-06620 · 88650-06720 · 88650-06770 · 88650-06780 · 88650-06790 · 88650-06A90 · 88650-06C70 · 88650-06C80 · 88650-06C90 · 88650-06D00 · 88650-33A70 · 88650-33A90 · 88650-33B10 · 88650-33B60 · 88650-33B70 · 88650-33C20 · 88650-33C40 · 88650-33C50 · 88650-33D60 · 88650-33D70 · 88650-33D80 |
| 88899L | Cooling unit parts | 88899-06090 |
| 88899M | cover (for air cleaner) | 88899-06030 · 88899-06040 · 88899-06140 |
