Toyota CAMRY 喇叭 — Figure 8611

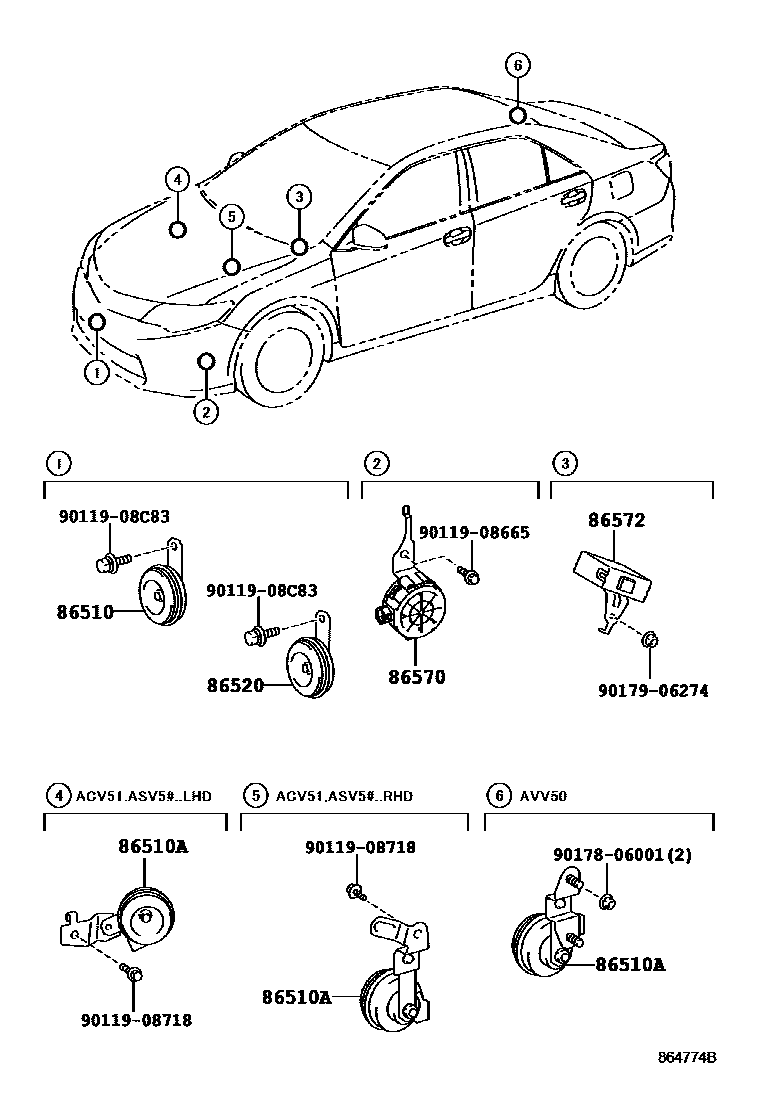

Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-02080 · 86510-06041 · 86510-06140 · 86510-12610 · 86510-33210 |
| 86510A | Alarm horn assembly | 86560-06120 · 86560-06150 · 86560-06160 · 86560-06180 · 86560-06190 · 86560-06200 · 86560-33020 · 86560-33050 |
| 86520 | Subwoofer assembly | 86520-02030 · 86520-02210 · 86520-06130 · 86520-12690 · 86520-33150 |
| 86570 | Vehicle intrusion speaker assembly | 86570-33040 |
| 86572 | vehicle hacking speaker controller | 86572-33050 |
