Toyota CAMRY 前大灯清洗器 — Figure 8505

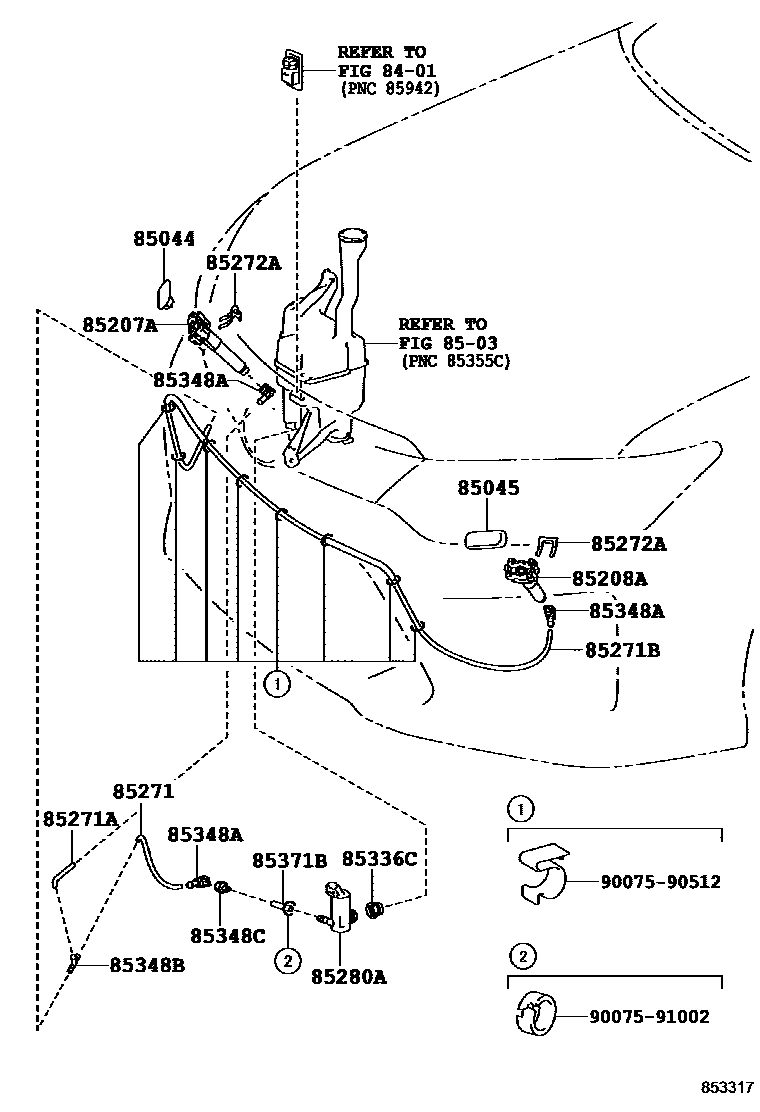

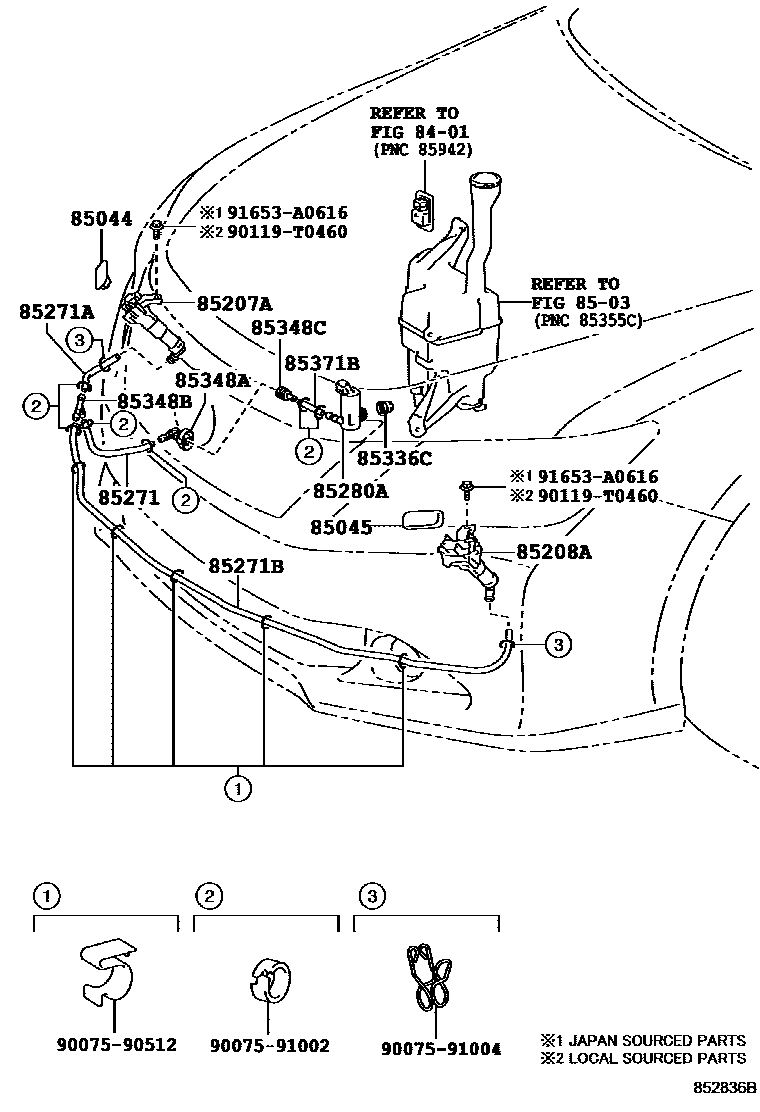

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85384-33010 · 85384-33020 |
| 85045 | Left type 1 headlight washer nozzle sub-assembly | 85394-33010 · 85394-33020 |
| 85207A | Right headlight washer actuator sub-assembly | 85207-33040 · 85207-33110 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-33040 · 85208-33110 |
| 85271 | No. 1 headlight washer hose | 90075-15057 · 90075-15097 |
| 85271A | No. 2 headlight washer hose | 90075-15053 · 90075-15054 |
| 85271B | No. 3 headlight washer hose | 90075-15072 · 90075-15092 |
| 85272A | Headlight washer No. 1 clip | 85272-75050 |
| 85280A | Headlight washer motor and pump assembly | 85280-33030 |
| 85336C | Headlight washer motor seal | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17001 · 90075-17009 |
| 85348B | No. 2 headlight washer hose connector | 90075-17003 · 90075-17010 |
| 85348C | No. 3 headlight washer hose connector | 90075-17002 · 90075-17012 |
| 85371B | Headlight washer hose (from motor to connector) | 90075-15053 |
