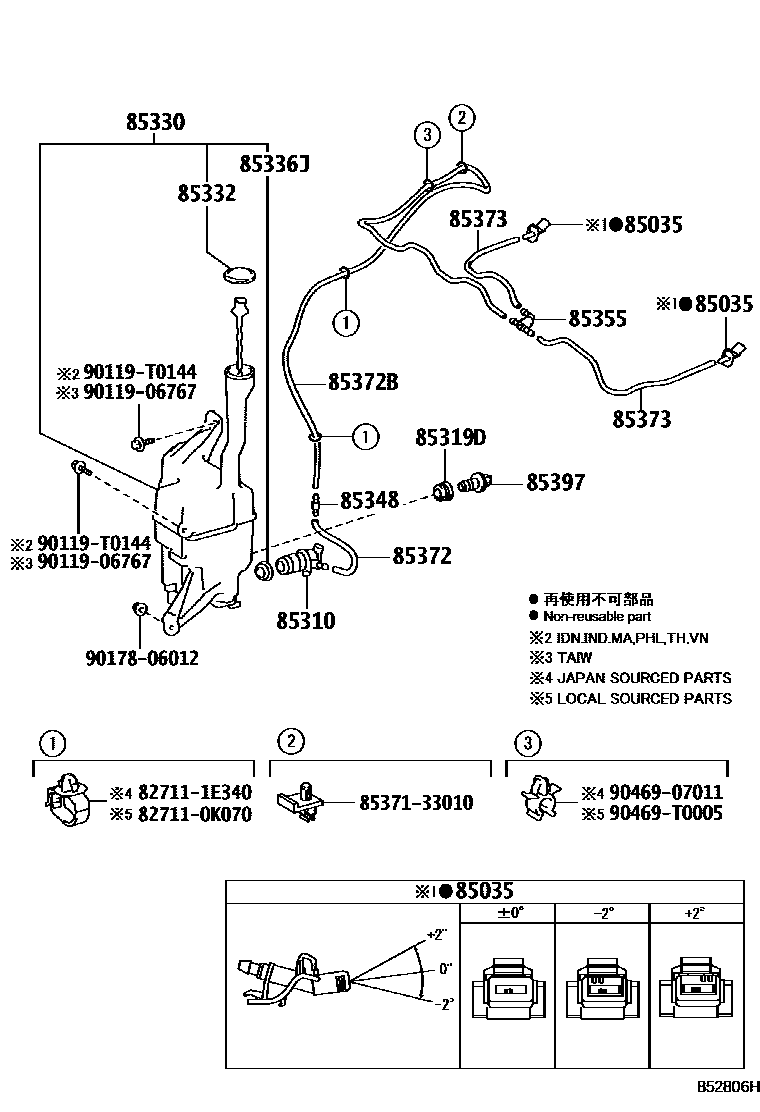

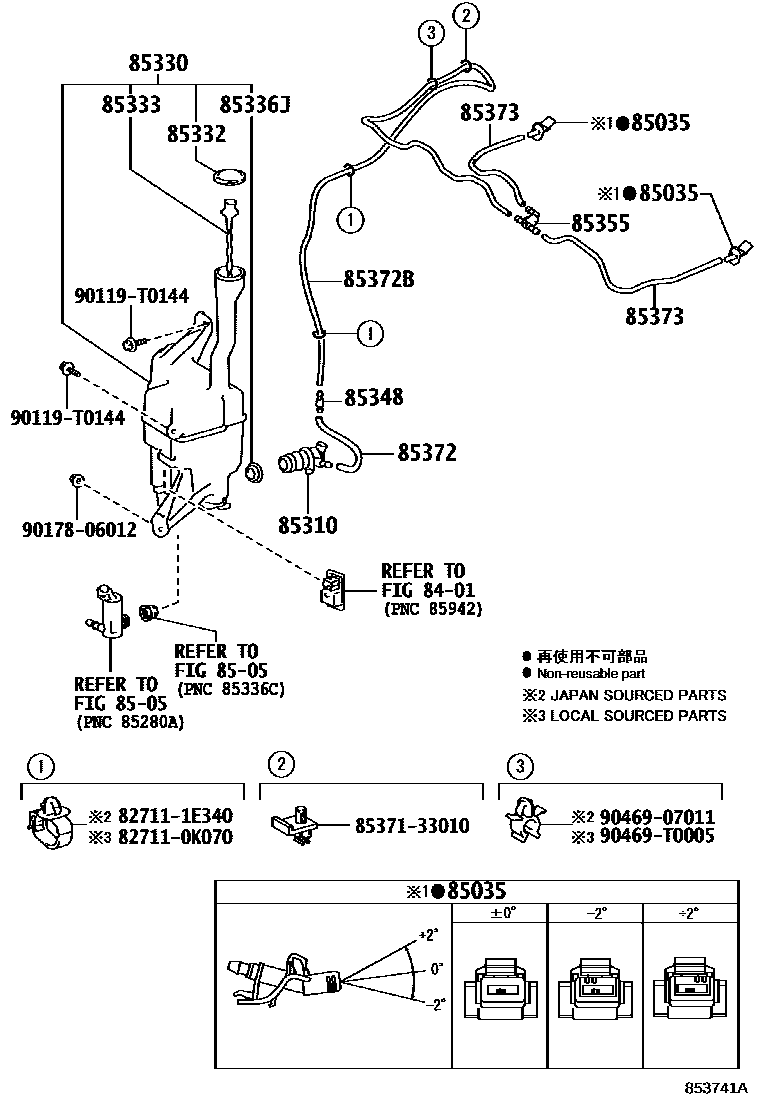

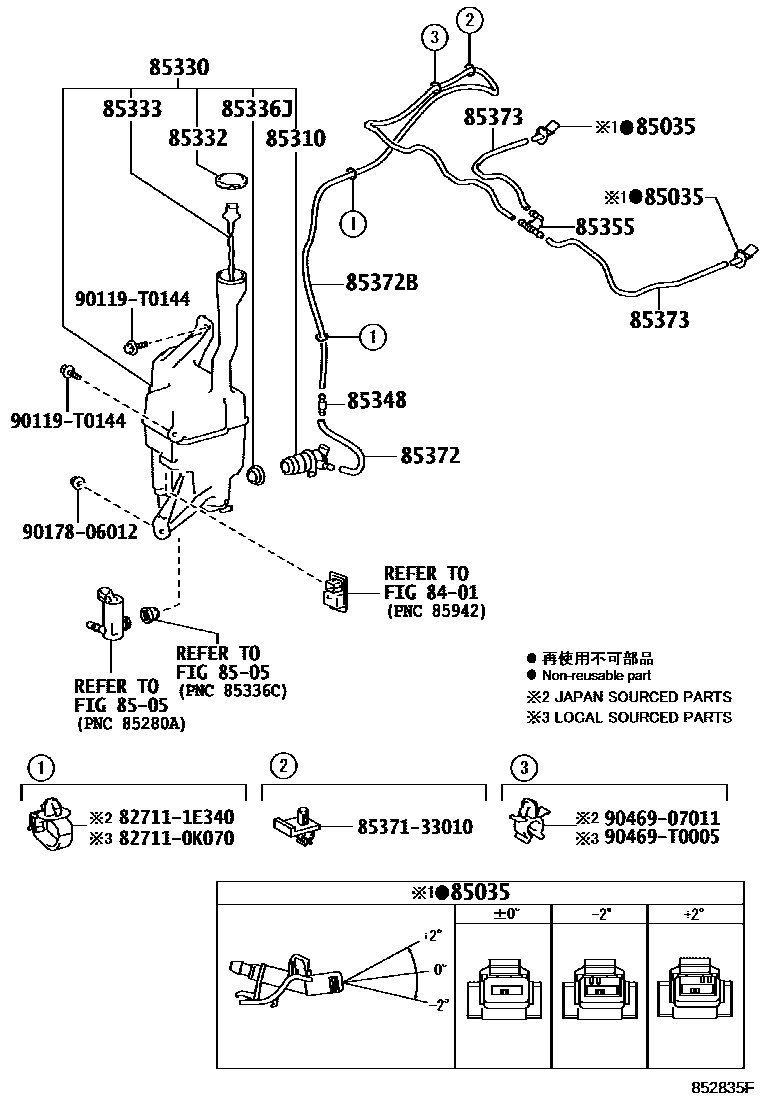

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30150 · 85381-30160 · 85381-33080 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D100 · 85330-21010 · 85330-71020 |
| 85319D | front washer seal | 85319-33230 |
| 85330 | Windshield washer fluid tank assembly | 85315-06270 · 85315-06280 · 85355-33170 · 85355-33190 |
| 85332 | Windshield washer fluid tank cap | 85316-06270 · 85316-33320 · 85386-60050 |
| 85333 | Windshield washer fluid tank filter | 85312-21020 |
| 85336J | Cleaning fluid tank protection device | 85336-0K020 · 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85375-06101 · 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33107 · 90099-62062 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-59103 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33182 · 90099-62061 |
| 85397 | Liquid level warning switch assembly | 85397-33230 |
