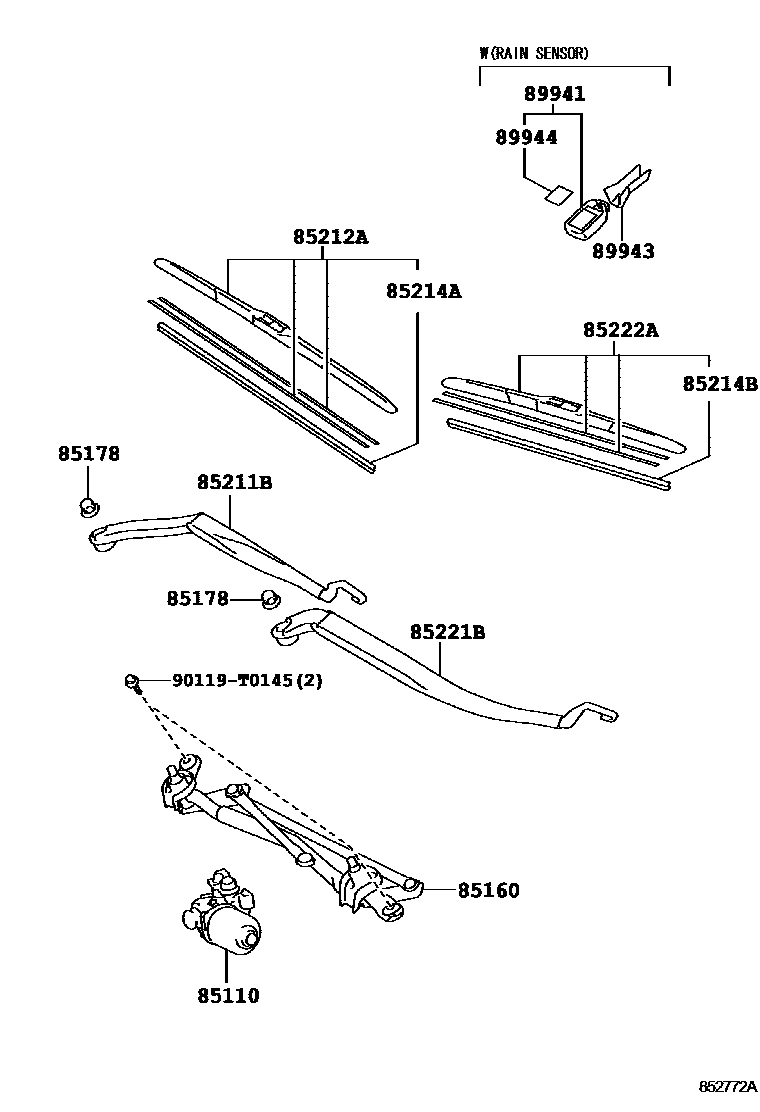

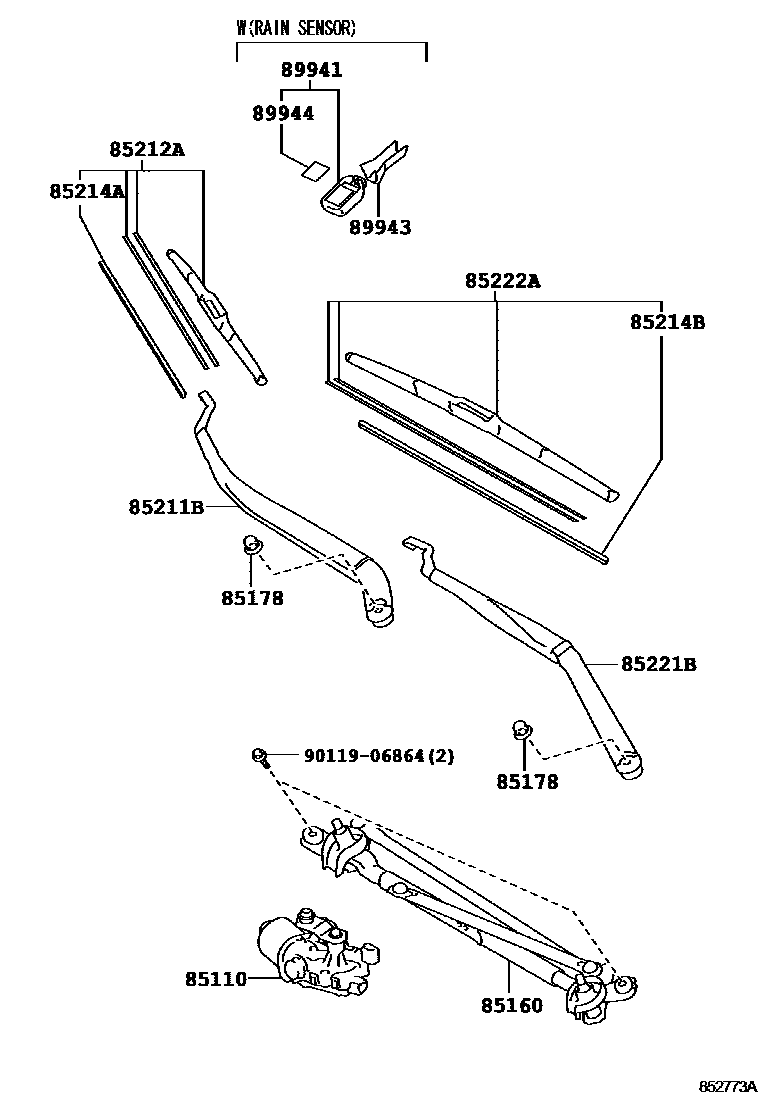

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-06160 · 85110-06170 |
| 85160 | Windshield wiper connecting rod assembly | 85150-06160 · 85150-06170 |
| 85178 | Nut (for securing front wiper arm) | 90176-10005 |
| 85211B | Right front wiper arm | 85211-06150 · 85211-06160 |
| 85212A | Right front wiper blade | 85212-33250 · 85212-33260 |
| 85214A | Right wiper rubber strip | 85214-33180 · 85214-52110 |
| 85214B | Left wiper rubber strip | 85214-33180 · 85214-52110 |
| 85221B | Left front wiper arm | 85221-06150 · 85221-06160 |
| 85222A | Left front wiper blade | 85222-33260 · 85222-33270 |
| 89941 | rain sensor | 89941-52010 |
| 89943 | Rain sensor cover | 89943-42010 |
| 89944 | Rain sensor tape | 89944-42010 |
