Toyota CAMRY 空气囊 — Figure 8421

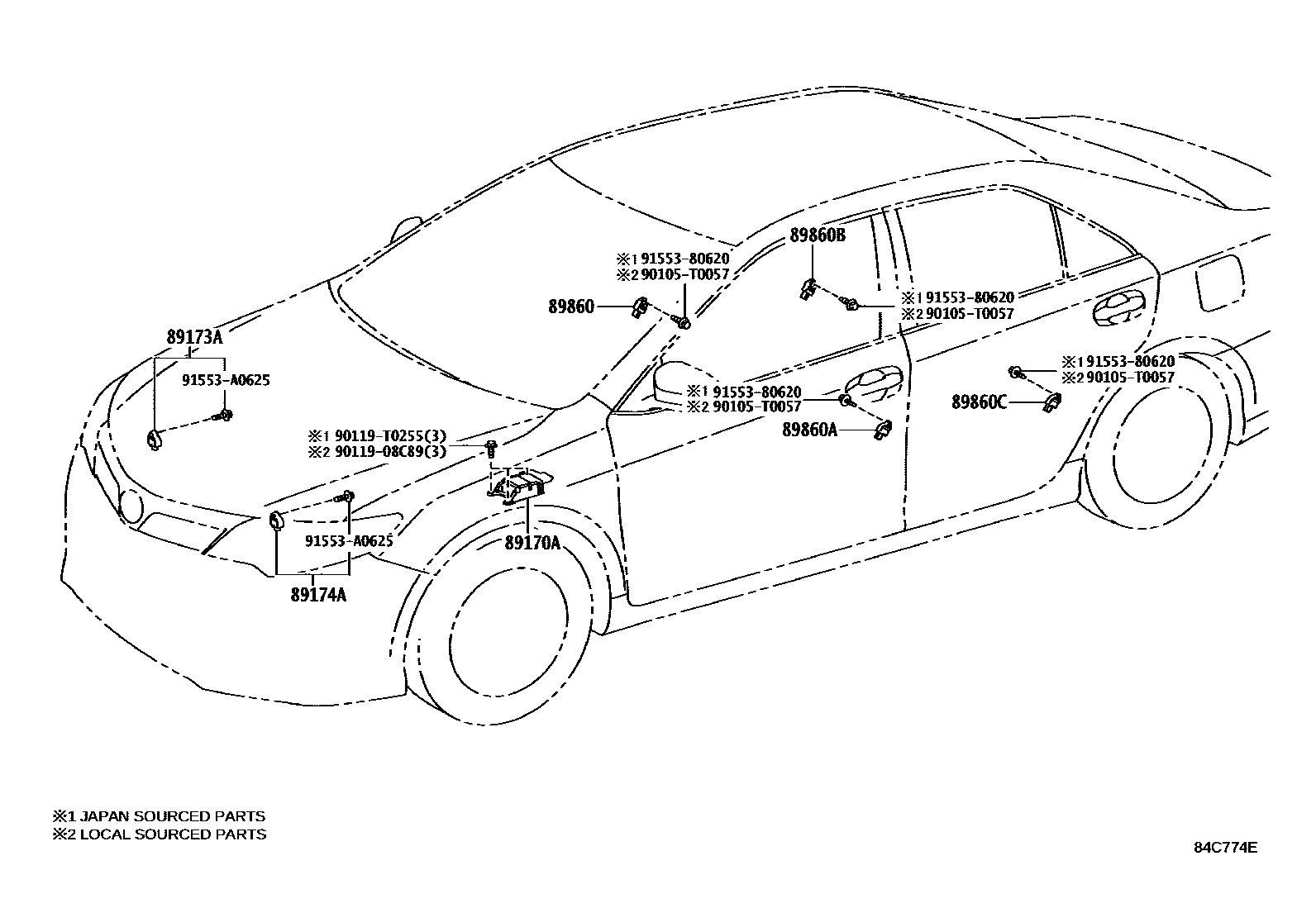

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-06480 · 89170-06490 · 89170-06500 · 89170-06510 · 89170-06520 · 89170-06530 · 89170-06580 · 89170-06680 · 89170-06690 · 89170-06700 · 89170-06710 · 89170-06740 · 89170-06750 · 89170-06760 |
| 89173A | Right front air bag sensor | 89173-39465 |
| 89174A | Left front air bag sensor | 89173-39465 |
| 89860 | Right side airbag sensor assembly | 89831-52020 |
| 89860A | Left side air bag sensor assembly | 89831-52020 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-33040 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-33040 |
