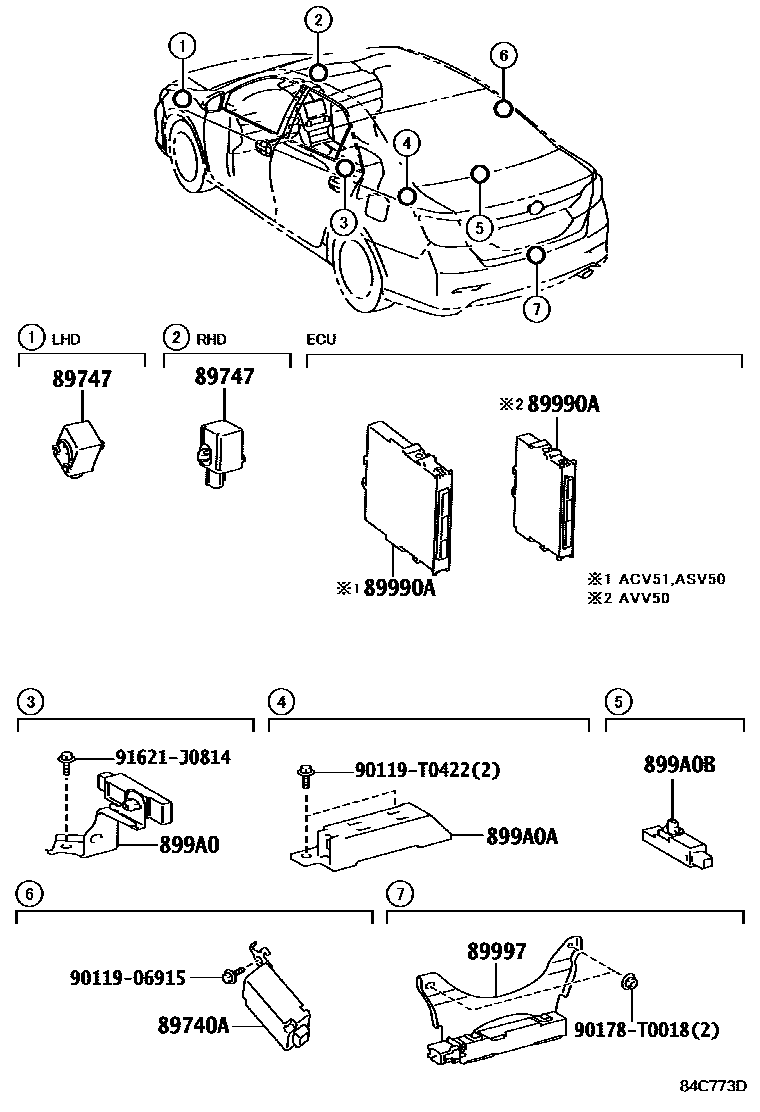

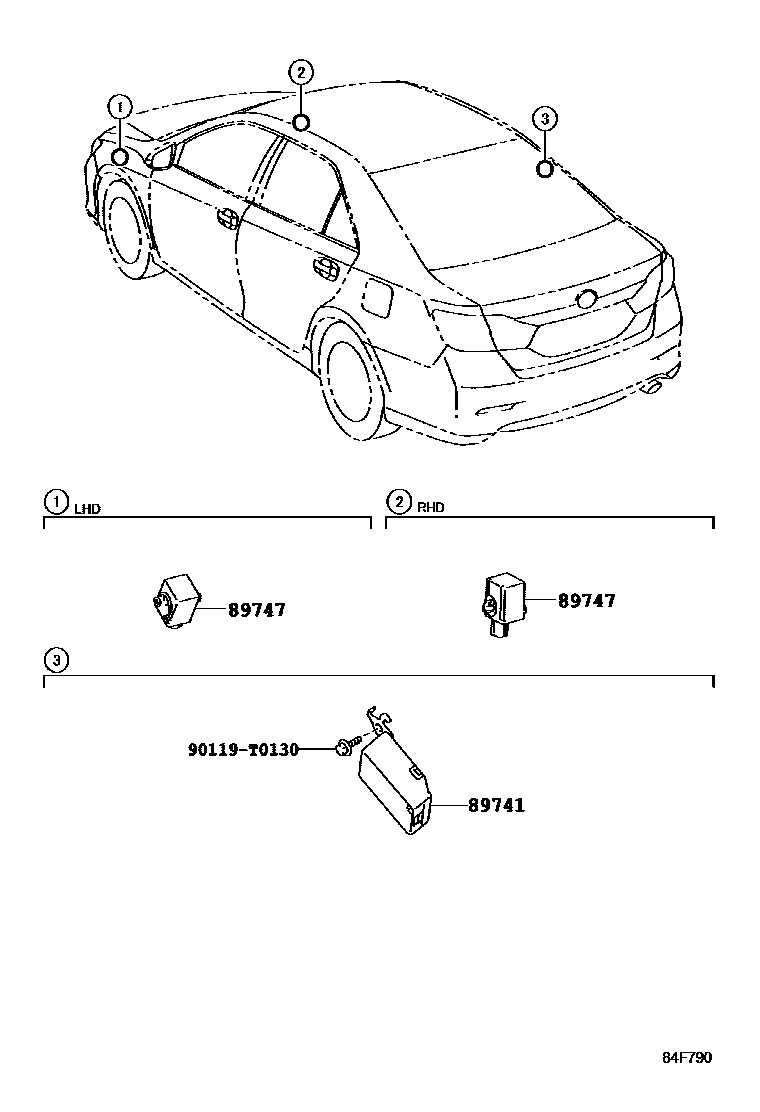

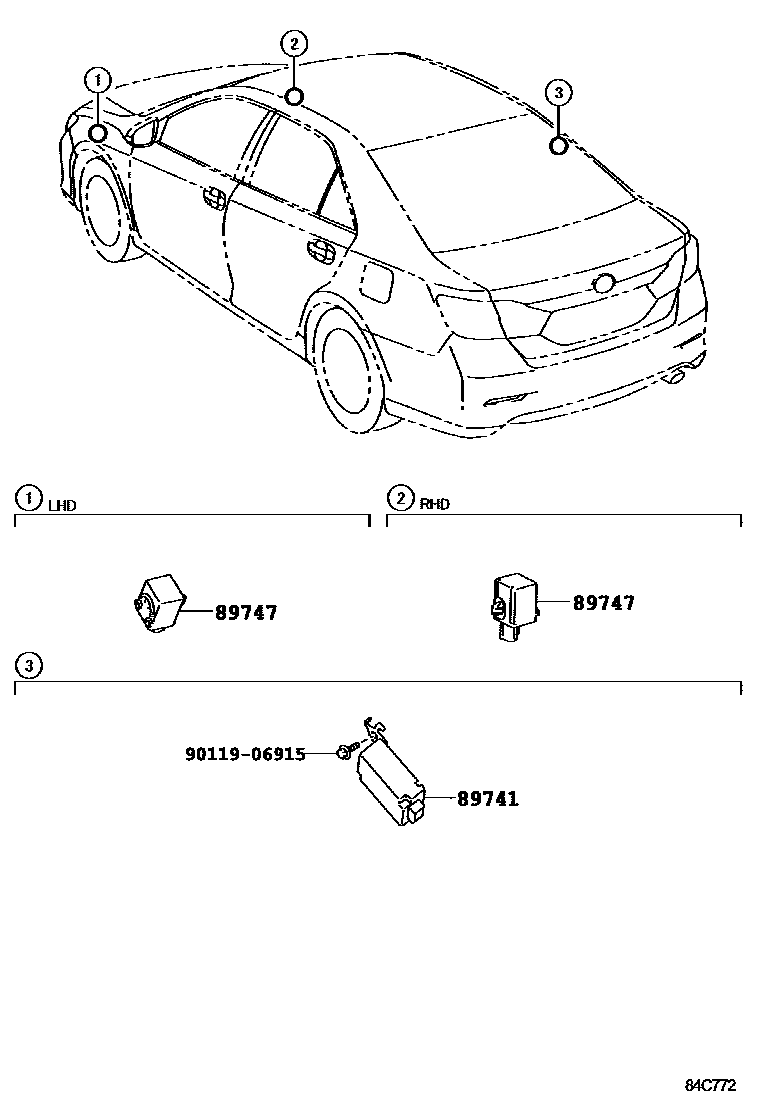

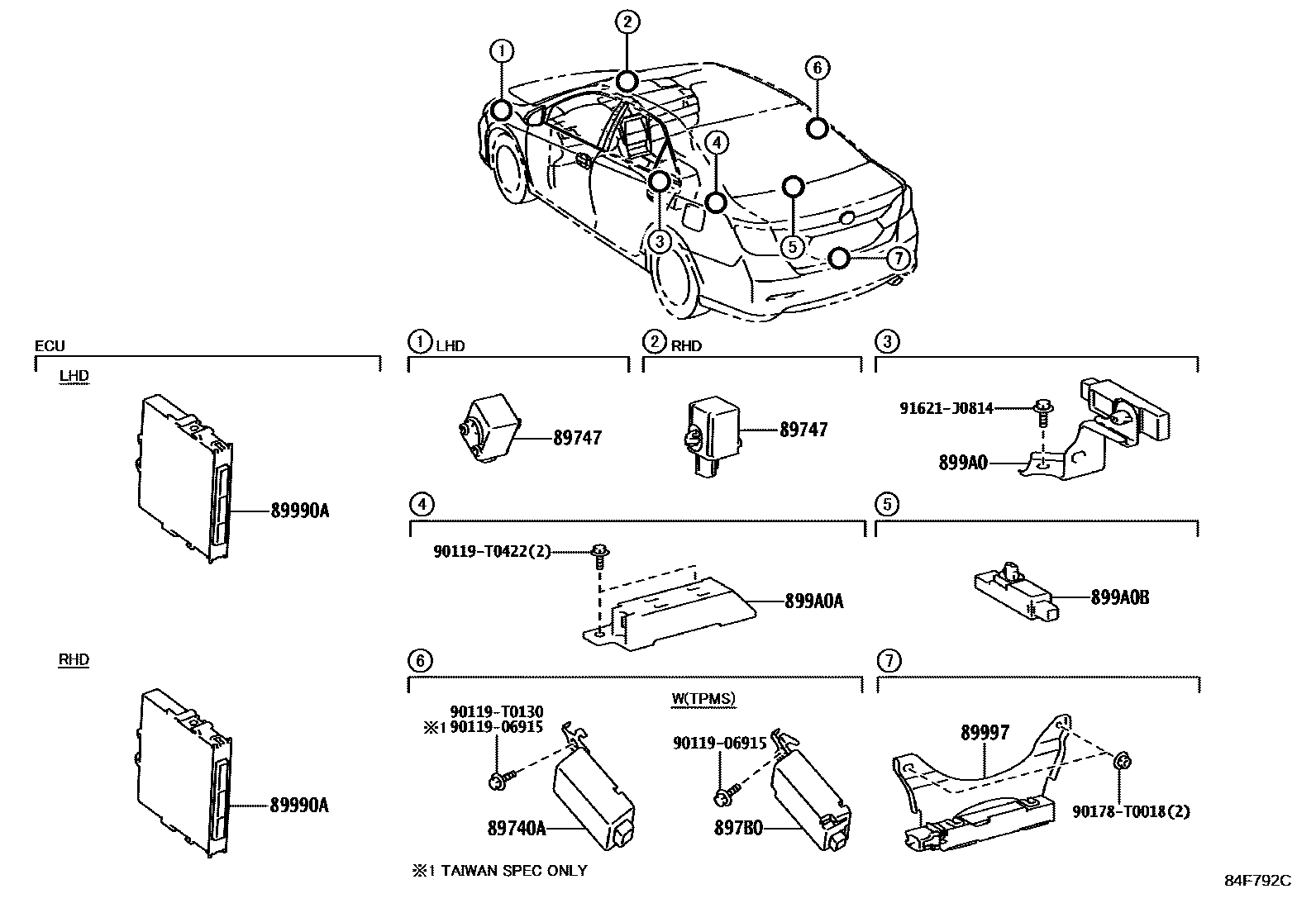

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-33260 · 89740-33261 · 89740-33262 · 89740-33350 · 89740-33360 · 89740-33410 · 89740-33411 |
| 89741 | door control receiver | 89741-06100 · 89741-06110 · 89741-06150 · 89741-06160 · 89741-33560 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 897B0 | Electronic key and tire pressure detection system receiver assembly | 897B0-33210 · 897B0-33250 |
| 89990A | Smart key ECU assembly | 89990-33270 · 89990-33280 · 89990-33530 · 89990-33531 · 89990-33532 · 89990-33560 · 89990-33561 · 89990-33562 |
| 89997 | electronic key antenna | 89997-33020 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-33010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-33020 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-47010 |
