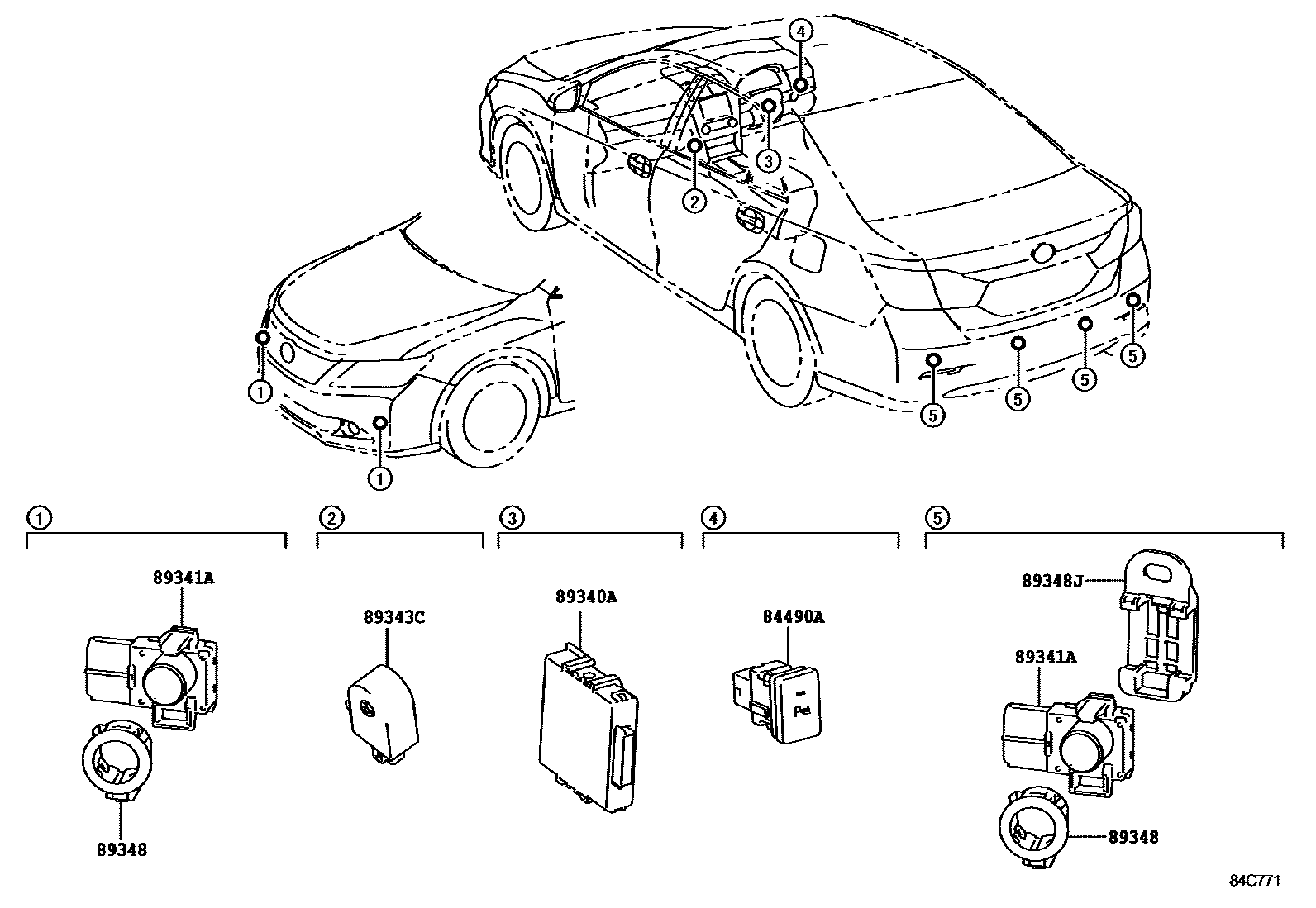

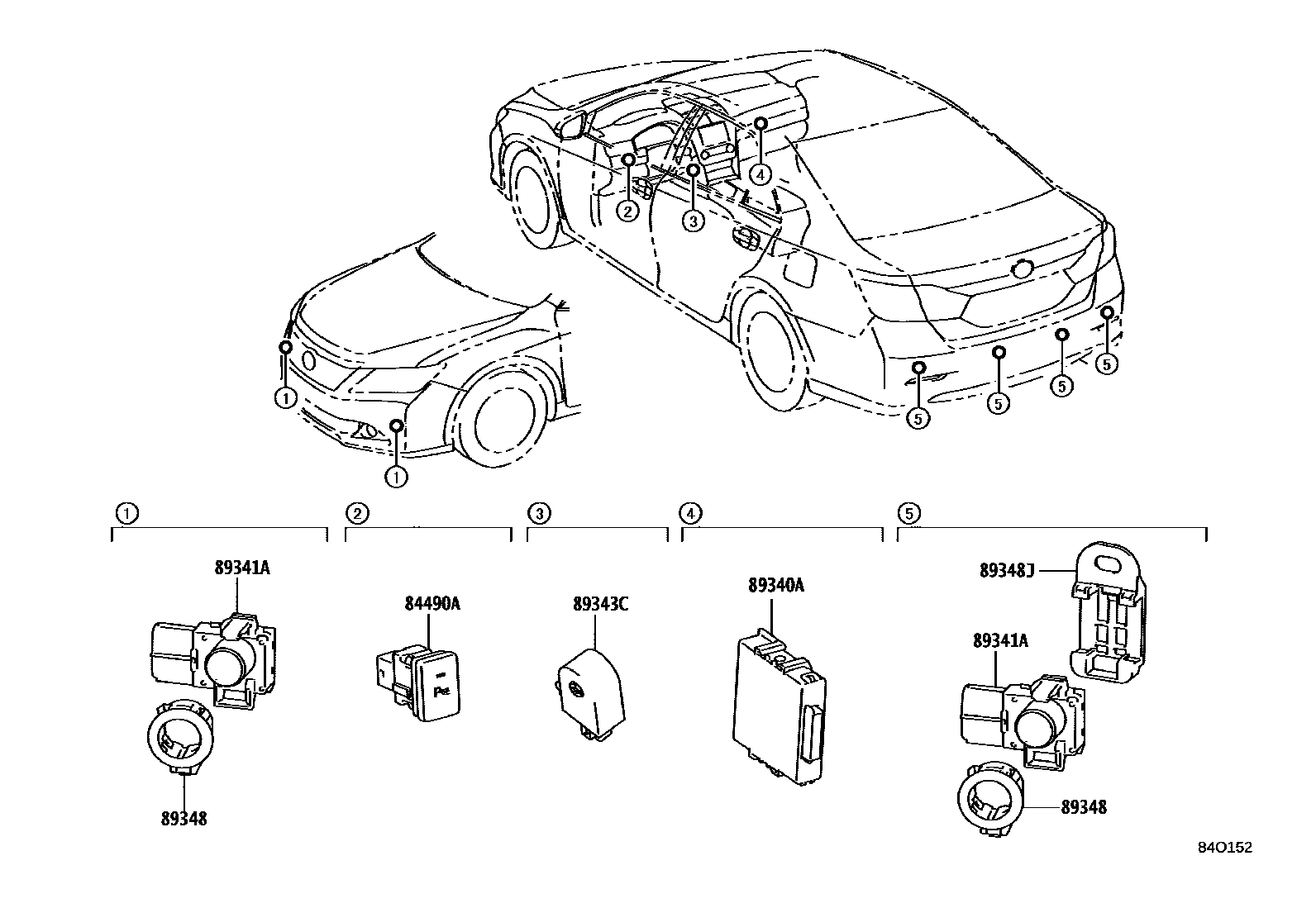

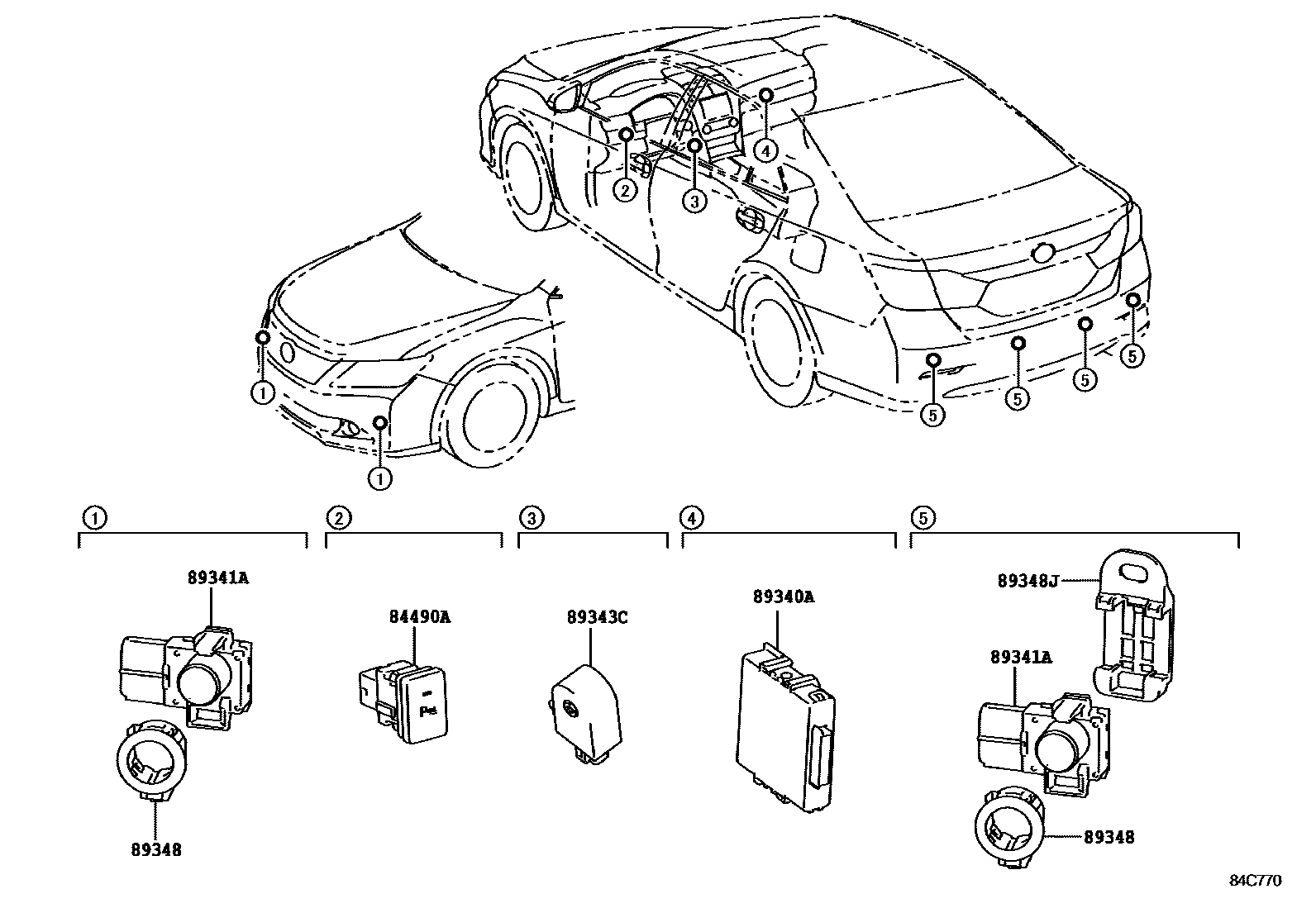

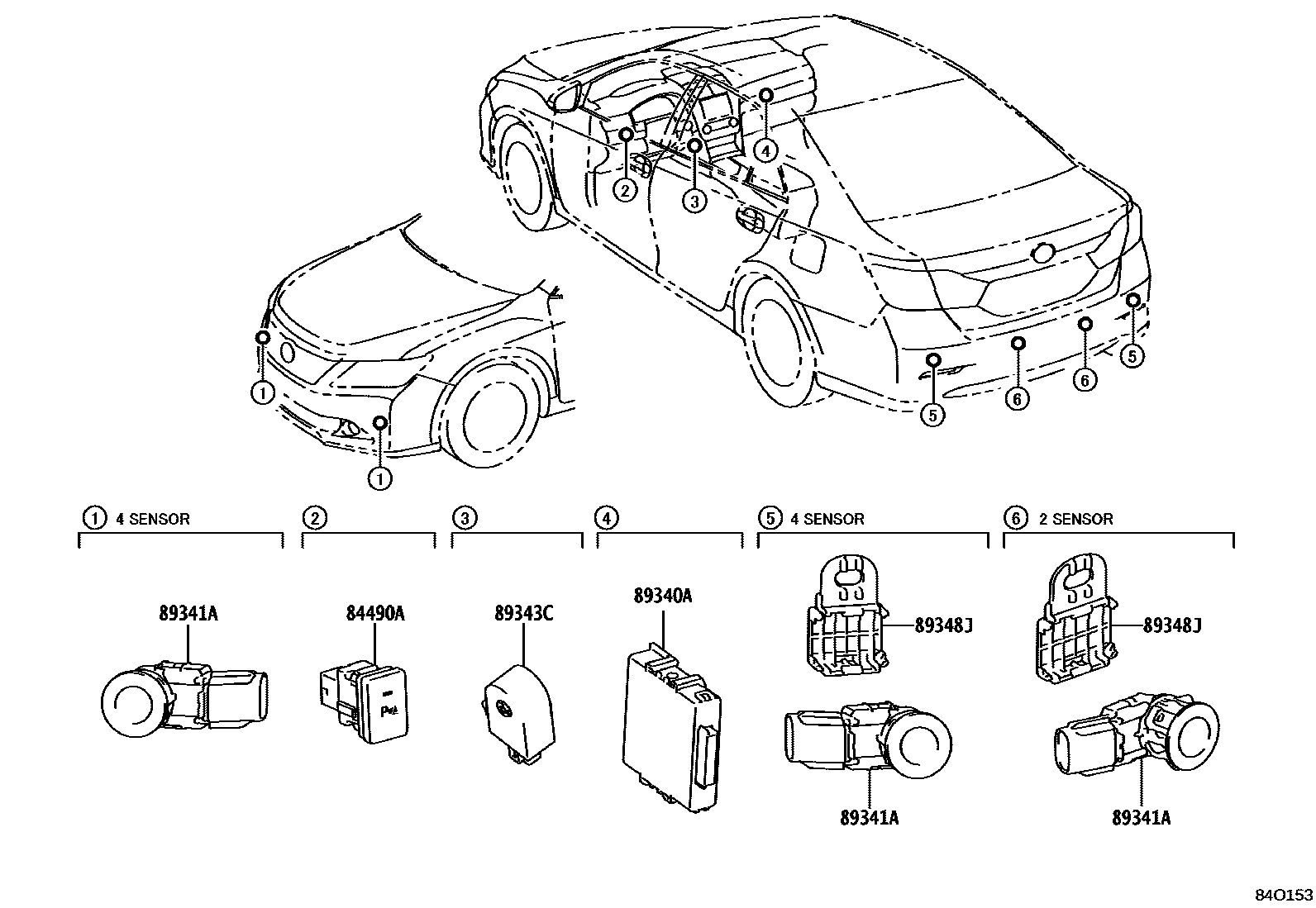

Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417
Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-06101 · 84490-33040 · 84490-33041 |
| 89340A | Distance warning ECU assembly | 89340-33110 · 89340-33120 · 89340-33130 · 89340-33280 · 89340-33290 |
| 89341A | Ultrasonic sensor No. 1 | 89341-33210 |
| 89343C | No. 1 distance warning buzzer | 89343-72010 |
| 89348J | Ultrasonic sensor clip | 89348-12020 · 89348-33090 |
