Toyota CAMRY 巡航控制(自动行驶) — Figure 8408

Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 4 PNC and OE references.

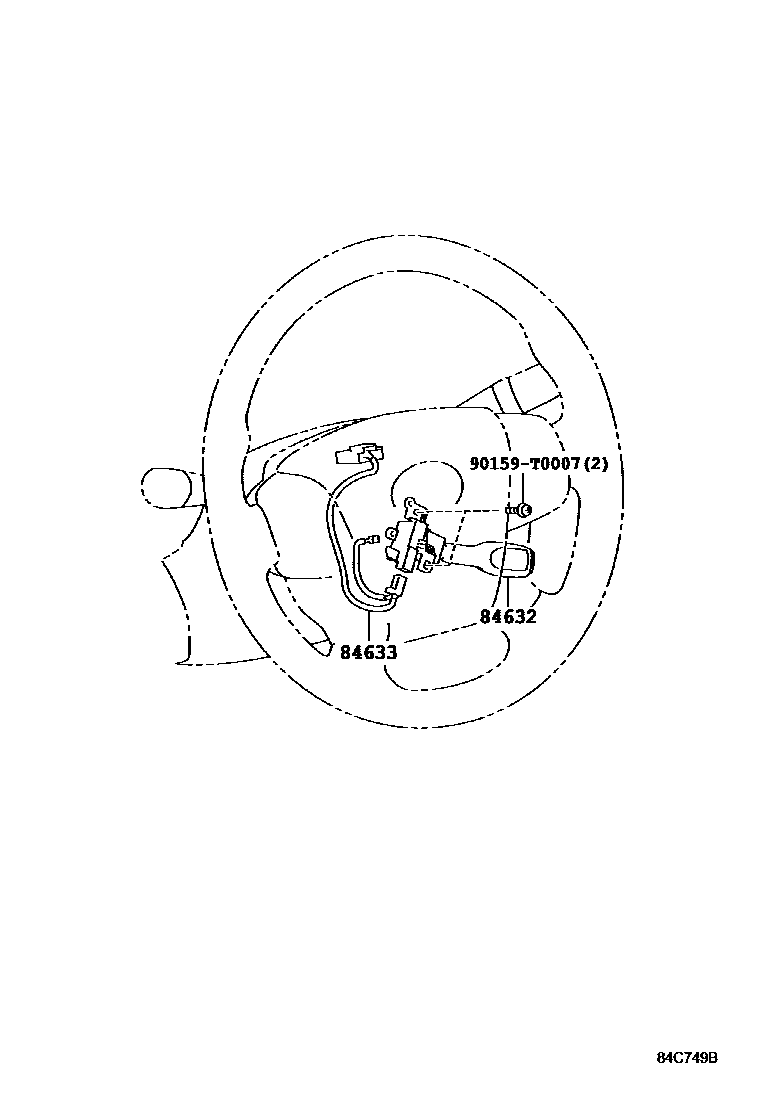

Toyota CAMRY 巡航控制(自动行驶) EPC diagram — 84C749B
巡航控制(自动行驶) — 84C749B (201112 – 201504)

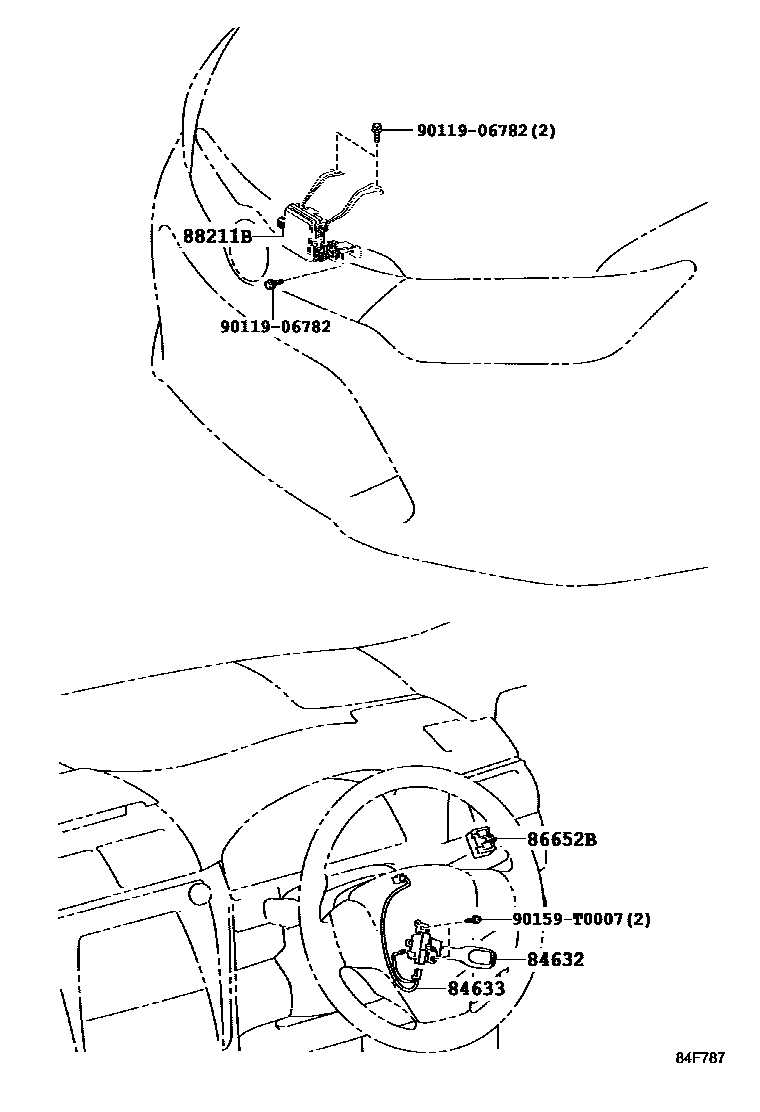

Toyota CAMRY 巡航控制(自动行驶) EPC diagram — 84F787
巡航控制(自动行驶) — 84F787 (201502 – 999999)

PNC and OE references

PNCPart nameOE numbers
84632cruise control master switch84632-34011 · 84632-58011
84633cruise control switch wiring harness84633-48010 · 84633-48020
86652BAnti-skid control buzzer86652-50010
88211BMillimeter wave radar sensor assembly88210-33100
