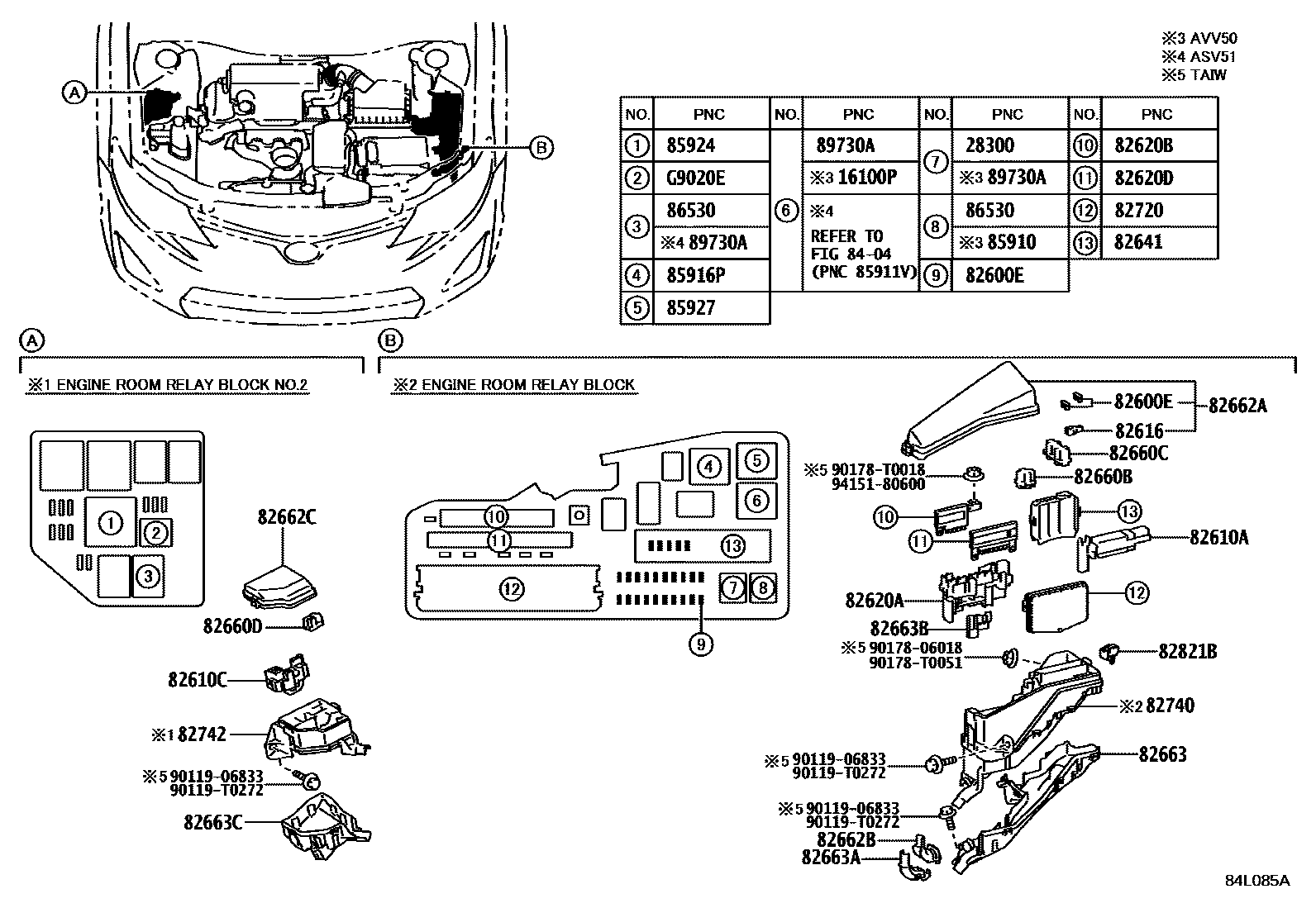

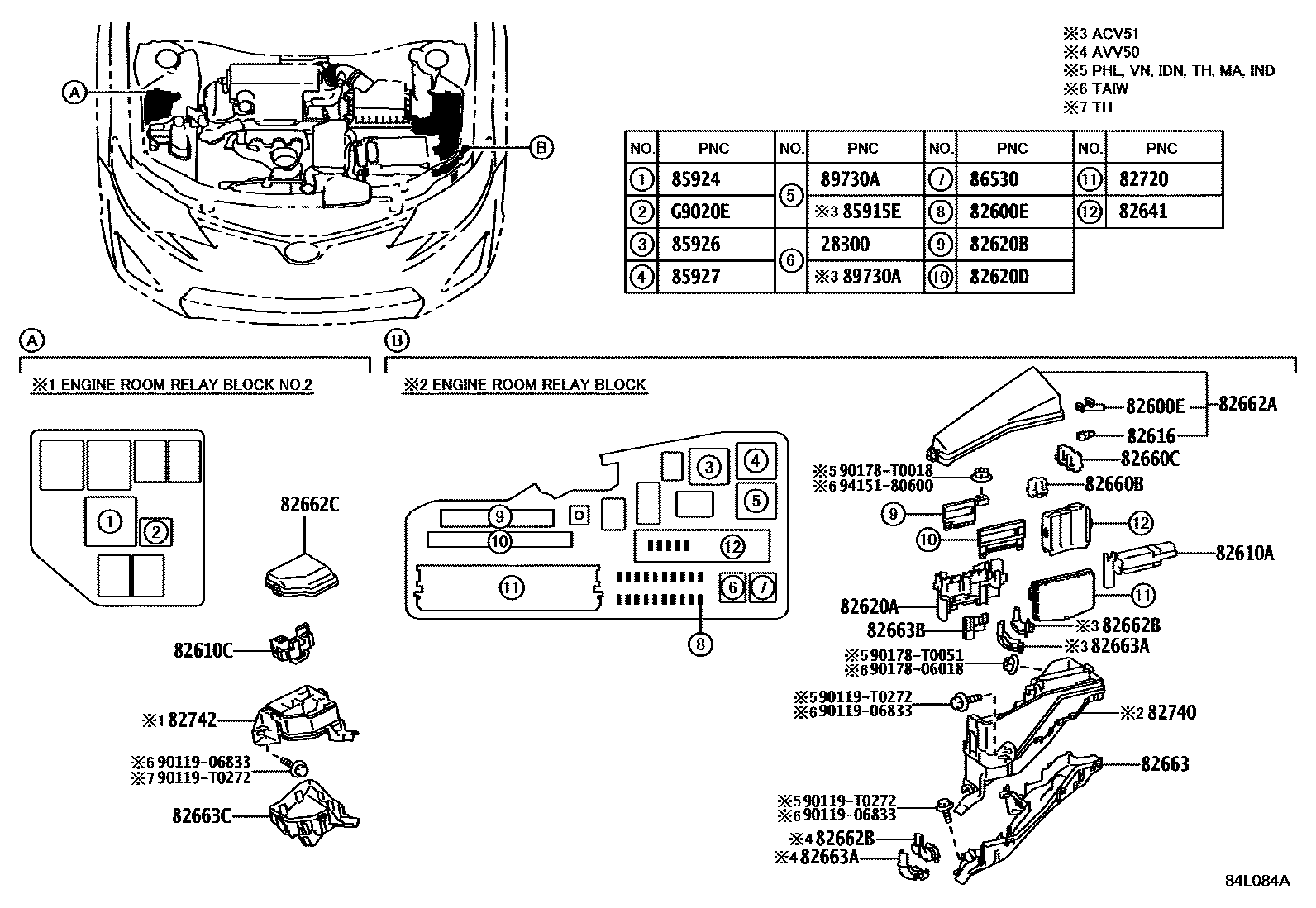

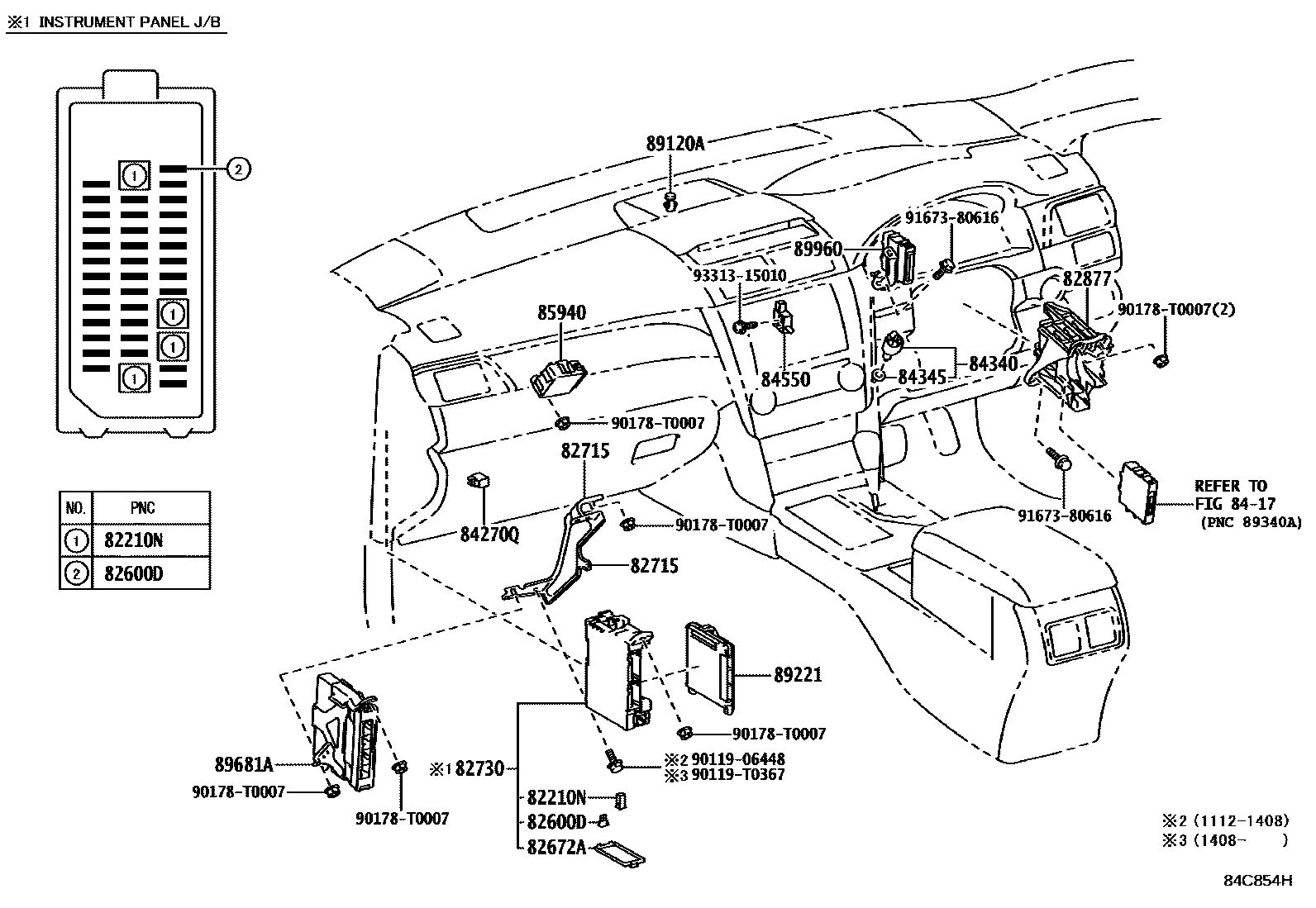

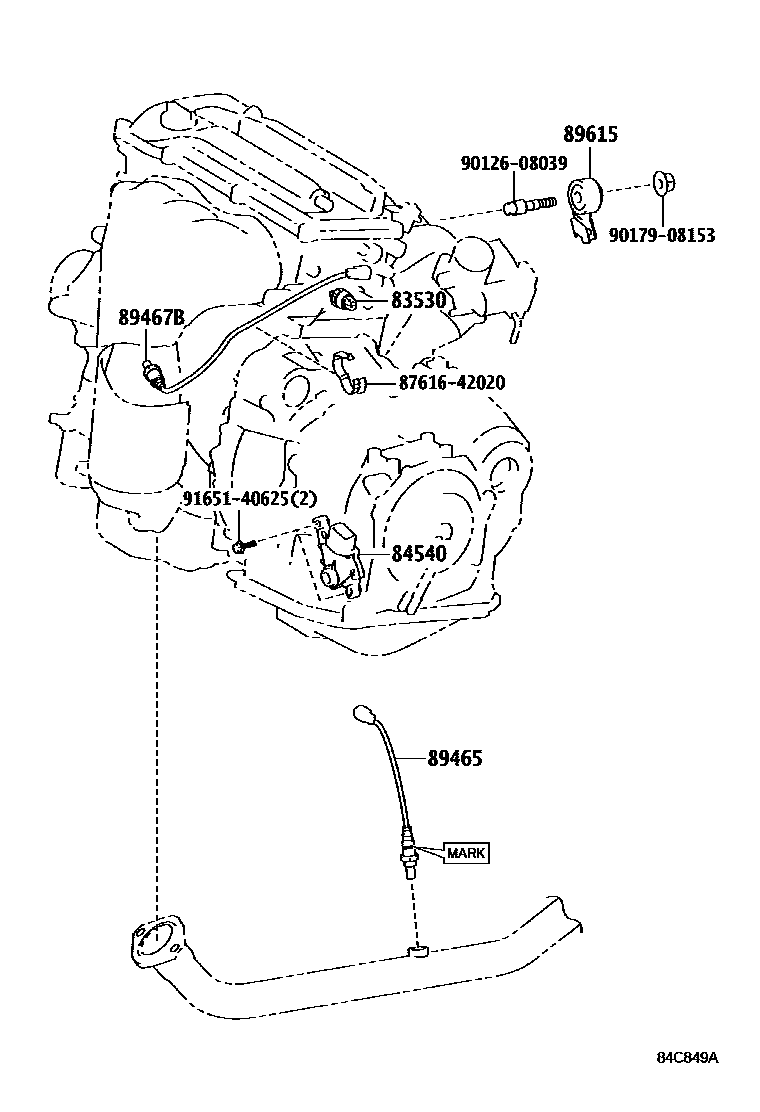

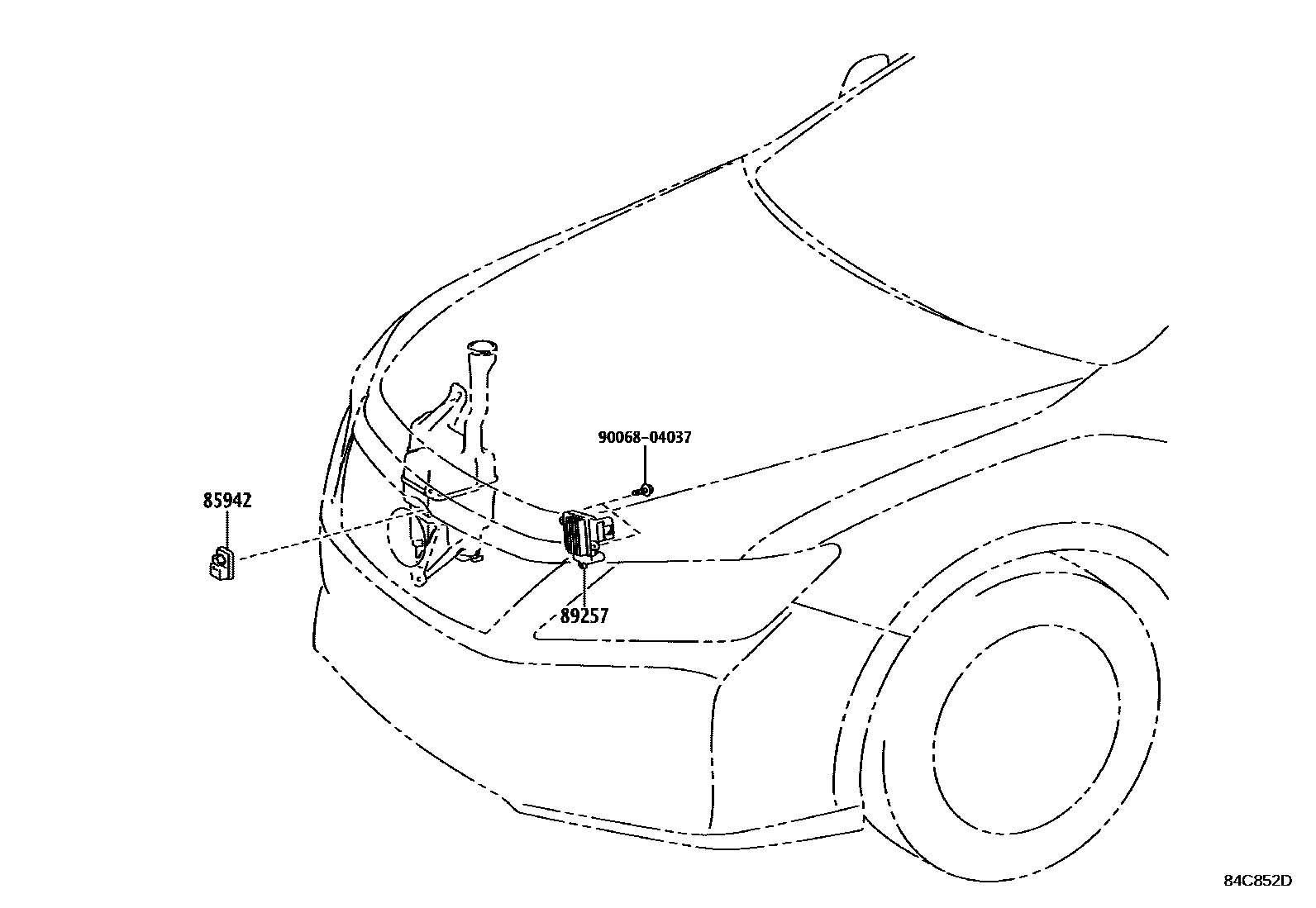

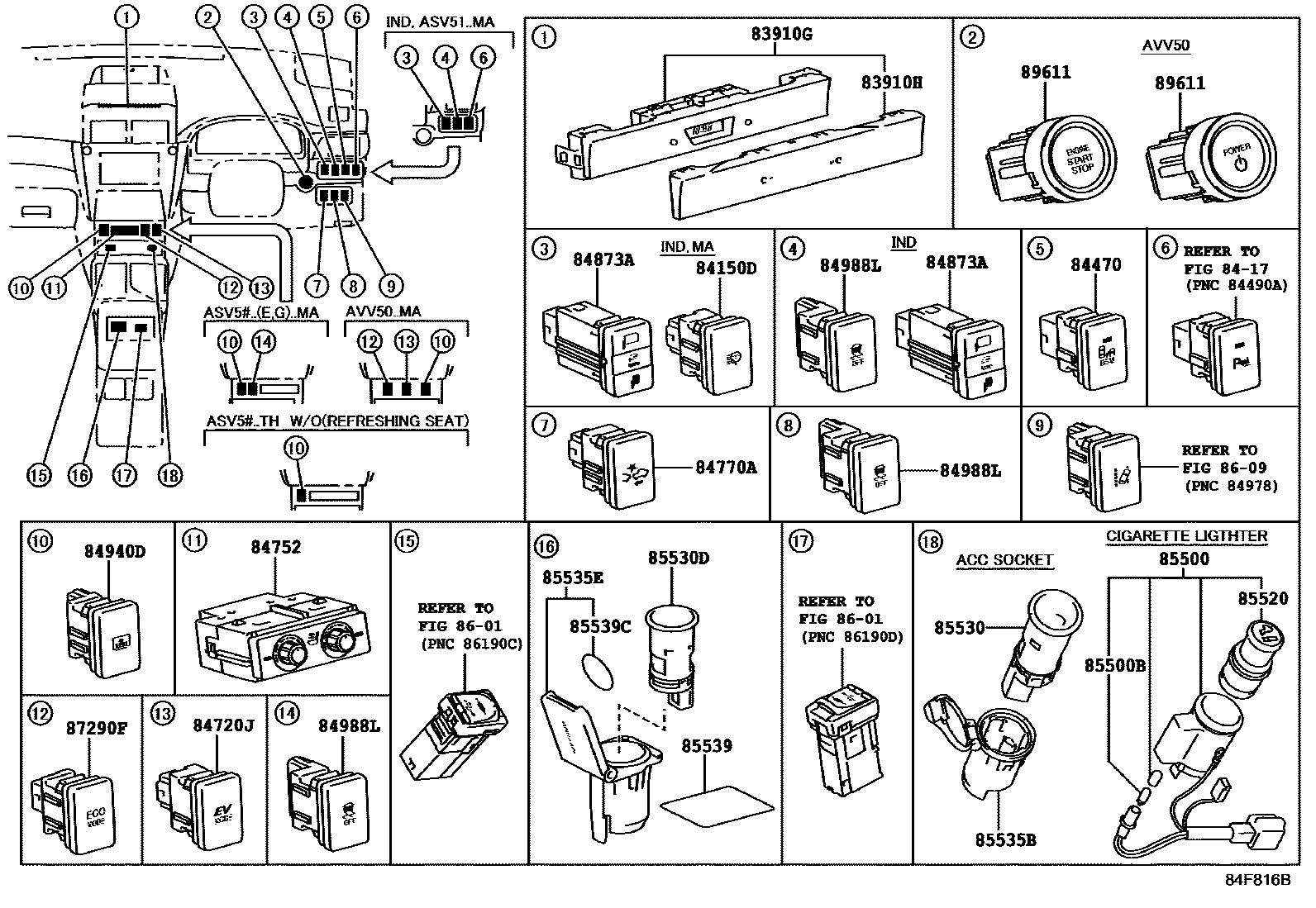

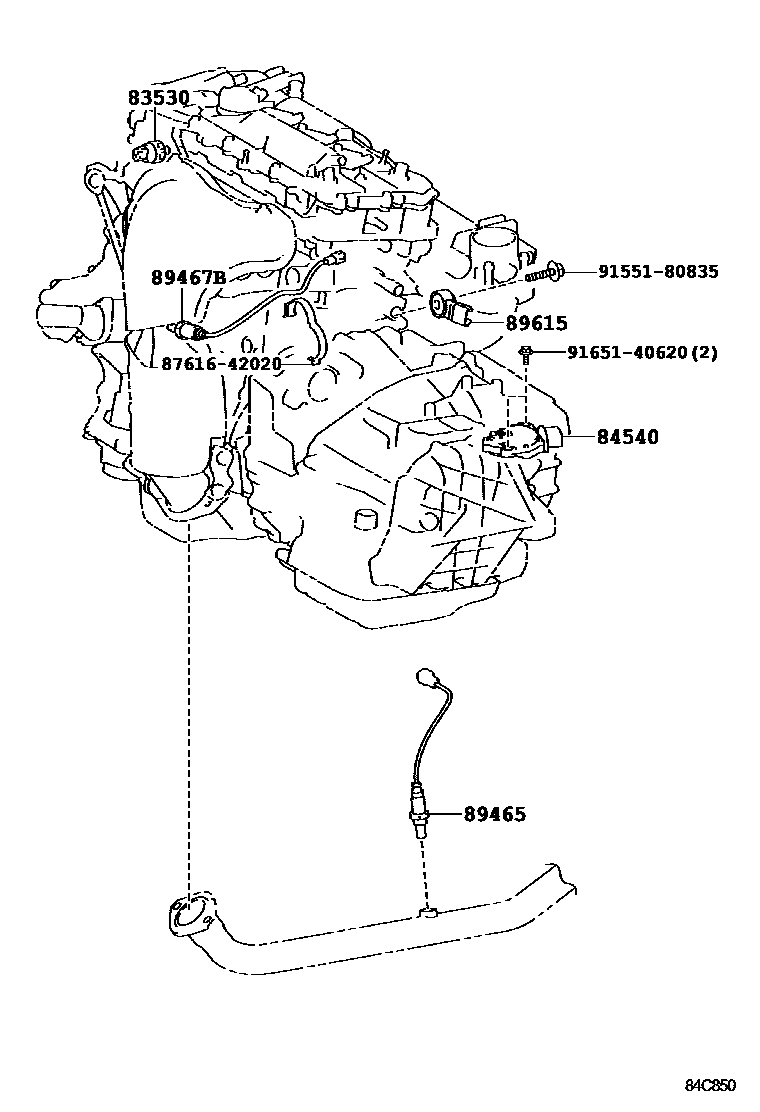

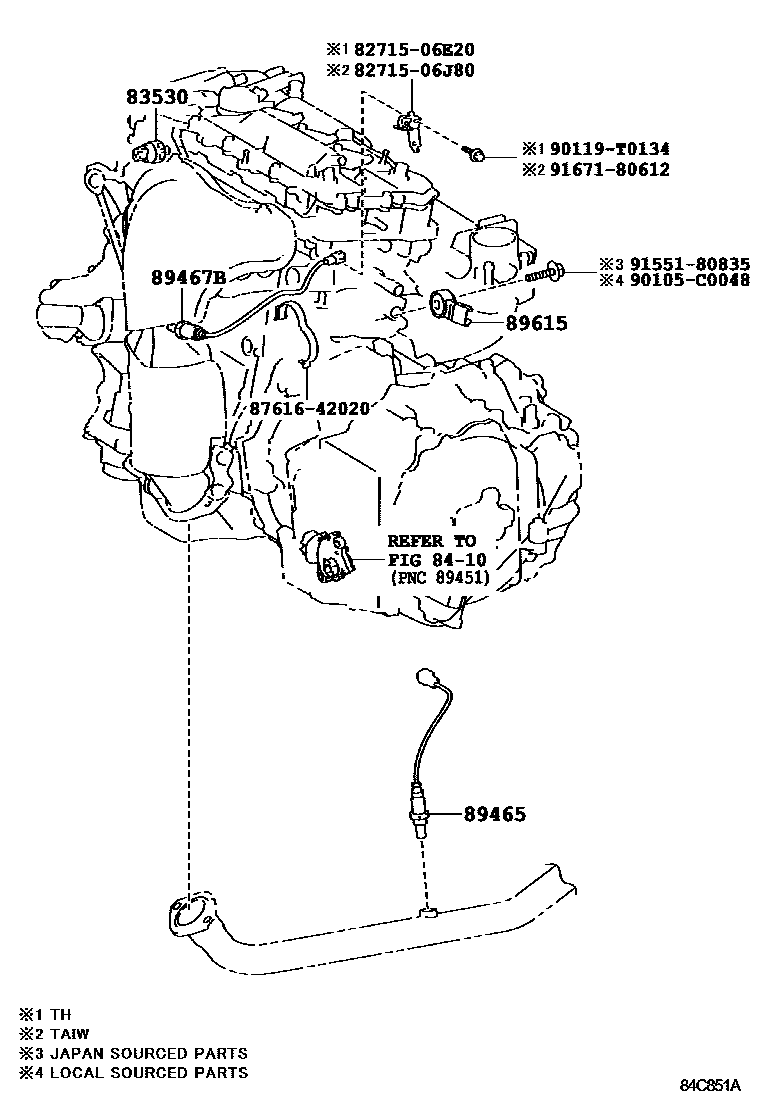

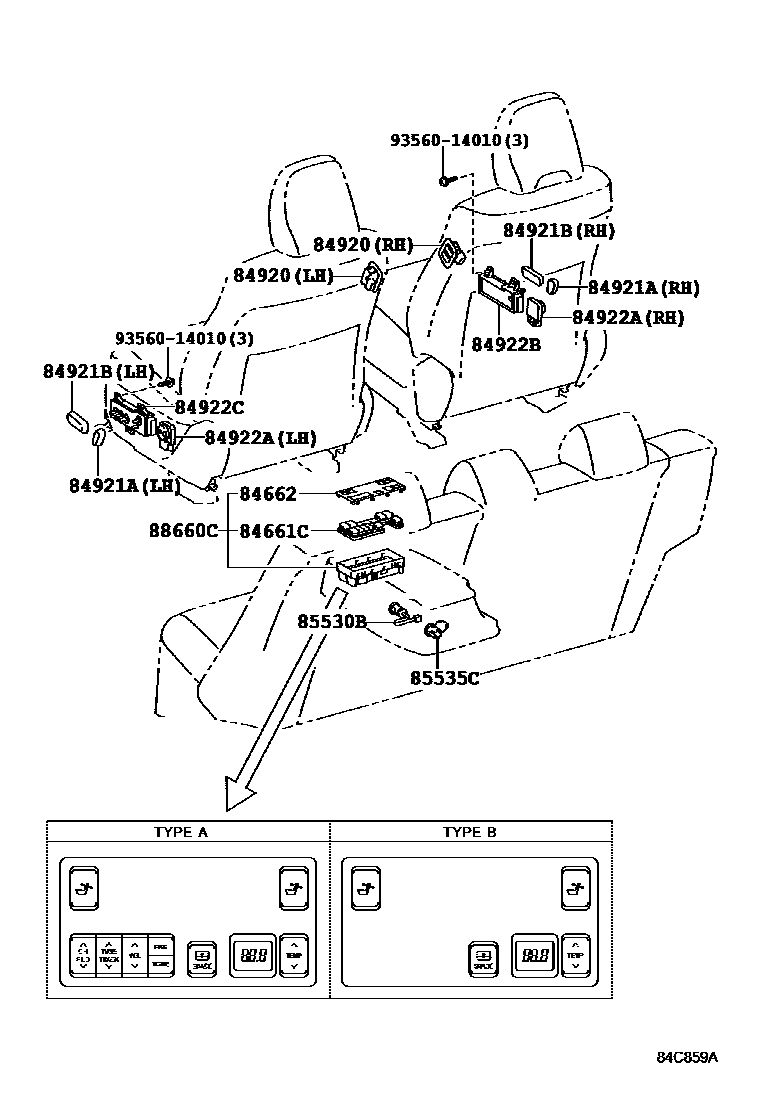

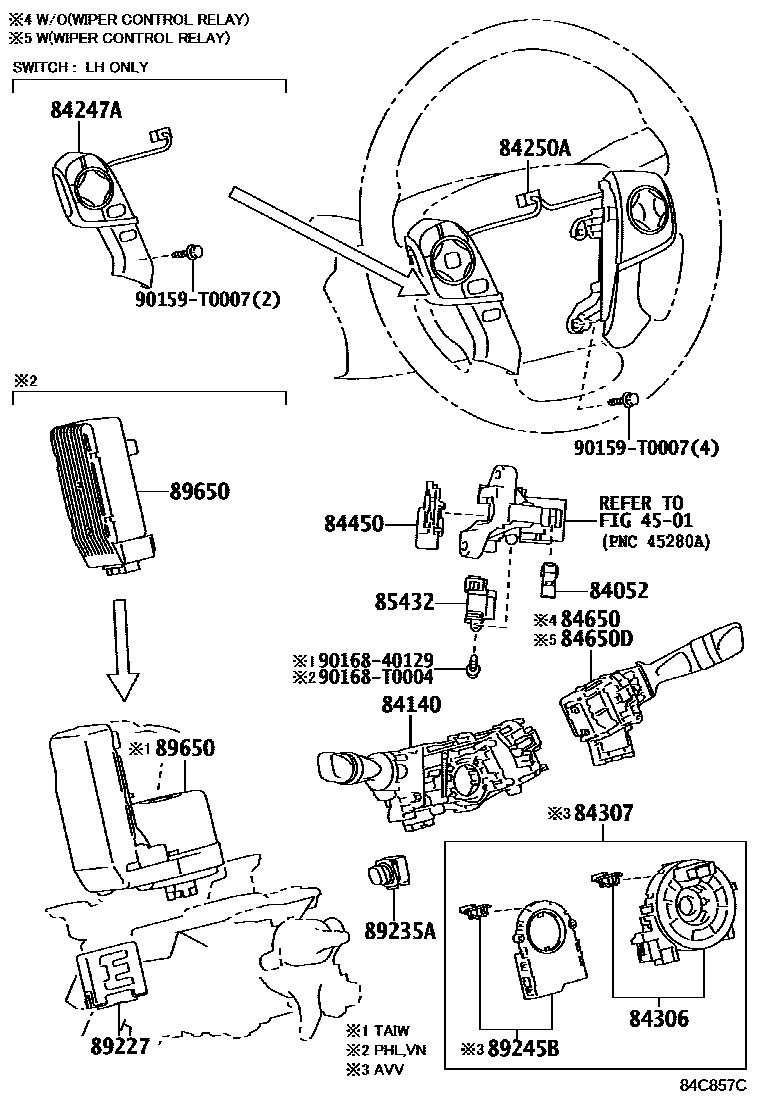

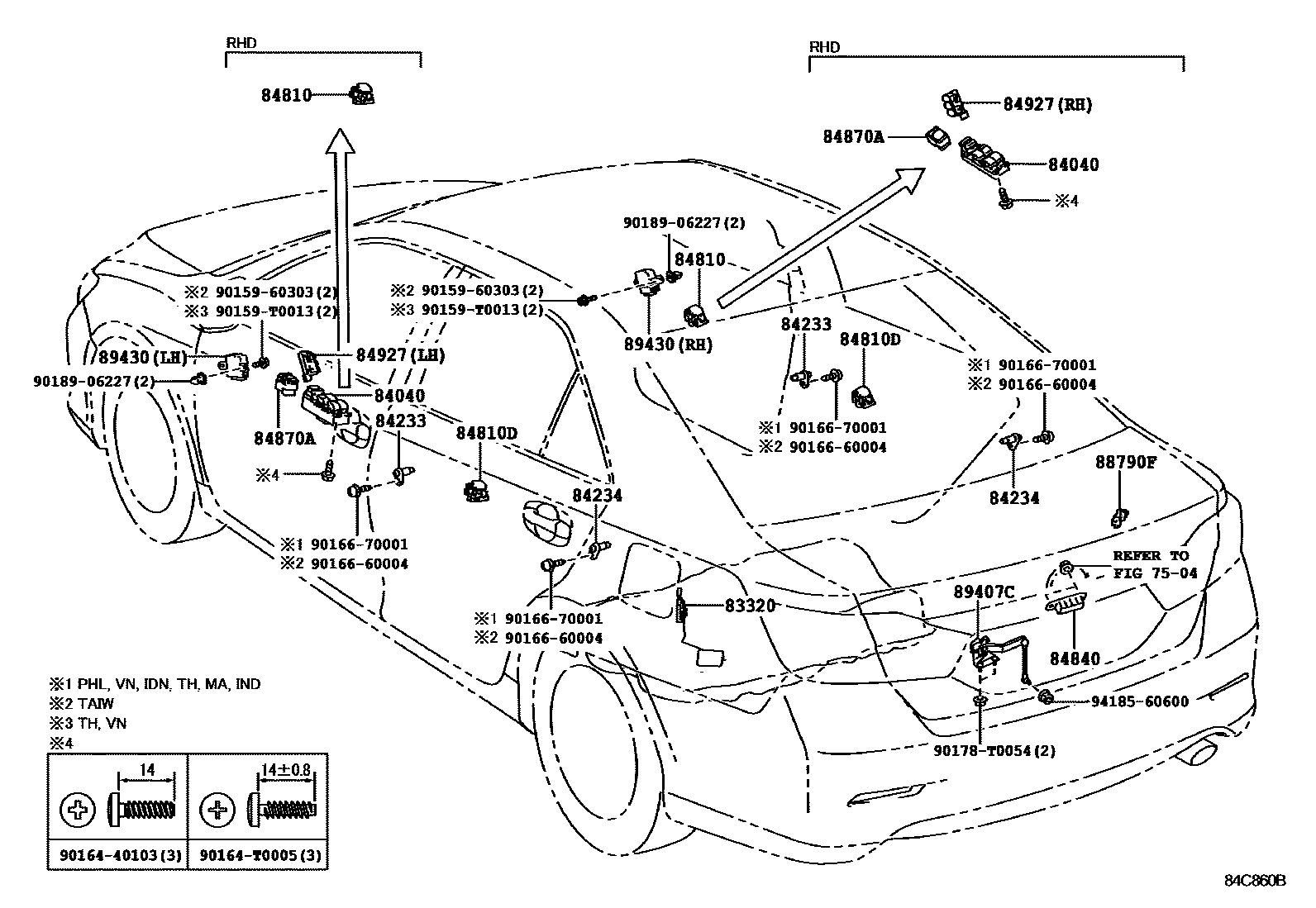

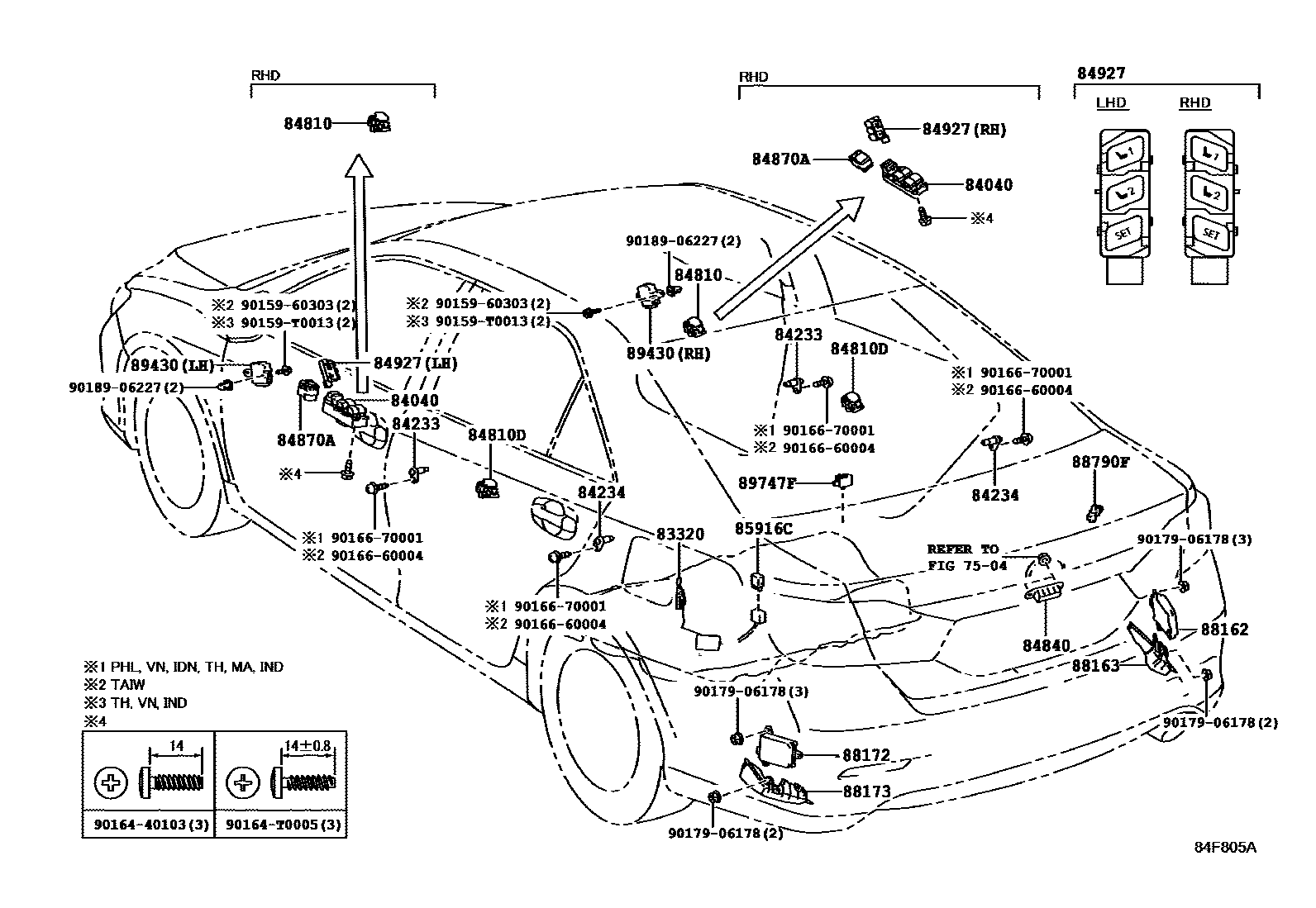

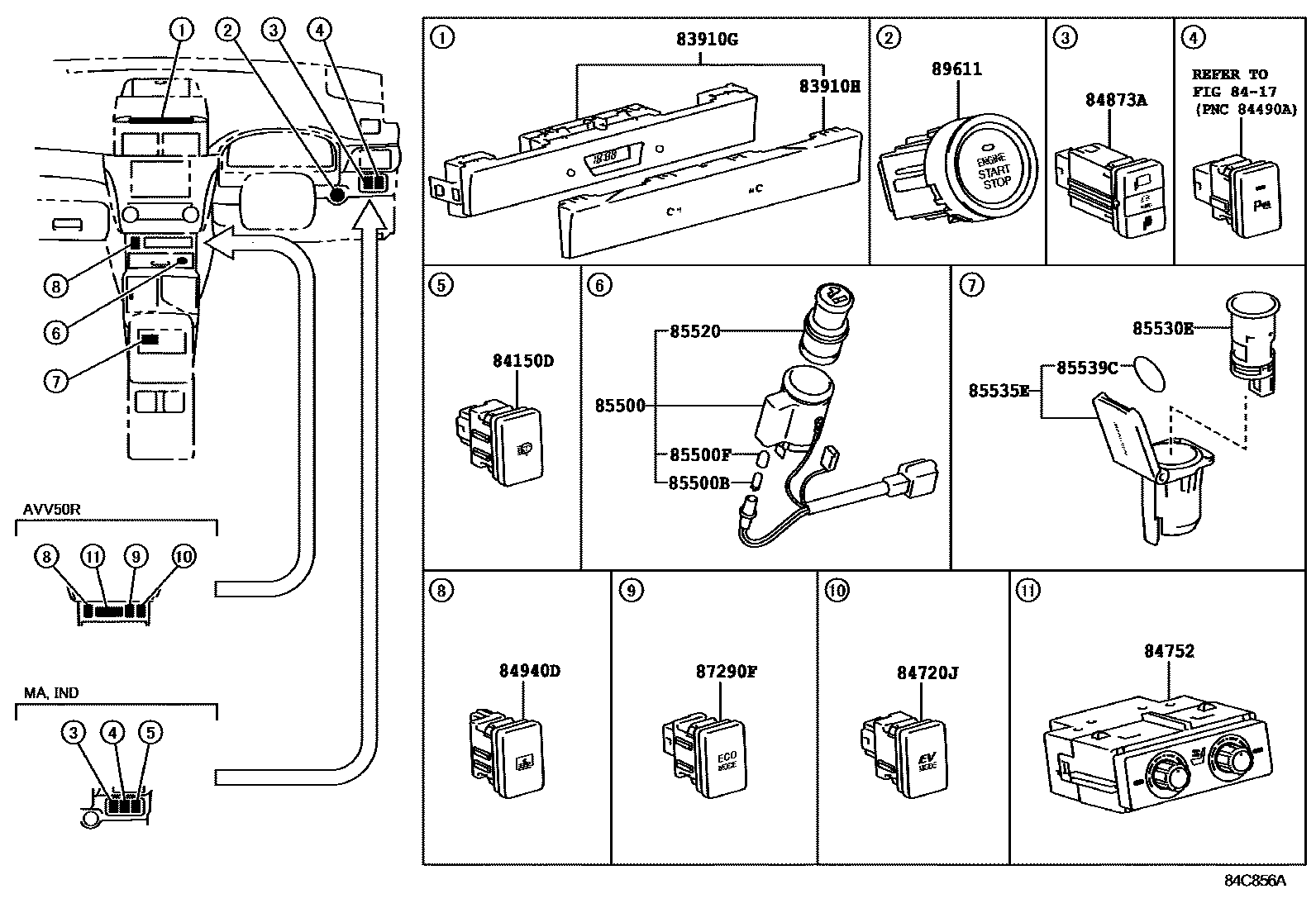

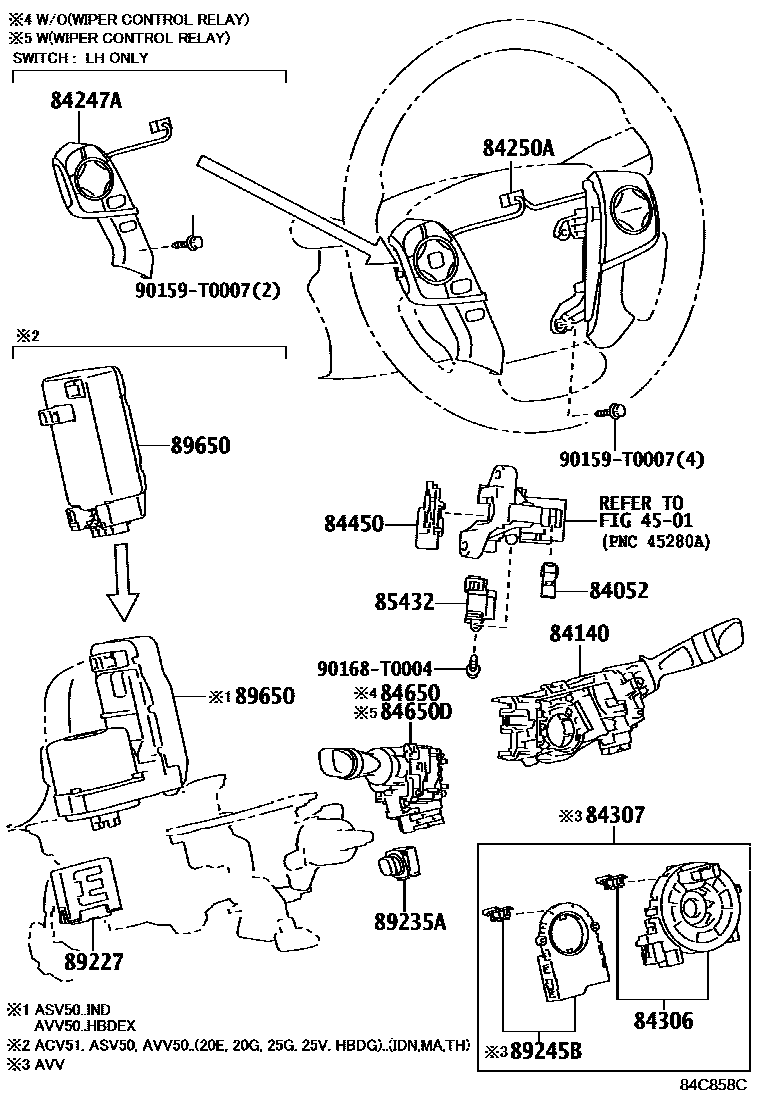

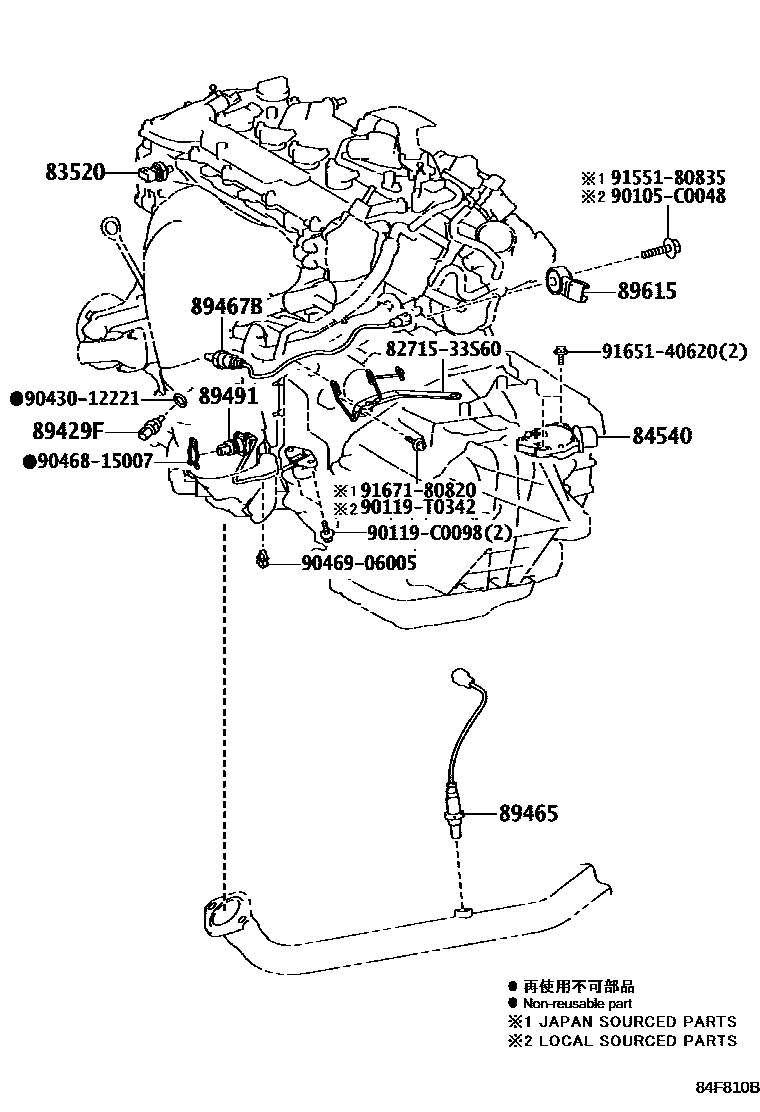

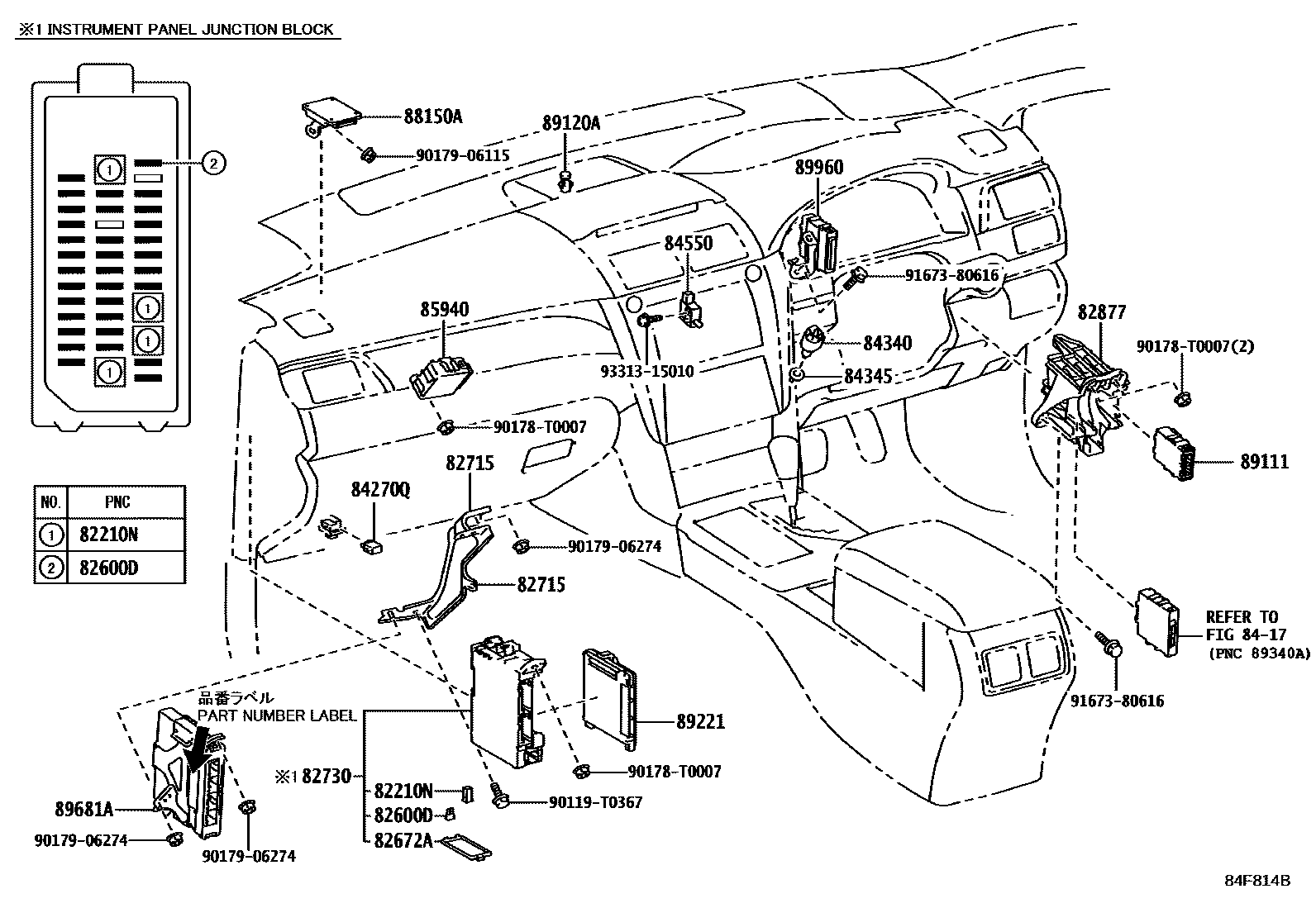

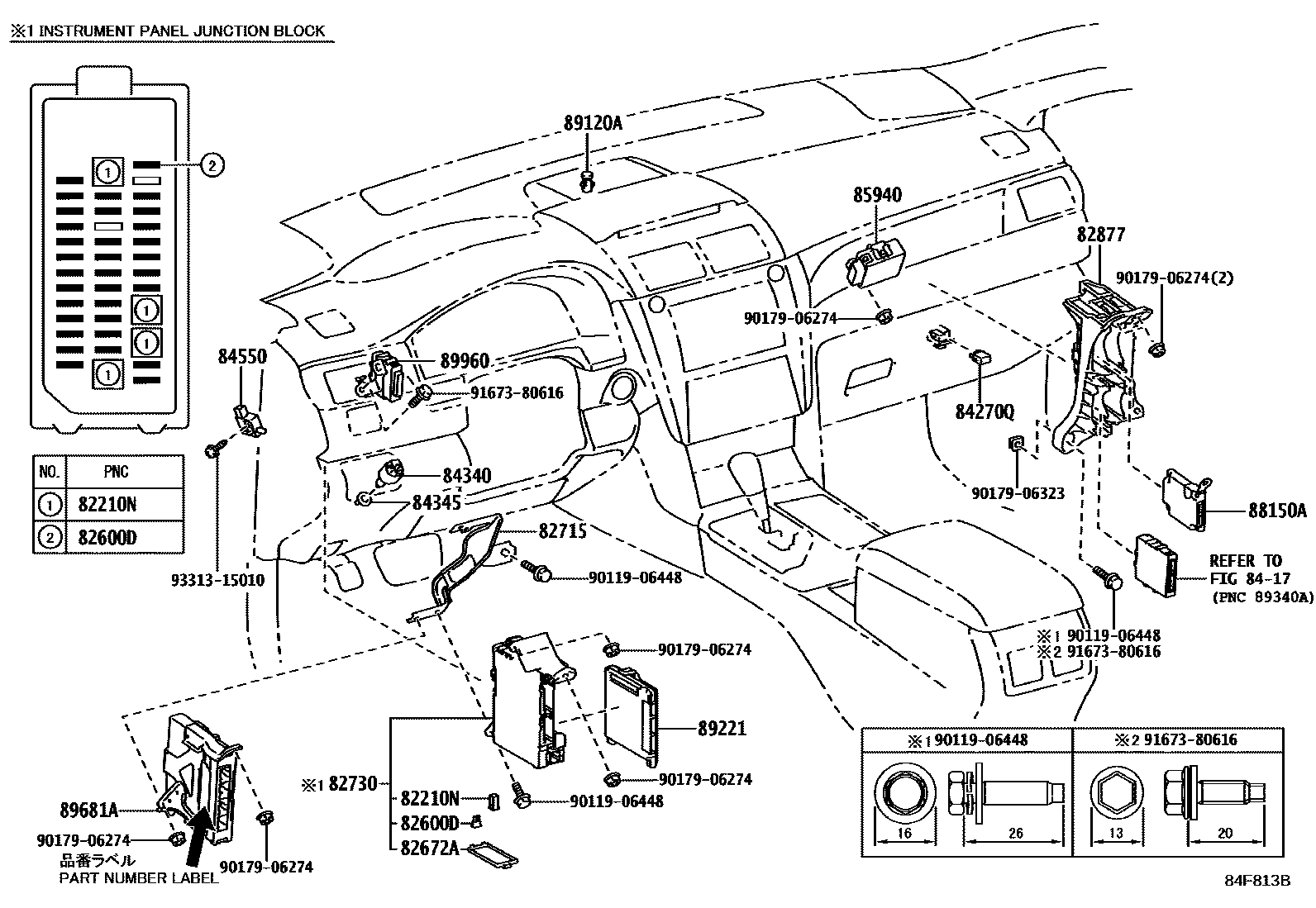

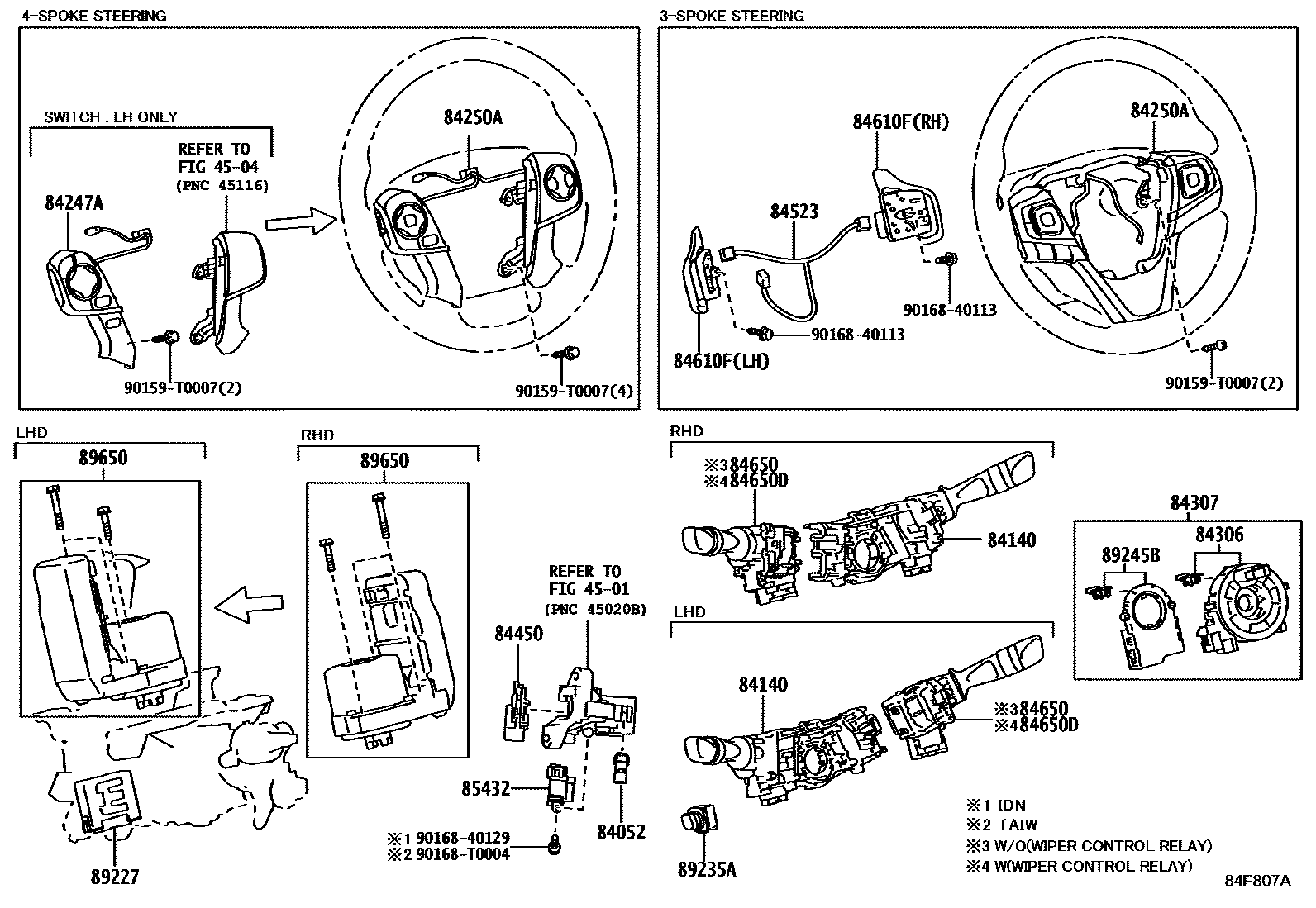

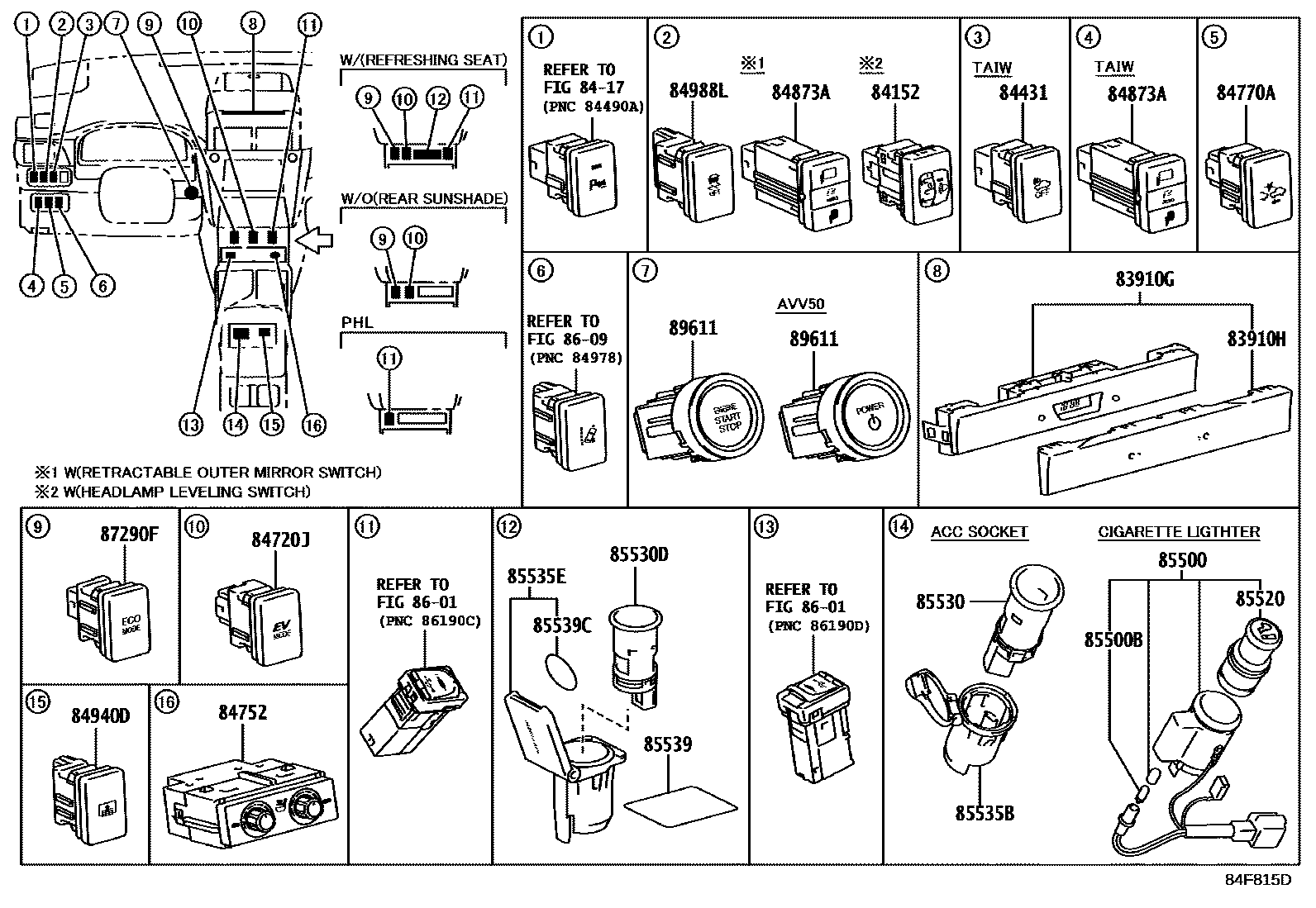

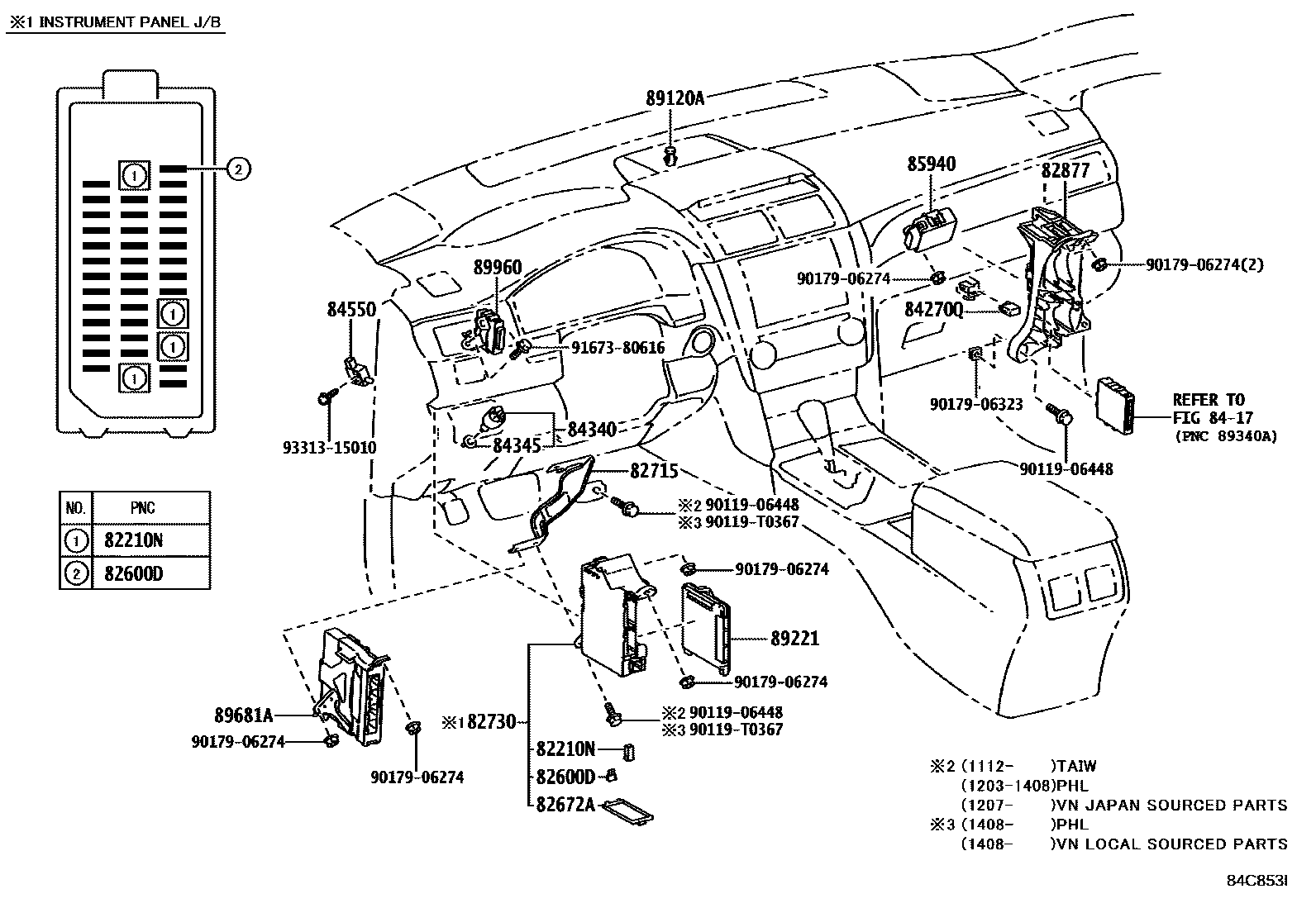

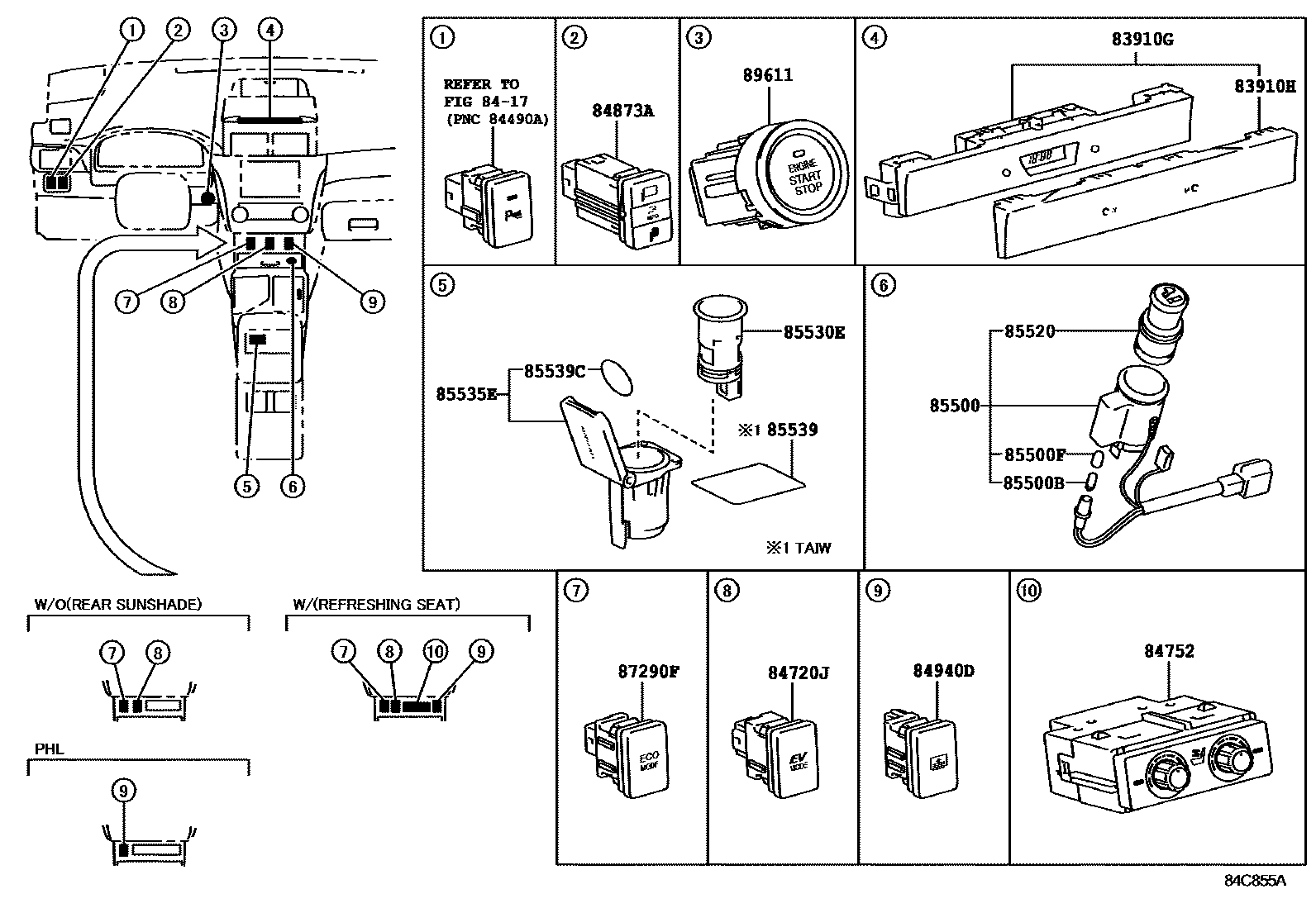

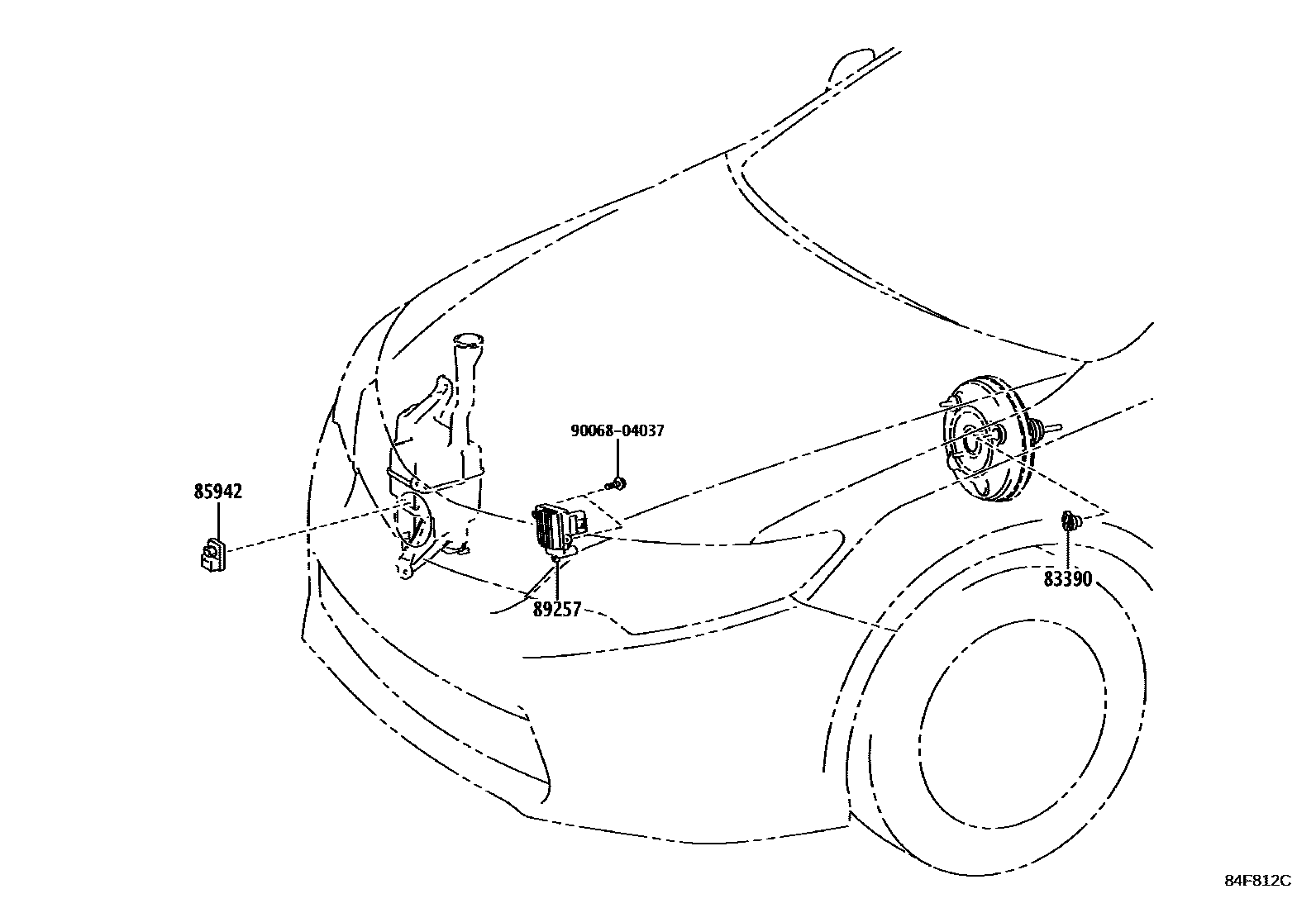

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 22 images and 126 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-T2002 |
| 28300 | Starter relay assembly | 28300-0L011 · 28300-21020 · 28300-28010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33090 · 82610-33120 |
| 82610C | Fuse box assembly | 82610-33100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 |
| 82641 | Integrated relay No. 1 | 82641-33150 · 82641-33170 · 82641-33180 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33030 · 82660-33040 |
| 82660D | Relay assembly | 82660-48020 |
| 82662A | No. 1 relay box upper cover | 82662-33310 · 82662-33330 · 82662-33340 · 82662-33350 · 82662-33410 · 82662-33500 · 82662-33510 · 82662-33730 |
| 82662B | No. 2 relay box upper cover | 82662-33420 · 82662-33450 |
| 82662C | No. 3 relay box upper cover | 82662-33290 · 82662-33300 · 82662-33320 |
| 82663 | Relay box lower cover | 82663-33110 · 82663-33120 · 82663-33130 · 82663-33140 |
| 82663A | No. 2 relay box lower cover | 82663-33160 · 82663-33190 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82663C | No. 4 relay box lower cover | 82663-33100 · 82663-33180 · 82663-33200 |
| 82672A | Junction box cover | 82672-33371 · 82672-33372 · 82672-33382 |
| 82715 | Wire harness clamp bracket | 82715-06F20 · 82715-06F40 · 82715-06J00 |
| 82720 | Engine room junction box assembly | 82720-33210 · 82720-33270 · 82720-33330 · 82720-33420 · 82720-33450 · 82720-33460 · 82720-33520 |
| 82730 | Instrument panel junction box assembly | 82730-33F43 · 82730-33F52 · 82730-33F53 · 82730-33F72 · 82730-33F92 · 82730-33P40 · 82730-33P50 |
| 82740 | Engine room relay box assembly | 82740-33030 · 82740-33040 · 82740-33050 · 82740-33070 |
| 82742 | Engine room No. 2 relay box | 82742-33030 · 82742-33040 |
| 82821B | Connector cover | 82821-33400 |
| 82877 | Right ECU integrated box | 82877-33010 · 82877-33020 |
| 83320 | Fuel gauge sensor assembly | 83320-06040 · 83320-06050 · 83320-06100 · 83320-33130 |
| 83390 | Vacuum warning switch assembly | 83390-28120 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-06260 · 83910-06270 |
| 83910H | clock cover | 8391B-06080 · 8391B-06090 |
| 84040 | Multi-channel network main switch assembly | 84040-06050 · 84040-06060 · 84040-12180 · 84040-30250 · 84040-33080 · 84040-33100 · 84040-35060 · 84820-02290 · 84820-02360 · 84820-02370 · 84820-0D130 · 84820-0D140 · 84820-0D150 |
| 84052 | Unlock warning switch assembly | 84052-0K020 · 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-02A50 · 84140-06560 · 84140-06580 · 84140-06600 · 84140-06610 · 84140-06620 · 84140-06630 · 84140-06640 · 84140-06650 |
| 84150D | Headlight washer switch assembly | 84150-33050 · 84150-33051 · 84150-33071 |
| 84152 | Headlight beam height adjustment switch | 84152-42051 |
| 84233 | Door control light switch assembly (for front door) | 84231-02040 · 84231-02070 · 84231-0D020 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02040 · 84231-02070 · 84231-0D020 |
| 84247A | Steering wheel decorative cover left switch | 84247-06220 · 84247-06230 · 84247-06240 · 84247-06250 · 84247-06260 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06400 · 84250-06410 · 84250-06610 · 84250-06620 · 84250-06630 · 84250-06640 · 84250-06650 · 84250-06660 · 84250-33270 · 84250-33400 · 84250-33650 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84306-06190 · 84306-06200 · 84306-09010 · 84306-39015 · 84308-02010 · 84308-33080 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-02110 · 84307-06150 · 84307-33070 |
| 84340 | brake light switch assembly | 84340-19065 · 84340-59635 · 84340-59645 |
| 84345 | Brake light switch base adjuster | 84345-0K010 · 84345-51010 |
| 84431 | vehicle intrusion speaker switch | 84431-33070 |
| 84450 | Ignition or starter switch assembly | 84450-06030 · 84450-52020 |
| 84470 | Warning release switch assembly | 84470-06061 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-33010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-47010 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 |
| 84650 | Windshield wiper switch assembly | 84652-02820 · 84652-06280 · 84652-06310 · 84652-06330 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06260 · 84652-06270 · 84652-06320 |
| 84661C | Cooler control switch button | 84661-33030 · 84661-33050 |
| 84662 | Cooler control switch board | 84662-33030 · 84662-33031 · 84662-33050 · 84662-33051 |
| 84720J | Mode selection switch assembly | 84720-06060 · 84720-06061 · 84720-06091 · 84720-33080 · 84720-33081 |
| 84752 | Relax seat switch | 84752-33020 · 84752-33090 |
| 84770A | Collision prediction system cancel switch assembly | 84770-06051 · 84770-33021 |
| 84810 | Electric window lift switch assembly | 84810-06040 · 84810-06050 · 84810-06070 · 84810-06080 · 84810-30220 · 84810-33120 |
| 84810D | Rear electric window lift switch assembly | 84810-06040 · 84810-06050 · 84810-06070 · 84810-06080 · 84810-30220 · 84810-33120 |
| 84840 | Trunk door opening switch assembly | 84840-28030 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02040 · 84872-06020 · 84872-48010 |
| 84873A | Telescopic exterior mirror switch | 84873-33070 · 84873-58020 · 84873-75010 |
| 84922B | Front right electric seat switch | 84070-33110 · 84922-06150 · 84922-60190 |
| 84922C | Front left electric seat switch | 84070-33120 · 84922-06140 · 84922-60180 |
| 84927 | Seat memory switch | 84927-33080 · 84927-33090 |
| 84940D | Rear sunshade switch assembly | 84940-33060 · 84940-33061 · 84940-75011 |
| 84988L | VSC off switch | 84988-02051 · 84988-06061 |
| 85432 | Key interlock solenoid valve | 85432-06020 · 85432-06030 · 85432-0D010 |
| 85500 | Cigarette lighter assembly | 85500-33060 · 85500-33080 |
| 85500B | Cigarette lighter bulb | 90010-01167 · 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-0D030 · 85530-0K010 · 85530-0K040 |
| 85530B | No. 1 rear power socket assembly | 85530-30040 |
| 85530D | No. 2 power socket assembly | 85530-02050 · 85530-0D030 · 85530-0K010 · 85530-0K040 · 85530-0K080 |
| 85530E | No. 3 power socket assembly | 85530-0D030 · 85530-0K010 |
| 85535C | Rear power outlet cover | 85535-30020 |
| 85535E | No. 2 power outlet cover | 85535-33130 · 85535-33150 |
| 85539 | Power socket attention labels | 85539-06020 |
| 85539C | Power socket attention labels | 85539-60020 |
| 85910 | Circuit breaking relay assembly | 90987-02027 · 90987-T2001 |
| 85915E | relay | 90987-T2002 |
| 85916C | Reversing light relay | 90987-02027 · 90987-T2001 |
| 85916P | headlight relay | 90987-T2002 |
| 85924 | Ignition control relay | 90987-T2002 |
| 85926 | Headlight dimmer relay | 90987-T2002 |
| 85927 | cooling fan relay | 90080-87009 · 90987-T2002 |
| 85940 | Windshield wiper relay assembly | 85940-33150 · 85940-33160 |
| 85942 | Headlight washer control relay | 85942-30040 · 85942-58010 |
| 86530 | Speaker relay assembly | 90987-02027 · 90987-T2001 |
| 87290F | ECO switch assembly | 87290-06060 · 87290-06061 · 87290-06081 · 87290-33060 · 87290-33061 |
| 88150A | Driving assistance ECU assembly | 88150-33080 · 88150-33110 |
| 88162 | Blind spot monitor right sensor | 88162-0W220 · 88162-33060 |
| 88163 | Blind spot monitor right side cover | 88163-06050 |
| 88172 | Blind spot monitor left sensor | 88162-0W220 · 88162-33060 |
| 88173 | Blind spot monitor left cover | 88173-06050 |
| 88660C | Cooler control switch assembly | 84660-33060 · 84660-33080 · 84660-33140 · 84660-33170 |
| 88790F | Thermistor assembly | 88790-22131 |
| 89111 | Network gateway ECU | 89111-33120 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 89221 | Multi-channel network body ECU | 89220-33120 · 89220-33130 · 89220-33140 · 89220-33150 · 89220-33400 · 89220-33510 · 89220-33520 · 89220-33530 · 89220-33540 · 89220-33550 · 89221-33550 · 89221-33560 · 89221-33570 · 89221-33580 · 89221-33590 · 89221-33600 · 89221-33670 · 89221-33671 · 89221-33700 · 89221-33740 · 89221-33820 · 89221-33840 · 89221-33841 · 89221-33850 · 89221-33851 · 89221-33860 · 89221-33861 · 89221-33870 · 89221-33880 · 89221-33A00 · 89221-33A10 · 89221-33A21 · 89221-33A22 · 89221-33A31 · 89221-33A32 · 89221-33B90 · 89221-33D00 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-33020 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245B | steering sensor | 89245-09010 · 89245-39015 · 8924B-02010 |
| 89257 | Cooling fan ECU | 89257-30080 |
| 89407C | Rear height control sensor sub-assembly | 89407-41010 |
| 89429F | temperature sensor | 89429-12010 |
| 89430 | Exterior rearview mirror control ECU assembly | 89430-33130 · 89430-33140 |
| 89465 | oxygen sensor | 89465-06230 · 89465-06280 · 89465-33470 · 89465-33560 · 89465-33570 · 89465-33640 · 89465-33650 |
| 89467B | air fuel ratio sensor | 89467-06170 · 89467-06220 · 89467-33160 · 89467-48190 |
| 89491 | Engine oil level sensor | 89491-33040 · 89491-33042 |
| 89611 | One-button start switch | 89611-30140 · 89611-30141 · 89611-30142 · 89611-33020 · 89611-33021 · 89611-33031 · 89611-33032 · 89611-42010 · 89611-42011 · 89611-42012 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-06340 · 89650-06341 · 89650-06350 · 89650-06351 · 89650-06360 · 89650-06410 · 89650-06420 · 89650-06430 · 89650-33341 · 89650-33350 · 89650-33351 · 89650-33352 · 89650-33360 · 89650-33361 · 89650-33370 · 89650-33371 · 89650-33372 · 89650-33440 · 89650-33610 · 89650-33620 · 89650-33630 |
| 89681A | Power management control ECU | 89690-33040 · 89690-33050 · 89690-33190 · 89690-33200 · 89690-33280 · 89690-33290 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33420 · 89960-33430 · 89960-33470 · 89960-33530 · 89960-33560 · 89960-33570 |
| G9020E | Hybrid water pump relay | 90987-02027 · 90987-T2001 |
